Полностью черная солнечная панель Pv 400 Вт 440 450 460 Перк моно полностью черный
- Категория: Solar Energy Products >>>
- Поставщик: United,Energy,Co.,Ltd.United,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 14.0 $* | 15.72 $* |
| Aug-18-2025 | 14.52 $* | 15.66 $* |
| Jul-18-2025 | 12.66 $* | 13.57 $* |
| Jun-18-2025 | 14.47 $* | 15.37 $* |
| May-18-2025 | 12.67 $* | 13.51 $* |
| Apr-18-2025 | 14.22 $* | 15.48 $* |
| Mar-18-2025 | 14.7 $* | 15.98 $* |
| Feb-18-2025 | 13.94 $* | 14.56 $* |
| Jan-18-2025 | 13.88 $* | 14.23 $* |
Характеристики
Product Description
Electrical Characteristics:
Cell Orientation | 144（6*24） |
Glass | 3.2mm coated tempered galss |
Frame | Anodized aluminum alloy frame |
Weight | 23.5kg + 3% |
Dimension | 2094×1038×35mm |
Power Output Tolerance | 0~+5W |
Max. System Voltage | DC1500V(IEC/UL) |
Model Number | UE440M-72HB | UE445M-72HB | UE450M-72HB | ||||||||
Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | |||||
Maximum Power (Pmax/W) | 440 | 332 | 445 | 336 | 450 | 340 | |||||
Open Circuit Voltage (Voc/V) | 49.2 | 46.4 | 49.4 | 46.6 | 49.6 | 46.8 | |||||
Short Circuit Current (Isc/A) | 11.39 | 9.17 | 11.46 | 9.23 | 11.53 | 9.29 | |||||
Voltage at Max Power (Vmp/V) | 40.6 | 38.3 | 40.8 | 38.5 | 41 | 38.7 | |||||
Current at Max Power (Imp/A) | 10.84 | 8.67 | 10.91 | 8.73 | 10.98 | 8.79 | |||||
Module Efficiency(%) | 20.25 | 20.48 | 20.71 | ||||||||
Temp Coefficient of Isc | +0.048%/°C | ||||||||||
Temp Coefficient of Voc | -0.270%/°C | ||||||||||
Temp Coefficient of Pmax | -0.350%/°C | ||||||||||
Model Number | UE455M-72HB | UE460M-72HB | UE465M-72HB | ||||||||
Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | |||||
Maximum Power (Pmax/W) | 455 | 344 | 460 | 348 | 465 | 352 | |||||
Open Circuit Voltage (Voc/V) | 49.8 | 47 | 50 | 47.2 | 50.2 | 47.4 | |||||
Short Circuit Current (Isc/A) | 11.6 | 9.35 | 11.67 | 9.41 | 11.74 | 9.47 | |||||
Voltage at Max Power (Vmp/V) | 41.2 | 38.9 | 41.4 | 39.1 | 41.6 | 39.3 | |||||
Current at Max Power (Imp/A) | 11.05 | 8.85 | 11.12 | 8.91 | 11.18 | 8.96 | |||||
Module Efficiency(%) | 20.94 | 21.17 | 21.4 | ||||||||
Temp Coefficient of Isc | +0.048%/°C | ||||||||||
Temp Coefficient of Voc | -0.270%/°C | ||||||||||
Temp Coefficient of Pmax | -0.350%/°C | ||||||||||
Market Certificate:

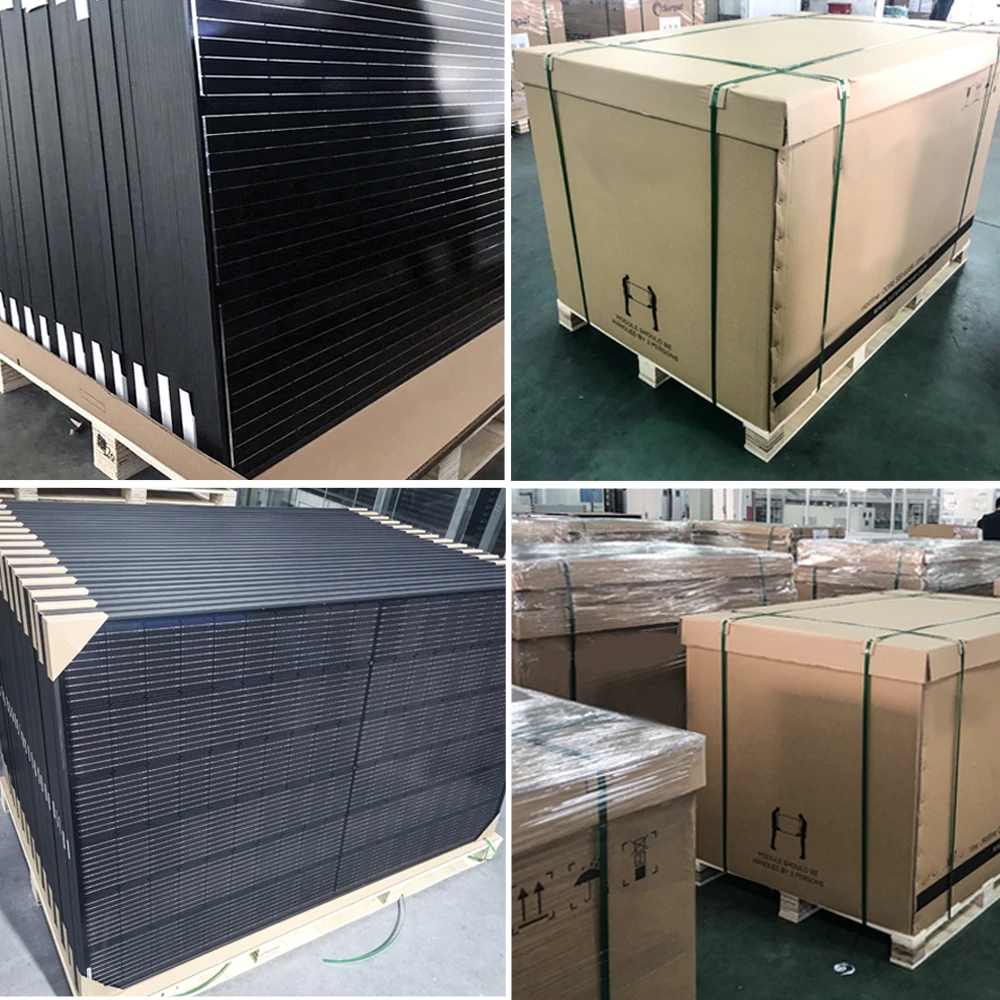

Packing & Delivery
Recommend Products

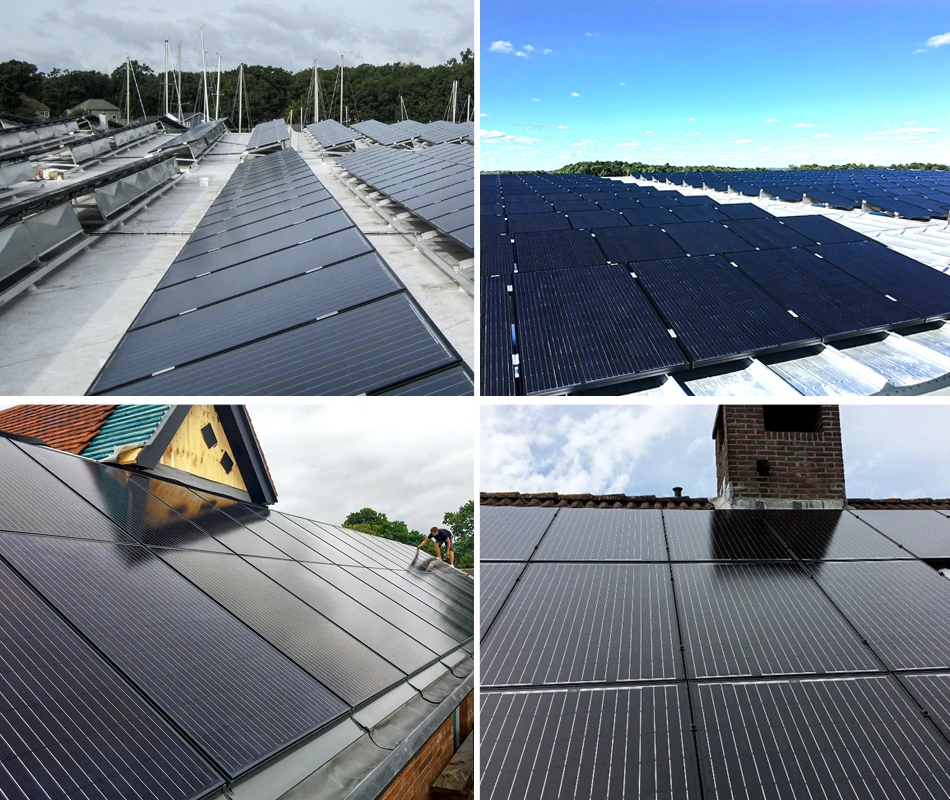

Our Projects

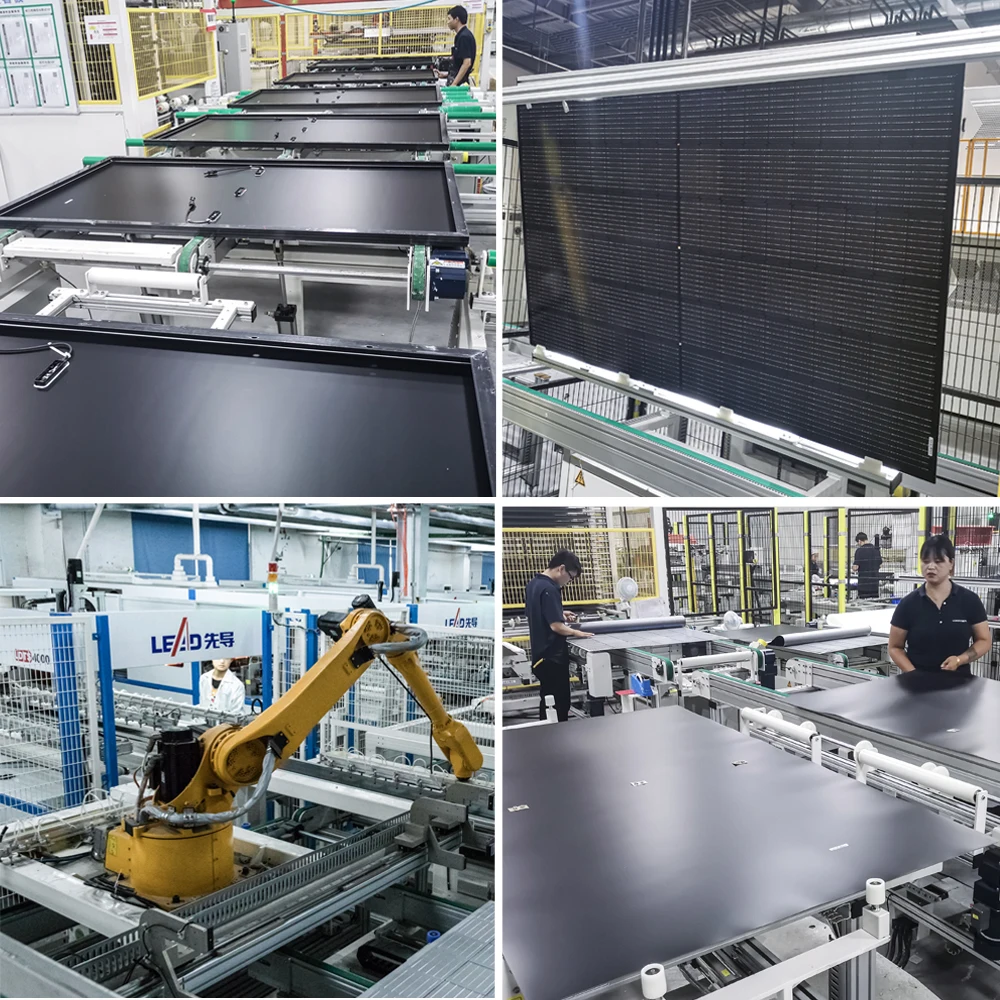

Company Profile
Company Overview
As a world-class solar products manufacturer, Unitedenergy specializes in the research, development, production, and sales of solar PV products and solar panels. Unitedenergy is accredited as Batch I Smart Manufacturing Plant by Jiangsu Government, the Witness Laboratory Accreditation Certificate (WMTC) by CSA、DEKRA, and CTF Laboratory Certificate by TUV SUD. Unitedenergy focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation in quality. With over 10 years of development, Unitedenergy now has factory area covering 150,000 square meters, with 600 experienced employees.
