Product name:

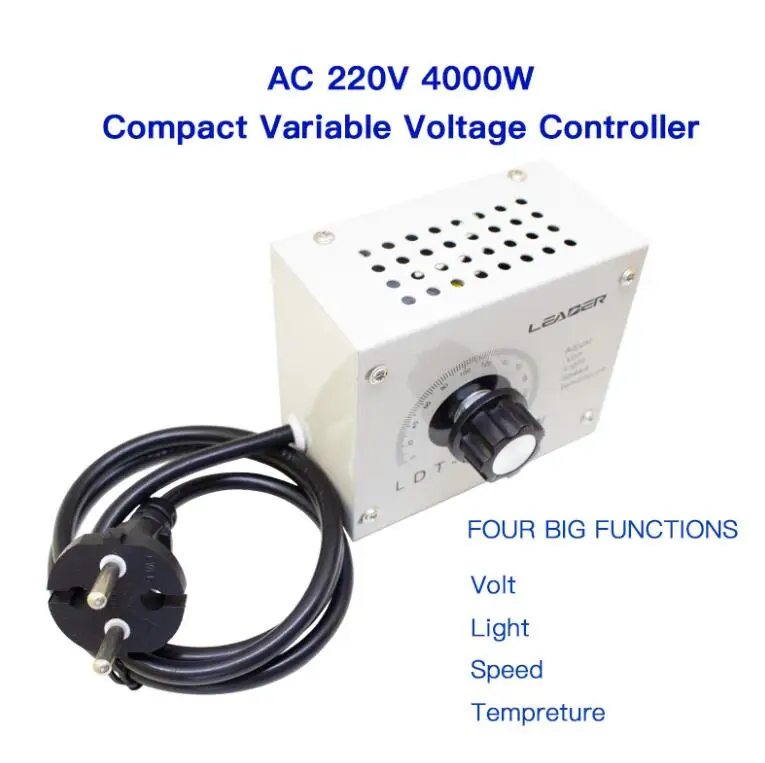

SCR electronic voltage regulator

Product model:SNDY-4000W
Material: aluminum
Color: black
Input voltage: AC220V

Output voltage:0-220V adjustable (Voltmeter does not work when the output voltage is lower than 5V)

Limit power:

4000W (adapt to 2000W resistive load)

Pressure regulating range:

0-220V adjustable (under load conditions) step-down to OV, step-up 10V from 9A

Rated current: 9A
Max current: 18A

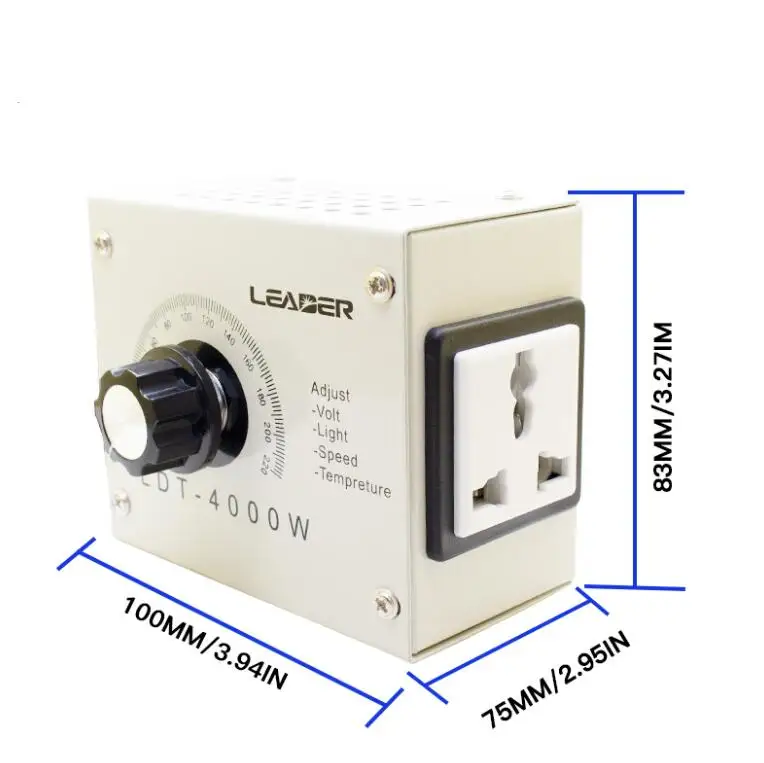

Main machine size: 115 * 100 * 83mm / 4.53 * 3.94 * 3.27in
Item weight: 459g / 1.01lb
Package size: 180 * 100 * 115mm / 7.09 * 3.94 * 4.53in
Package weight: 522g / 1.15lb

Product Features:

--Mini size, portable and lightweight, strong power, easy to use.

--High power SCR voltage regulator, stepless regulation, help adjust speed, temperature, voltage and light.

--Adopt high-temperature resistant FR-4 circuit board, origin imported chip SCR, full aluminum thermal fin, precisions resistance with high voltage condenser.

--No postpone and no delay, with crest voltage absorb circuit, can protect the high power SCR effectively.

--Anti surge, anti-spike, RC absorb and multiple protection.

--Flame retardant insulation outshell, high temperature resistant, rustproof, anti high pressure and with fine durability.

--Adopt multi functional industrial sockets, thicken copper part design, with fine contact and safety.

--Humanized installation hole design, keep flat place or hanging on it is decided by yourself.

--Silent work, energy saving, stable anti-noise, and with wide range of use.

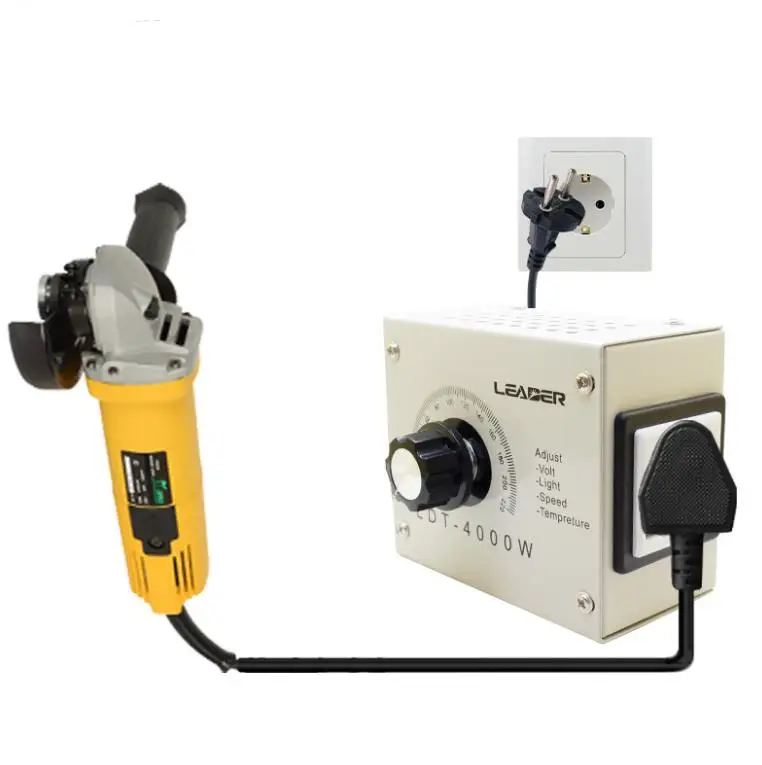

--Suitable for water heater, tungsten lamp, small motor, electric iron and etc..

--Executive standard:GB14536.1-2008
