ЧПУ управление автоматическая портативная линия растачивания и

ЧПУ управление автоматическая портативная линия растачивания и

Категория: Other Welding Equipment >>>
Поставщик: Xuzhou,Dig-Dog,Construction,Machinery,Technology,Co.,Ltd.

Цена:800,00 $ - 1 200,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	952.40 $*	1000.32 $*
Aug-18-2025	944.43 $*	991.98 $*
Jul-18-2025	792.14 $*	832.3 $*
Jun-18-2025	928.58 $*	974.67 $*
May-18-2025	808.88 $*	848.37 $*
Apr-18-2025	912.9 $*	958.35 $*
Mar-18-2025	904.3 $*	949.37 $*
Feb-18-2025	896.14 $*	941.11 $*
Jan-18-2025	888.91 $*	932.38 $*

Характеристики

Top Features & Benefits

DIG-DOG PORTABLE LINE BORING MACHINE

DIG-DOG Portable Line Boring Machine is a Kind of Portable Processing Equipment Mainly Developed for On-site Maintenance of Construction Machinery. It is Mainly used for the Processing of Small Pipe Inner Holes and Concentric Spacing Holes. It is Widely used in the On-site Maintenance of construction Machinery Such as Excavators, Cranes, Loaders, Reducing the Cost of Equipment Maintenance and Improving the Efficiency.

Main Application: Machine the Revolving Holes, Articulated Holes, Shaft Pin Holes on Various Engineering Machinery Structures after Repair Welding, or Installing Hole Sleeves after Reaming. Repair and Processing Concentric Holes, One-time Positioning Processing of the Porous on Excavators, Loaders, Presses, Cranes, etc. to Ensure the Coaxiality of the Porous.

Product Paramenters

Boring and Welding Machine	BM-40	BM-50	BWM-50S	BWM-50P	BM-60	BM-60S
Main motor	1.5KW Brushless DC	1.5KW Brushless DC	3KW Vertical servo	3KW Vertical servo	2KW DC servo	2KW DC servo
Power of cutter moving motor	120W	120W	120W	120W	120W	120W
Main motor output speed	125r/min	125r/min	0-300r/min	0-300r/min	100r/min	80r/min
Motor speed control	CVT	CVT	CVT	CVT	CVT	CVT
Feed way	Tiptronic	Tiptronic	Tiptronic	Tiptronic	Tiptronic	Tiptronic
The boring bar diameter	40mm	50mm	50mm	50mm	60mm	60mm
Scope of boring	45-200mm	55mm-260mm	55mm-260mm	55mm-260mm	65--500mm	65--500mm
Feed stroke	380mm	380mm	200mm	200mm	420mm	740mm
Maximum cutting capacity on one side	2-3mm	2-3mm	3mm	2mm	2-3mm	2-3mm
Machining roundness	0.03mm	0.03mm	0.02mm	0.03mm	0.03mm	0.05mm
roughness	3.2um	3.2	3.2	3.2	3.2um	3.2um
Installation	Weld	Weld	Weld	Weld	Weld	Weld
Hole range			55-230mm	55-230mm
Single side welding thickness			3-4mm	2-3mm
Wire type			1.0	1.0

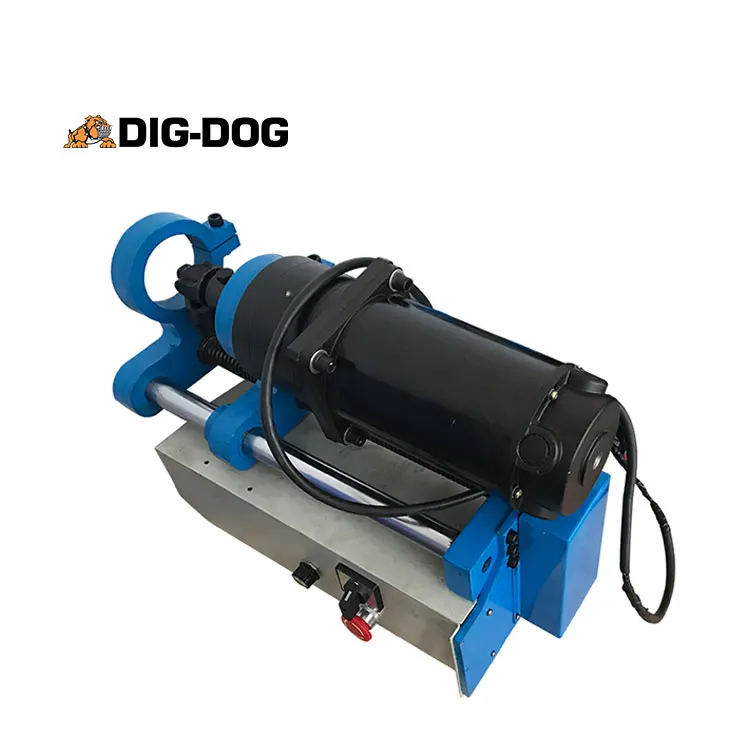

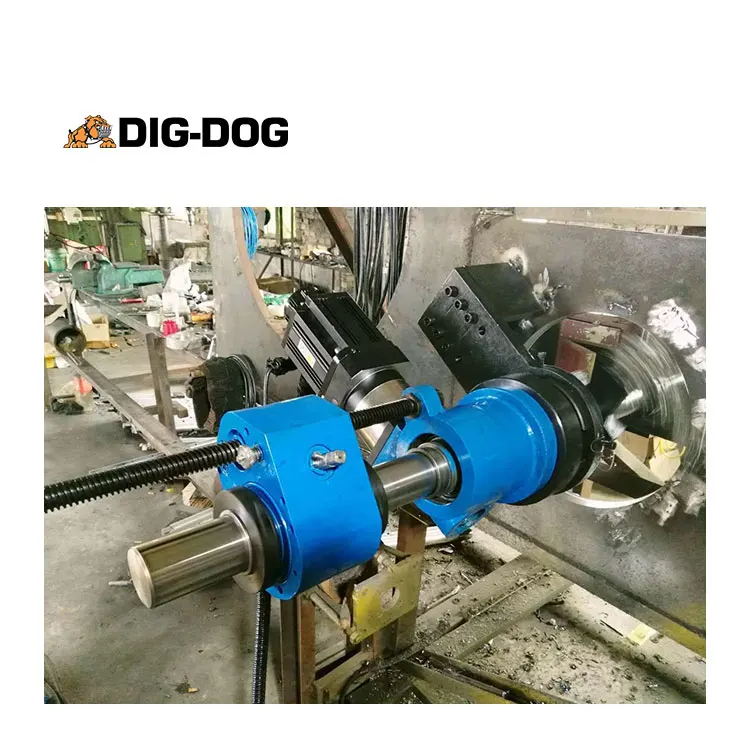

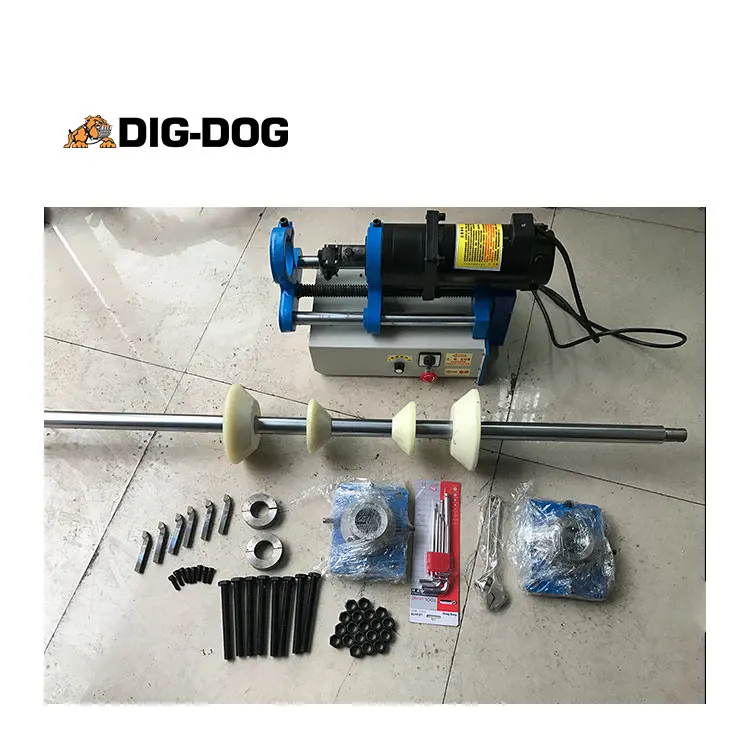

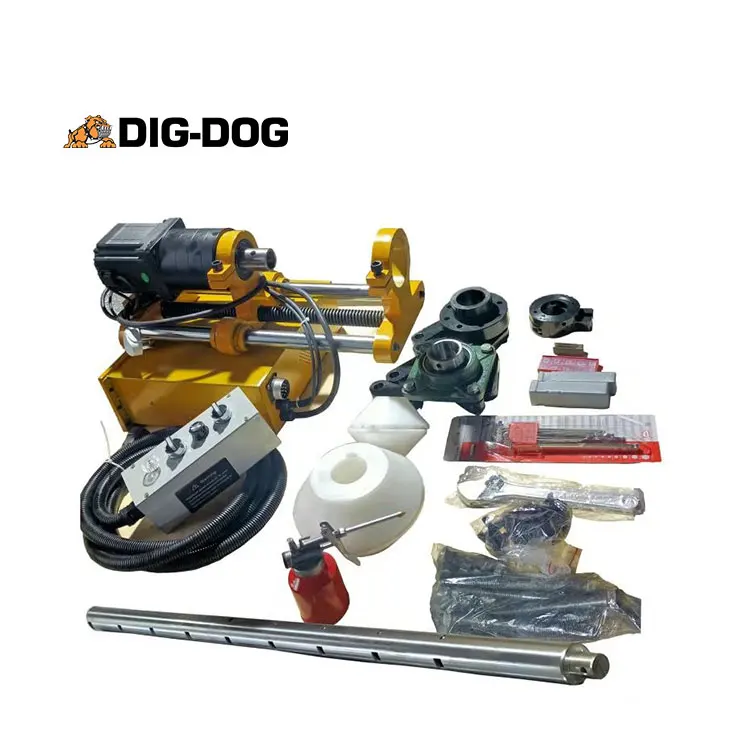

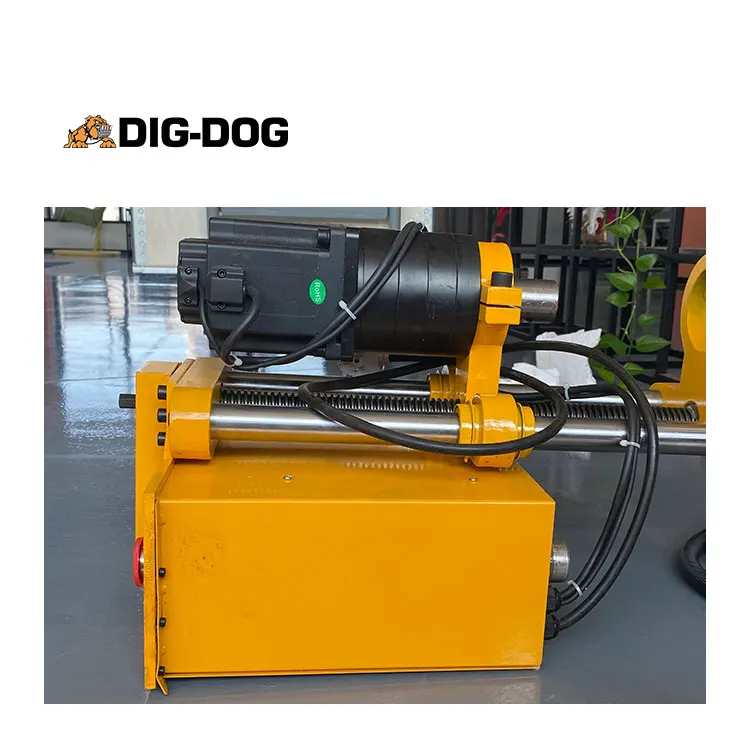

Details Images

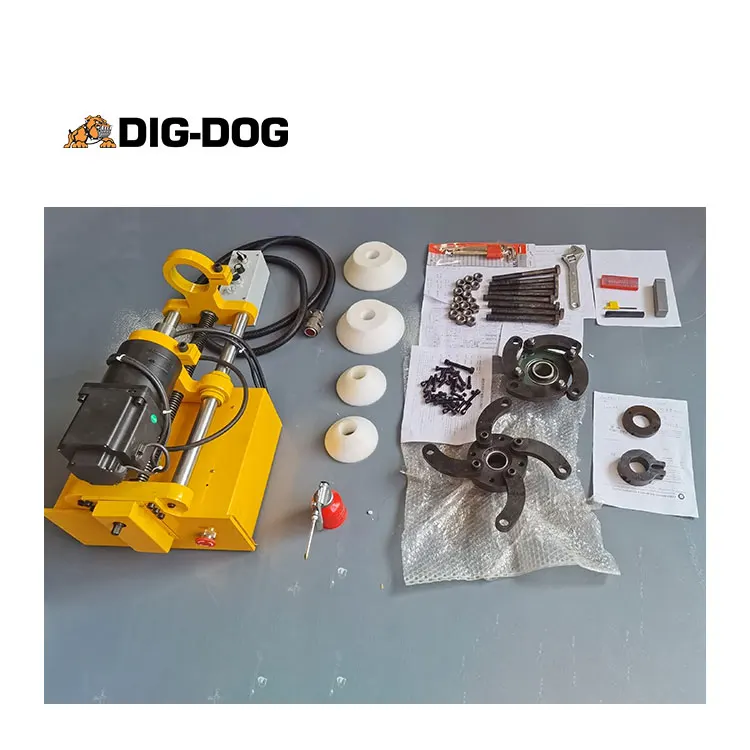

Product packaging

What size of line boring machine should I choose?

There are many different sized line boring machines available. No single machine can cover all of the above diameters accurately,so you’ll need to consider the type of jobs you will be carrying out.

What boring bar length should I specify?

There are many different bar lengths available, it is mostly depend on your job need. One thing to remark: for small diameter boring bar, the longer the bar is, the bigger the risk of sagging is.

What are the lead times for line boring machine?

This varies depending upon size of machine and stock availability. With line boring machines it pays to think ahead as it can be several weeks from receipt of payment before your machine arrives. This is because each machine package is made to order from the many options available.

Can DIG-DOG supply a machine in my area?

Yes, Our portable boring machine export world-widely.

What maintenance is needed?

If looked after correctly, the line boring machine will provide years of trouble free use, delivering accurate and consistent
results every time. Simple cleaning, debris removal and oiling is mostly all that is needed.
