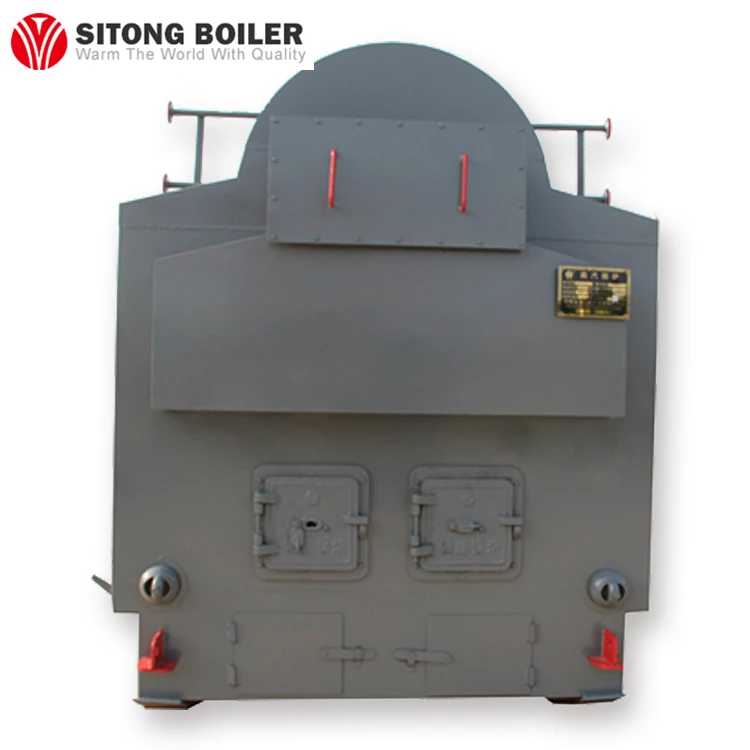

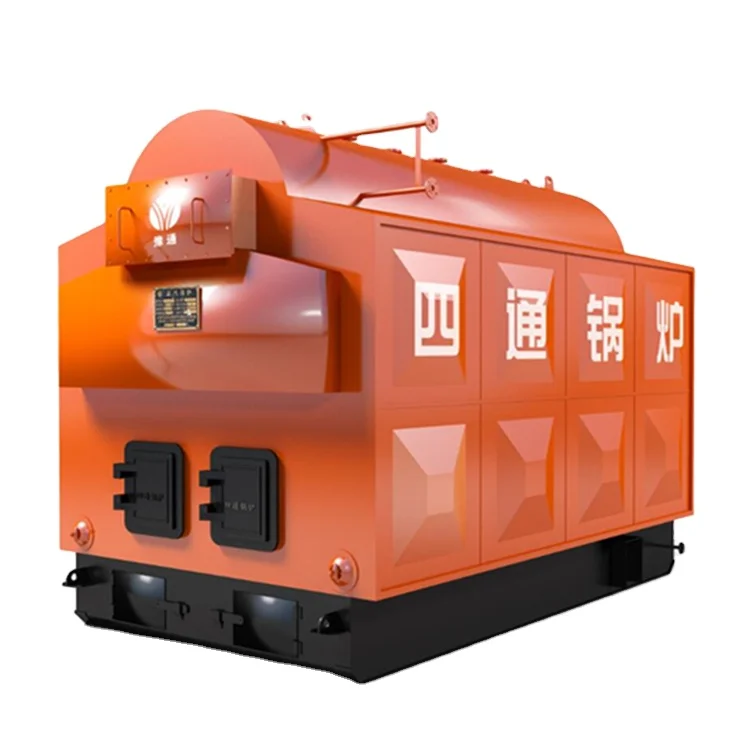

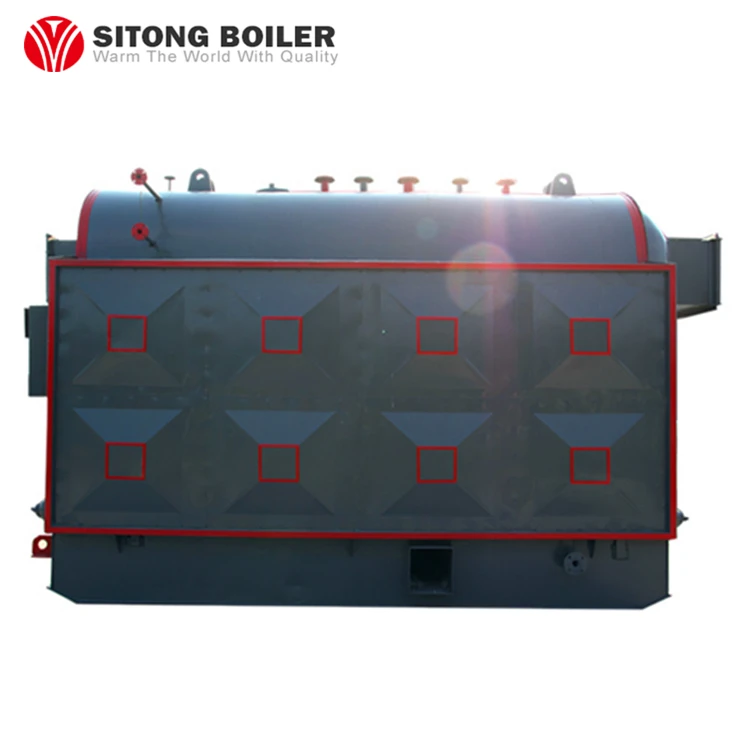

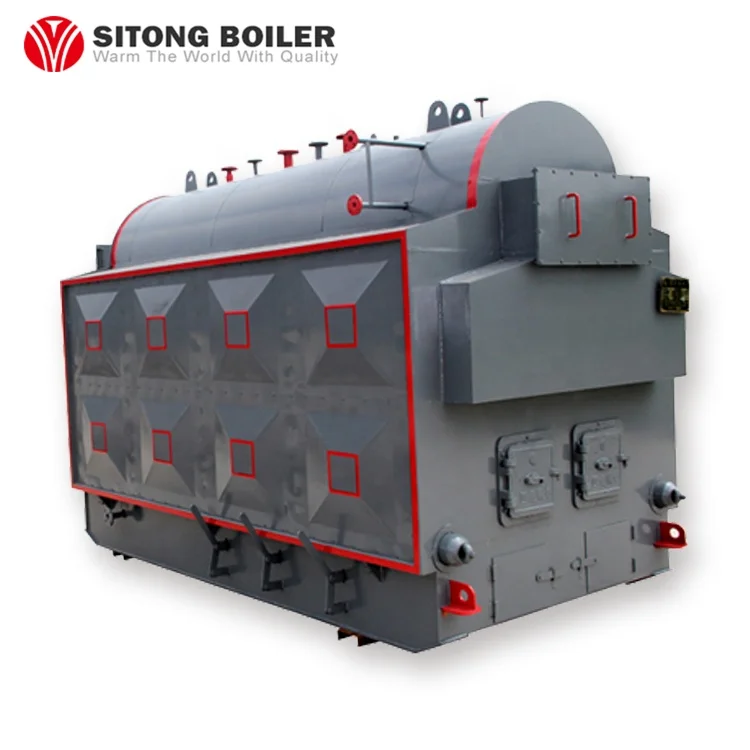

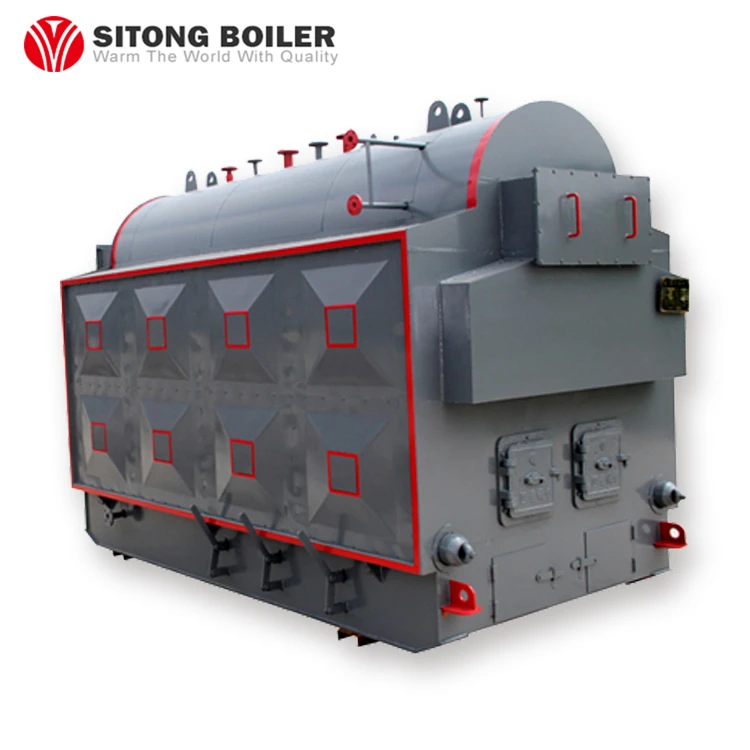

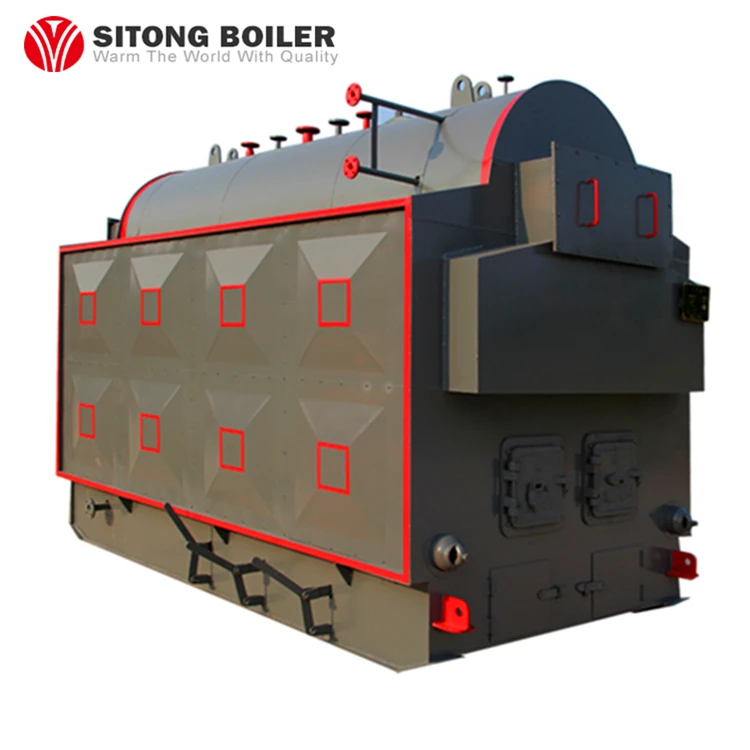

Si Tong Wood Coal Rice Husk Fired Automatic Steam Boiler  for Factory

Model:DZH Type Moving Grate Stoker Boiler Structure:WaterTube Fire Tube Three Pass Rated Steam Capacity:1-20 ton/hr Rated Steam Pressure:0.7/1.0/1.25/1.6/2.5 Mpa Rated Steam Temperature:170/184/194/204/225 C Application:Textile Mill,Food and Beverage,Chemical,Medicine,Light Industry,Rubber,Printing and Dyeing Plant,Paper Mill,Wood Processing,Garment and Laundry etc.







Model   Item		DZH0.5-0.7-AII DZH0.5-1.0- AII	DZH1-0.7- AII DZH1-1.0- AII DZH1-1.25- AII	DZH2-0.7- AII DZH2-1.0- AII DZH2-1.25- AII DZH2-1.6- AII	DZH4-1.25- AII DZH4-1.6- AII
Rated Steam Capacity(t/h)		0.5	1	2	4
Rated Steam Pressure(MPa)		0.7/1.0	0.7/1.0/1.25	0.7/1.0/1.25	1.25/1.6
Rated Steam Temperature(℃)		170/184	170/184/194	170/184/194/204	194/204
Rated Feed-water Temperature(℃)		20	20	20	20
Heating Area(M2)	Mainframe	21.31	32.12/32.12/33.24	50.5/51.8/51.05/59.4	92.82/92.82
	Economizer	8.28	10.56/10.56/27.6	27.6	69.76/33.12
Effective Grate Area(M2)		1.28	2.1	3.36	5.2
Fuel Consumption(kg/h)		~76	~150	~301	~602
Exhaust Gas Temperature(℃)		~165	~165	~165	~165
Thermal Efficiency(%)		80	80	80	80
Weight of Biggest Part for Transportation(t)		8	12	15	22
Overall Dimension of Boiler Assembled L*W*H(mm)		3228×2000×2656	4108×2200×2915	4700×2300×3270	5600×2550×3563











1.. What are the differences between vertical type boiler and horizontal type boiler with the same capacity?

1. Structure of vertical boiler is compact, occupy a limited area,

2. Convenient on installation and removal.

3. Low cost and investment on capital construction. Steam exhausted fast and sufficient.

1. The combustion space of horizontal is big, fuel can be burned completed.

2. The thermal efficiency is higher than the vertical boiler,

3. Horizontal type: less thermal loss, stronger output, and higher steam quality.



2. What are the limitation (size, humidity, chemical element concentrations) of coal fuel/solid fuel/wood fuel?

Size requirement of coal:6-25mm

Size requirement of blending coal: <50mm (the coal less than 6mm should less than 30%)

Diameter of biomass particle: 6~10mm, length: 25~50mm, water content < 15%, ash content < 2%, sulphur content<0.07%, chlorinity <0.07%, nitrogen content < 0.5%



3. What is the size of furnace door and blower hopper?

Size of furnace door:

Standard elliptical furnace door:300*800*1500

Blower hopper size:

2 tons conical hopper: 1400*800*1500

4 tons conical hopper: 2200*1400*1500



4. What is the combustion mode of coal/biomass fired boiler?

The combustion mode of coal/biomass fired boiler is layer combustion. Place the flue on the fixed or moved grate, to form an evenly fuel bed with a certain thickness, air comes from the bottom of grate, and combustion occurred on the fuel bed.
