Запасные части для нефтяного бурового насоса керамический

Запасные части для нефтяного бурового насоса керамический

Категория: >>>
Поставщик: Deyang,Durable,Explosion-Proof,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.62 $*	0.73 $*
Aug-16-2025	0.67 $*	0.19 $*
Jul-16-2025	0.51 $*	0.60 $*
Jun-16-2025	0.84 $*	0.29 $*
May-16-2025	0.97 $*	0.14 $*
Apr-16-2025	0.88 $*	0.16 $*
Mar-16-2025	0.45 $*	0.3 $*
Feb-16-2025	0.86 $*	0.3 $*
Jan-16-2025	0.60 $*	0.53 $*

Характеристики

PRODUCTS DESCRIPTION

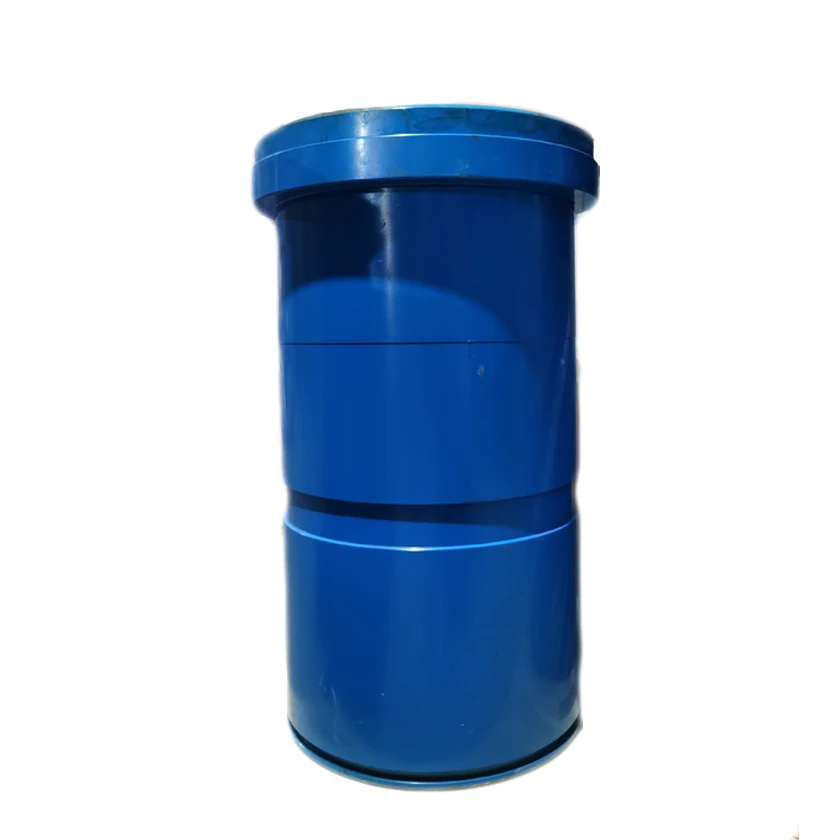

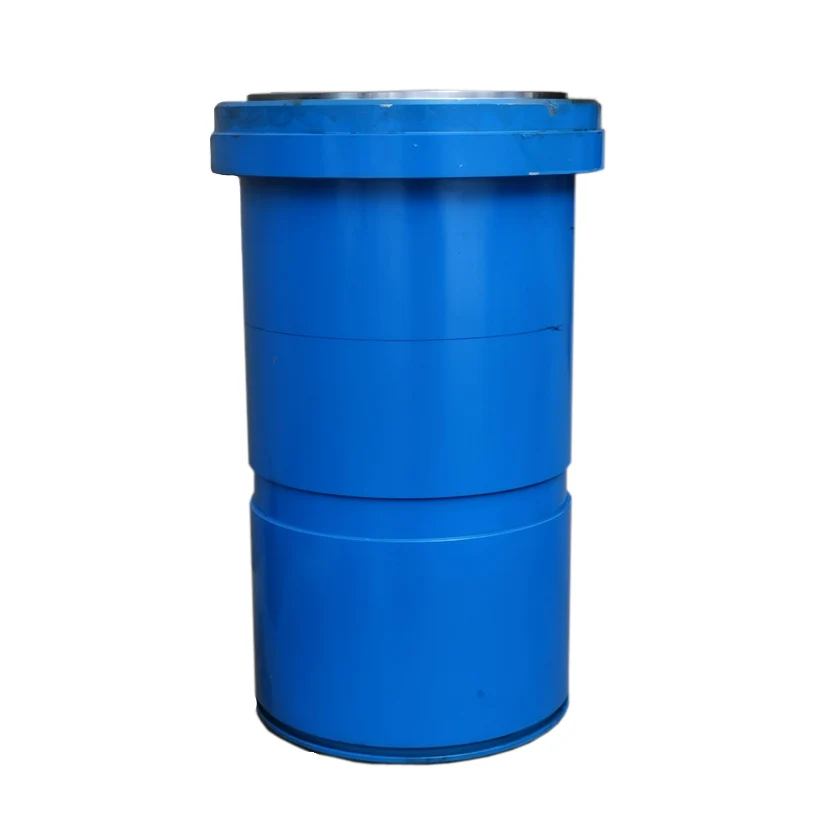

Mud Pump Liner

Liner is divided into Ceramic Liner, Double Metal Liner, Carburization & quenching Liner and Chrome-plated Liner.

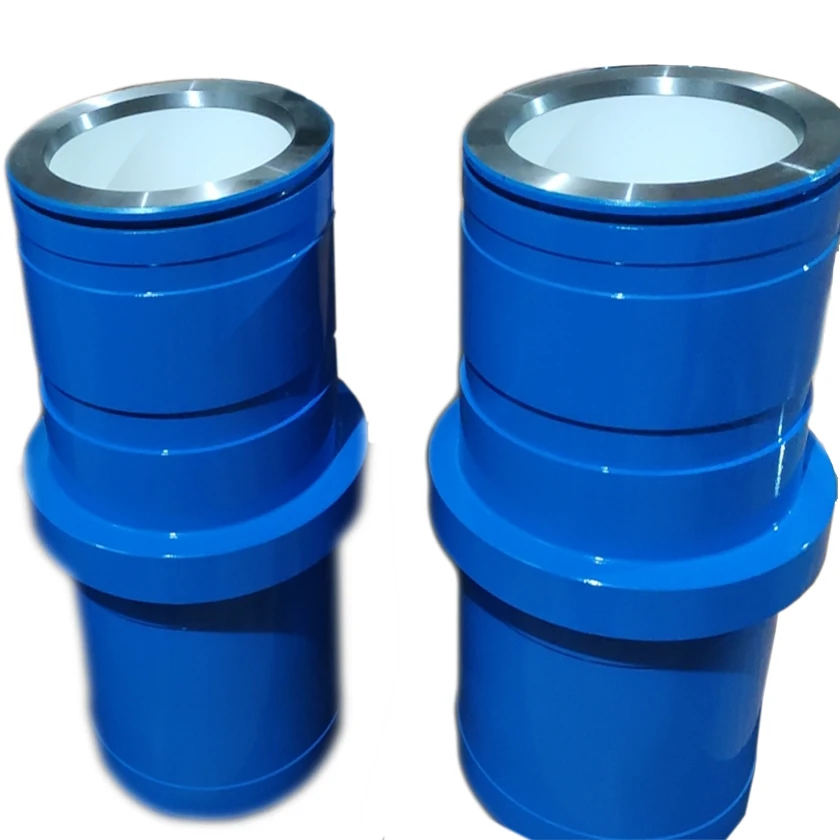

Ceramic Liner

Material of the sleeve is Zirconia and its shell is 45#forged steel.

composed of pressure bearing metal shell (45 # steel) and high wear-resistant ceramic liner. After precision processing and assembly, it has excellent overall mechanical performance, better corrosion resistance, high temperature resistance, high pressure resistance, labor cost, and maintenance cost. longer service life than the bimetal cylinder liner, more than 4000 hours, lower overall cost.

technology：Ceramic sintering、Ceramic grinding、Cermet assembly、Ceramic metal finishing

Bmoco	F500/F800	F1000	F1300	F1600	F1600HL\\F2200HL
Lanshi	P2200	3NB-500	3NB-800	3NB-1000C	3NB1300C\\3NB1600
Honghua	3NB1600HL	HHF-500	HHF-800/1000	HHF-1300/1600	HHF-2200HL\\1600HL
TSC	WF-400	WF-450	WF-700	WF-1000	WF-1600\\2000\\2200
NATIONAL	8P80	9P100	10P130	12P160	14P220
DRILLMEC	7TS600	8T-800	9T-1000	10T-1300	12T-1600\\14T-2200
EWECO	E-447	E600	E800	E-1100	E-1300\\1600\\2200
GARDNER DENVER	PZ-7	PZ8/9	PZ10/11	FY-FXD	FO-FXO\\FD-FXX\\FG-GXG\\FG-FXG
RUSSIA	UNB 600	UNBT 650	NBT 600	8T-650	UNBT 950\\UNBT 1180
OILWELL	A-650-PT	A-850-PT	A1100PT	A1400PT	A1700PT
UPETROM	3PN1600
WIRTH	TPK-1000	TPK-1300	TPK1600	TPK2000	TPK2200
IDECO	T-500	T-800	T1000	T1300	T1600
ELLIS WILLIAMS	E-447	E-2200	W-446	W-440	W-3000
UPETROM	3PN-1000	3PN-1300	3PN-2200
OPI	700-HDL	1000-HDL
BREWSTER	B-1000-T	B-1000-T	B-1100-T	B-1300-T	B1600T
AMERICAN BLOCK	K800	K1000	K1300	K1600	k2200
SOILMEC	7T-500	7T-508	8T-650
WEATHERFORD	W440	W446	E447	E2200	MP-5\\8\\10\\16

Name	Specification	Quality Requirement
ceramic liner\\3NB-1600HL φ140	Pressure-bearing 38.1Mpa	45# steel outside, zirconia inside
ceramic liner\\3NB-1600HL φ150	Pressure-bearing 33.2Mpa	45# steel outside, zirconia inside
ceramic liner\\3NB-1600HL φ160	Pressure-bearing 29.20Mpa	45# steel outside, zirconia inside
ceramic liner\\3NB-1600HL φ170	Pressure-bearing 25.9Mpa	45# steel outside, zirconia inside
ceramic liner\\F-1600HL φ140	Pressure-bearing 38.1Mpa	45# steel outside, zirconia inside
ceramic liner\\F-1600HL φ150	Pressure-bearing 33.2Mpa	45# steel outside, zirconia inside
ceramic liner\\F-1600HL φ160	Pressure-bearing 29.20Mpa	45# steel outside, zirconia inside
ceramic liner\\F-1600HL φ170	Pressure-bearing 25.9Mpa	45# steel outside, zirconia inside
ceramic liner\\F-1600 φ140 zirconia	Pressure-bearing 31.0Mpa	45# steel outside, zirconia inside
ceramic liner\\F-1600 φ150 zirconia	Pressure-bearing 27.0Mpa	45# steel outside, zirconia inside
ceramic liner\\F-1600 φ160 zirconia	Pressure-bearing 23.7Mpa	45# steel outside, zirconia inside
ceramic liner\\F-1600 φ170 zirconia	Pressure-bearing 21.0Mpa	45# steel outside, zirconia inside

The pressure grade of titanium alloy spot welded ceramic cylinder liner, piston, and valve assembly is not recommended to use over-pressure. If over-pressure must be used, it is recommended that the over-pressure should not exceed 5%.

Other Industry Certifications

PACKAGING & LOGISTICS

Anti-corrosive wooden case

Anti-corrosive wood is after adding preservatives artificially through common wood, make it have anti-corrosion, moisture-proof, prevent fungus, insect-proof ant, prevent mildew and the characteristic such as waterproof.

Anti-corrosive wood besides anti-corrosive special still has the three basic functions that prevent termite, fungus,
and anti-corrosive. Antiseptic wood also has the characteristics of good permeability and strong anti-loss but also can inhibit the change of moisture content of treated wood, and reduce the degree of wood cracking.

FAQ

Q:why should you buy from us not from other suppliers?
A:we have been exporting oil drilling accessories and well control equipment to well-known oil
service companies in the world .We are the first class supplier of ISO9001,SINOPEC,and CNOOC.
Q:Do you support product customization?
A:Yes,we do. We have rich industry experience and advanced product manufacturing and R & D
technology, which can meet the exclusive customization needs of customers.
Q:what services can we provide?
A:Delivery Terms:FOB,CFR,CIF,CIP,Express Delivery;
Payment Type: T/T,L/C,D/P,Credit Card,PayPal;
Language Spoken:English,French,Spanish,Chinese.
