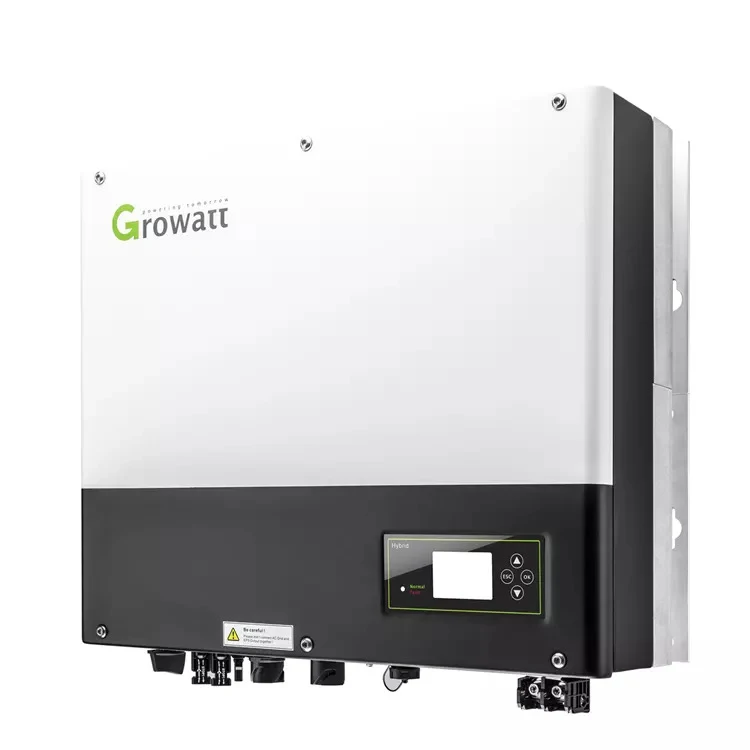

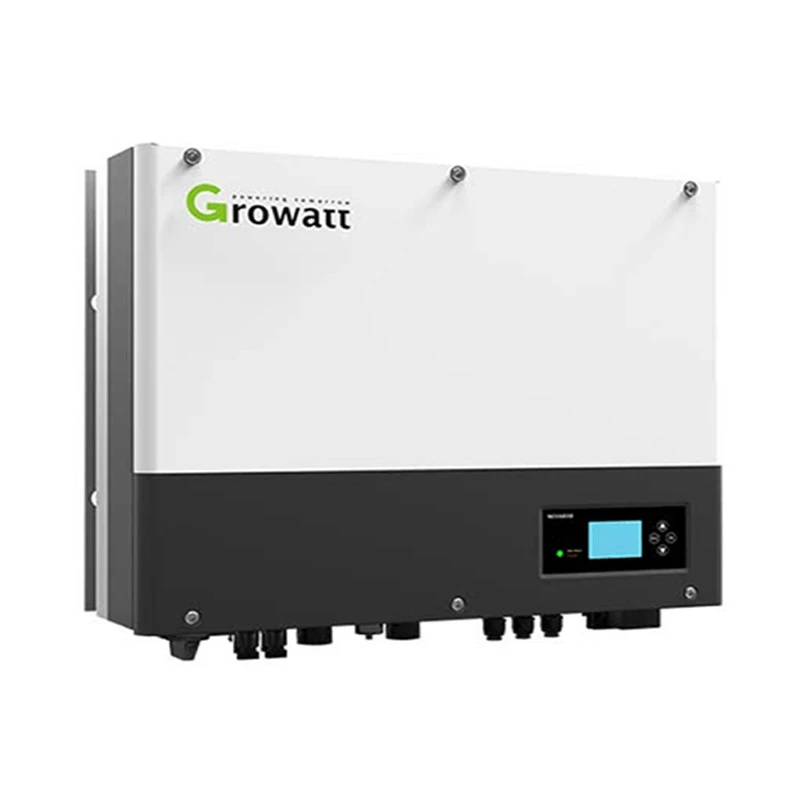

Гибридный инвертор для солнечной батареи 5 кВт Growatt Sph5000 MPPT
- Категория: Solar Energy Products >>>
- Поставщик: Jingjiang,Gisen,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 533.4 $* | 560.47 $* |
| Aug-19-2025 | 529.94 $* | 555.60 $* |
| Jul-19-2025 | 444.78 $* | 466.97 $* |
| Jun-19-2025 | 520.80 $* | 546.85 $* |
| May-19-2025 | 452.41 $* | 475.29 $* |
| Apr-19-2025 | 511.76 $* | 537.69 $* |
| Mar-19-2025 | 506.24 $* | 531.77 $* |
| Feb-19-2025 | 502.81 $* | 527.53 $* |
| Jan-19-2025 | 497.73 $* | 522.26 $* |
Характеристики
Product Description
SPH 3000~6000 TL BL.
installation;
multiple programmable working modes, decide by yourself how to realize self sufficiency and make the max out of
your system; the EPS output can even provide backup supply during grid bsence;
your system; the EPS output can even provide backup supply during grid bsence;
SPH 3000~6000 TL BL.
* Dual MPP trackers
* IP65 & Natural cooling
* Programmable working modes
* Supports Export Control
* Online Smart Service
* IP65 & Natural cooling
* Programmable working modes
* Supports Export Control
* Online Smart Service
We can customize it. We have rich production experience.
This is the best-selling solar product of Amazon/eBay.
This is the best-selling solar product of Amazon/eBay.
Enquiry us !!!
Related Products
Specification
Growatt SPH3000-SPH6000 | ||||||||||||
Datasheet | Growatt SPH3000 | Growatt SPH3600 | Growatt SPH4000 | Growatt SPH4600 | Growatt SPH5000 | Growatt SPH6000 | ||||||
DC input data | ||||||||||||
Max. recommended PV power | 6600W | 6600W | 6600W | 8000W | 8000W | 8000W | ||||||
Start voltage | 150V | 150V | 150V | 150V | 150V | 150V | ||||||
Max. PV voltage | 550V | 550V | 550V | 550V | 550V | 550V | ||||||
PV voltage range | 120V-550V | 120V-550V | 120V-550V | 120V-550V | 120V-550V | 120V-550V | ||||||
MPP voltage range/nominal voltage | 150V-550V /360V | 150V-550V /360V | 150V-550V /360V | 150V-550V /360V | 150V-550V /360V | 150V-550V /360V | ||||||
Max. input current of tracker A/B | 12A/12A | 12A/12A | 12A/12A | 12A/12A | 12A/12A | 12A/12A | ||||||
Number of MPP trackers / strings per MPP tracker | 2/1 | 2/1 | 2/1 | 2/1 | 2/1 | 2/1 | ||||||
AC Output | ||||||||||||
Rated AC output power | 3000W | 3680W | 4000W | 4600W | 4999W | 6000W | ||||||
Max. AC apparent power | 3000VA | 3680VA | 4000VA | 4600VA | 5000VA | 6000VA | ||||||
Max. output current | 16A | 16A | 22A | 22A | 22A | 27A | ||||||
Nominal AC output voltage; range | 230V ; | |||||||||||
Nominal grid frequency; range | 50/60,±5Hz | |||||||||||
Power factor at rated power | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
Displacement power factor | 0.8leading…0.8lagging | |||||||||||
THDI | <3% | <3% | <3% | <3% | <3% | <3% | ||||||
AC output power(Backup) | ||||||||||||
Max. output power | 3000W | 3000W | 3000W | 3000W | 3000W | 3000W | ||||||
Rated AC output voltage | 230Vac | 230Vac | 230Vac | 230Vac | 230Vac | 230Vac | ||||||
Rated AC output frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | ||||||
Automatic switchover time | <0.5S | <0.5S | <0.5S | <0.5S | <0.5S | <0.5S | ||||||
Battery data | ||||||||||||
Battery voltage range | 42~59V | 42~59V | 42~59V | 42~59V | 42~59V | 42~59V | ||||||
Max. charging voltage | 58V | 58V | 58V | 58V | 58V | 58V | ||||||
Max charging and discharging current | 66A | 66A | 66A | 66A | 66A | 66A | ||||||
Max charging and discharging power | 3000W | 3000W | 3000W | 3000W | 3000W | 3000W | ||||||
Battery type | lithium /Lead-acid | lithium /Lead-acid | lithium /Lead-acid | lithium /Lead-acid | lithium /Lead-acid | Lithium /Lead-acid | ||||||
Deep of discharging | 80%DOD/50%DOD | |||||||||||
Capacity of battery | 3~12kWh | 3~12kWh | 3~12kWh | 3~12kWh | 3~12kWh | 3~12kWh | ||||||
Efficiency | ||||||||||||
Max. efficiency | 97.50% | 97.50% | 97.50% | 97.60% | 97.60% | 97.70% | ||||||
Euro European efficiency | 97.00% | 97.00% | 97.00% | 97.10% | 97.10% | 97.10% | ||||||
MPPT efficiency | 99.50% | 99.50% | 99.50% | 99.50% | 99.50% | 99.50% | ||||||
Protection devices | ||||||||||||
DC switch for each MPPT | yes | yes | yes | yes | yes | yes | ||||||
DC reverse polarity protection | yes | yes | yes | yes | yes | yes | ||||||
Battery reverse protection | yes | yes | yes | yes | yes | yes | ||||||
Output over current protection | yes | yes | yes | yes | yes | yes | ||||||
Output over voltage protection | yes | yes | yes | yes | yes | yes | ||||||
Ground fault monitoring | yes | yes | yes | yes | yes | yes | ||||||
Grid monitoring | yes | yes | yes | yes | yes | yes | ||||||
Integrated all - pole sensitive leakage | yes | yes | yes | yes | yes | yes | ||||||
General Data | ||||||||||||
Dimensions (W / H / D) mm | 547*516*170 | 547*516*170 | 547*516*170 | 547*516*170 | 547*516*170 | 547*516*170 | ||||||
Weight | 27KG | 27KG | 27KG | 27KG | 27KG | 27KG | ||||||
Operating temperature range | –25°C ... +60°C | |||||||||||
Noise emission (typical) | ≤ 25 dB(A) | ≤ 25 dB(A) | ≤ 25 dB(A) | ≤ 25 dB(A) | ≤ 25 dB(A) | ≤ 25 dB(A) | ||||||
Altitude | 2000m | |||||||||||
Self-Consumption | < 3W | |||||||||||
Inverter Topology | transformerless | |||||||||||
Cooling concept | Natural | |||||||||||
Environmental Protection Rating | IP65 | |||||||||||
Relative humidity | 100% | |||||||||||
Features | ||||||||||||
DC connection | MC4/H4(opt) | MC4/H4(opt) | MC4/H4(opt) | MC4/H4(opt) | MC4/H4(opt) | MC4/H4(opt) | ||||||
Interface:RS232/USB/RF/Wi-Fi/LAN | yes /yes /opt/opt/opt | |||||||||||
Display | LCD | |||||||||||
Warranty: 5 years / 10 years | yes /opt | yes /opt | yes /opt | yes /opt | yes /opt | yes /opt | ||||||
CE, IEC62109, G83/G59, VDE0126-1-1, AS4777, AS/NZS 3100, CEI 0-21, VDE-AR-N4105, VFR 2014, En50438, IEC 61727, IEC 62116 | ||||||||||||

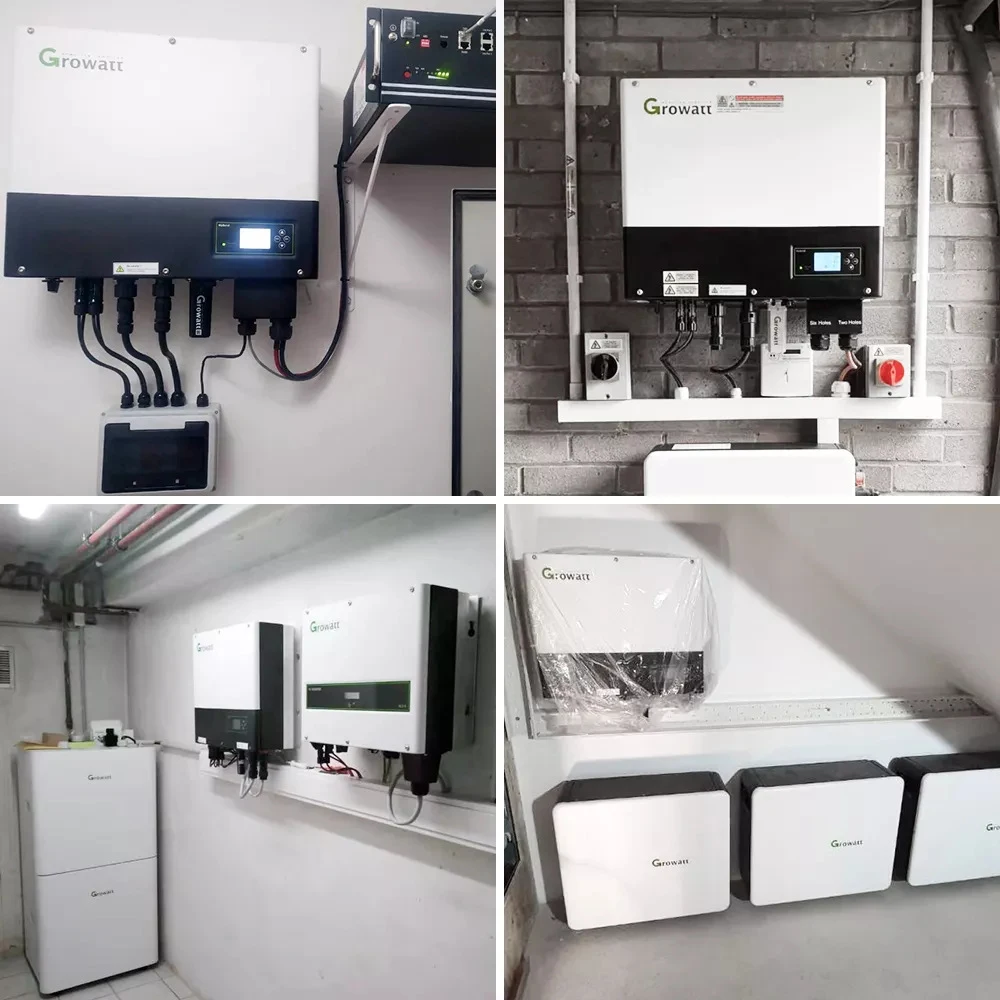

Details Images
Company Profile
Certifications
Packing & Delivery
FAQ
Q:It is a possible to make our logo (branding) on this product?
A:Absolutely. We warmly welcome OEM/ODM orders.
Q:How many time you need for production of one sample?Is sample free of charge?
A:It usually takes around 7-10 working days to work out a sample for customer,it would depend on the customer’s requirement.We will charge sample and send by freight collect.
Q:What is a minimum number (pieces) of order for this product?
A:Normally MOQ 300pcs as trial order.We will need to discuss together.
Q:What is your terms of payment?Will you test all your goods before delivery?
A:T/T 30% as deposit, and 70% before delivery. Yes we'll test all goods and send you test report before balance payment.
Q:What are your terms of payment?
A:We accept most payment terms, like T/T, L/C, etc.
A:Absolutely. We warmly welcome OEM/ODM orders.
Q:How many time you need for production of one sample?Is sample free of charge?
A:It usually takes around 7-10 working days to work out a sample for customer,it would depend on the customer’s requirement.We will charge sample and send by freight collect.
Q:What is a minimum number (pieces) of order for this product?
A:Normally MOQ 300pcs as trial order.We will need to discuss together.
Q:What is your terms of payment?Will you test all your goods before delivery?
A:T/T 30% as deposit, and 70% before delivery. Yes we'll test all goods and send you test report before balance payment.
Q:What are your terms of payment?
A:We accept most payment terms, like T/T, L/C, etc.
