EHD 160A 1000V 1500V DC изоляционный переключатель/переключатель солнечной

EHD 160A 1000V 1500V DC изоляционный переключатель/переключатель солнечной

Категория: Other Switches >>>
Поставщик: Zhejiang,Dabo,Electric,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	0.98 $*	0.47 $*
Aug-20-2025	0.76 $*	0.36 $*
Jul-20-2025	0.18 $*	0.40 $*
Jun-20-2025	0.46 $*	0.33 $*
May-20-2025	0.16 $*	0.19 $*
Apr-20-2025	0.73 $*	0.54 $*
Mar-20-2025	0.47 $*	0.66 $*
Feb-20-2025	0.13 $*	0.96 $*
Jan-20-2025	0.4 $*	0.3 $*

Характеристики

Product Description

Product features

1.Since the switch is non-polarized, all types of wiring and connections are possible. Easy access without tools, and auxiliary contacts can be integrated without tools. The mechanical device can be centered to meet the installation requirements.
2.Reliable position indication through visible contacts.
3.Safe reliable operation
4.The opening and closing of the switch is fully independent from the speed of operation, ensuring safe operation under all conditions.
5.High temperature withstand: no derating up to 55 C(131F),functional from-40to+122F(-40to+50°℃).
6.Designed for harsh environments.

Specification

Rated current le	160A	200A	250A	315A
Frame size	EHD-DB160R-03 EHD-DB160R-12	EHD-DB200R-03 EHD-DB200R-12	EHD-DB250R-03 EHD-DB250R-12	EHD-DB315R-03 EHD-DB315R-12
Thermal current	160A	200A	250A	315A
Rated insulation voltage(Ui)	1500V				1500V
Rated impulse withstand	12				780A
The short -circuit capacityis between 1000 and 1500VDC(no protection)					ICC	5000A
Rated short time Withstand current lcw 1s (kAeff)	5				9700
Rated short-circuit makeing capacity icm(kA peak)-60ms	10				300
Connection						IP20
Recommended Cu rigid cable aross-section(mm2)	70	90	120	185
Recommended Cu busbar width(mm2)	20				OFF at 12 hr,ON at 3hr
Mechanical characteristics
Durability(number of operating cycles)	8000				4-10mm²
Number of tripping operations	1000				4-10mm²

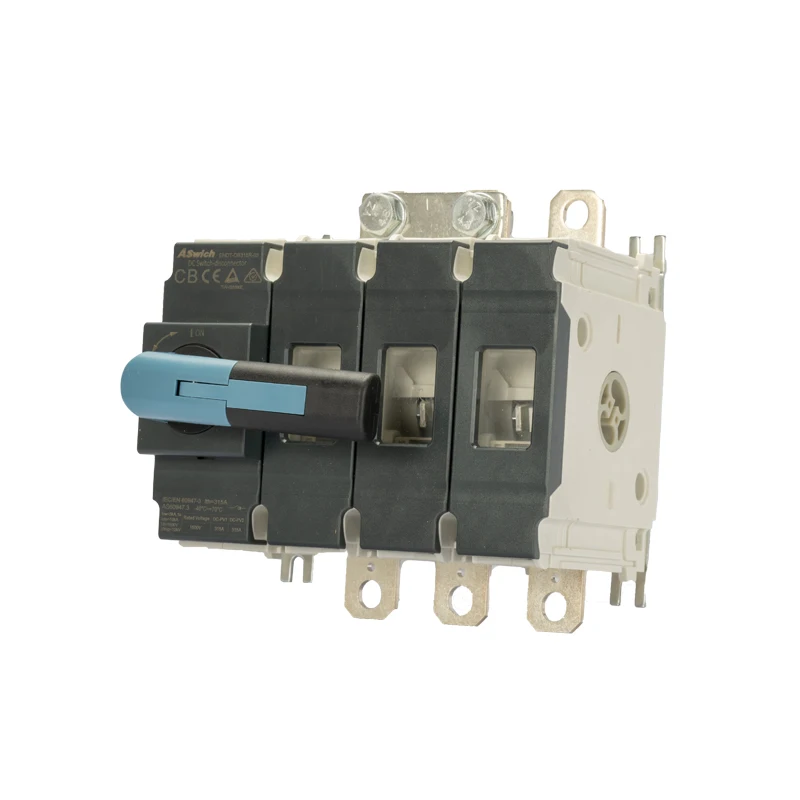

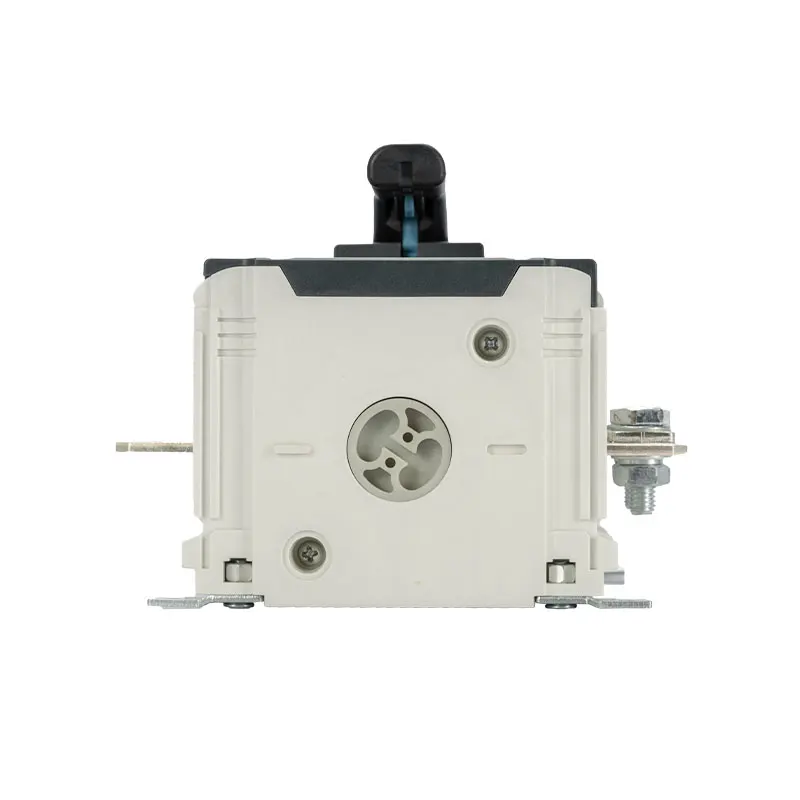

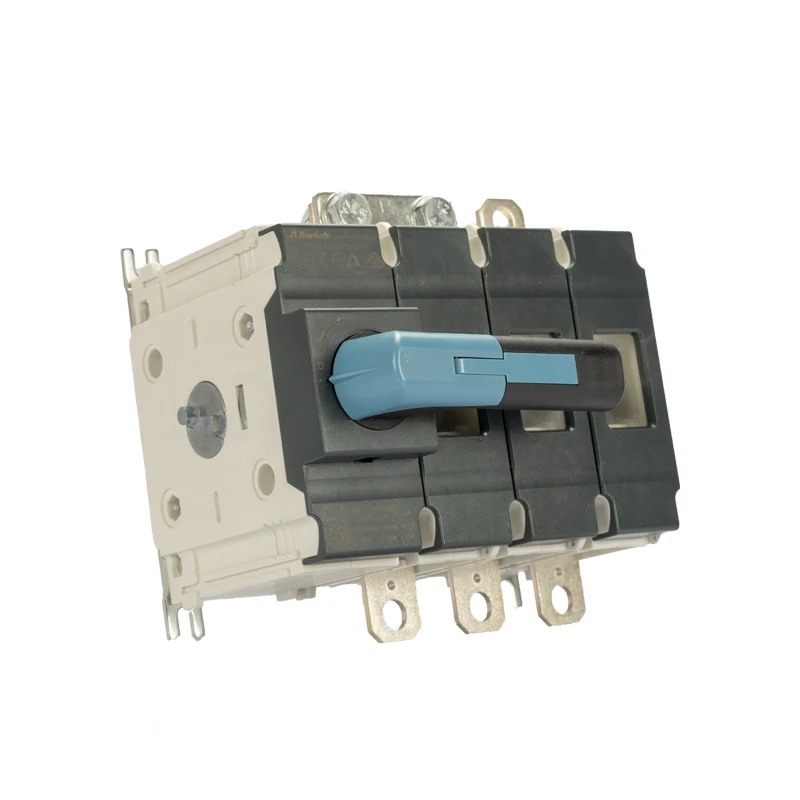

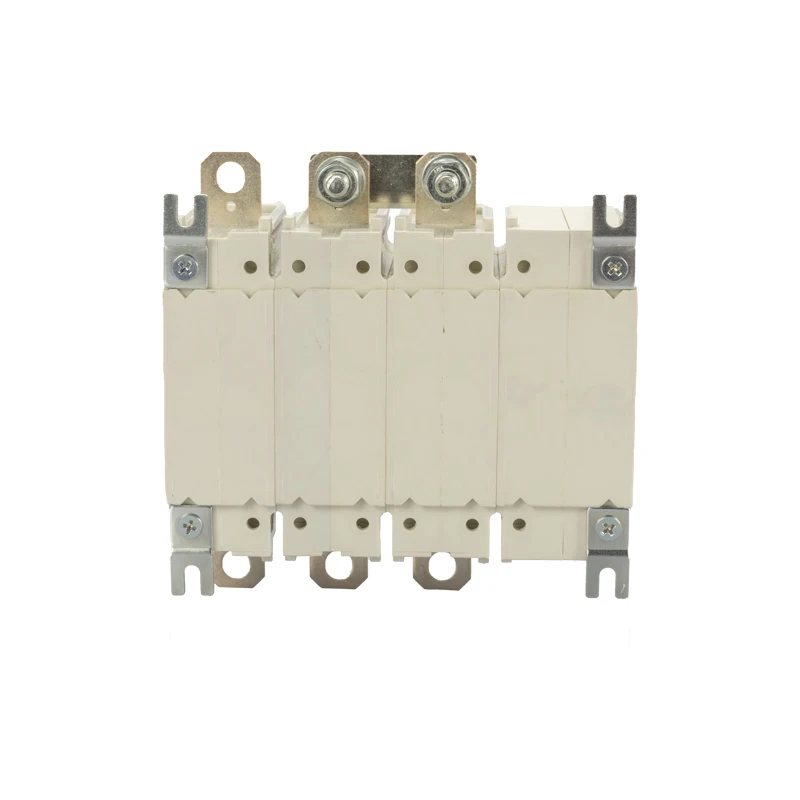

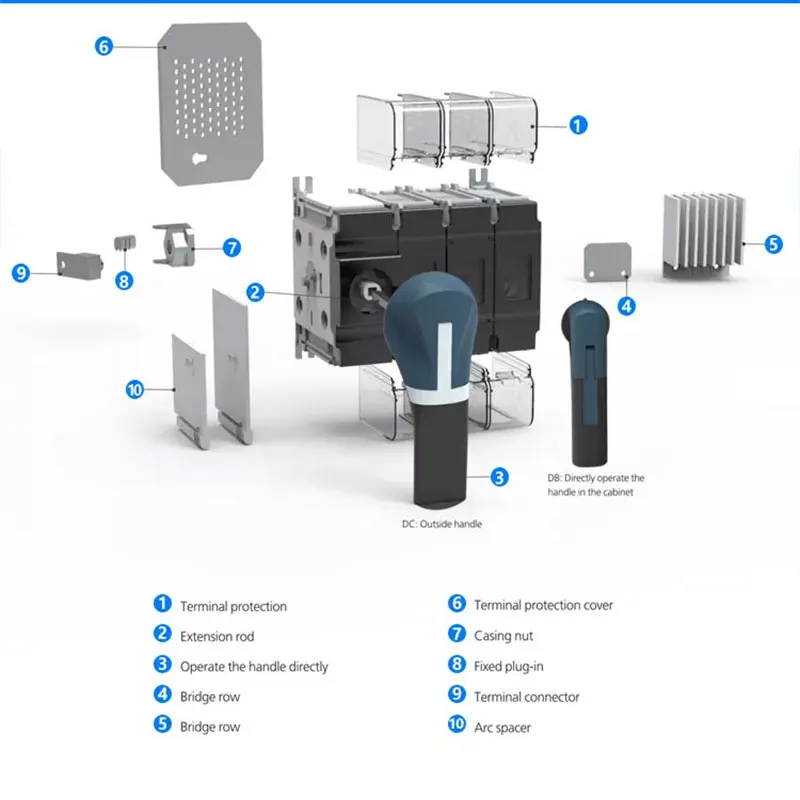

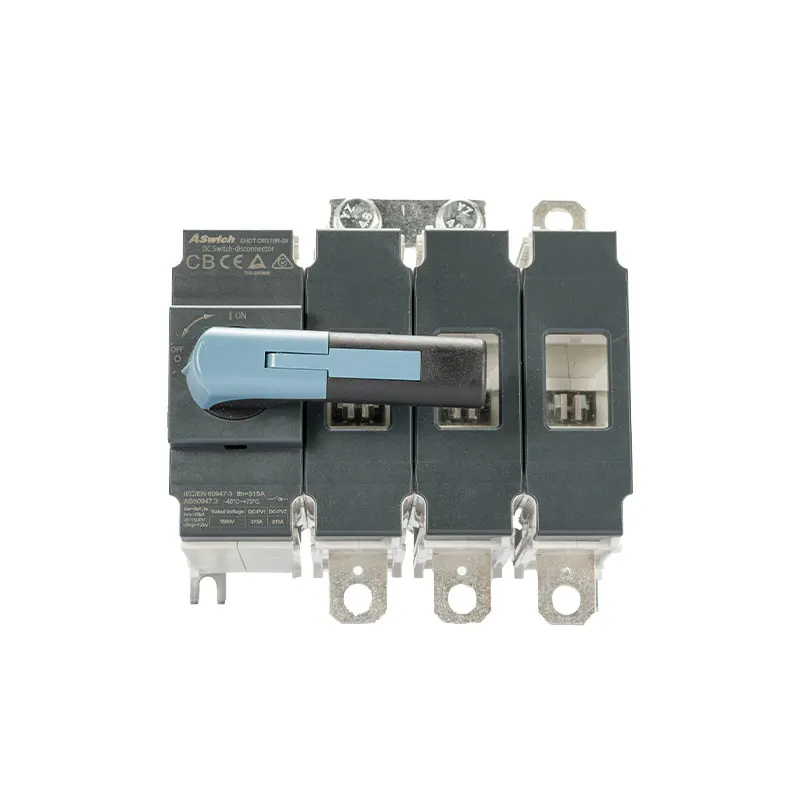

Details Images

Company Profile

ZHEJIANG YATAI INTELLIGENT ELECTRIC CO.,LTD is a professional solar PV electric components manufacturer located in Yueqing City, China. We're specialized in DC circuit breakers, Surge Protective Devices, PV fuses, isolator switches, MC4 connectors etc.
Our experience of working in the electrical industry for more than 10 years allows us to create solar DC components that comply with the latest DC standards. We can assure you perfect quality and excellent service. We're looking forward to having a good-long term cooperaton with you and your company.

Packing & Delivery

FAQ

Q: why should you buy from us not from other suppliers?

A:The product specifications are complete, the variety is rich, and the company has more than ten years of production, research and development and sales experience. The company's team is young and energetic.

Q:When I can receive quotation and detail information after send the enquiry?

A: Reply will be sent in 48hours.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q:Can I get a sample for test before place order?

A:Of course!

Q:How's the delivery?Because I really need them is urgently?

A: Samples cost 5-7 days. Bulk order cost 12-15 days.

Q: What's your shipment method?

A: We ship by Express, by air, by sea, by train.

Q: If i want to release order, what's the payment method you accept ?

A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.
