Good Price Clamp On Current Transformer Split Core SCT013-000 with 1000V AC/1min 5mA Dielectric Strength

Application:  Current Measurement, monitor and protection for AC motor, lighting equipment, air compressor, etc.



Model No.	SCT013-000
Maximum Current	100A
Open Size	13mm x 13mm
Leading Wire	1m
Connection Plug	3.5mm Jack
Work Voltage	720V
Core Material	Ferrite
Output Type	Current
Fire Resistance Property	in accordance with UL94-V0
Dielectric Strength	1000V AC/1min 5mA (between shell and output)
Work Temperature	-25℃~+70℃
Frequency Range	50Hz-1KHz
Dielectric Strength	3.5KV 50Hz 1min







Diagram For Standard Three-core Plug

Table of Technical Parameter:



Model	Input Current	Output Type
SCT013-000	0-100A	0-50mA
SCT013-005	0-5A	0-1V
SCT013-010	0-10A	0-1V
SCT013-015	0-15A	0-1V
SCT013-020	0-20A	0-1V
SCT013-025	0-25A	0-1V
SCT013-030	0-30A	0-1V
SCT013-050	0-50A	0-1V
SCT013-060	0-60A	0-1V
SCT013-000V	0-100A	0-1V

# Output type: Voltage output type built-in sampling resistor,

current output type built-in protective diode.





Diagram For Standard Three-core Plug

Table of Technical Parameter:

Model	Input Current	Output Type
SCT013-000	0-100A	0-50mA
SCT013-005	0-5A	0-1V
SCT013-010	0-10A	0-1V
SCT013-015	0-15A	0-1V
SCT013-020	0-20A	0-1V
SCT013-025	0-25A	0-1V
SCT013-030	0-30A	0-1V
SCT013-050	0-50A	0-1V
SCT013-060	0-60A	0-1V
SCT013-000V	0-100A	0-1V

# Output type: Voltage output type built-in sampling resistor, current output type built-in protective diode.

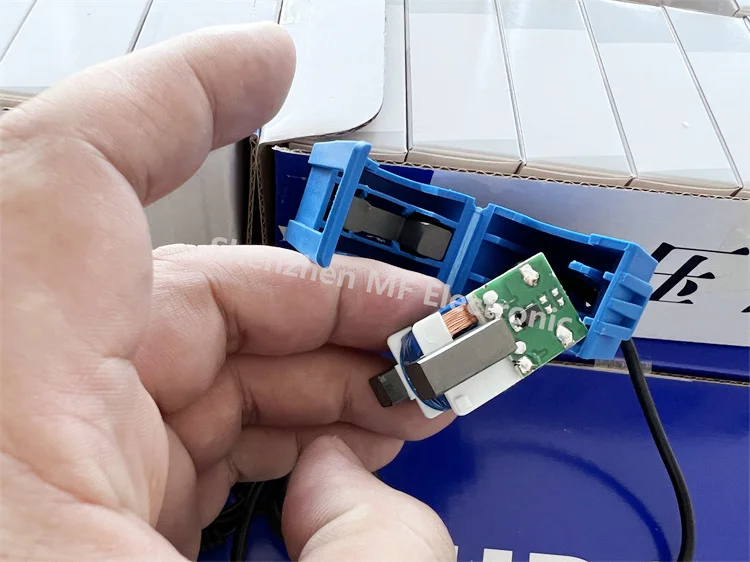

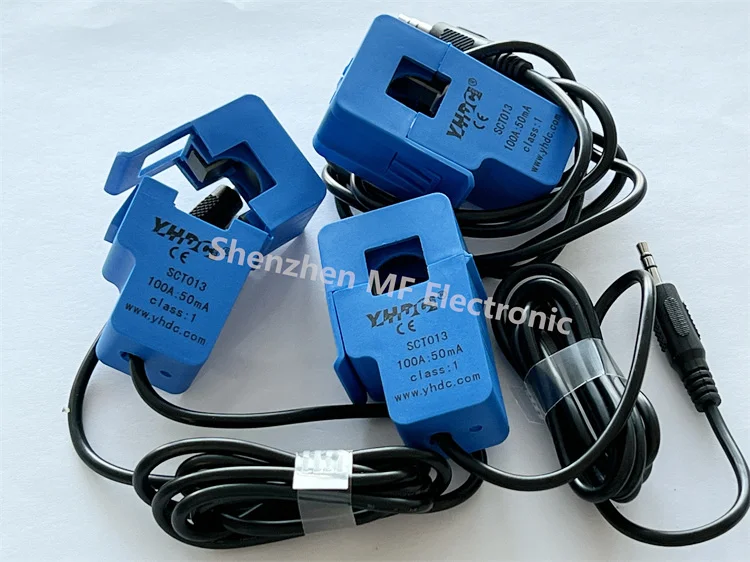

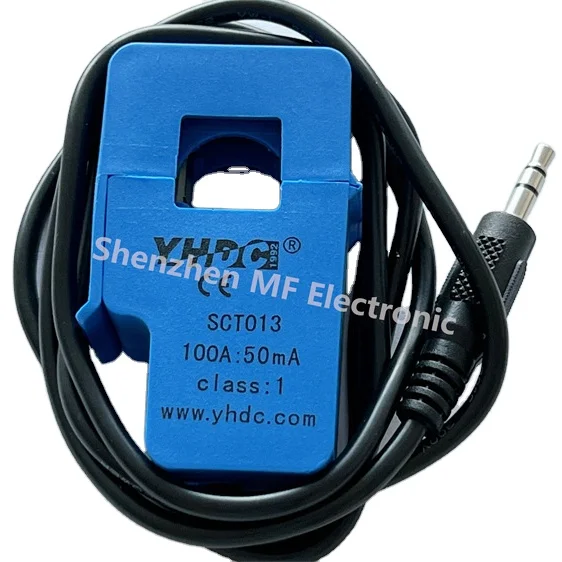

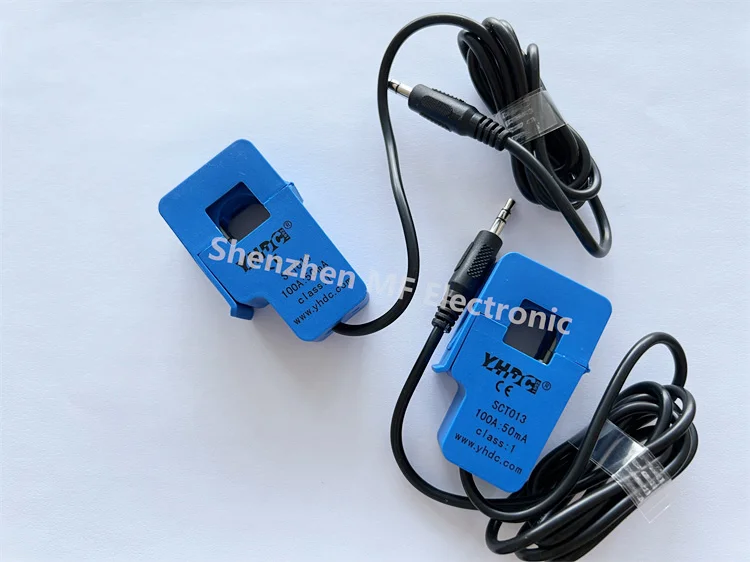

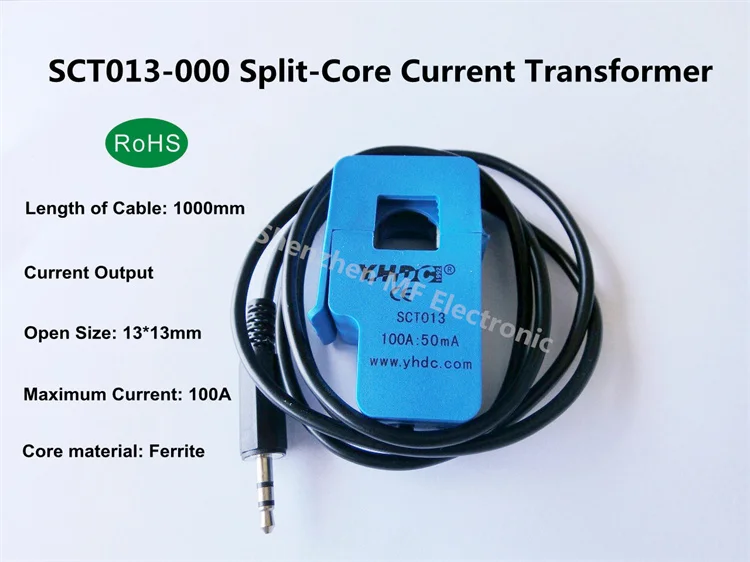

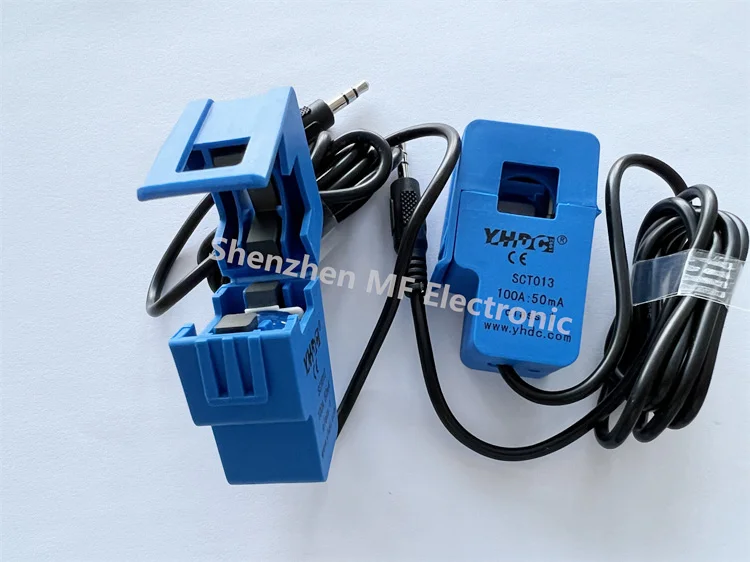

Top Sale Split-Core Current Transformer Sensor SCT013 with 3.5mm jack plug Connector Photos:
