15 кВт 30 Гидравлический масляный погружной нагреватель SS304 электрический с
- Категория: Heating Equipment >>>
- Поставщик: Yancheng,Honleader,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.36 $* | 0.5 $* |
| Aug-17-2025 | 0.73 $* | 0.58 $* |
| Jul-17-2025 | 0.1 $* | 0.7 $* |
| Jun-17-2025 | 0.82 $* | 0.60 $* |
| May-17-2025 | 0.3 $* | 0.46 $* |
| Apr-17-2025 | 0.52 $* | 0.86 $* |
| Mar-17-2025 | 0.3 $* | 0.27 $* |
| Feb-17-2025 | 0.14 $* | 0.66 $* |
| Jan-17-2025 | 0.47 $* | 0.54 $* |
Характеристики

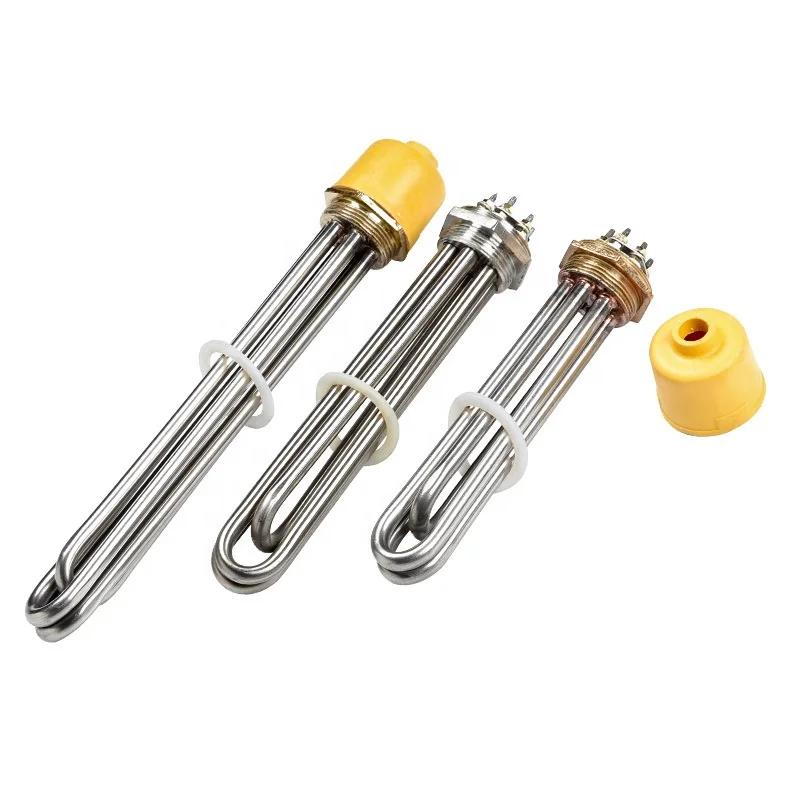

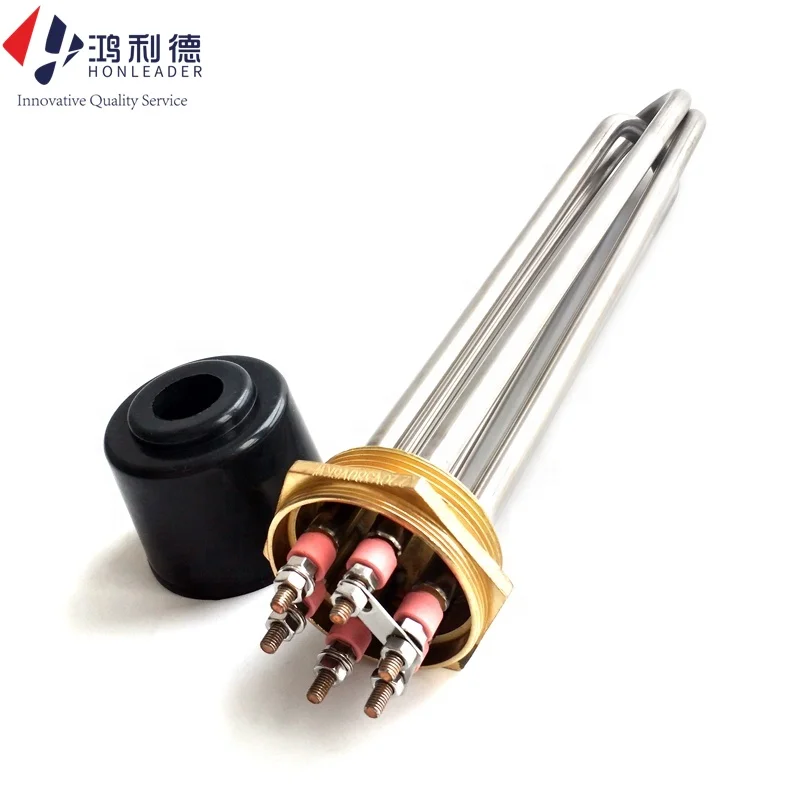

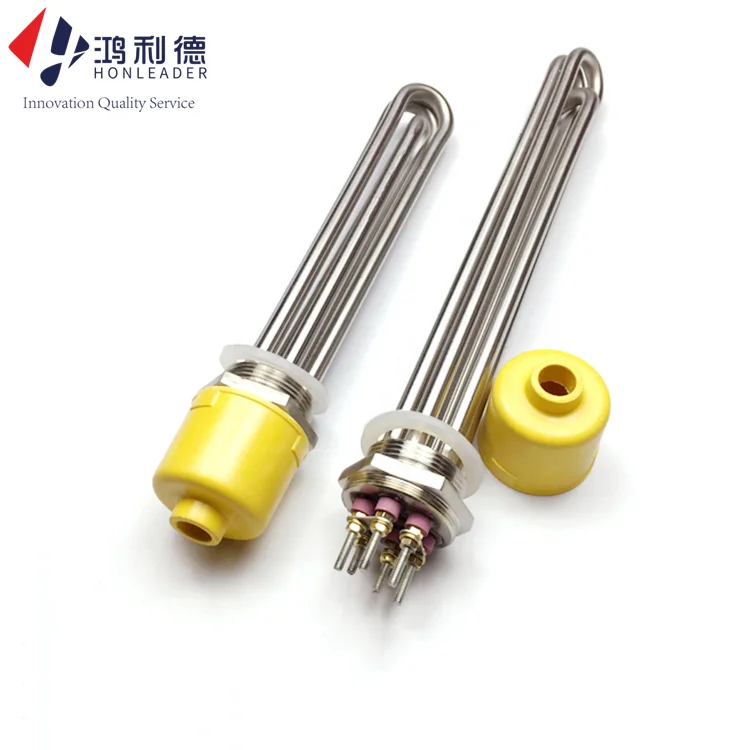

Product Description
● Immersion heaters are commonly used to heat water, oil, corrosive liquids, salt solutions and other media, directly contacting the heating medium to achieve heat transfer, which allows the heated liquid to quickly reach the required temperature. With high heating efficiency, easy replacement and maintenance, immersion heaters are an excellent liquid heating solution.
● Immersion heater can also be widely used in water tank containers, processing equipment, closed storage tanks, energy chemical processes and other scenarios. With built-in temperature sensor, the heater can be built-in sensor and thermostat to achieve temperature monitoring and overheating protection.
● Honleader offers flanged, threaded and side immersion heaters, as well as corrosive fluid heaters solution. The product output power is large, and can be built-in temperature sensor,Junction box can be designed according to user requirements for waterproof, dust-proof, explosion-proof and other types.
● Immersion heater can also be widely used in water tank containers, processing equipment, closed storage tanks, energy chemical processes and other scenarios. With built-in temperature sensor, the heater can be built-in sensor and thermostat to achieve temperature monitoring and overheating protection.
● Honleader offers flanged, threaded and side immersion heaters, as well as corrosive fluid heaters solution. The product output power is large, and can be built-in temperature sensor,Junction box can be designed according to user requirements for waterproof, dust-proof, explosion-proof and other types.
Product Paramenters
Voltage | 48V ~ 600V AC Available/Customizable |
Wattage | 3KW/6KW/9KW/12KW/15KW/18KW~1000KW/Customizable |
Sheath Material | SS304, 316L, 310S /Copper/Incoloy800 Customizable |
Screw Thread size | G / NPT / BSPP Thread 1'' 1 1/4'' 1 1/2'' 2'' /Customizable |
Flange size | DN40/DN50DN80/DN120/DN150/DN200/Customizable |
Terminal Cover Material | Stainless steel/Nylon /Plastic/Customizable |
Resistance wire material | Cr25Al15/Cr20Ni80,GH140/Customizable |
Wattage density | (High/Middle/Low)1~25w/cm²/Customizable |
Tube diameter | 6mm,8mm,10mm,12mm,14mm,16mm,20mm/Customizable |
Details Images
Process details
● Laser welding, no water and no oil leakage out
● Good electrical conductivity
● Good electrical conductivity
● Long service life
High Quality Material
● Pure Stainless Steel 304 or higher grade flange or screw plug
● Pure Stainless Steel 304 connected fittings
● High-frequency insulation ceramic for fittings
● 100% Nichrome heating resistance wire
● Pure Stainless Steel or Incoloy material elements sheath
Advantage
● High-quality stainless steel seamless pipe with wall thickness of 1.0mm, long service life.
● Rapid heating, Uniform heating, Stable performance, High thermal efficiency.
● Easy installation, Fast delivery, reliable Quality, support Customization.
● Rapid heating, Uniform heating, Stable performance, High thermal efficiency.
● Easy installation, Fast delivery, reliable Quality, support Customization.
Fast delivery
● Complete accessories.
● Easy to install.
● 3KW~18KW various specifications in stock
● Easy to install.
● 3KW~18KW various specifications in stock
● Hot water storage tanks
● Warming equipment
● Oil Preheating
● Food processing equipment
● Cleaning and Rinsing Tanks
● Heat transfer systems
● Process air equipment
● Boiler equipment
● Antifreeze protection for any fluid
......
● Warming equipment
● Oil Preheating
● Food processing equipment
● Cleaning and Rinsing Tanks
● Heat transfer systems
● Process air equipment
● Boiler equipment
● Antifreeze protection for any fluid
......
How to Order?
● Welcome to directly place your order of SUS304/316L materials immersion water tubular heater are available in stock.
● For others size, please consult Honleader and provide the following basic parameters:
1. Voltage
2. Power
3. Heating tube length
4. Flange size and pressure
5. Heating temperature
6. Heating medium: (Air/Gas/Liquid; Corrosive or Non-corrosive)
7. The volume or weight of the heating medium
● For others size, please consult Honleader and provide the following basic parameters:
1. Voltage
2. Power
3. Heating tube length
4. Flange size and pressure
5. Heating temperature
6. Heating medium: (Air/Gas/Liquid; Corrosive or Non-corrosive)
7. The volume or weight of the heating medium
Our Advantages
1. Low MOQ: Flexible MOQ 1-10 pcs available.
2. OEM Accepted: Strong capacity in develop and production under customer drawings.
3. Good Service: Instant response, great patience and full consideration.
4. Good Quality: Ex;CE; Rohs approved with 6S quality control system.
5. Product features: Fast heating, Uniform heating, Stable.
6. Fast & Cheap Delivery: We enjoy great discount from shipping forwarders.
2. OEM Accepted: Strong capacity in develop and production under customer drawings.
3. Good Service: Instant response, great patience and full consideration.
4. Good Quality: Ex;CE; Rohs approved with 6S quality control system.
5. Product features: Fast heating, Uniform heating, Stable.
6. Fast & Cheap Delivery: We enjoy great discount from shipping forwarders.
Recommend Products
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
● YANCHENG HONLEADER ELECTRIC CO.,LTD is located in the Yancheng City, Jiangsu Province, China,near to Shanghai. As a global supplier in the Industrial heaters and heating elements and other heaters, Honleader is to create added value for customers around the world.
● Company values: Innovation Quality Service.
● Honleader is one of the leading companies in China on the design and manufacture of various industrial/home appliances heater and heating element. With good quality and pretty competitive price and excellent service.
● Honleader adheres to the concept of "Quality first" in production, and puts the customer's design needs in the first place.From the establishment of the project, design and development, production and manufacturing, quality inspection to finished product delivery, each link has always maintained good information feedback and provided excellent after-sales support services.
● Through 20+ years of development, Honleader not only masters the leading and mature electric heating product design, research and development, manufacturing technology, but also integrates the industry's high-quality supplier and customer resources.
● Compared to its competitors, Honleader have rich product experience, Senior professional technical engineer team, Complete production and testing equipment, Active customer communication service. Honleader Electric Co., Ltd. has the ability to provide for various industries customer with exclusive,efficient, stable and excellent "One-stop" electric heating products solutions.
● Company values: Innovation Quality Service.
● Honleader is one of the leading companies in China on the design and manufacture of various industrial/home appliances heater and heating element. With good quality and pretty competitive price and excellent service.
● Honleader adheres to the concept of "Quality first" in production, and puts the customer's design needs in the first place.From the establishment of the project, design and development, production and manufacturing, quality inspection to finished product delivery, each link has always maintained good information feedback and provided excellent after-sales support services.
● Through 20+ years of development, Honleader not only masters the leading and mature electric heating product design, research and development, manufacturing technology, but also integrates the industry's high-quality supplier and customer resources.
● Compared to its competitors, Honleader have rich product experience, Senior professional technical engineer team, Complete production and testing equipment, Active customer communication service. Honleader Electric Co., Ltd. has the ability to provide for various industries customer with exclusive,efficient, stable and excellent "One-stop" electric heating products solutions.
FAQ
Q: What is your warranty?
A: within 365 days after receiving the package.
Q: Do you manufacture custom parts?
A: Yes. We have thousands of designs in our files of custom heaters and sensors designed for every imaginable application. Our Sales and Engineering teams are here to help you design a product that fits your needs.
Q: Are your products original?
A: Yes! All products are original and produced by the original manufacturer. Our parts can accept any type of testing, and we will be responsible if there is a quality problem.
Q: What is your delivery time?
A: Normally samples need 3 working days.
Mass production need 7-10 working days.
Q: What is the minimum order quantity for your products?
A: MOQ 1~10Pc available.
Products produced with common materials can be ordered at 1pc. If infrequently used materials required, it depends on the situation of the materials. Please feel free to contact us.
Q: Can you provide samples for testing?
A: Yes! You only need to pay the freight and you can send free samples for testing.
Q: How do we pay for the order?
A: You can pay online via TT, Paypal, Western Union and Alibaba. Or you can consult us.
Q: If we have heating projects, how to progress project design or select a product?
A: We have professional sales to provide pre-sale consulting services and engineering team for technical support. Anyquestions about products or technical questions please communicate with our sales team and provide specific applications and requirements.
A: within 365 days after receiving the package.
Q: Do you manufacture custom parts?
A: Yes. We have thousands of designs in our files of custom heaters and sensors designed for every imaginable application. Our Sales and Engineering teams are here to help you design a product that fits your needs.
Q: Are your products original?
A: Yes! All products are original and produced by the original manufacturer. Our parts can accept any type of testing, and we will be responsible if there is a quality problem.
Q: What is your delivery time?
A: Normally samples need 3 working days.
Mass production need 7-10 working days.
Q: What is the minimum order quantity for your products?
A: MOQ 1~10Pc available.
Products produced with common materials can be ordered at 1pc. If infrequently used materials required, it depends on the situation of the materials. Please feel free to contact us.
Q: Can you provide samples for testing?
A: Yes! You only need to pay the freight and you can send free samples for testing.
Q: How do we pay for the order?
A: You can pay online via TT, Paypal, Western Union and Alibaba. Or you can consult us.
Q: If we have heating projects, how to progress project design or select a product?
A: We have professional sales to provide pre-sale consulting services and engineering team for technical support. Anyquestions about products or technical questions please communicate with our sales team and provide specific applications and requirements.
