Заводская Sim-карта 4G CAT1 Промышленный маршрутизатор наружный беспроводной 300 Мбит/с 2LAN LTE AP Точка доступа мини-корпус
- Категория: Routers >>>
- Поставщик: Shenzhen,Yuzun,Science,And,Technology,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.29 $* | 0.63 $* |
| Aug-16-2025 | 0.8 $* | 0.60 $* |
| Jul-16-2025 | 0.22 $* | 0.4 $* |
| Jun-16-2025 | 0.62 $* | 0.13 $* |
| May-16-2025 | 0.52 $* | 0.38 $* |
| Apr-16-2025 | 0.1 $* | 0.16 $* |
| Mar-16-2025 | 0.5 $* | 0.23 $* |
| Feb-16-2025 | 0.40 $* | 0.68 $* |
| Jan-16-2025 | 0.19 $* | 0.87 $* |
Характеристики
Why Choose Us
（1）We have our own factory, and we also have our own R&D design team and production department. From production to sales are done by we do it ourselves.
（2）We are a company that is willing to take on.For delivery delays,we have the following measures：
1% discount for 7 days delay;
2% discount for 2 weeks delay;
3% discount for 3 weeks delay;
5% discount for one month delay.
（2）We are a company that is willing to take on.For delivery delays,we have the following measures：
1% discount for 7 days delay;
2% discount for 2 weeks delay;
3% discount for 3 weeks delay;
5% discount for one month delay.
Product Description

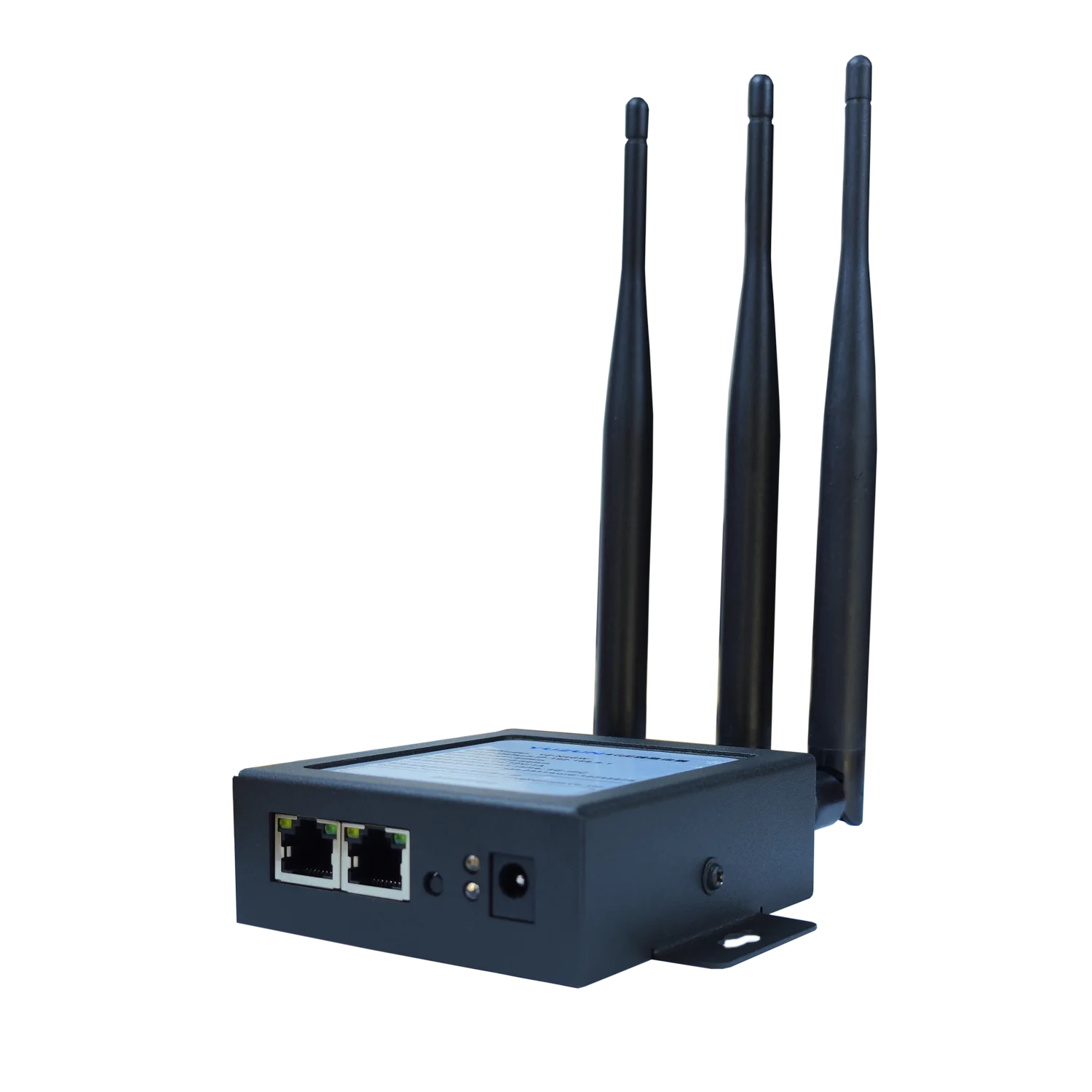

YZ-N4GWR/CAT1
Industrial 4G Wireless Router
●The industrial-grade wireless router supports 4G and wired network access methods with open architecture design to provide fast and flexible customization;
●It adopts industrial-grade standard design with wide temperature, wide voltage, dustproof, and strong electromagnetic interference resistance, and has multiple hardware protection;
●It can also operate stably in harsh environments and can adapt to different industry scenarios to provide users with wireless network transmission capabilities;
●First has been widely used in the Internet of Things industry, such as security industry, intelligent parking, intelligent courier cabinets, intelligent agriculture, environmental monitoring, automated equipment control, intelligent farming, vending machines and many other industry sectors.
"QUECTEL"
EC20 R2.1 for China、Southeast Asia、Africa and other surrounding areas
Adopted Communication high-performance 4G communication module.

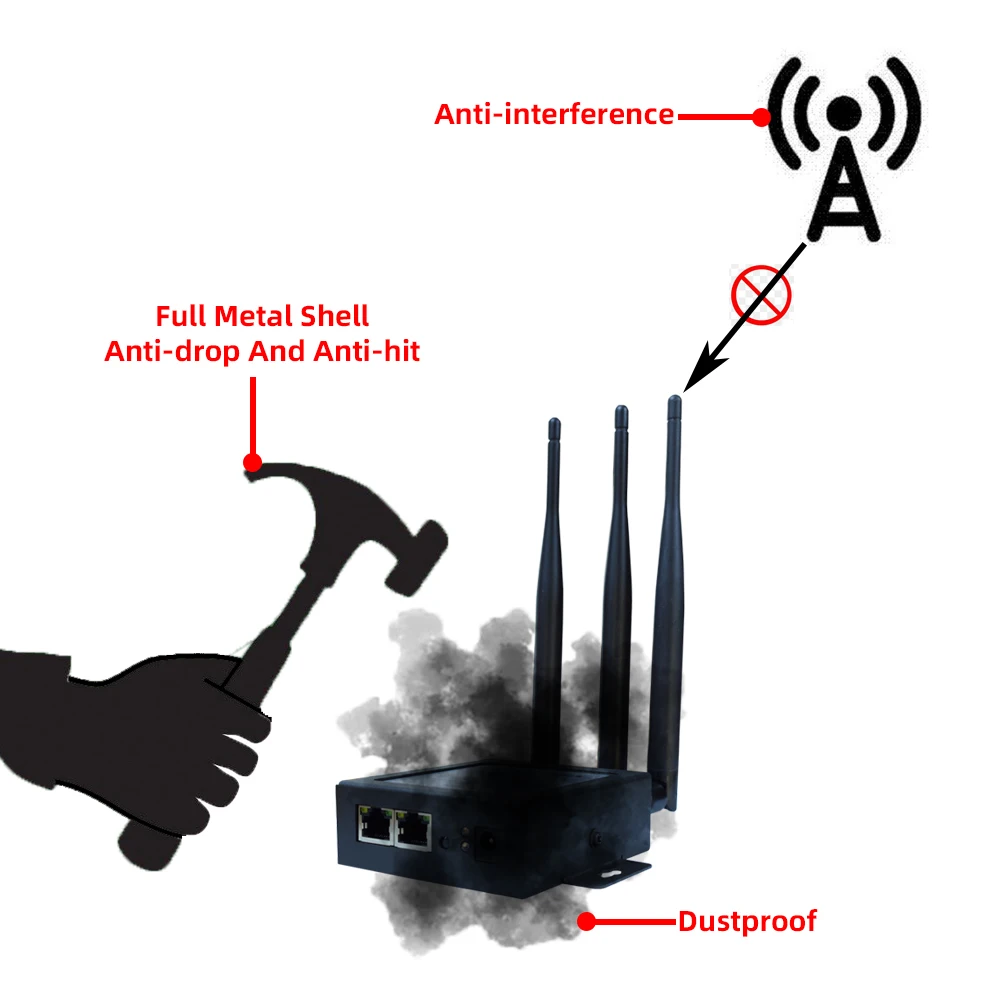

Indestructible
Adopt full metal shell：Dustproof, Anti-drop, Anti-interference.
SIM Card Slot
Support all-network 4G(For China、Southeast Asia、Africa and other surrounding areas
Wired or Wireless
Multi-device and Long-distance connection
●Supports up to 10 users to access WiFi shared network;
●Support AP hotspot function, the device can be connected through WiFi;

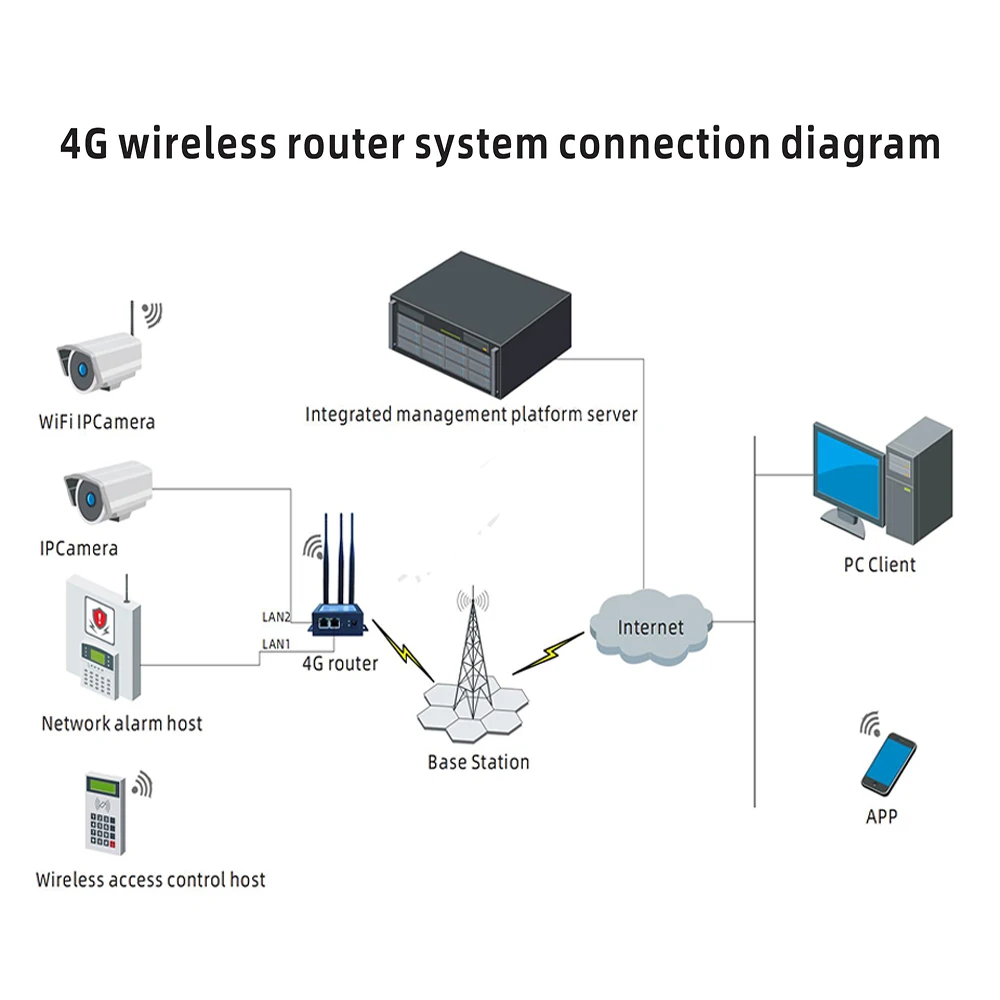

●Built-in 2 Ethernet interfaces, the device can directly access the network port to share 4G network.
More Features
●Support DC6V~16V wide voltage;
●4G wireless network transmission rate:
uplink bandwidth 5Mbps, downlink bandwidth 10Mbps.
Specification
Model | Industrial 4G Router CAT1 China Edition (Also for Southeast Asia,Africa and other surrounding areas) | |
Hardware Performance and Frequency Band | ||
Main Processor | Quectel EC20 R2.1 | |
Uplink Bandwidth | 5M | |
Downlink Bandwidth | 10M | |
Data transfer support | 4G/WIFI | |
Supported Bands | TD-LTE FDD-LTE | |
Memory | 128M | |
Flash | 8M | |
System time | NTP server auto-sync | |

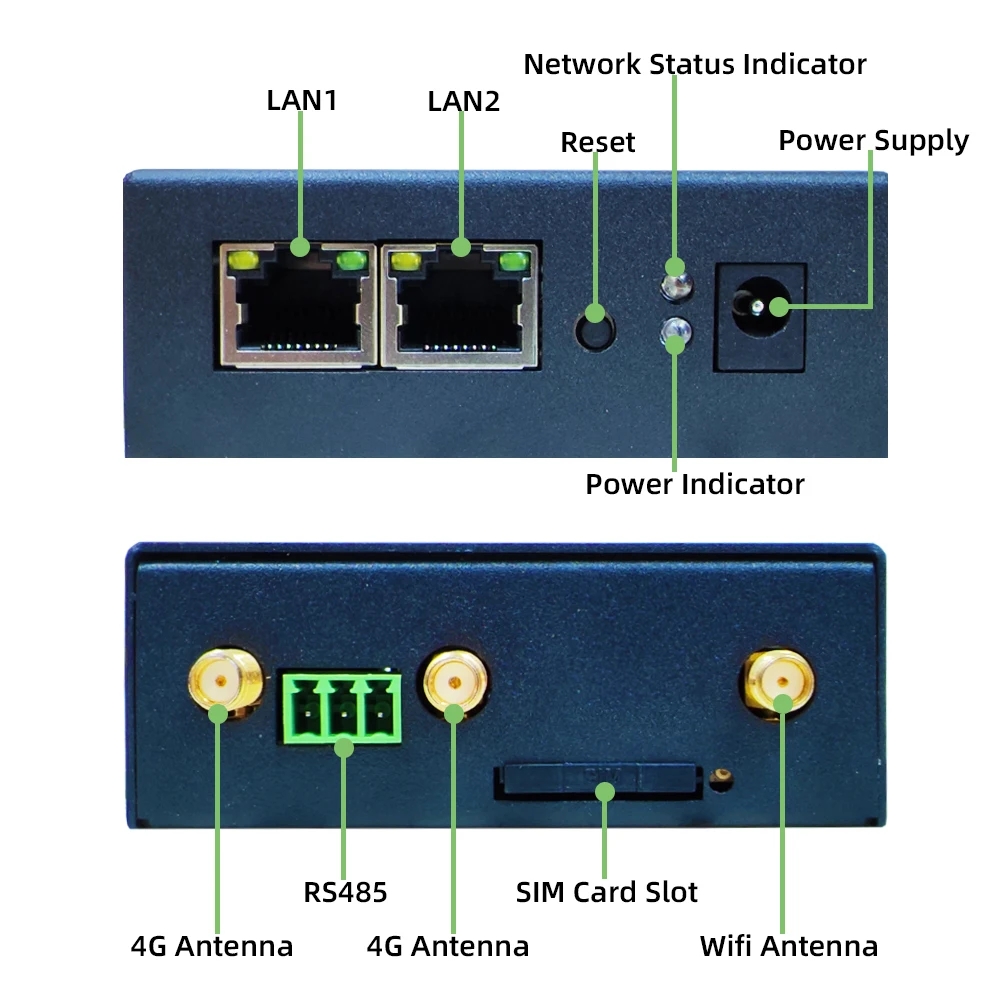

Interface | ||
LAN | 2 x 10/100M adaptive network ports, adaptive MDI/MDIX | |
SIM Card Slot | 1 Nano SIM card slot | |
Reset button | 1 Reset button | |
Antenna | 2 4G antennas(impedance 50Ω, SMA interface) 1 WiFi antenna(impedance 50Ω, SMA interface) | |
LED indicator | 1 power indicator, 1 4G network status indicator | |
Wifi | ||
WiFi Standard | 2.4GHz IEEE802.11 b/g/n | |
Transmission rate | Maximum speed up to 300Mbps | |
Working mode | AP mode | |
Number of connections | The recommended number of simultaneously connected devices is no more than 10 | |
Transmission distance | Maximum 100m (actual transmission distance depends on working environment) | |
Network Management | ||
Configuration method | Telnet、Web | |
Upgrade method | Web Upgrade | |
Log function | Log function | |
Network Diagnostic | Ping、tracert、nslookup | |
Working Environment | ||
Operating temperature | -20℃~+70℃ | |
Working humidity | 10%~95%RH (non-condensing) | |
Equipment ventilation | Natural heat dissipation and no noise | |
Power supply | ||
Power supply | External power adapter power supply (12V/2A) | |
Operating Voltage | Wide voltage input DC6~16V | |
Power consumption | Normal operation power ≤ 1.2W, peak 300mA@12V | |
Other | ||
Housing material | All metal housing | |
Installation method | Desktop installation, wall mounting | |

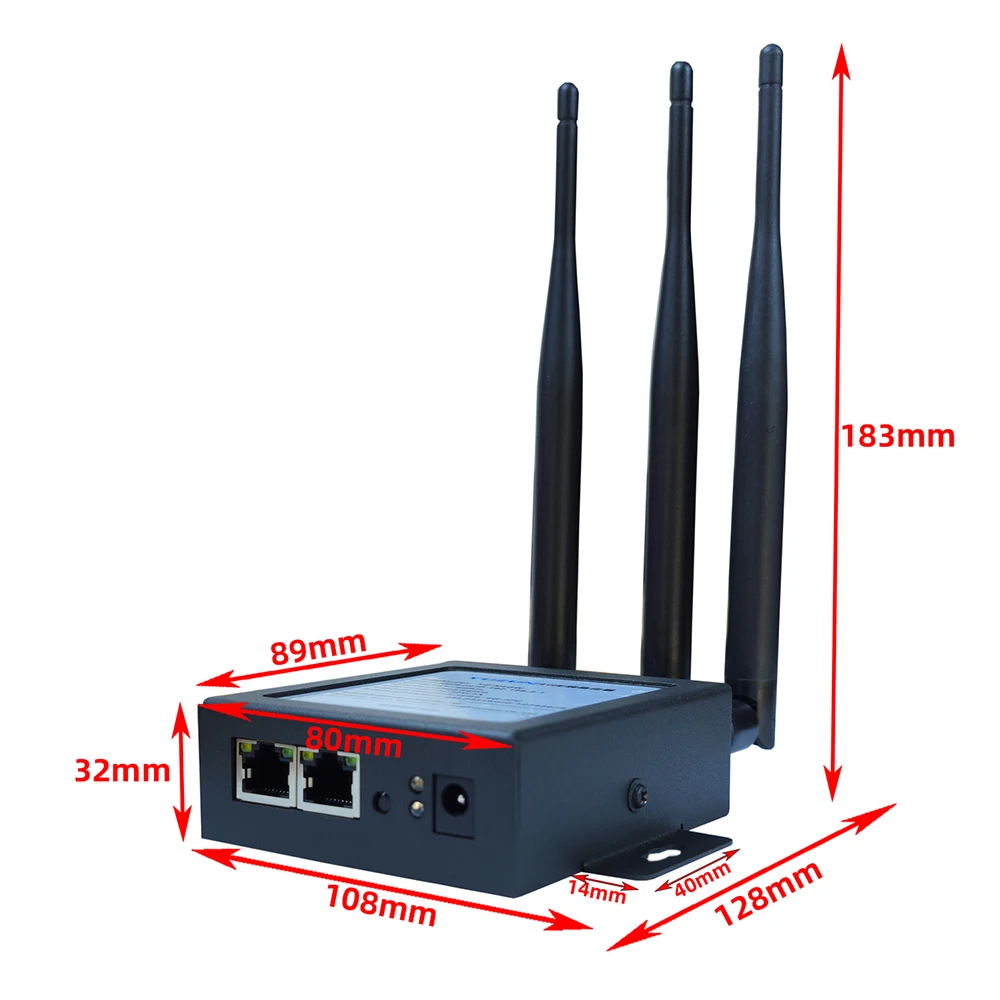

Product Size | L89mm*W80mm*H32mm (body size, without antenna) | |
Product weight | Approx. 350g (with antenna, without packaging) | |

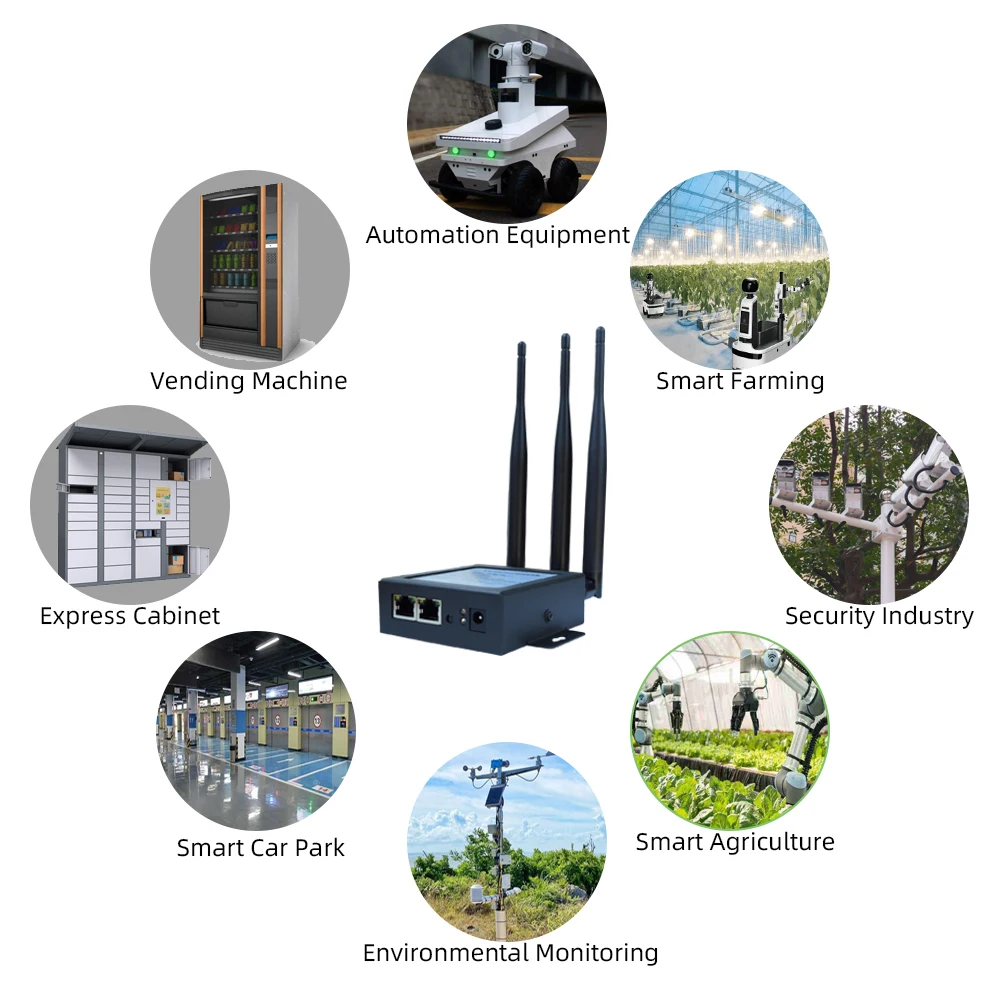

Product Application
Suitable For A Variety Of Scenarios
Packing & Delivery
Company Profile
Yuzun is a brand of Shenzhen lingbiao technology development Co., Ltd,the campany is dedicated to research CCTV imagecoding and decoding,professional security equipment,security systems,netword software development,production,sales and service of high-tech security company,is committed to digital security research ,development and production,launch a series with independent intellectual property rights of the digital,networded,intelligent video surveillance products served to mankind,the company strictly according to ISO9001 quality system to implement production,the products passed the CE,FCC,RoHS,and other international quality certification,perfect after sales service system,assured to buy.
FAQ
（1）What's your MOQ?
The minimum order quantity is one.
（2）How long can I expect to get the product?
Sample or general order can be delivered from our factory in 5-10 working days, bulk order can be delivered from our factory in 10-15 working days.
（3）Are you manufacturer or trading company?
We are a manufacturer located in Shenzhen amd Dongguan China, you are welcomed to visit our factory.
（4）Could you provide OEM&ODM service?
Yes, we provide the OEM&ODM service, our company is focusing on improving video processing technology, we provide the complete system solution and customized products, our R&D team have rich experience of surveillance products.
（5）How is your technical Support?
We have strong R&D team to support our customers, and if you have any question for the technology of our products, please email to us and our reply will be sent to you immediately;Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us and thanks for your all comments in.
The minimum order quantity is one.
（2）How long can I expect to get the product?
Sample or general order can be delivered from our factory in 5-10 working days, bulk order can be delivered from our factory in 10-15 working days.
（3）Are you manufacturer or trading company?
We are a manufacturer located in Shenzhen amd Dongguan China, you are welcomed to visit our factory.
（4）Could you provide OEM&ODM service?
Yes, we provide the OEM&ODM service, our company is focusing on improving video processing technology, we provide the complete system solution and customized products, our R&D team have rich experience of surveillance products.
（5）How is your technical Support?
We have strong R&D team to support our customers, and if you have any question for the technology of our products, please email to us and our reply will be sent to you immediately;Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us and thanks for your all comments in.
