K-1000C новый дизайн Rgb Led контроллер светодиодных USB Sd Card Dmx цифровой светодиодной
- Категория: Dimmers >>>
- Поставщик: Pileds,Led,Light,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 3213.13 $* | 3374.32 $* |
| Aug-15-2025 | 3186.90 $* | 3345.41 $* |
| Jul-15-2025 | 2673.94 $* | 2807.77 $* |
| Jun-15-2025 | 3132.94 $* | 3289.36 $* |
| May-15-2025 | 2727.60 $* | 2863.17 $* |
| Apr-15-2025 | 3078.86 $* | 3232.61 $* |
| Mar-15-2025 | 3051.87 $* | 3204.7 $* |
| Feb-15-2025 | 3024.11 $* | 3175.36 $* |
| Jan-15-2025 | 2997.83 $* | 3147.71 $* |
Характеристики
Product Description

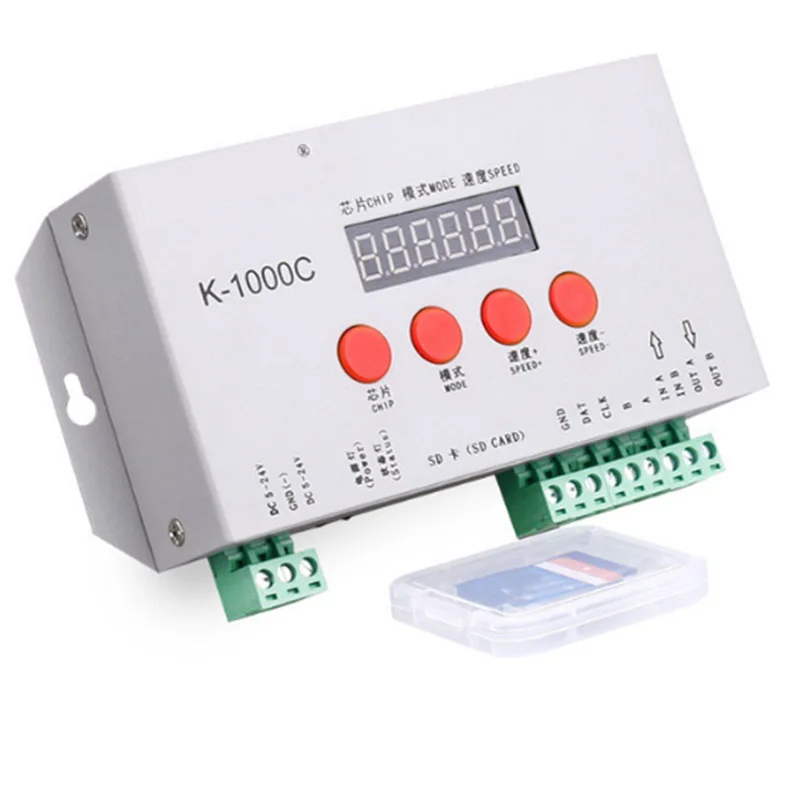

WS2811 UCS1903 WS2812B SK6812 LPD8806 APA102 RGBW Addressable RGB Pixel LED DMX512 Decoder controller k-1000C
32 levels-65536 levels of gray control, software gamma correction processing.
Support points, lines, areas, rules and shaped handles.
Single port output can support 2048 pixels.
Multiple controllers can be cascaded together and work synchronously
Compatible with single-wire or two-wire chips.
Memory card Type: SD card
Capacity: 128MB-32GB
Physical parameters:
Weight: 0.35kg
Temperature: -40-85 degrees
Voltage gate: DC5V-24V
Features: K1000C controller
Power: 3W
Remarks: 1. K-1000-RGBW should be selected for lamps with RGBW four channels.
For a single-channel lamp with a load, K-1000-W needs to be selected. At this time, a channel represents a pixel, and the software effect is white.
Precautions:
1. Before copying the file to the SD card, the SD card must be formatted first. Note that it must be formatted before each copy.
2. The SD card must be formatted into "FAT" format or "FAT32" format.
3. The SD card cannot be hot swapped, that is, every time the SD card is plugged and unplugged, the controller must be disconnected from the power supply.
Single port output can support 2048 pixels.
Multiple controllers can be cascaded together and work synchronously
Compatible with single-wire or two-wire chips.
Memory card Type: SD card
Capacity: 128MB-32GB
Physical parameters:
Weight: 0.35kg
Temperature: -40-85 degrees
Voltage gate: DC5V-24V
Features: K1000C controller
Power: 3W
Remarks: 1. K-1000-RGBW should be selected for lamps with RGBW four channels.
For a single-channel lamp with a load, K-1000-W needs to be selected. At this time, a channel represents a pixel, and the software effect is white.
Precautions:
1. Before copying the file to the SD card, the SD card must be formatted first. Note that it must be formatted before each copy.
2. The SD card must be formatted into "FAT" format or "FAT32" format.
3. The SD card cannot be hot swapped, that is, every time the SD card is plugged and unplugged, the controller must be disconnected from the power supply.
Screen print meaning:

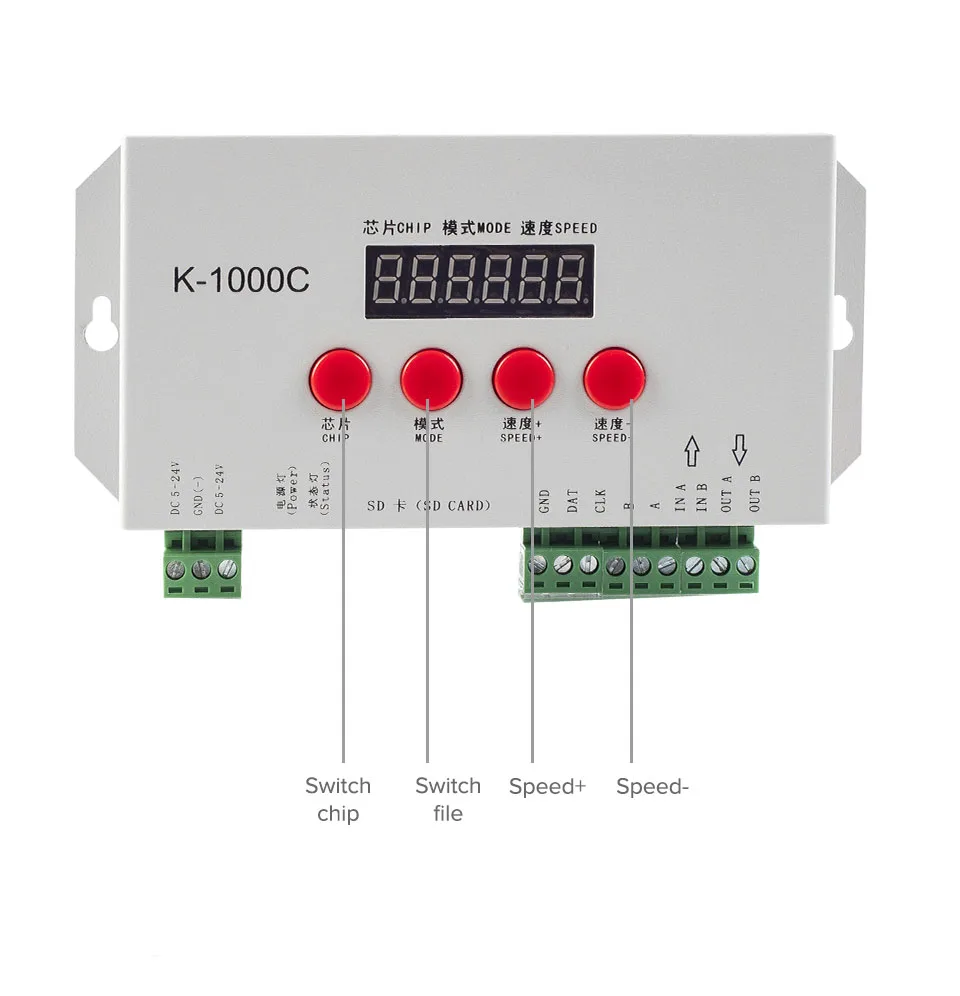

Button meaning:
Interface Meaning:
NOTES:
1.If support RGBW four channels’ lights should select K-1000-RGBW.
2.If support single channel light should choose K-1000-W, at this time, one channel means one pixel, the software effect make as white lighting.
*Note: When you need order this controller kindly consult to HTD sales more.
1.If support RGBW four channels’ lights should select K-1000-RGBW.
2.If support single channel light should choose K-1000-W, at this time, one channel means one pixel, the software effect make as white lighting.
*Note: When you need order this controller kindly consult to HTD sales more.
Connection Diagram
CONVENTIONAL IC LAMP CONNECTION MODE
Packing & Delivery

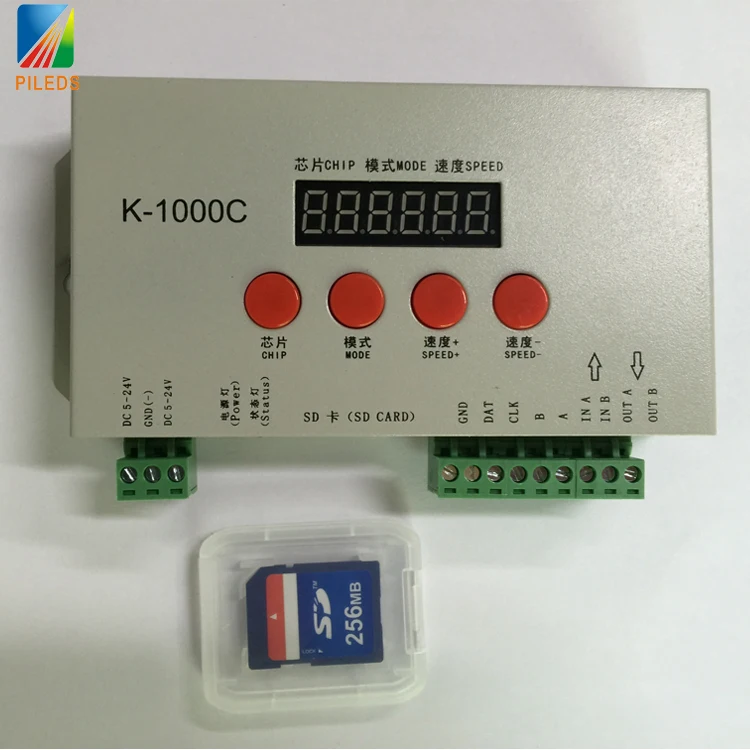

1 * K-1000C Pixel Program Controller
1 * 256MB memory card (Only the above package content, other products are not included.The measurement allowed error is +/- 1-3cm.)
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
1 * 256MB memory card (Only the above package content, other products are not included.The measurement allowed error is +/- 1-3cm.)
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
