Автоматическая машина для склеивания гофрированных картонных коробок Rolam 1600PC складная
- Категория: Paper Production Machinery >>>
- Поставщик: Zhejiang,New,Luolan,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 35700.6 $* | 37485.41 $* |
| Aug-15-2025 | 35400.50 $* | 37170.28 $* |
| Jul-15-2025 | 29700.56 $* | 31185.85 $* |
| Jun-15-2025 | 34800.81 $* | 36540.33 $* |
| May-15-2025 | 30300.69 $* | 31815.62 $* |
| Apr-15-2025 | 34200.52 $* | 35910.27 $* |
| Mar-15-2025 | 33900.89 $* | 35595.99 $* |
| Feb-15-2025 | 33600.82 $* | 35280.63 $* |
| Jan-15-2025 | 33300.90 $* | 34965.3 $* |
Характеристики
Product Description

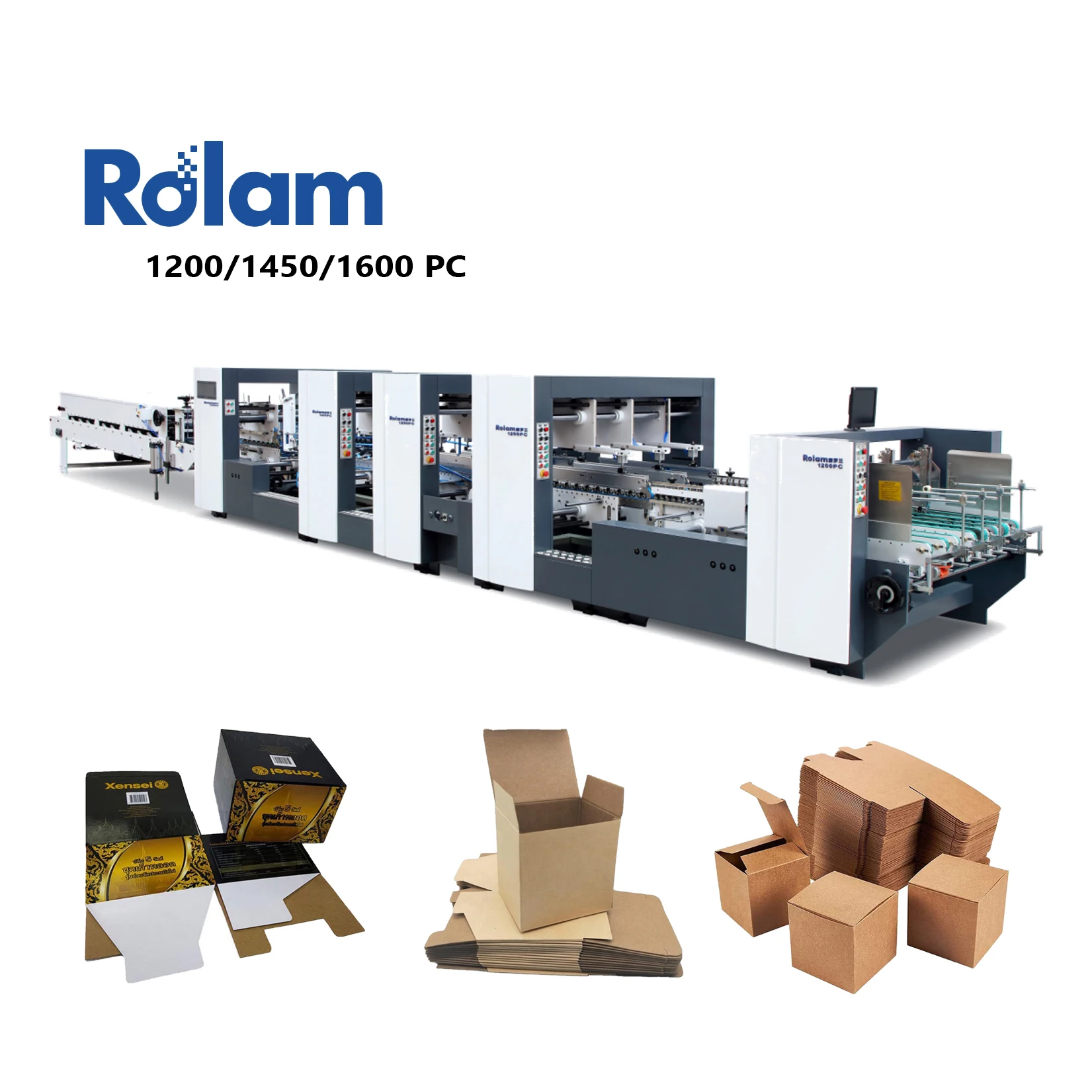

PC Automatic High Speed Crash Lock Bottom Folding Gluing Machine
Perfect solution to work in the heavy packaging industry.
Wide range of accessories that allows to different kinds of designs.Fast, steady and precise machine, easy to set up and operate.
All sections with independent motor driving system.Motorized carrier movement with high precision linear guides.
Able to produce complex carton structures, straigh line, lock bottom and more
Wide range of accessories that allows to different kinds of designs.Fast, steady and precise machine, easy to set up and operate.
All sections with independent motor driving system.Motorized carrier movement with high precision linear guides.
Able to produce complex carton structures, straigh line, lock bottom and more
Specification
MODEL | 1200 | 1450 | 1600 | |||
Paper material | Cardboard 210-800gsm，A/B/E Flute | |||||
Max Speed | 260m/min | |||||
Max.thickness of folded box | 12mm | 12mm | 12mm | |||
Way of folding | fold 2 and fold 4 are 180° | |||||
Power supply | 3P 380V 50HZ | |||||
Blank width | 1200mm | 1450mm | 1600mm | |||
Length x Width x Height | 14x1.9x1.7m | 14x2.2x1.7m | 14x2.3x1.7m | |||
Net Weight | 8T | 9T | 10T | |||
Total power | 22.28kw | 22.28kw | 22.28kw | |||
Samples Parameter
Certifications
Company Profile
Details Images
Paper Feeding Section
Equipped with air suction function, Multi-stage rail to ensure the verticality of pressing board.
To ensure that the paper feeding is not skewed, the unique structure keeps more simple and convenient adjustment of pressing board.
To ensure that the paper feeding is not skewed, the unique structure keeps more simple and convenient adjustment of pressing board.
Aligner section
The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.
Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.
Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.

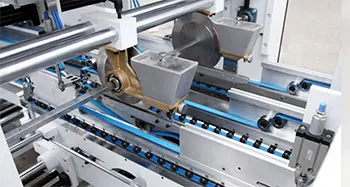

Lock bottom Section
Independent motor drive, equipped with upper gluing tank.

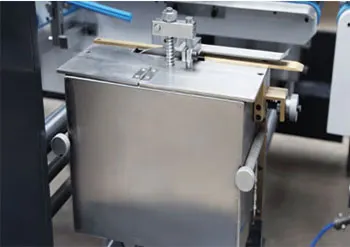

Lower gluing tank
lower gluing tank is large volume.
Easy to remove and clean
Easy to remove and clean

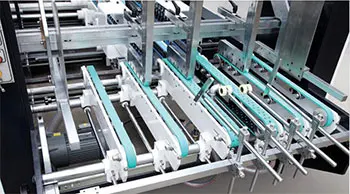

Folding and closing
Equipped with 3 plate type rail device. The upper pressure belt adopts the main drive and cylinder pressure more suitable for different thickness corrugated products.
Trombone section
Independent motor drive can be used to control the adjustable size of the belt.
Paper collection adopts cylinder pressure system, easier to adjust pressure, make the box more effectively gluing.
Paper collection adopts cylinder pressure system, easier to adjust pressure, make the box more effectively gluing.
Transmission
Up and down belt can be adjusted separately.
Equipped with photo electronic counting device and kicking paper device, which can press the paper after accounting and make it easy to pack . Also equipped with feeding paper inspection device.
Equipped with photo electronic counting device and kicking paper device, which can press the paper after accounting and make it easy to pack . Also equipped with feeding paper inspection device.
VR
Packing & Delivery
The normal package is wooden box. If export to european countries,the wooden box will be free/fumigated.
FAQ
1.Q:What is the machine warranty?
A:one year.
2.Q:Does your machine with CE certificate?
A:Yes.
3.Q:What is the production time while placing order?
A:About 30 days
4.Q:What is the delivery time?
A:Within 30 days after get the payment.
5.Q:Can your company handle shipping for customers?
A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6.Q:Does the packing strong?
A:Yes, of course! All of our export packing is with strong wooden pallets, all are confirmed to export packing standard.
7.Q:How about after-sales service process?
A:When your machine has problem, contact your sales and we will solve your problem soon as possible.
8.Q:Are you manufacturer?
A:Yes, we are manufacturer with 10-year experience and profession.
9.Q:Do you have stock product to sell?
A:Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, so we need
custom one for you, and your order will be highly attention to manufacture.
10.Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .
11.Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
