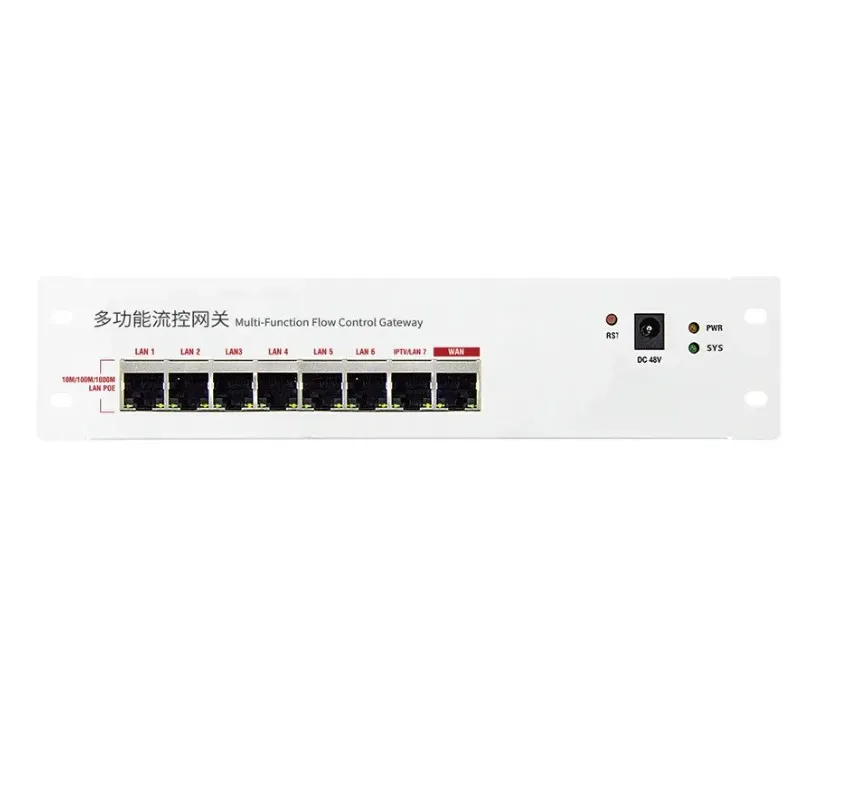

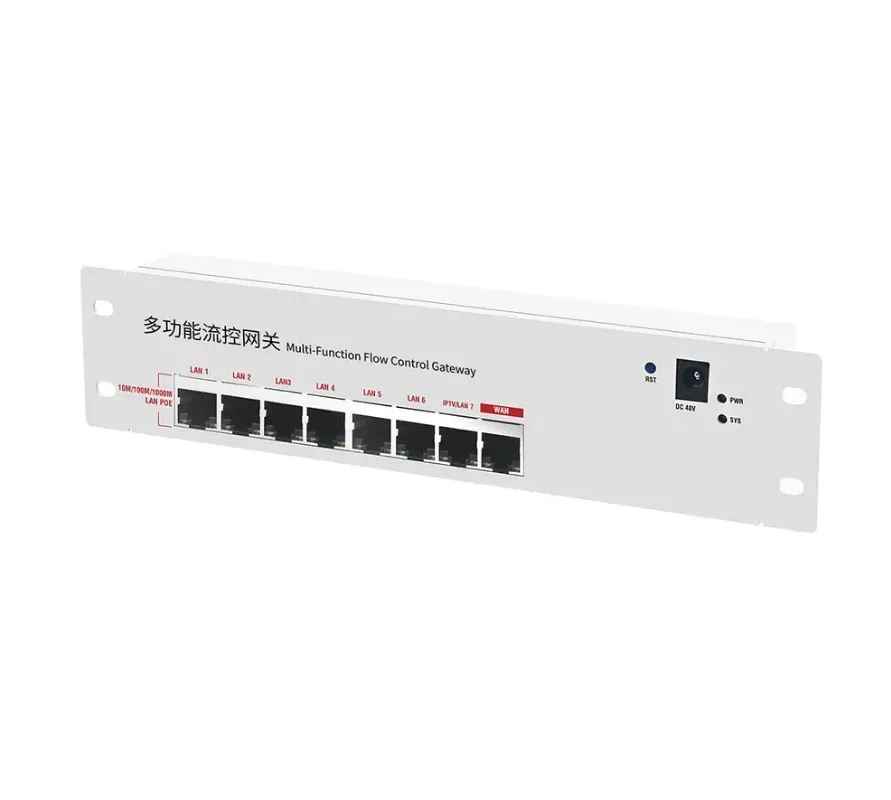

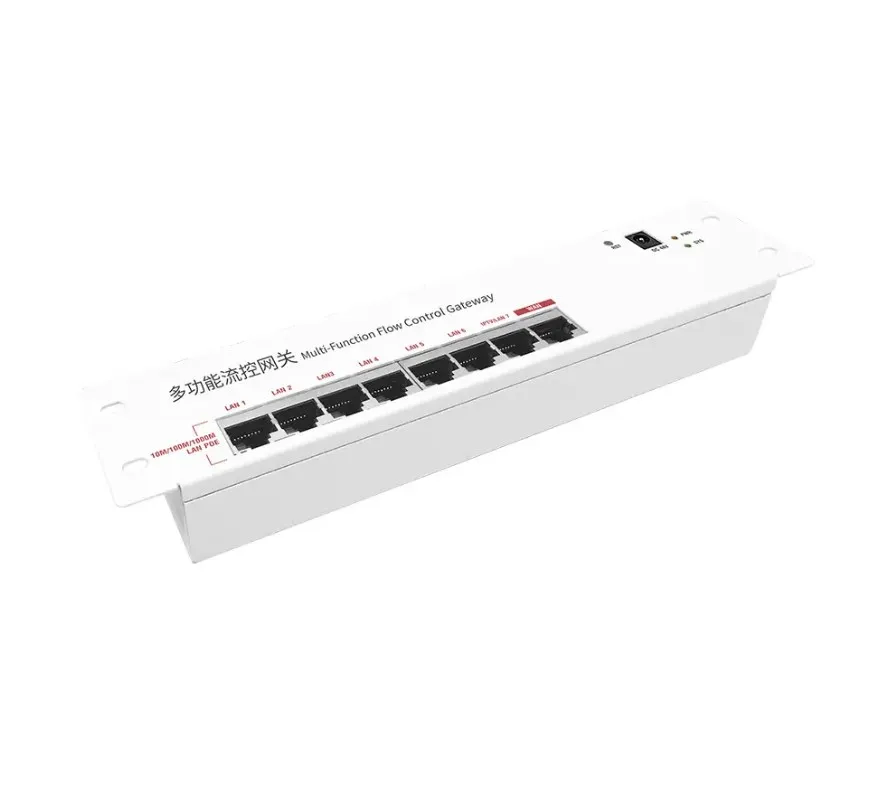

  A home use gigabit router with PoE switch, AP controller and IPTV functions








  • Support PPPoE, DHCP, static IP, QoS and parental control


  • 8 * 10/100/1000Mbps RJ45 ports, including WAN, PoE and IPTV ports;


  • WLAN Controller, central manage the in wall wireless AP;


  • Cloud access and control, configure this router in anywhere at any time.


  • Model:MR890(72W)








Main Features:

MR890 is a home use smart router with multiple functions. It comply with CAPWAP Protocol, combine with WLAN controller, Gigabit PoE switch, smart router functions together. Build in network/electronic distribution box at home, provide Ethernet and PoE power for in wall wireless AP, bring seamless wireless coverage for each corner and supply stable and fast wireless and Ethernet access for home users, IPTV or other entertainment device.

There are 6*10/100/1000Mbps PoE ports comply with IEEE 802.3at standard, automatically to detect the PD equipment and supply 48V PoE power if need;

There is 1*10/100/1000Mbps WAN port, support PPPoE, Dynamic IP, Static IP, when connect to different ISP network, MR890 will automatic to detect the network type and supply Internet to LAN and PoE ports. What’s more, it support smart QoS, division different bandwidth to different user and behavior.

There is 1*10/100/1000Mbps IPTV port, connect with ADSL modem’s IPTV port, then IPTV can connect with wireless AP’s LAN port directly, make the house security and concealment, safety, tidy

As a CAPWAP WLAN controller, it can managed the connected wireless access point in central and remote. Very easy to do the maintenance. What’s more, it can auto detect the latest firmware and upgrade it to recover the bugs.

Working Diagram:

Firmware:

1. WLAN Controller, central manage the in wall wireless AP;                                                                              2. PoE Switch: Supply 48V PoE power for in wall wireless AP;                                                                          3. Gateway: Support PPPoE/Dynamic IP/Static IP;                                                                                              4. Support Cloud access, remote management and working status alert by WeChat;                                    5. Other function like Parental Control, Smart QoS, load balance

Accessory:

User Manual, Power Adapter,  DC Cord*3PCS
