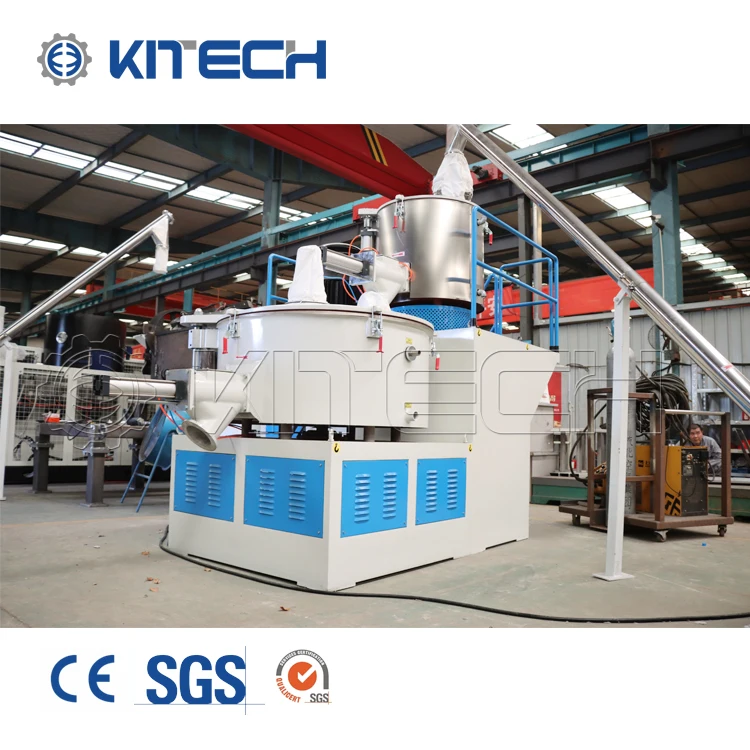

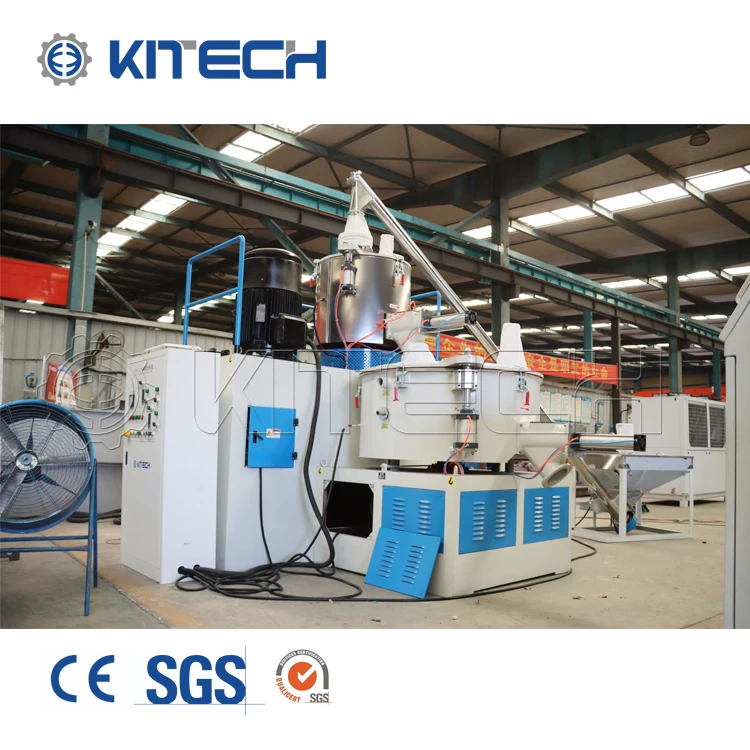

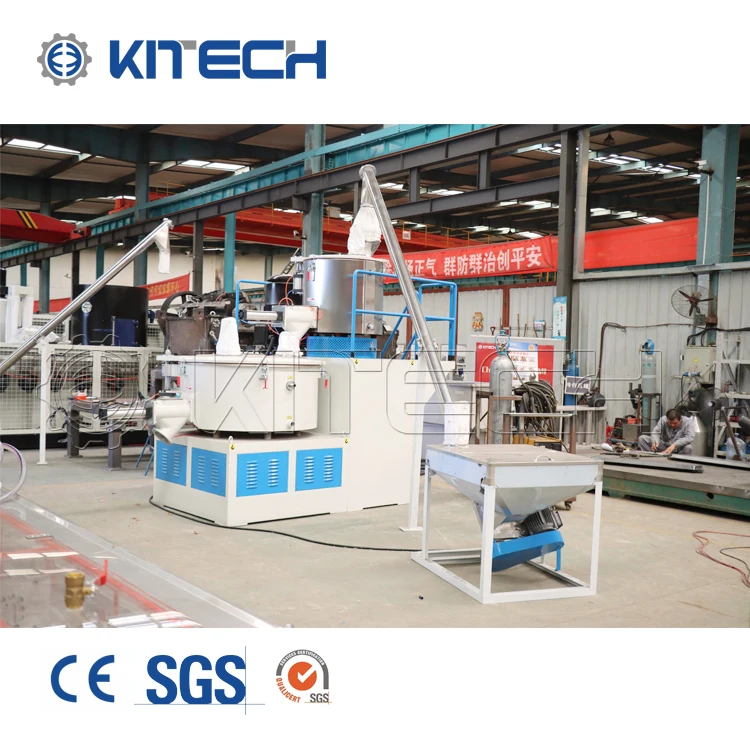

Машина для сушки ПВХ гранул Kitech смеситель
- Категория: Plastic Raw Material Machinery >>>
- Поставщик: Jiangsu,Kitech,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 3570.81 $* | 3749.83 $* |
| Aug-15-2025 | 3540.88 $* | 3717.4 $* |
| Jul-15-2025 | 2970.42 $* | 3119.11 $* |
| Jun-15-2025 | 3480.22 $* | 3654.33 $* |
| May-15-2025 | 3030.28 $* | 3182.10 $* |
| Apr-15-2025 | 3420.30 $* | 3591.52 $* |
| Mar-15-2025 | 3390.69 $* | 3560.87 $* |
| Feb-15-2025 | 3360.30 $* | 3528.7 $* |
| Jan-15-2025 | 3330.73 $* | 3497.92 $* |
Характеристики
Product Description
Specification

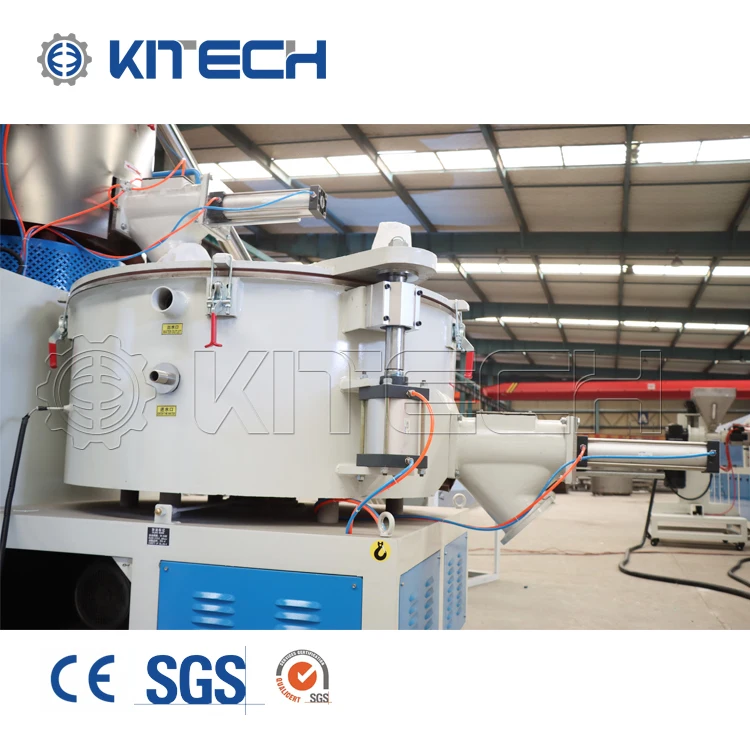

Heating mixer:
Total volume of heating mixer: 200L
Total effective volume of heating mixer: 150L
Feeding capacity per batch: 70-80Kg
Capacity per hour: 280-350Kg/h
Driving motor power: 30/45KW, double speed controlling
Inner wall thickness: 5mm, material: stainless steel 304
Base thickness: 5mm, material:stainless steel 304
Mixing paddle material:stainless steel 304
Rotating speed: 465/930rpm
Main shaft material: 40CrHRC28-32, approved by dynamic balance & heat treatment.
Mixing time: 10-12minutes per batch
Material temperature for discharge(℃): ≤120, driving by air cylinder, AirTac, Taiwan
Heating: Self-friction
Cooling mixer:
Total volume of cooling mixer:500L
Total effective volume of cooling mixer: 375L
Driving motor power:5.5KW
Inne wall thickness: 5mm, material:stainless steel 304
Base thickness: 5mm, material:stainless steel 304
Mixing paddle material:stainless steel 304
Main shaft material: 40CrHRC28-32, approved by dynamic balance & heat treatment
Rotating speed: 110rpm
Cooling time: 10-12minutes per batch
Stainless steel pipeline(2mm thickness) and water cooling & circulation
Discharging method: Pneumatic discharging by air cylinder, AirTac, Taiwan
Material temperature for discharge(℃): ≤45
Main elements:
Low voltage components: Siemens/Schneider/LS
Motor brand: Simo, Chinese top brand
Temperature controller: Omron
Cylinder: Airtac, Taiwan brand
Seal: TTO, Taiwan
Bearing: Chinese top brand
Thermocouple type: J type
Total volume of heating mixer: 200L
Total effective volume of heating mixer: 150L
Feeding capacity per batch: 70-80Kg
Capacity per hour: 280-350Kg/h
Driving motor power: 30/45KW, double speed controlling
Inner wall thickness: 5mm, material: stainless steel 304
Base thickness: 5mm, material:stainless steel 304
Mixing paddle material:stainless steel 304
Rotating speed: 465/930rpm
Main shaft material: 40CrHRC28-32, approved by dynamic balance & heat treatment.
Mixing time: 10-12minutes per batch
Material temperature for discharge(℃): ≤120, driving by air cylinder, AirTac, Taiwan
Heating: Self-friction
Cooling mixer:
Total volume of cooling mixer:500L
Total effective volume of cooling mixer: 375L
Driving motor power:5.5KW
Inne wall thickness: 5mm, material:stainless steel 304
Base thickness: 5mm, material:stainless steel 304
Mixing paddle material:stainless steel 304
Main shaft material: 40CrHRC28-32, approved by dynamic balance & heat treatment
Rotating speed: 110rpm
Cooling time: 10-12minutes per batch
Stainless steel pipeline(2mm thickness) and water cooling & circulation
Discharging method: Pneumatic discharging by air cylinder, AirTac, Taiwan
Material temperature for discharge(℃): ≤45
Main elements:
Low voltage components: Siemens/Schneider/LS
Motor brand: Simo, Chinese top brand
Temperature controller: Omron
Cylinder: Airtac, Taiwan brand
Seal: TTO, Taiwan
Bearing: Chinese top brand
Thermocouple type: J type
