Полный комплект бытовая батарея 5 кВтч 3 кВт солнечная панель система хранения солнечных батарей
- Категория: Solar Energy Products >>>
- Поставщик: Dongguan,Lightning,New,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.87 $* | 0.9 $* |
| Aug-19-2025 | 0.61 $* | 0.15 $* |
| Jul-19-2025 | 0.28 $* | 0.35 $* |
| Jun-19-2025 | 0.84 $* | 0.6 $* |
| May-19-2025 | 0.10 $* | 0.65 $* |
| Apr-19-2025 | 0.5 $* | 0.35 $* |
| Mar-19-2025 | 0.91 $* | 0.91 $* |
| Feb-19-2025 | 0.87 $* | 0.80 $* |
| Jan-19-2025 | 0.45 $* | 0.57 $* |
Характеристики
Product Description

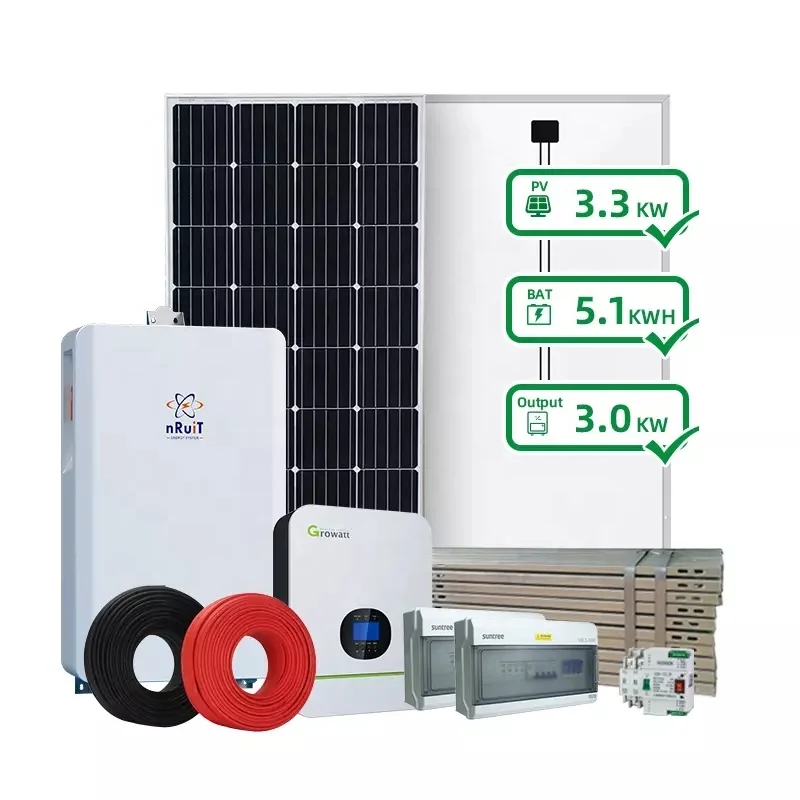

Complete Set Household 5Kwh Battery 3Kw Solar Panel Solar Home Energy Battery Storage System

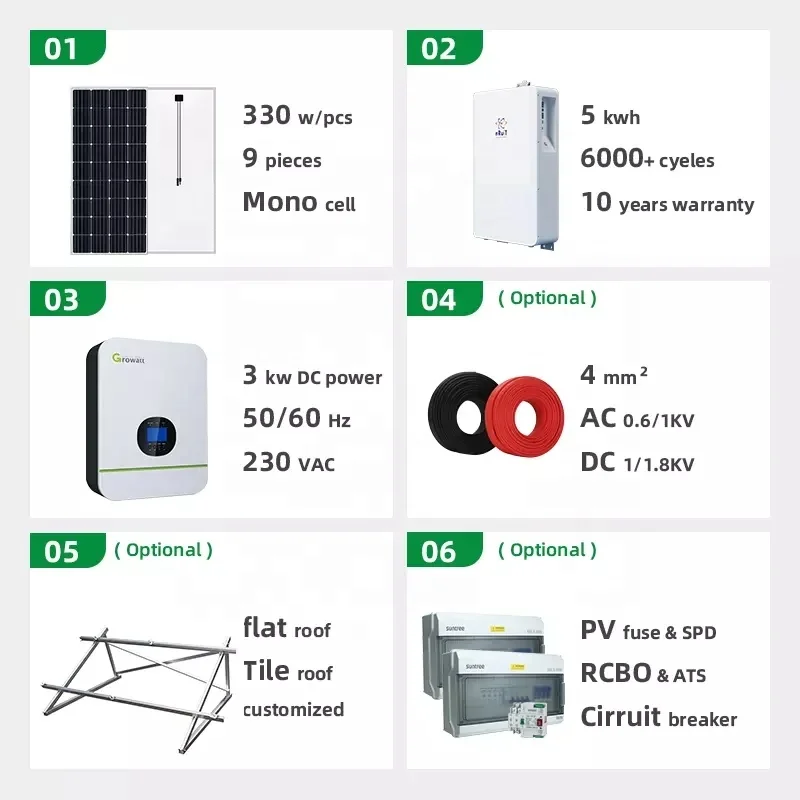

ESS-BT5-PV3-INV3 | ESS-BT5-PV5-INV6 | ESS-BT5-PV6-INV5 | |
Battery:Powerporter 5kwh | 1 unit =5kwh / 48V/ / 100ah | 2 units =10kwh / 48V/ / 200ah | 2 units =10kwh / 48V/ / 200ah |
Solar panel: JT330w-24M | 9 pcs(3kw) 330w/pcs | 15 pcs (5kw) 330w/pcs | 18 pcs (6kw) 330w/pcs |
Inverter:Growatt 3000~5000TL | 1 unit Growatt 3000TL-HVM | 2 units Growatt 3000TL-HVM | 1 unit Growatt 5000TL-HVM |
System max. AC output power | 3kw | 6kw | 5kw |
Combiner box(Optional) | 1 set | 1 set | 1 set |
Cabel DC 4mm2(Optional) | 200 meters | 200 meters | 200 meters |
PV component(Optional) | 1 set | 1 set | 1 set |
Battery : Powerporter 5kwh | ||
Nominal Energy | 5.12Kwh | |
Nominal Voltage | 51.2V | |
Capacity | 100Ah | |
Size | 745 x 460 x 165 mm | |
Weight | 49.5Kg | |
Battery Type | CATL Lifepo4 | |
Cycle life | 6000+ | |
Installation | Wall or floor mount | |
Solar panel : JT330w-24M | ||
Pmax | 330w | |
Vmp | 38.23V | |
Imp | 8.65A | |
Size | 1950x990x40mm | |
Weight | 22.86Kg | |
Cell Type | Mono 156mm x 156mm | |
Cell Arrangement | 72 cell in series | |
Inverter : Growatt 3000~5000TL HVM | ||
Battery voltage | 48 VDC | |
Rated power | 3000~5000W | |
Output voltage range | 230VAC±5%@50/60Hz | |
Mppt voltage range | 30VDC~80VDC60VDC~115VDC | |
Size | 130 x 350 x 455 mm | |
Weight | 8Kg/14.5kg | |
Combiner box | ||
PV Fuse | ||
PV Cirrcuit Breaker | ||
PV SPD | Surge Protective Device | |
Genset output | ||
AC SPD | ||
ATS | Automatic Transfer Switch | |
RCBO | Residual current circuit breaker with over current protection | |
PV component | ||
Cabel DC & MC4 Connector | ||
PV Cirrcuit Breaker | ||
Cabel DC（Option） | 4mm2-6mm2 | |
Strength Value | 600VDC(UL)/1000VDC(TUV) | |
PV Shelf Material | Al 6005-T5 | |

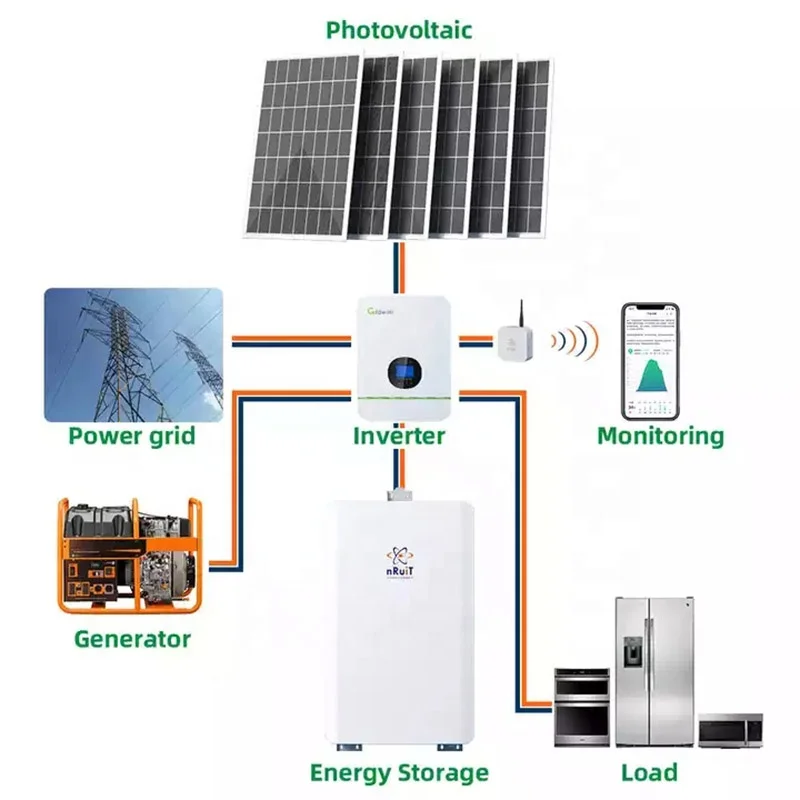

Application
Installation Instructions

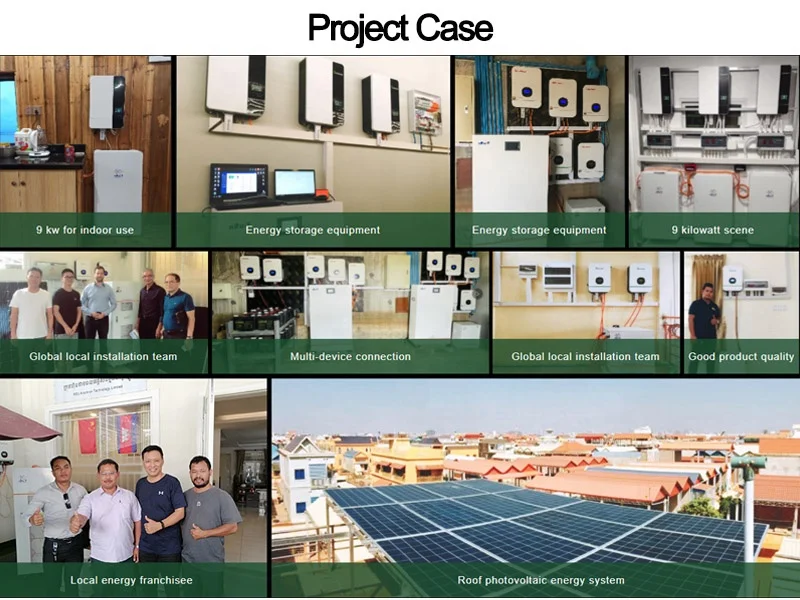

Project Case
Company Profile

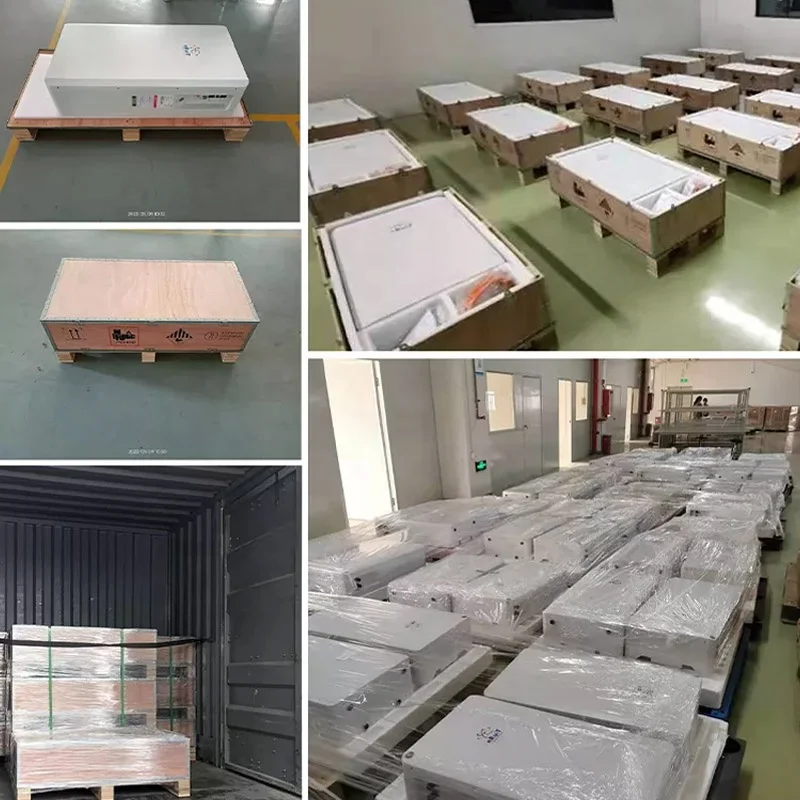

Shipping&Delivery
1 | USA | ETD:3-7 working days | The tracking will be update after pick up by local express.Usually it will take around 25-40 days after delivery. | By sea+Local express p (DDP,Tax free) | ||||
ETA:30-60 days after delivery | ||||||||
EU | ETD:3-7 working days | The tracking will be update after pick up by local express.Usually it will take around 35-50 days after delivery. | By railway+Local express(DDP,Tax free) | |||||
ETA:45-60 days after delivery | ||||||||
3 | AU | ETD:3-7 days | The tracking will be update after pick up by local express.Usually it will take around 25-40 days after delivery. | By sea+express (DAP,not including tax) | ||||
ETA:30-45 days after delivery | ||||||||
4 | We can't deliver the following address in DDP shipping term | |||||||
A | USA: Military address and PO box address are not acceptable; Puerto Rico, Virgin Islands, Guam, Alaska Note: Hawaii does not include customs duties and requires additional freight, Please contact us online. | |||||||
B | Portugal: Azores and Madeira | |||||||
C | Spain:Canary Islands, hueda,Missily and melilia and some other Island | |||||||
D | Russia: Kamchatka Peninsula | |||||||
E | Other:Some remote areas not listed，Please provide shipping address and zip code to to us to check. | |||||||
Noted: *The above transportation time is only the reference time of most orders, excluding inspection time or other special time,such as natural accidents, congestion and other uncontrollable factors. *The tracking will be update after pick up by local express. Please wait patiently or contact us for help. *Countries that do not appear in the table, Please Click Here to consult us for freight charges | ||||||||
