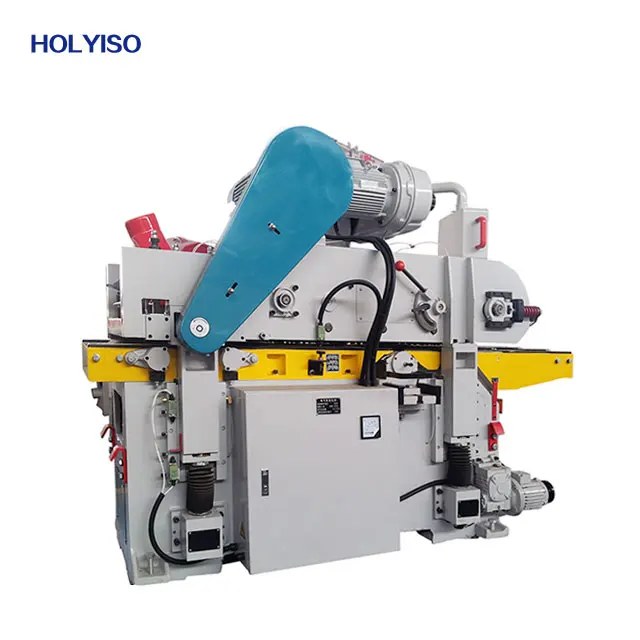

HOLYISO MB204H двухсторонний деревообрабатывающий строгальный станок jointer в комбинации с пилой
- Категория: Woodworking Machinery >>>
- Поставщик: Foshan,Holyiso,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 11424.5 $* | 11995.35 $* |
| Aug-19-2025 | 11328.31 $* | 11894.72 $* |
| Jul-19-2025 | 9504.67 $* | 9979.97 $* |
| Jun-19-2025 | 11136.68 $* | 11693.23 $* |
| May-19-2025 | 9696.3 $* | 10181.62 $* |
| Apr-19-2025 | 10944.79 $* | 11491.82 $* |
| Mar-19-2025 | 10848.16 $* | 11390.30 $* |
| Feb-19-2025 | 10752.79 $* | 11290.0 $* |
| Jan-19-2025 | 10656.18 $* | 11189.29 $* |
Характеристики
Products Description
Wood Surface Double Side Thicknesser Planer Machine
Model | MB204H | MB204F |
Working width | 25-450mm | 10-150mm |
Working thickness | 10-180mm | 25-450mm |
Working Table Length | 260mm | 260mm |
Max. cutting depth | 4mm/4mm | 4mm/4mm |
Cutting spindle diameter | 100mm | 100mm |
Cutting spindle speed | 4600r/min | 4600r/min |
Feeding speed | 3-20m/min | 7-16m/min |
Upper cutting spindle motor power | 7.5kw | 7.5kw |
Bottom cutting spindle motor power | 5.5kw | 5.5kw |
Feeding motor power | 2.2kw/3.7kw(Frequency Control) | 2.2kw |
Lifting motor power | 0.37kw | 0.37kw |
Total power | 15.57kw/17.07kw | 15.57kw |
Dust Exit Diameter | 150mm | 150mm |
Overall size | 2500x1200x1750mm | 2500x1200x1750mm |
Packing size | 2600x1300x1850mm | 2600x1300x1850mm |
Net weight | 2500kg | 2500 |

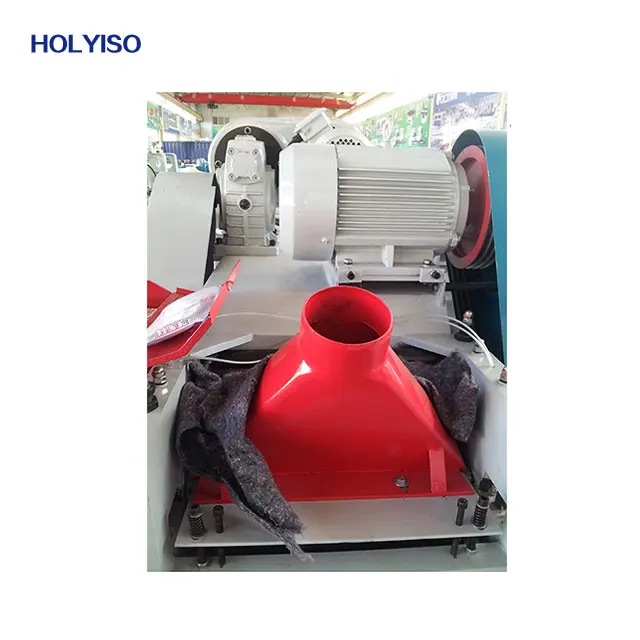

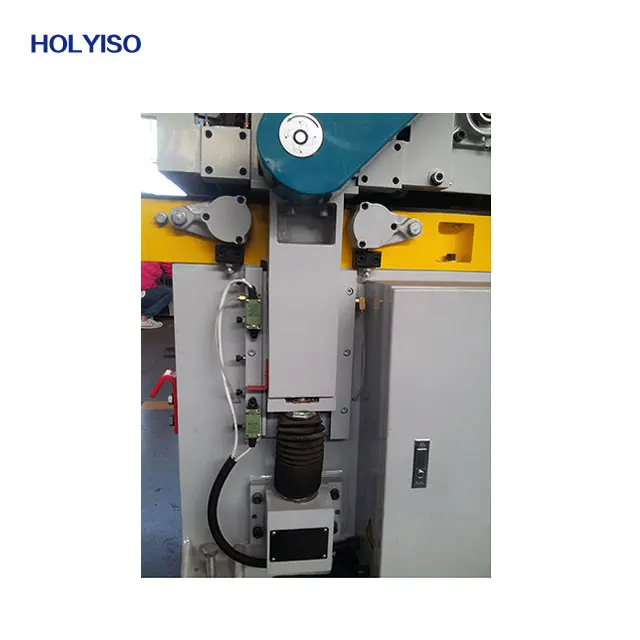

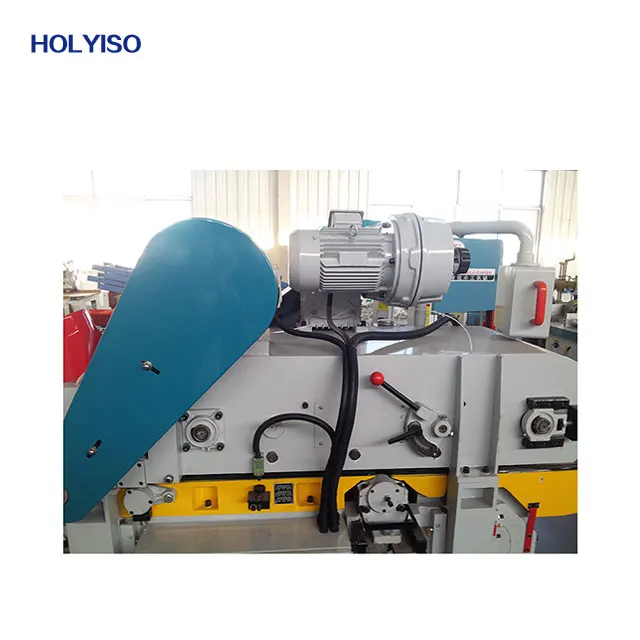

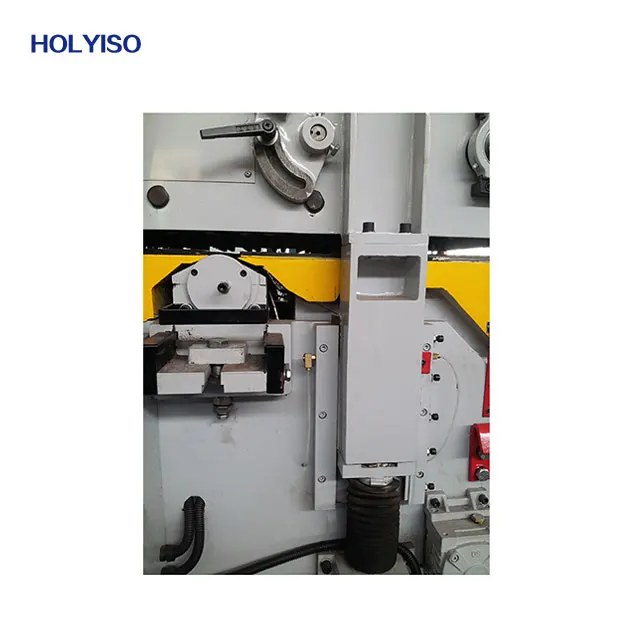

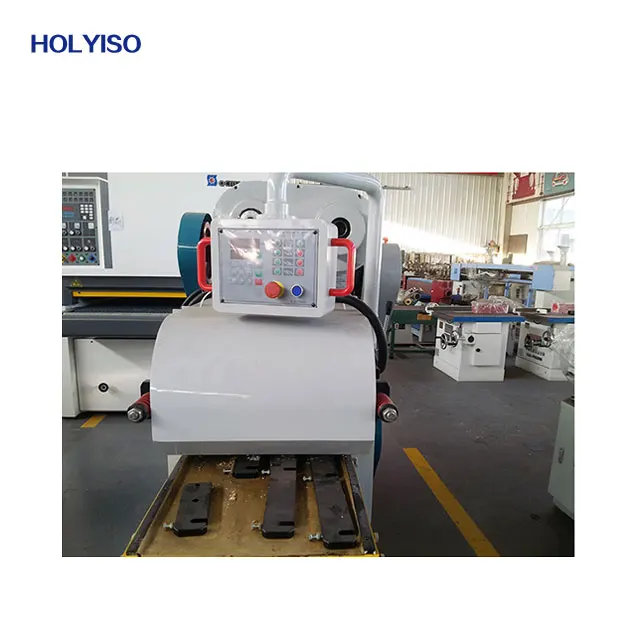

Details Images
Applications:
Processing of single-side, double sides for sets of furniture, all kinds of woodiness material and laminated wood.
1.The feeding unit can be adjusted upwards and downwards, the elevating range reaches 10mm, so the processing precision can be enhanced with powerful feeding.
2.With driven feeding roller structure, ensuring a stronger and smoother feeding. Also it is equipped with overloading protection mechanism.
3.The main parts such as machine frame and workable etc. are made from aged Cast iron and precisely machined, having the features of high accuracy and good vibration absorption.
4.Equipped with pressure plate which guarantees short workpiece can be smoothly machined, increasing production output.
5.Special speeding adjustment device combining with power torque worm reducer which enables it to select feeding speed according to actual requirement.
6.Equipped with imported digital display device. Operation is convenient and the working accuracy is up to 0.01mm. Also feeding speed can be shown.
Processing of single-side, double sides for sets of furniture, all kinds of woodiness material and laminated wood.
1.The feeding unit can be adjusted upwards and downwards, the elevating range reaches 10mm, so the processing precision can be enhanced with powerful feeding.
2.With driven feeding roller structure, ensuring a stronger and smoother feeding. Also it is equipped with overloading protection mechanism.
3.The main parts such as machine frame and workable etc. are made from aged Cast iron and precisely machined, having the features of high accuracy and good vibration absorption.
4.Equipped with pressure plate which guarantees short workpiece can be smoothly machined, increasing production output.
5.Special speeding adjustment device combining with power torque worm reducer which enables it to select feeding speed according to actual requirement.
6.Equipped with imported digital display device. Operation is convenient and the working accuracy is up to 0.01mm. Also feeding speed can be shown.
Finish Product:
Send Inquiry
Why Choose Us
Packing&Shipping
1.Delivery:
We can guarantee delivery on time.
We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
2.Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technicalsupport and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is stillhave any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technicalsupport and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is stillhave any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
FAQ
