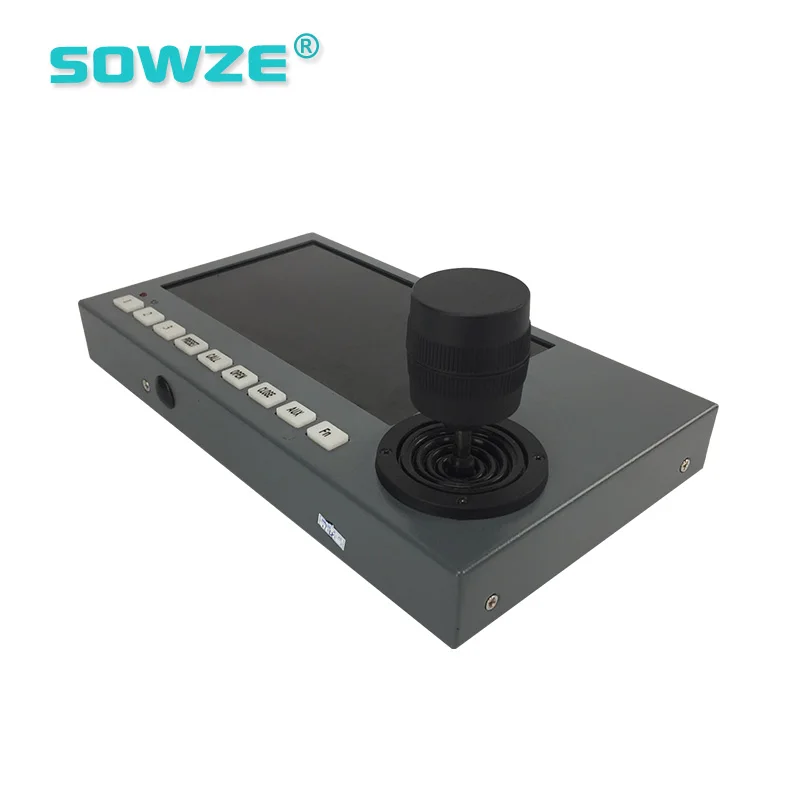

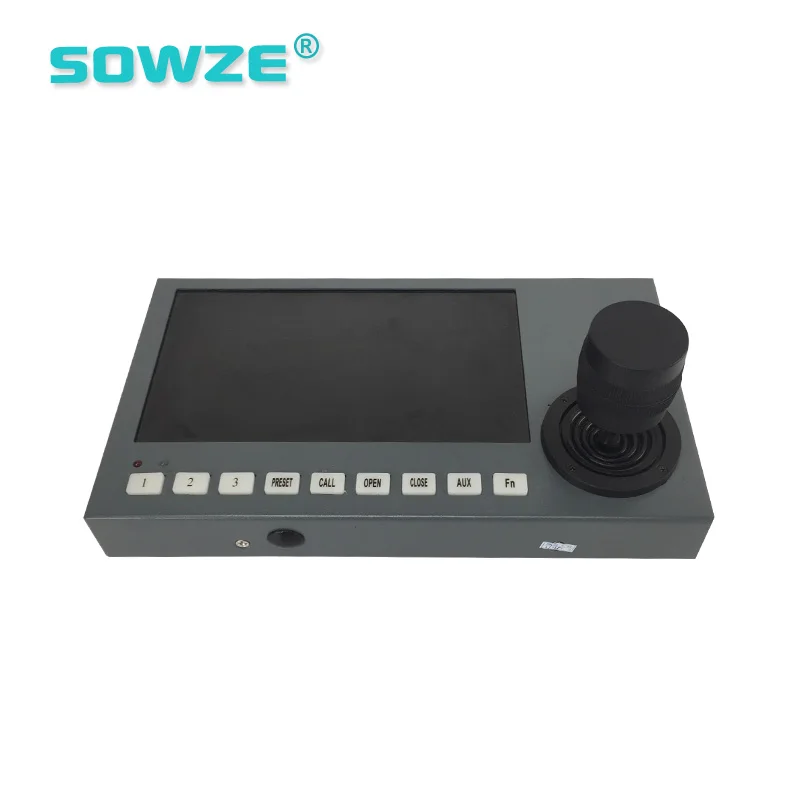

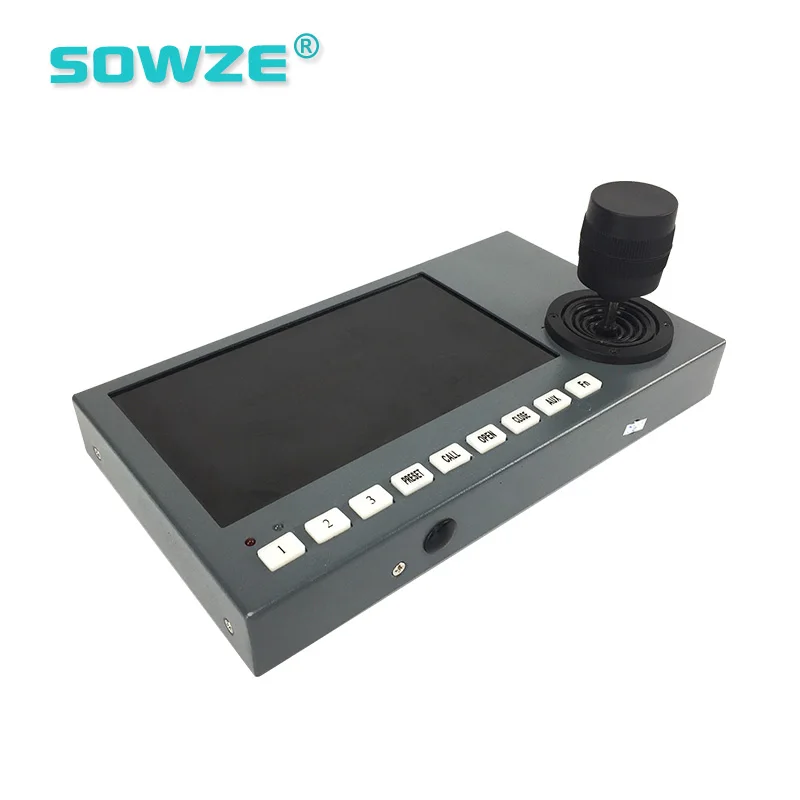

RS485 Control Joystick Keyboard Controller with Screen for PTZ Camera



Main Features:

1) Three-dimensional remote control, easy and flexible operation;

2) Supports PTZ and zooming control;

3) PTZ camera and keyboard communication: point to multi-point half-duplex communication;

4) Communication interface: RS-485;

5) Communication baud rate: 1200 Bps, 2400Bps, 4800 Bps, 9600 Bps;

6) Transmission range: up to 1200 meters;

7) 7-inch industrial high-definition display, resolution: 1024 * 600;

8) Resolution: 1024 × (RGB) × 768, with brightness: 200cd / m2;

9) Effective display range: 154.08 (H) * 86.58 (V);

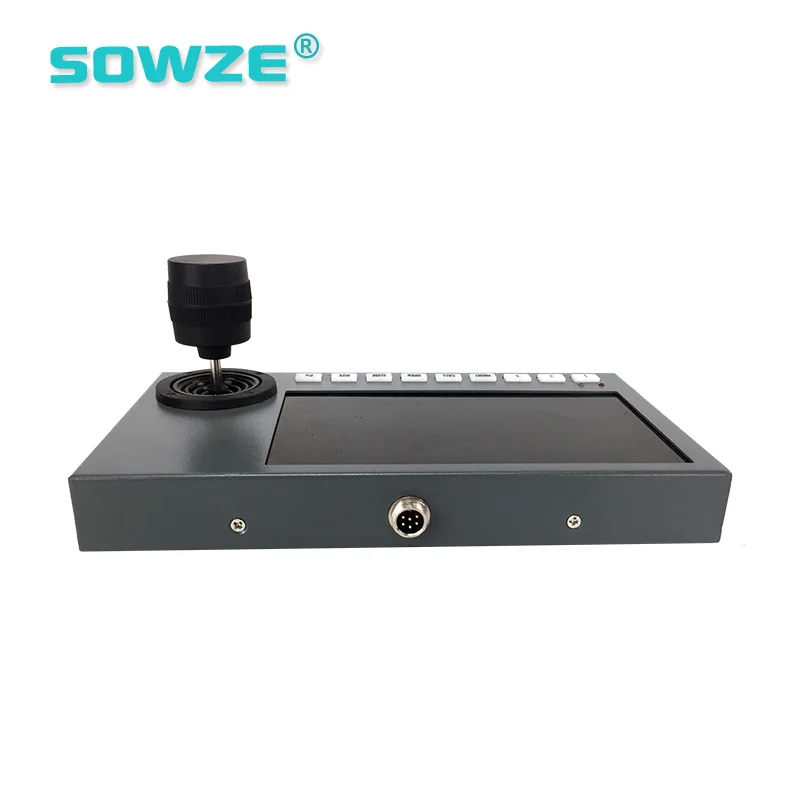

10) 8PIN aviation connector (can be installed at the top or bottom, easy to adjust according to project requirements);

11) Support snapshot ( the capture key can be adjusted according to project requirements);

12) Power: DC12V 500mA (The input voltage of the power supply varies according to the specifications of the power supply).



Specifications:

Video input	Video input	AV(VGA/AHD/2ch AV/4ch AV) Customized is available
Other connector	Aviation connector	8PIN aviation connector
screen	monitor	7-inch LED-backlit display
	resolution	1024*600
	brightness	350nit
keyboard	joystick	three dimensions
	Preset points	12 at max
	Aperture adjustable	supports
	Baud rate	2400/9600 (adjustable)
Power	Operating voltage	12V
	consumption	<6W
Operating environment	Temperature	-15℃~ +60℃
	Humidigy	10%-95% (without condensation)
