Автоматическая фасовочная машина
US $9999-$16000
Вращающаяся настольная головка стоковые хвосты стоп-позиционеры
- Категория: >>>
- Поставщик: Hitop,Machinery,Manufacturing,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 2722.48 $* | 2776.2 $* |
| Jul-15-2025 | 2207.45 $* | 2251.9 $* |
| Jun-15-2025 | 2679.69 $* | 2733.77 $* |
| May-15-2025 | 2657.89 $* | 2710.5 $* |
| Apr-15-2025 | 2122.15 $* | 2164.61 $* |
| Mar-15-2025 | 2614.75 $* | 2666.29 $* |
| Feb-15-2025 | 2593.22 $* | 2645.65 $* |
| Jan-15-2025 | 2572.59 $* | 2623.76 $* |
Характеристики
Products Description
Model | SH-600 | Input Power | AC380V 50Hz |
Load Capacity 0°/90° | 600Kg/300Kg | Rated Center of Gravity | 100mm |
Rated Eccentricity | 100mm | Working Bench Diameter | 700mm |
Working Bench Height | 760mm | Working Bench Rotating Radius | 0.09～1rpm |
Rotating Angle | 0～90° | Rotating Mode | electric rotation |
Rotating Speed | 0.8rpm | Rotating Motor Power | 370W |
Rotating Motor Power | 750W brake motor | Outline Dimension | 1200*700*760mm |
Product Paramenters

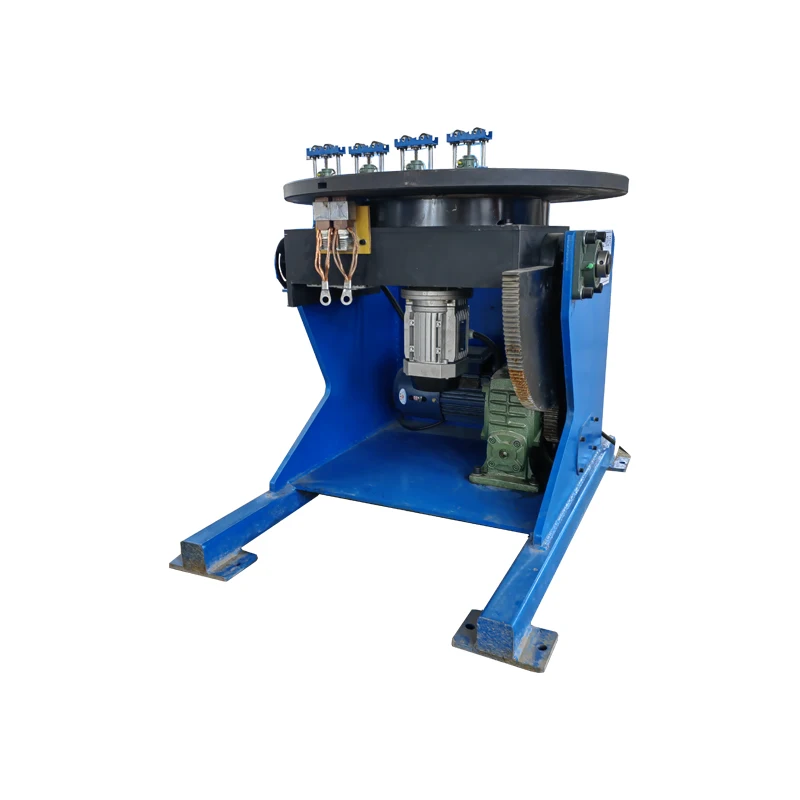

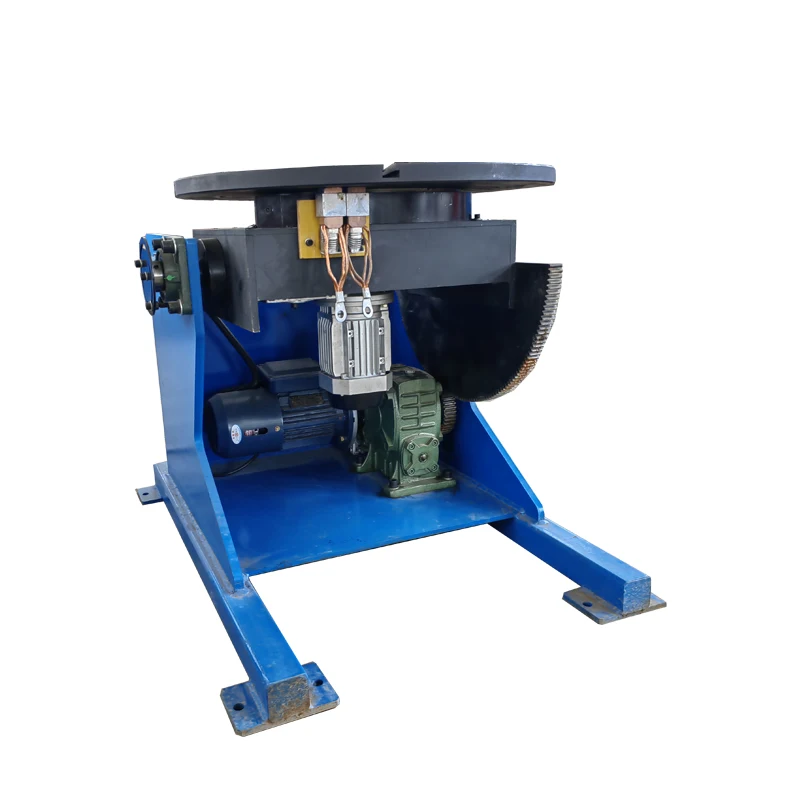

Rotating part:
0.37KW AC variable frequency motor, worm gear reducer and slewing support are selected to drive the table to rotate. The weight is applied to the slewing support, which can effectively protect the motor reducer and increase its service life.
Flip part:
The 0.75KW AC brake motor is selected to match the worm gear and worm rod reducer with half teeth to realize the bipolar protection of the overturning part. The first level is the motor brake function and the first level is the self-locking function of the reducer, so as to achieve more stable and safe overturning.
Table part:
The standard table top has a diameter of 700mm, and is processed with a 30mm thick 45 # steel plate. After processing, the thickness is about 28mm. It is equipped with a T-shaped slot. The standard table top has only one positioning hole. You can also customize the through hole type according to customer requirements. The table top size can be customized according to customer requirements.
Electric control part:
The frequency converter is selected from Daye, and the warranty period is 12 months. The wireless remote controller is selected to facilitate user operation.
Customization requirements：
It can be customized according to customer requirements, such as replacing the motor with stepper or servo, and making the electric control into PLC
Application
Manufacturing Technique
Details Images
Product packaging
Company Profile
HITOP MACHINERY MANUFACTURING CO LTD is a modern mechanical and electrical company located in Quancheng Jinan , the production and sales of all kinds of welding AIDS and welding , cutting professional equipment in one.Have professional welding auxiliary equipment , and professional technical support personnel . At present , it is one of the few welding accessory companies that can independently deeveloand customize according to the reguirements of customers'work piece he company mainly produces displacement machine , CNC welding displacement , displacement of welding machinis placement displacement of welding machine , welding rotating table , swing welding machine , welding chuck andwelding gun holder , CO2 welding torch and spare parts , straightseam welding machine , welding robot , manipulator , automaticargon arc welding wire feeding machine , wire feeding machineand so on many series welding auxiliary machinery Widely usedin welding , cutting , pipe flanges , hydraulic equipment , pipelinevalves , boilers , auto parts , instruments , spraying , medium andheavy vehicles , cars , construction machinery , military , railwayvehicles , motorcycle agricultural vehicles , household appliancesother fieldsOn the basis of continuous business development , Shanghong has established a perfect marketing network and after-salesservice system . Adhering to the concept of " good at learning ,for innovation , the pursuit of progress , common developmentre aim to provide high quality products and the best servicefor domestic and foreign customers , and become a model ofpre-sale , sale and after-sales service in the welding accessory Industry.
