Лидер продаж солнечные панели Tier-1 JA полностью черные 380 Вт 390 400 410 415 Pv в
- Категория: Solar Energy Products >>>
- Поставщик: Anhui,Solarasia,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.55 $* | 0.69 $* |
| Aug-16-2025 | 0.59 $* | 0.89 $* |
| Jul-16-2025 | 0.49 $* | 0.82 $* |
| Jun-16-2025 | 0.98 $* | 0.36 $* |
| May-16-2025 | 0.80 $* | 0.42 $* |
| Apr-16-2025 | 0.86 $* | 0.53 $* |
| Mar-16-2025 | 0.71 $* | 0.87 $* |
| Feb-16-2025 | 0.59 $* | 0.15 $* |
| Jan-16-2025 | 0.98 $* | 0.9 $* |
Характеристики
Product Description
Cell | Mono |
No.of Half-cells | 108 (6×18) |
Dimensions | 1722±2mm×1134±2mm×30±1mm |
Weight | 19.5kg or 21.5kg |
Front Glass | 2.8mm or 3.2mm |
Frame | Anodized Aluminium Alloy |
Junction Box | IP68,3 diodes |
Detailed Parameters
Module Type | JAM54S31-380/MR/1000 | JAM54S31-390/MR/1000 | JAM54S31-395/MR/1000 | JAM54S31-400/MR/1000 | JAM54S31-405/MR/1000 | ||||||||||||
Pmax.(W) | 380w | 390w | 395w | 400w | 405w | ||||||||||||
Vmp(V) | 36.58 | 36.71 | 36.85 | 36.98 | 37.23 | ||||||||||||
Imp(A) | 13.44 | 13.61 | 13.70 | 13.79 | 13.87 | ||||||||||||
Module Efficiency | 19.5% | 20.0% | 20.2% | 20.5% | 20.7% | ||||||||||||
Operating Temperature | -40℃~+85℃ | ||||||||||||||||
Maximum System Voltage | 1000VDC (IEC) | ||||||||||||||||
Maximum Series Fuse Rating | 20A | ||||||||||||||||
Power Tolerance | 0~+5% | ||||||||||||||||
Temperature Coefficients of Pmax | -0.34%/℃ | ||||||||||||||||
Temperature Coefficients of Voc | -0.28/℃ | ||||||||||||||||
Temperature Coefficients of Isc | 0.048%/℃ | ||||||||||||||||
Nominal Operating Cell Temperature(NOCT) | 45±2℃ | ||||||||||||||||

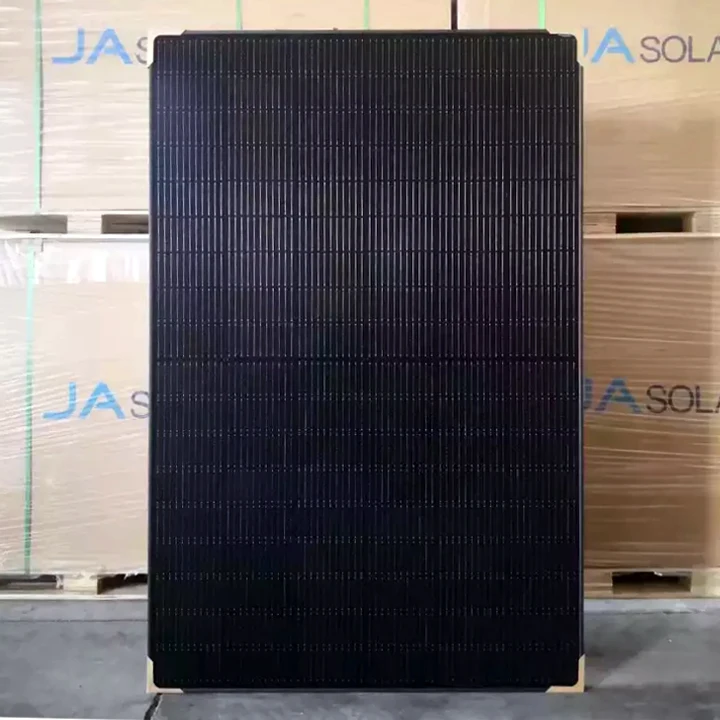

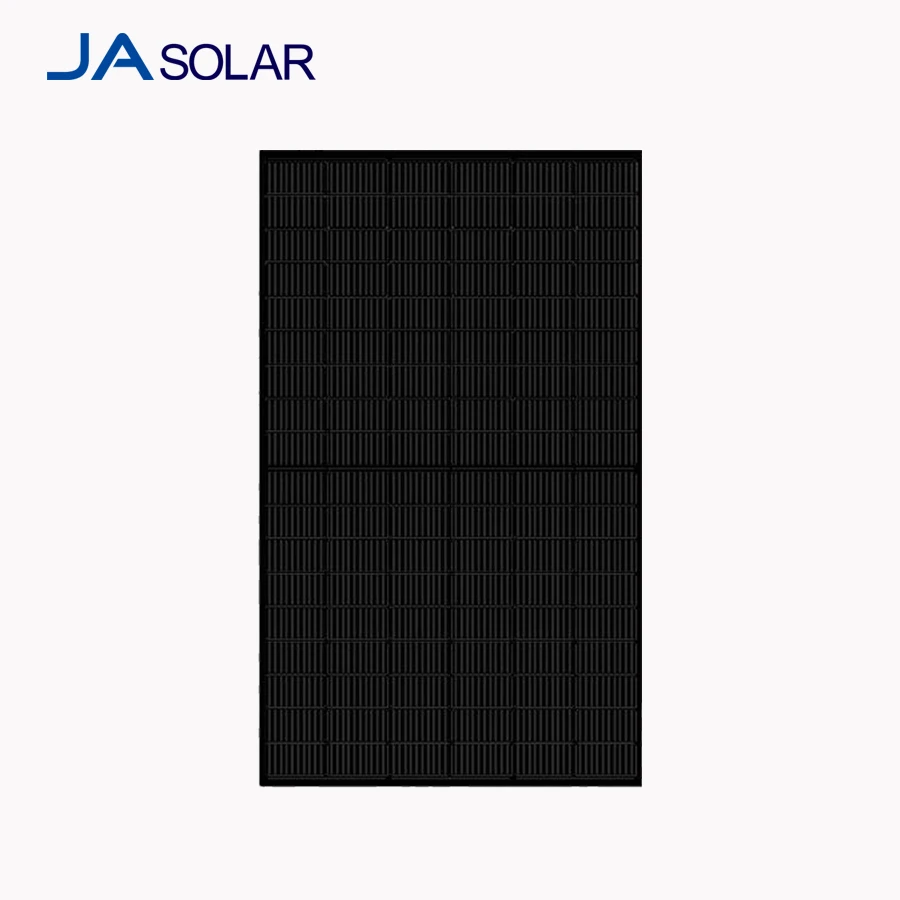

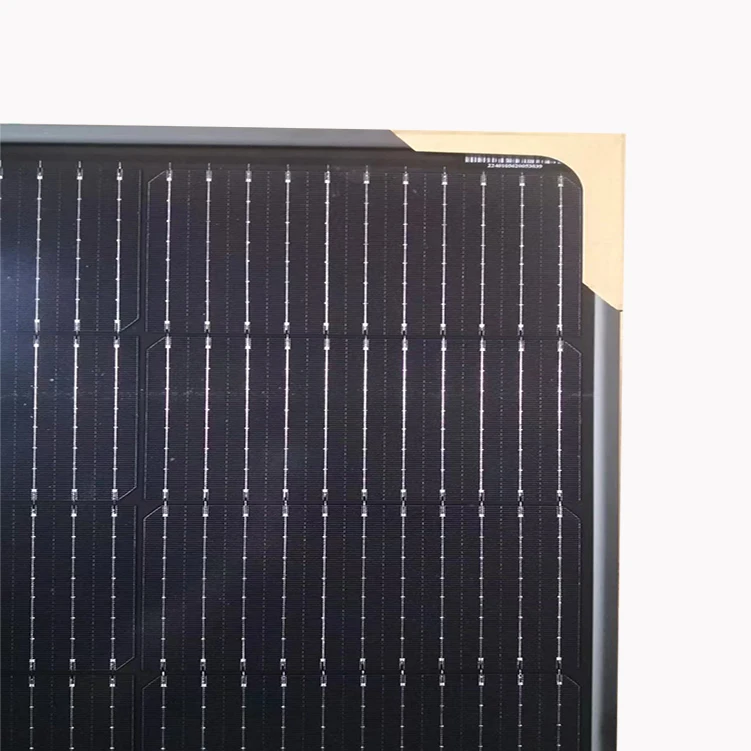

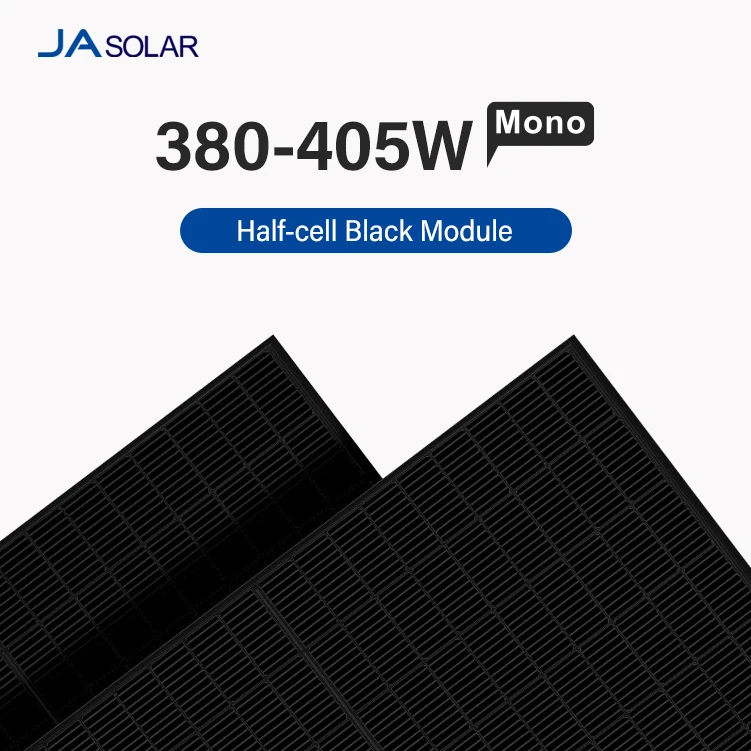

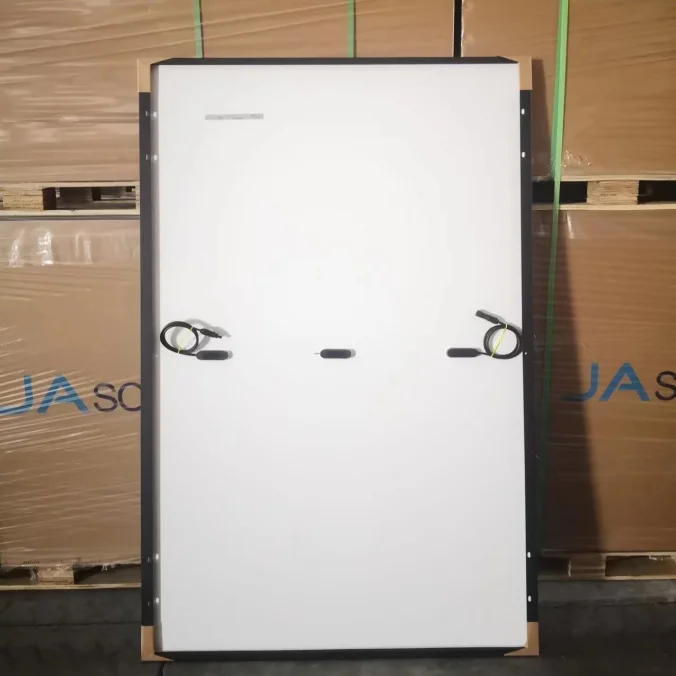

Detailed Images

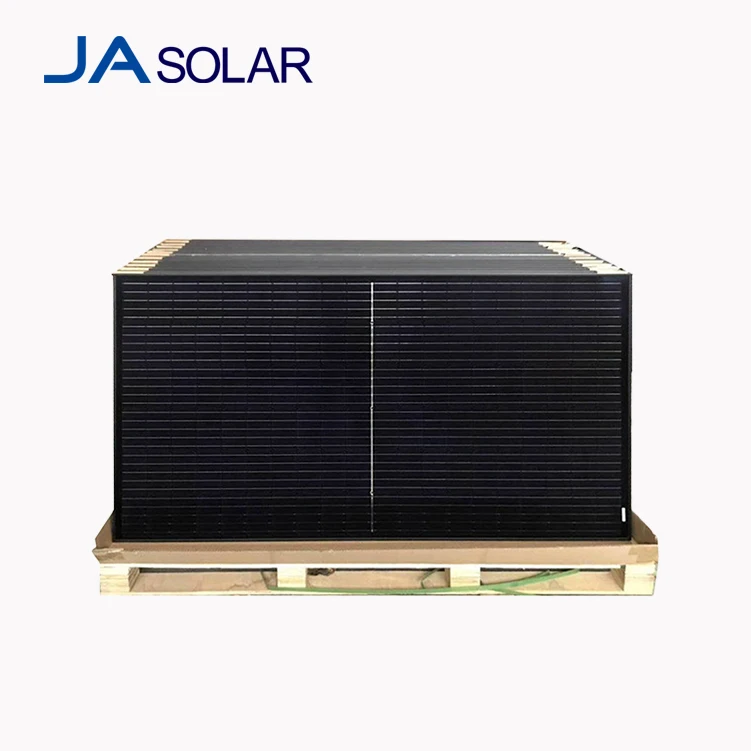

Product packaging
FAQ
Q1: How to choose the right panel?
A1: Tell us your demand, then our sales will recommend a suitable panel for you.
Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q3: How about the delivery time?
A3: Delivery time 7 days for sample; 15 days for bulk order.
Q4: What is the warranty for solar panels?
A4: Generally warranty for solar panel is 10 years, also we offer 25 years linear output power warranty.
Q5: How can I get better service from you?
A5: We have professional engineer team can give you best support based on your requirement. If you have any problems during using, we offer 24 hours online service and will solve your problem within 1 hour.
