5.5 кВт высокочастотный инвертор солнечной энергии 48 в 110 а MPPT зарядное устройство может работать без
- Категория: Solar Energy Products >>>
- Поставщик: Shenzhen,Sunray,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 316.14 $* | 322.97 $* |
| Jul-16-2025 | 256.66 $* | 261.19 $* |
| Jun-16-2025 | 311.13 $* | 317.45 $* |
| May-16-2025 | 309.33 $* | 315.10 $* |
| Apr-16-2025 | 247.48 $* | 252.61 $* |
| Mar-16-2025 | 304.31 $* | 310.66 $* |
| Feb-16-2025 | 301.13 $* | 307.11 $* |
| Jan-16-2025 | 299.39 $* | 305.25 $* |
Характеристики

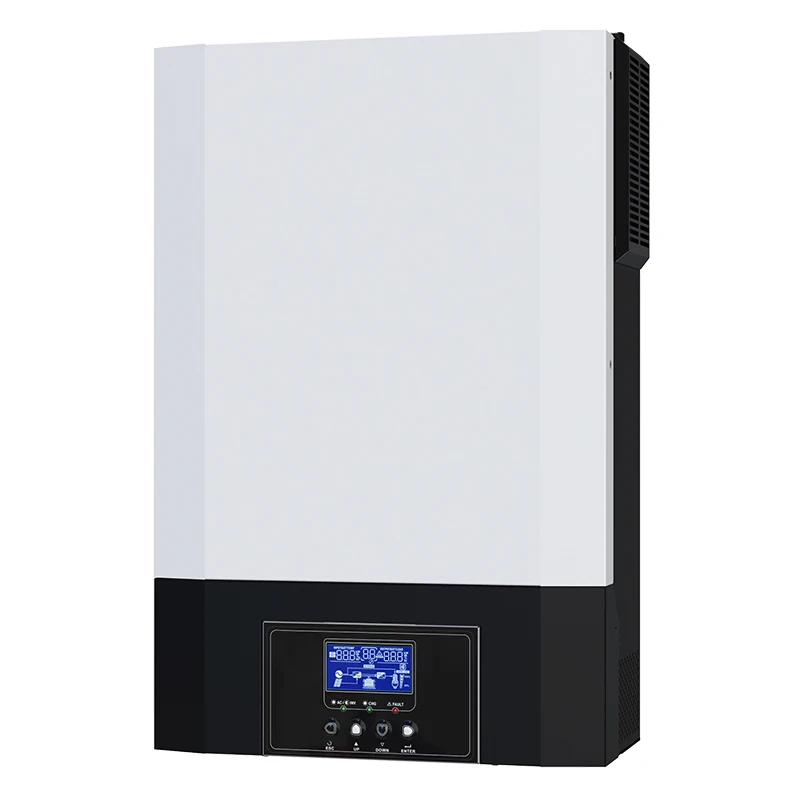

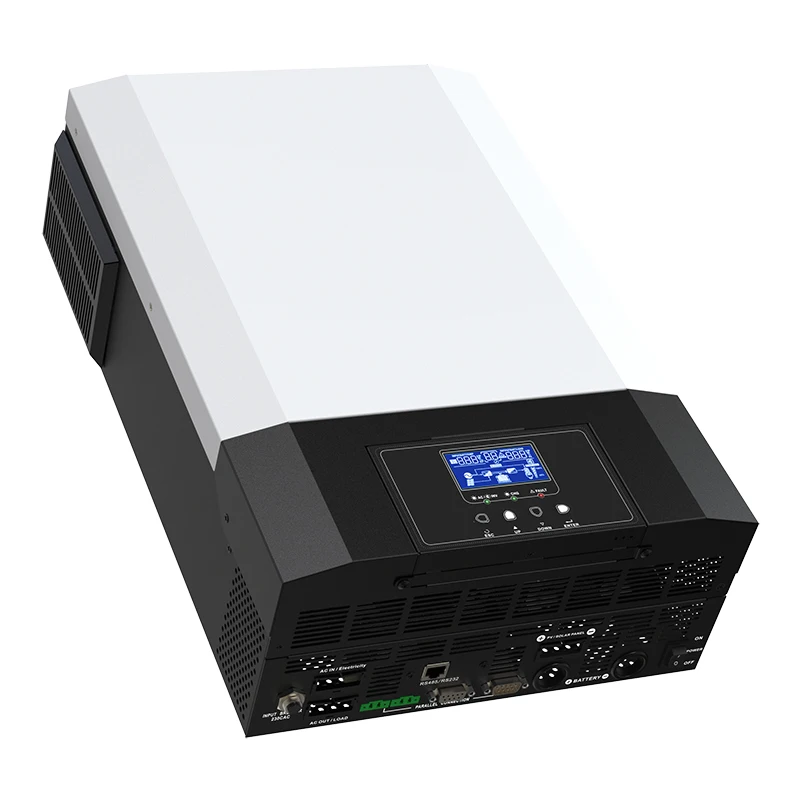

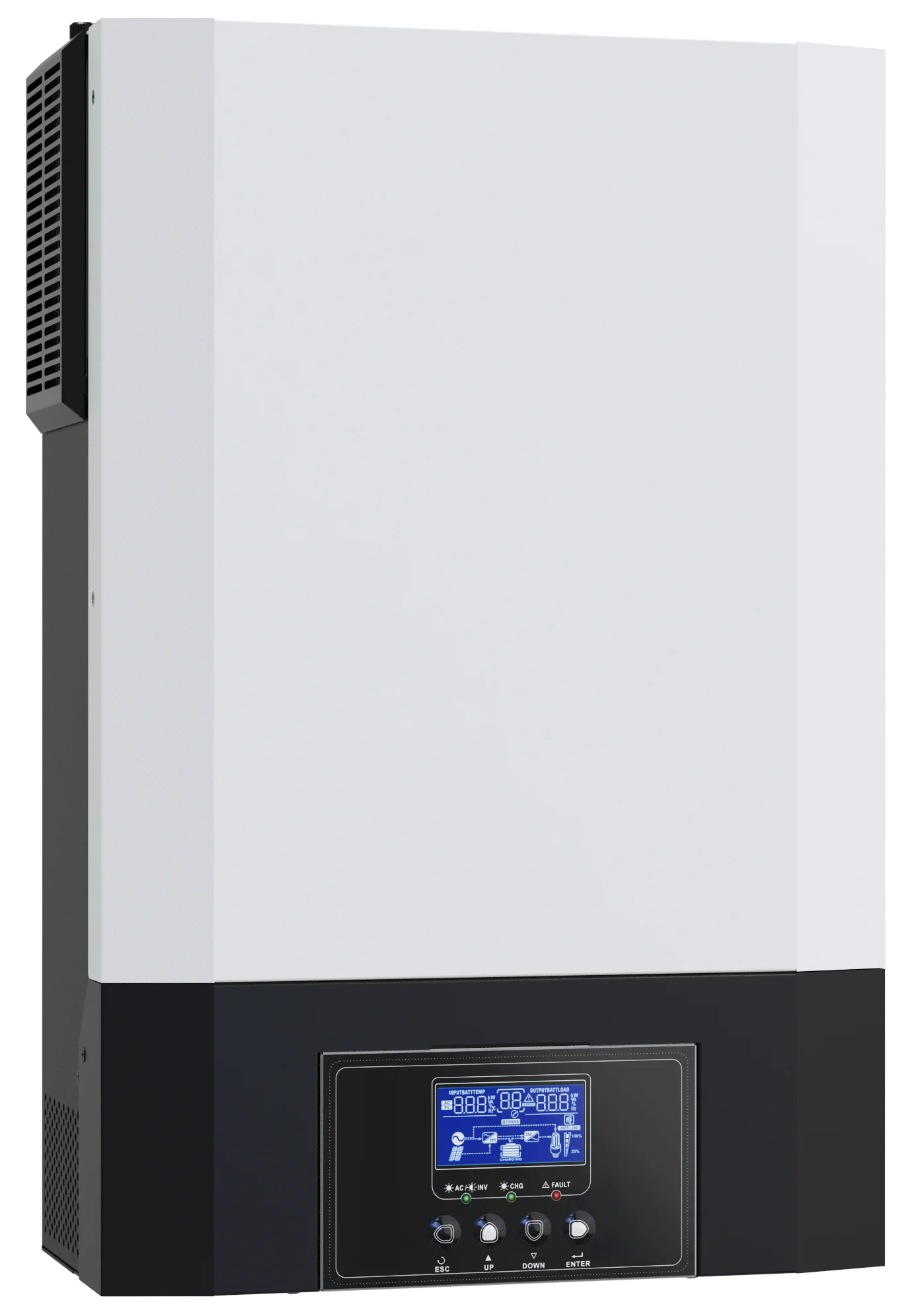

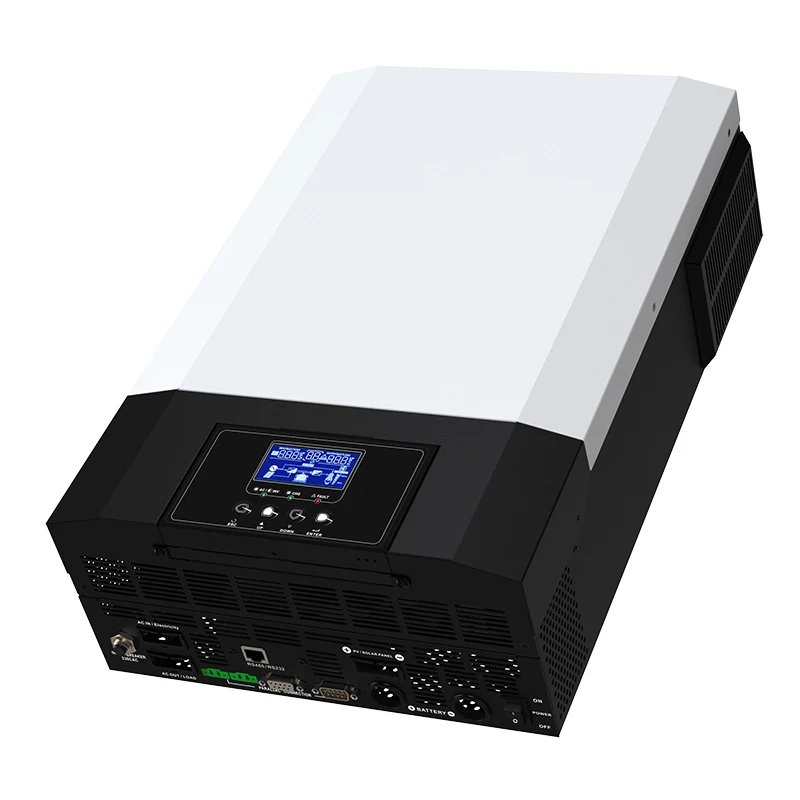

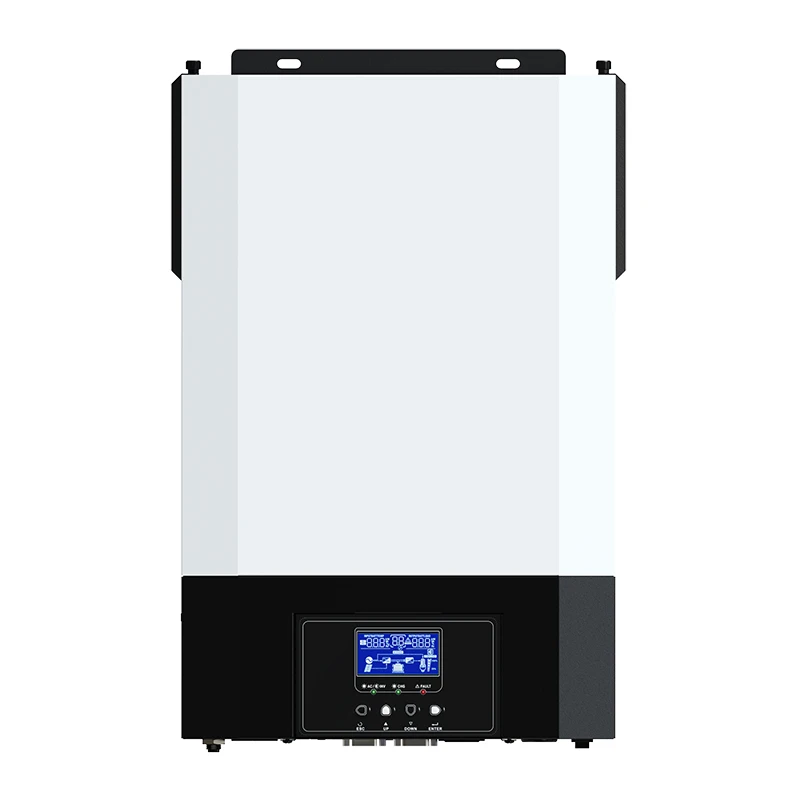

3500W/5500W Hybrid off grid solar power inverter/charger+110A 500V MPPT Charger with removable panel
Features
1.Pure sine wave output
2.Output power factor 1.0
3.Programmable supply priority for PV,Battery or Grid
4.User-adjustable charge current and voltage
5.Wide PV input range (120Vdc-500Vdc),110A MPPT SCC
6.Working without batteries in sunny day
7.WIFI Monitoring Function (optional)
8.Anti-dusk kit for harsh environment(optional)
9.LCD remote control with 10 meters wire(optional)
10.PV and electricity complementary
11.Use with lithium batteries
12.Remove LCD
Product Data Sheet
MODEL | MPS-3500H PRO | MPS-5500H PRO |
Rated Power | 3500VA/3500W | 5500VA/5500W |
INPUT | ||
Voltage | 230VAC | |
Selectable Voltage Range | 170-280VAC(for personal computers) 90-280VAC(for home appliances) | |
Frequency Range | 50Hz/60Hz(Auto sensing) | |
OUTPUT | ||
AC Voltage Regulation(Batt . Mode) | 230VAC±5% | |
Surge Power | 7000VA | 11000VA |
Efficiency(Peak)PV to INV | 97% | |
Efficiency(Peak)BAT to INV | 94% | |
Transfer Time | 10ms(for personal computers) 20ms(for home appliances) | |
Wave form | Pure Sine Wave | |
BATTERY&AC CHARGER | ||
Battery Voltage | 24VDC | 48VDC |
Floating Charge Voltage | 27VDC | 54VDC |
Overcharge Protection | 33VDC | 63VDC |
Maximum charge current | 80A | 80A |
SOLAR CHARGER | ||
MAX.PV Array Power | 5000W | 6000W |
MPPT Range@ Operating Voltage | 120-450VDC | |
Maximum PV Array Open Circuit Voltage | 500VDC | |
Maximum Charging Current | 110A | |
Maximum Efficiency | 98% | |
PHYSICAL | ||
Dimension. D*W*H(mm) | 472*298*143 | |
Net Weight(kgs) | 9.5kg | 10.5kg |
Communication Interface | RS485/RS232(Standard) WIFI(Optional) | |
OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature | 0℃ to 55℃ | |
Storage Temperature | -15℃ to 60℃ | |
