Лучшая цена 6090 1212 1218 1325 столярное дело распиловки древесины строгального станка машина твердых резьба по дереву фрезерный станок с ЧПУ для стальной сложный
- Категория: Woodworking Machinery >>>
- Поставщик: Shandong,Lintianzhiyuan,CNC,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.68 $* | 0.16 $* |
| Aug-19-2025 | 0.64 $* | 0.71 $* |
| Jul-19-2025 | 0.60 $* | 0.6 $* |
| Jun-19-2025 | 0.4 $* | 0.41 $* |
| May-19-2025 | 0.91 $* | 0.97 $* |
| Apr-19-2025 | 0.57 $* | 0.9 $* |
| Mar-19-2025 | 0.36 $* | 0.27 $* |
| Feb-19-2025 | 0.8 $* | 0.20 $* |
| Jan-19-2025 | 0.7 $* | 0.84 $* |
Характеристики
Products Description

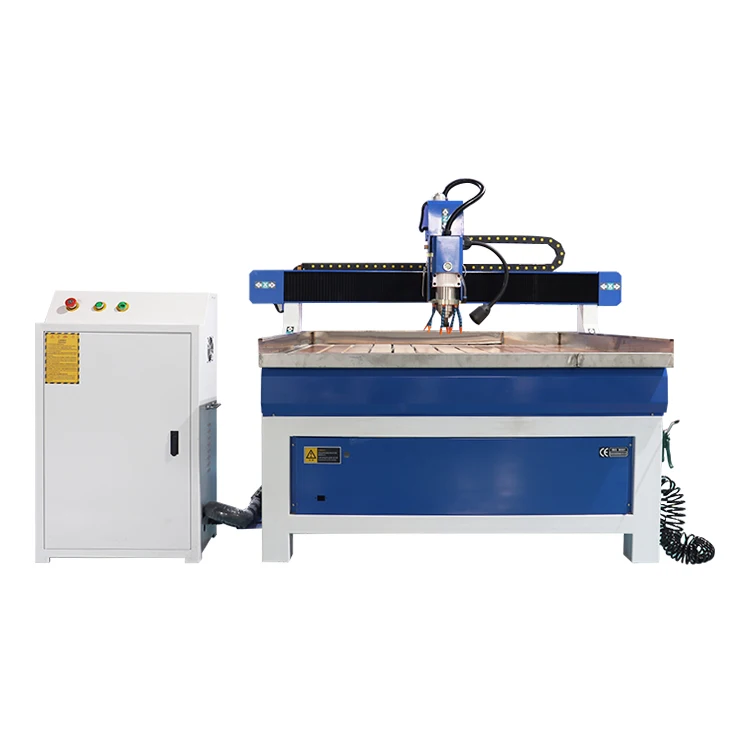

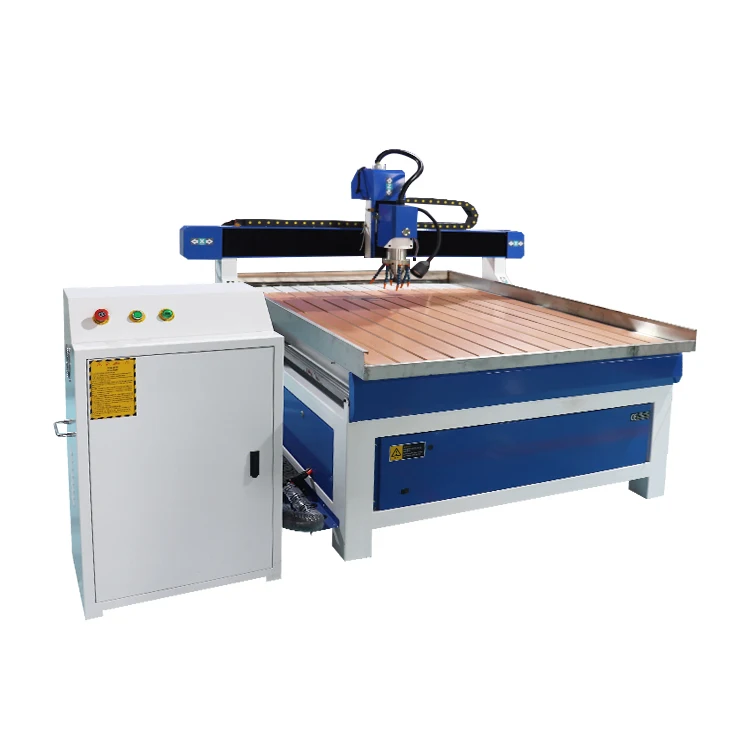

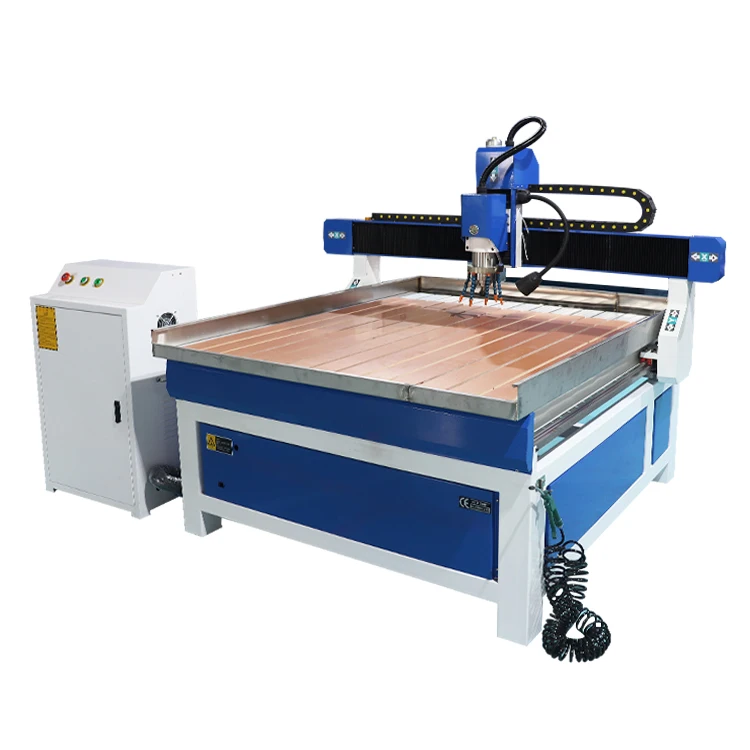

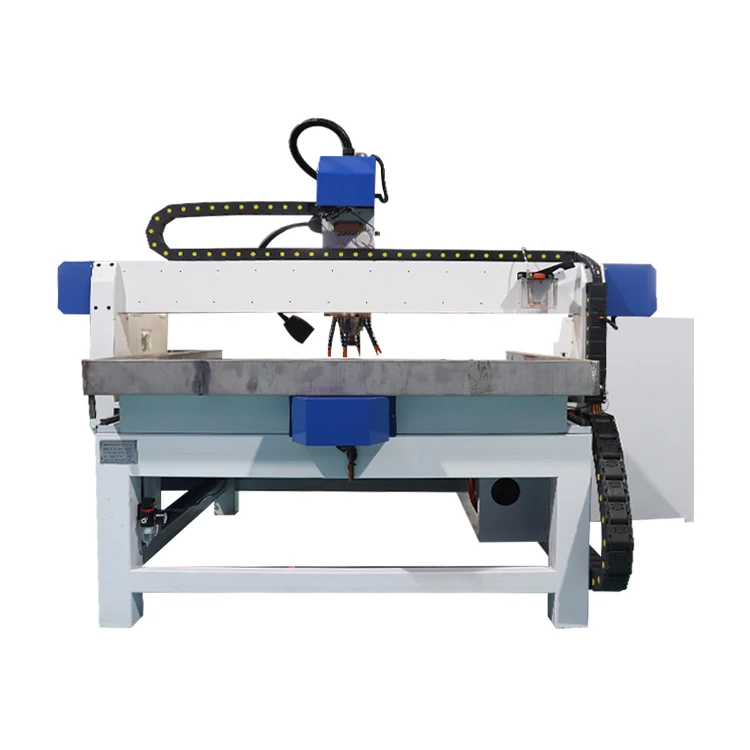

1.5kw 2.2kw 3.0kw Metal Wood CNC Milling Machine 3040 4060 6090 1212 DIY CNC Router Kits With Water Tank MACH3 Controller
Main configuration:
1. CE ISO standard, 1200*1200*200mm effective working area;2. Welded steel tube machine structure
3. XY,Z Ball screw transmission;
4. Ncstudio/MACH3/DSP control system;
5.1.5KW water cooled spindle, 1.5KW Fuling inverter;
6. Leadshine driver MA860C and stepper motor 86BYG-450B;
7. Optional parts: DSP/Mach3 USB controller, Hiwin linear square guide rail, water tank with water mist cooling system, rotary axis/4 axis cnc router machine
Technical Parameters

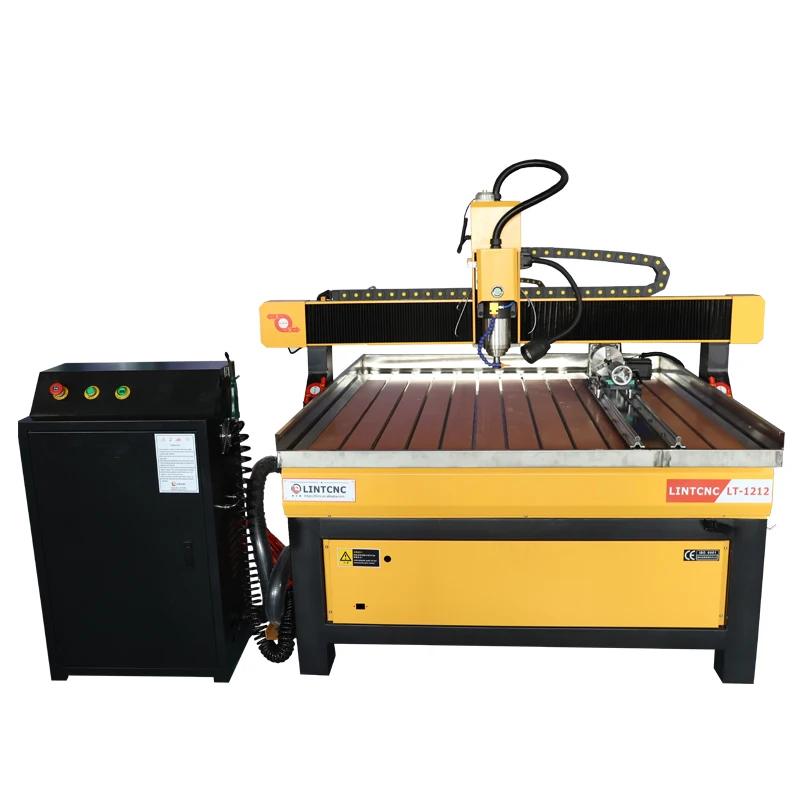

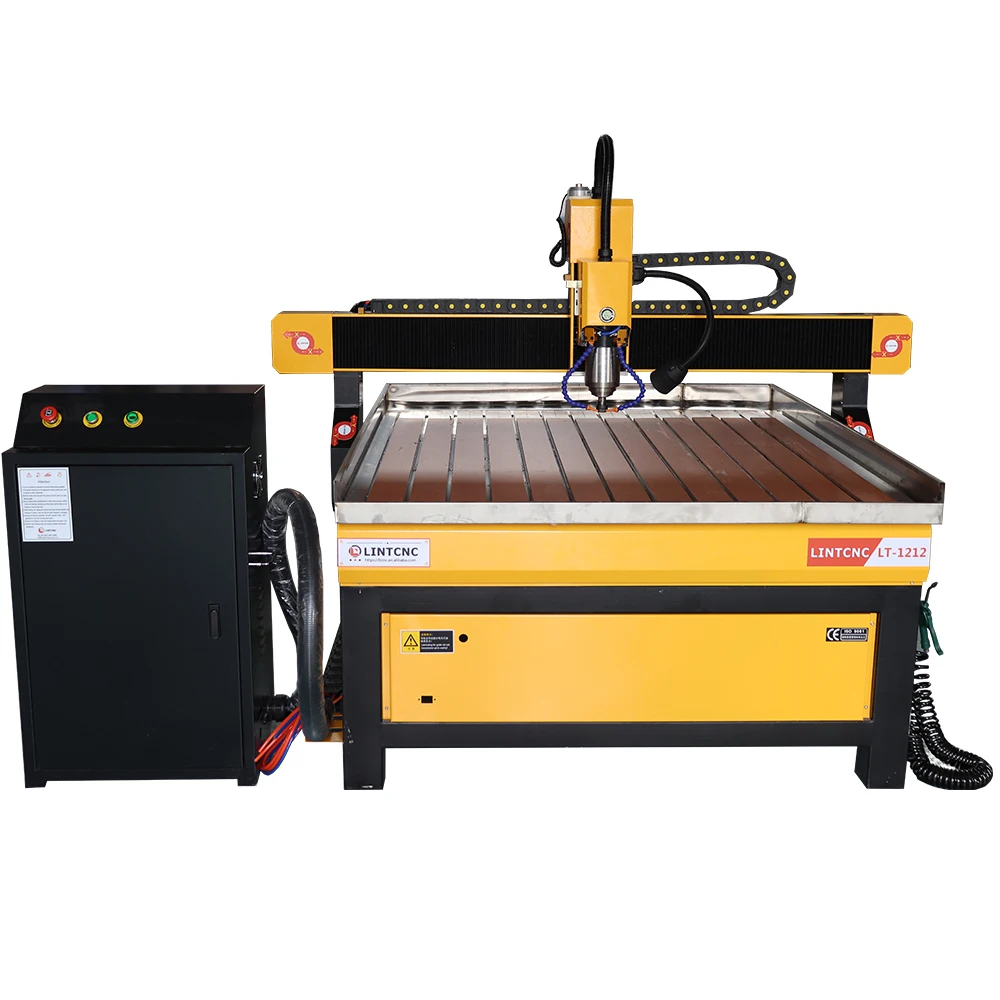

Model | LT-1212 cnc carving milling machine |
Effective working area | 1200*1200*200mm |
Table style | Aluminum T-slot table with PVC |
Guide rail | Hiwin square linear guide rail |
Driving method | Taiwan Original TBI Ball screw for X,Y,Z axis |
Spindle | 1.5KW water cooling spindle |
Invert | Fuling invert |
Collet size | ER16 |
Spindle speed | 0-24000rpm |
Motors and drivers | 86BYG-450B stepper motors and MA860C Leadshine drivers |
Control system | NCStuido control system |
Working Accuracy | <0.03/300mm |
Working speed | <7000mm/min |
Traveling speed | 0-7000mm/min |
Instruction format | G code *.u00 *.mmg *.plt |
Working voltage | AC220V, Single Phase, 50-60Hz |
Air gun | Air gun for the dust |
Standard Software | Artcam 2010 |
Compatible software | Type3/Castmate/Coreldraw/AutoCAD or other CAM/CAD software |
Environment temperature | 0-45℃ |
Environment humidity | 30%-75% No coagulate water |
Too sensor | Yes |
Others | English manual,Tool box,Tool sensor,etc. |
Optional parts | 1,Rotary device for round material processing, 80mm diameter (+US$300)/100mm (+US$400)/150mm(+US$450) 2,MACH3 control system: +USD 150; DSP+US$300; 3,Water tank & water sprayer for soft metal +US$150; 4,2.2kw spindle+US$100; 3.0kw spindle+US$200; 5,Vacuum table with 2.2kw vacuum pump+US$350 |
LT-1212 cnc router machine outline dimension wire frame diagram
1. This picture is only used for customer to plan the venue and display the machine.
2. When the machine dimension changed, will let you know.
3. This picture provided by Shangdong LINTIZHIYUAN cnc company.
3. This picture provided by Shangdong LINTIZHIYUAN cnc company.
Machine details
01 WATER COOLING SPINDLE
1.5kw/2.2kw,3.0kw water cooling spindle are available, low noise, high efficiency, long life and good cooling effect;
02 FULING INVETER
Fuling inverter, famous brand in Chinese market, which is specialized for cnc router machine processing industry, and has special Marco code function for cnc router, adopt reasonable wiring technology, more stable and reliable.
03 TBI BALL SCREW
Imported Taiwan TBI ball screw for X,Y,Z axis, 1605 for X,Z axis, 2510 for Y axis, which is high precision, heavy duty and longer life;
04 HIWIN SQUARE LINEAR GUIDE RAIL
Imported high precision Hiwin square linear guide rail bearings, smooth movement to ensure the machine tools higher accuracy, higher stability, more stable;
05 STEPPER MOTOR
86BYG-450B stepper motors: open loop; nema 34, , 6nM size; power about 480w/each set
06 LEADSHINE EADSHINE DRIVER
MA860 Leadshine drivers: Built-in micro-subdivision technology and automatic tuning of power-on parameters function; low noise, low vibration, low heat, high torque output features;
Customer Video Feedback
Here are some customer feedback videos about our cnc router machines, which the machines work well for them, share with you.
Application
1. Advertising industries: engraving, milling and cutting processing for acrylic, PVC, density board, artificial stone, organic glass, plastic and soft metal sheet such as copper and aluminum
2.Arts and crafts industries: engrave on artificial stone, wood, bamboo, marble, organic board, double color board and so on for achieving effects of exquisite patterns and characters
3.Furniture industries:cabinet door, wooden door, solid wood, plate, antique furniture, door, window, desk and chair.
Related Products
Our company
Shandong Lintianzhiyuan CNC Equipment Co.,ltd is famous CNC equipment manufacture, located in Jinan, Shangdong. Our company integrates the R&D, product, sale and maintain service. We depend on high tech and quality products to build the world brand.
Our main products:Large-scale(automatic tool change) CNC woodworking engraving machine, CNC advertising machine, CNC stone engraving machine, CNC plasma cutting machine, CNC glass engraving machine, CNC jade engraving machine, CNC metal mold machine,laser cutting&engraving machine, laser seal engraving machine and computer plotter product.
Our main products:Large-scale(automatic tool change) CNC woodworking engraving machine, CNC advertising machine, CNC stone engraving machine, CNC plasma cutting machine, CNC glass engraving machine, CNC jade engraving machine, CNC metal mold machine,laser cutting&engraving machine, laser seal engraving machine and computer plotter product.
We provide one-stop service, including design, installation, training, commissioning, maintenance and consulting. Your satisfaction is always what we pursue.
FAQ
1. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine, if there is still any question, we can talk through phone or Skype.
Morever, you could come to our factory to learn how to use it before shipment. our technicant will give you professional guidance.
2. If the machine has problem, what can you do to help?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. our after-sales staff can come to your workshop if the problem still cannot be fixed.
3. How could I know if this machine is suitable for me?
Befor ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our techniciant will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.
User-friendly English manual and operation video will be sent together with the machine, if there is still any question, we can talk through phone or Skype.
Morever, you could come to our factory to learn how to use it before shipment. our technicant will give you professional guidance.
2. If the machine has problem, what can you do to help?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. our after-sales staff can come to your workshop if the problem still cannot be fixed.
3. How could I know if this machine is suitable for me?
Befor ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our techniciant will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.
