Система защиты от БПЛА обнаружение 10 км Глушение 3 с функцией определения направления для
- Категория: Other Security & Protection Products >>>
- Поставщик: Beijing,Lizheng,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.63 $* | 0.52 $* |
| Aug-18-2025 | 0.42 $* | 0.10 $* |
| Jul-18-2025 | 0.83 $* | 0.24 $* |
| Jun-18-2025 | 0.97 $* | 0.58 $* |
| May-18-2025 | 0.53 $* | 0.85 $* |
| Apr-18-2025 | 0.20 $* | 0.63 $* |
| Mar-18-2025 | 0.78 $* | 0.23 $* |
| Feb-18-2025 | 0.61 $* | 0.75 $* |
| Jan-18-2025 | 0.86 $* | 0.94 $* |
Характеристики
Product Overview

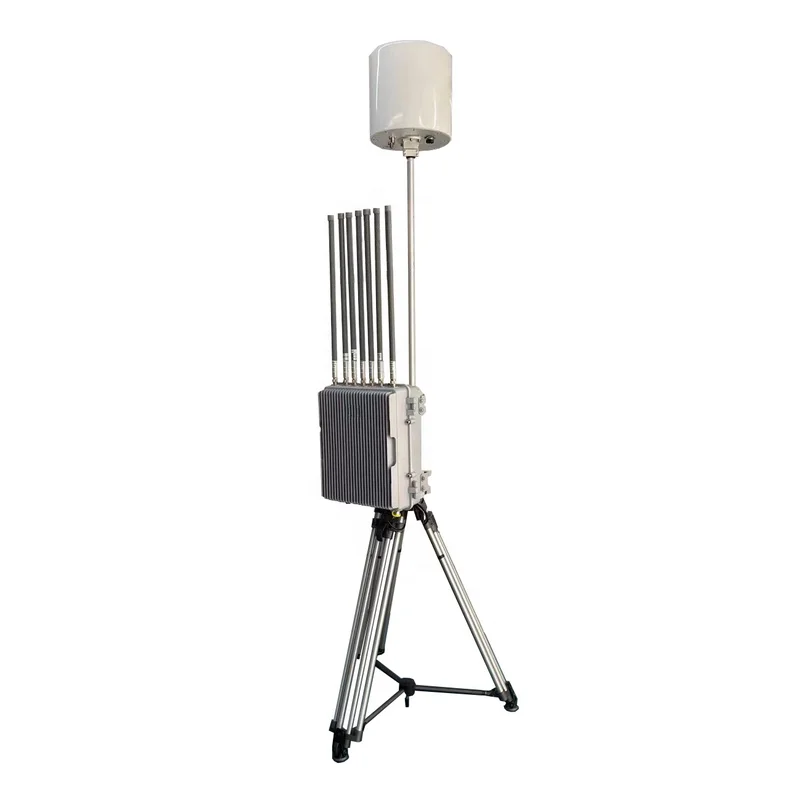

Anti drone system W5520D
LZ CRPC anti drone system is widely used at various low altitude security applications. Warning area, defense area and strike area can be flexibly set. Single site deployment can lock the source and direction of the target, and multi site cross deployment can locate the target.
FEATURES AT A GLANCE
Passive Detection
Accurate Identification
Precise Strike
White & Black List
Comprehensive Defense
Full Model Library
Intelligent Platform
Unmanned
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Installing Means | Fixed | ||
Passive Detection | Detection Means | Passive detection | |
Standard Bands | 2.4G/5.8G | ||
Optional Bands | 433M/900M/1.4G/5.2G | ||
Detection Distance | 10 km | ||
Detection Sensitivity | better than-95dBm（25kHz） | ||
Detection Precision | ≤3°Hovering ≤10°Moving | ||
Ditection Directivity | 360°Omnidirectional | ||
Simultaneous Detection | ≥30 drones | ||
Adaptable communication modulation method | FM, 2FSK, 4FSK, GFSK, MSK, BPSK, QPSK, 16QAM, 64QAM, OFDM, DSSS, FHSS | ||
Controlling Means | Insert NX | ||
Standard Bands | 2.4G/5.8G/1.5G | ||
Optional Bands | 433M/900M/1.4G/5.2G | ||
Strike Distance | 3km | ||
Suppression Rate | 10:1 | ||
Precise Strike | Bands Supported | 2.4G/5.8G | |
Strike Distance | 3km | ||
Suppression Rate | 10:1 | ||
Integrability | Yes | ||
Function | Precise Identification | Yes | |
Black & White List | Yes | ||
Full Model Library | Yes | ||
Protection Level | IP66 | ||
Working Temperature | -40 to +70℃ | ||
Working Time | 7*24H | ||
Power Supply | AC110V / AC220V ±20V | ||
Size | 480mm×400mm×245mm | ||
Weight | 22.4kg | ||
Packing Means | Air Box | ||
PRODUCT CONFIGURATION
Radio Processing Unit
DF Processing Unit
CRPC Command and Control System

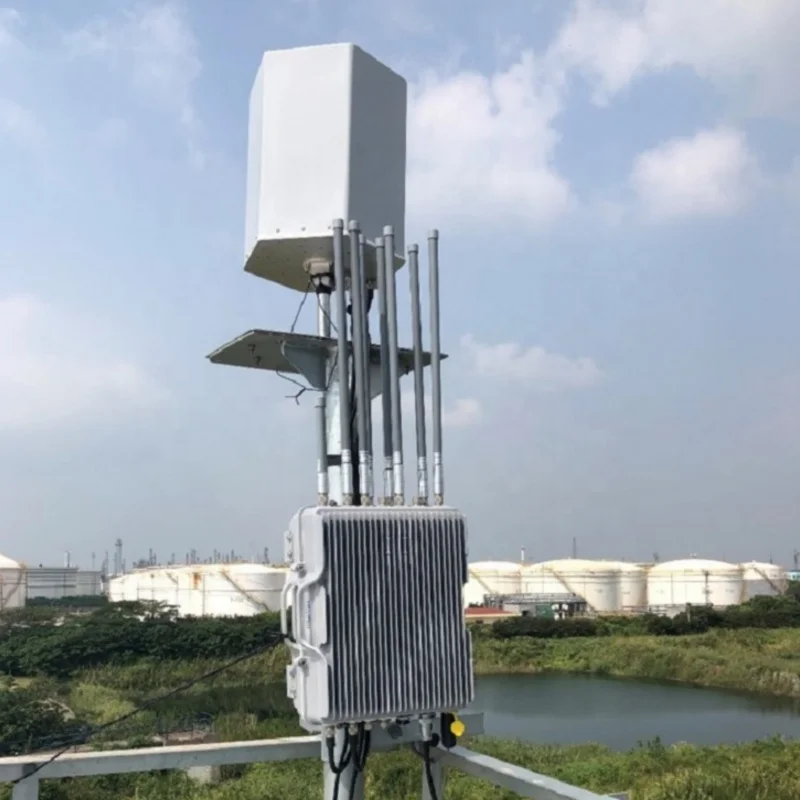

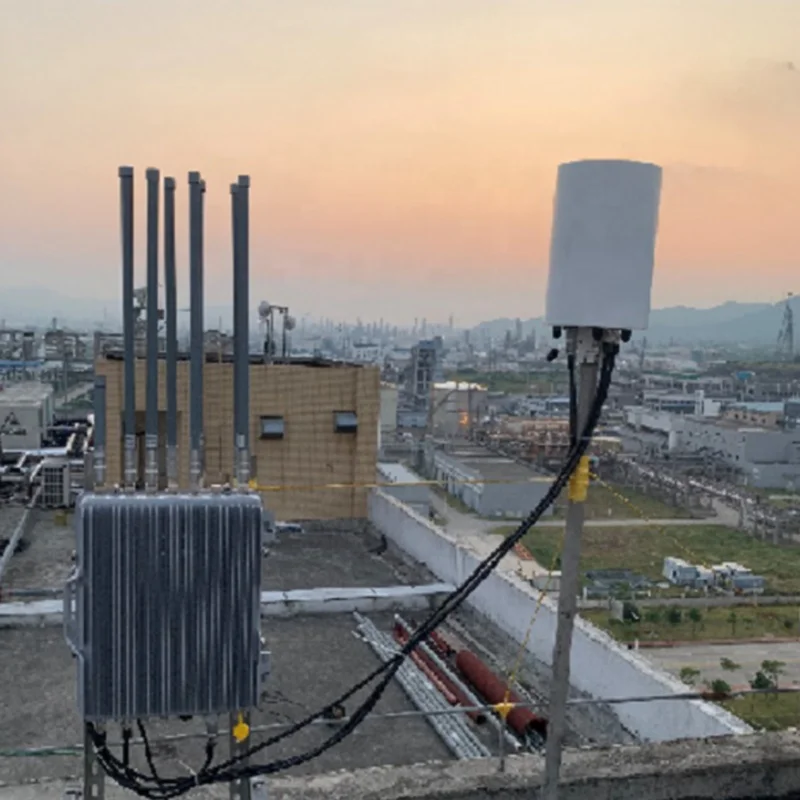

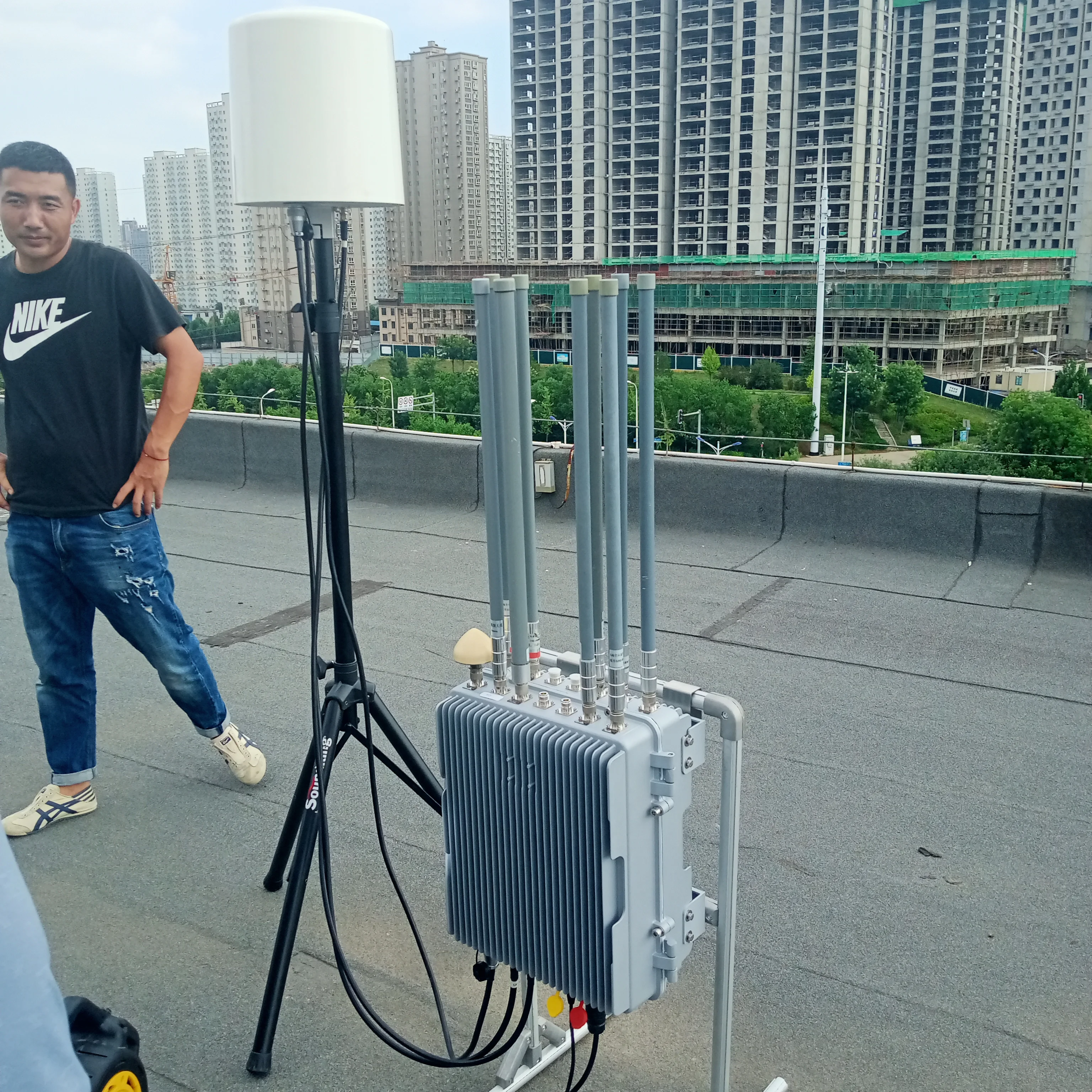

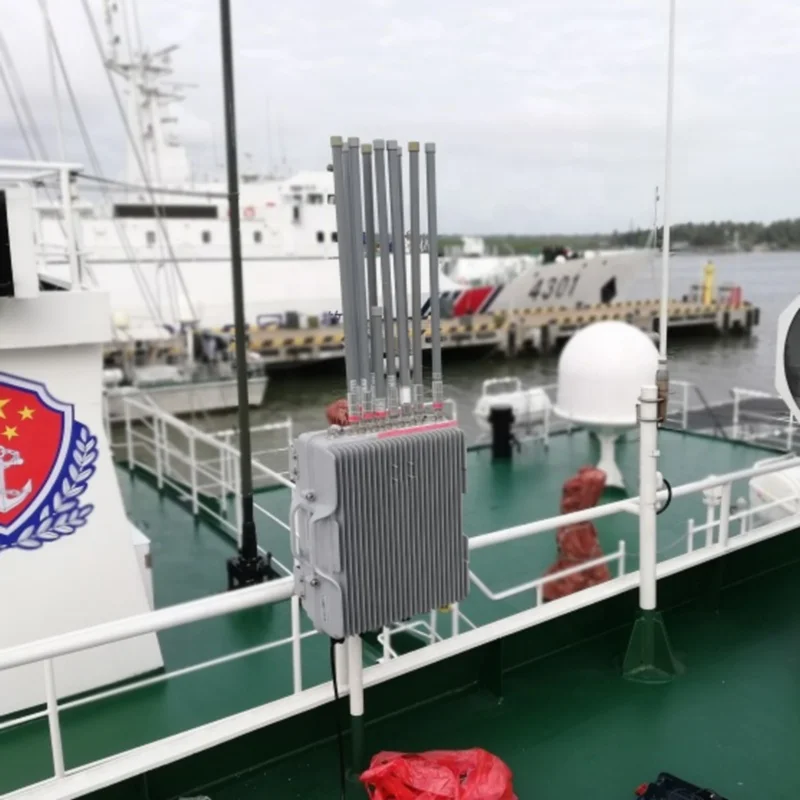

Successful Project
Important institutes security
Airport security
Important events security
SIMILAR PRODUCTS
Company Profile
About Us
Lizheng Technology was founded in 2018, located in Dongsheng International Science Park, Zhongguancun, Haidian district, Beijing. It is the creator of CRPC(Cognitive Radio Protocol Cracking) technology and the leader of RFML(Radio Frequency Machine
Learning) technology in China. Is a high-tech company focusing on low-altitude UAV prevention and control technology research.
Learning) technology in China. Is a high-tech company focusing on low-altitude UAV prevention and control technology research.
At present,the company owns more than 20 types of self-developed products in the field of UAV countermeasures in the five systems
of Hidden Shield, Outpost, sky shield, Sword and Hawk Eye, which have been deeply applied in a wide range of industries such as military industry, border defense, civil air defense,
judicial public security, energy, airport railway, water conservancy port and major security places.
of Hidden Shield, Outpost, sky shield, Sword and Hawk Eye, which have been deeply applied in a wide range of industries such as military industry, border defense, civil air defense,
judicial public security, energy, airport railway, water conservancy port and major security places.
.
