Паровой бойлер для горячей воды с защитой окружающей среды
US $4000-$5000
12 т/ч 700 кВт 1400 тяжелый нефтяной газовый дизельный сжиженный СПГ термомасляный котел
- Категория: Boilers >>>
- Поставщик: Henan,Province,Sitong,Boiler,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 6902.33 $* | 7247.32 $* |
| Aug-19-2025 | 6844.61 $* | 7186.59 $* |
| Jul-19-2025 | 5742.37 $* | 6029.36 $* |
| Jun-19-2025 | 6728.38 $* | 7064.67 $* |
| May-19-2025 | 5858.3 $* | 6151.55 $* |
| Apr-19-2025 | 6612.48 $* | 6943.41 $* |
| Mar-19-2025 | 6554.55 $* | 6882.74 $* |
| Feb-19-2025 | 6496.75 $* | 6821.59 $* |
| Jan-19-2025 | 6438.35 $* | 6760.70 $* |
Характеристики
Our Advantages
Chinese Famous Brand
High Quality---- Quality Raw Material, Advanced Facilities, Fine Procedures.
Big Production Ability
Leading Level R & D Department
Fast Delivery
Experienced Sales Manager
Certificate ISO9001, ASME, ISO14001, SGS, CE, BV
Excellent After-sale Service
Product Description

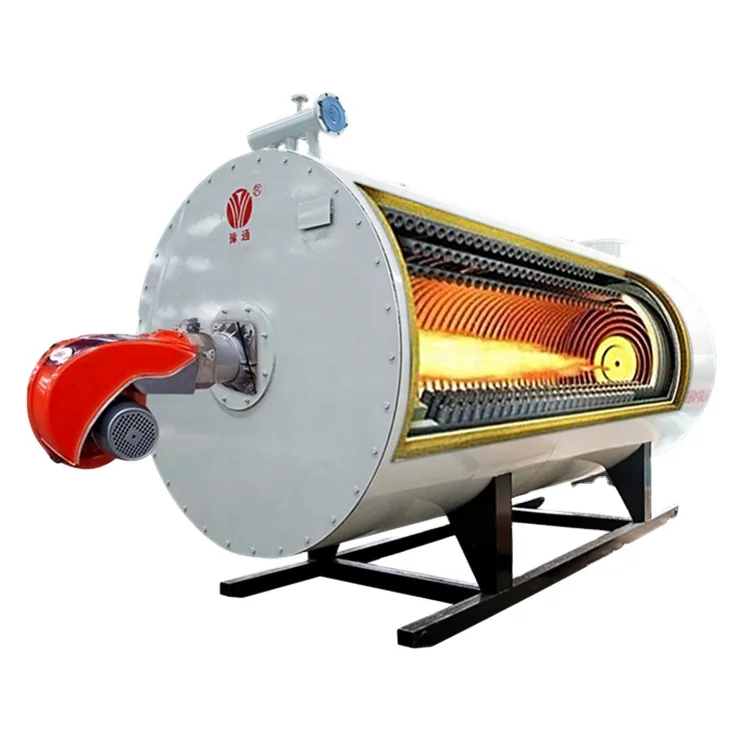

The thermal oil heater is a kind of special industrial furnace which uses diesel oil as the fuel, the furnace takes heat carrier oil as medium and uses the hot oil circulating pump force the medium to make liquid circulation; then the thermal energy will be transmitted to the devices and back to the furnace to be reheated.
This series boiler have advanced program control system, equipped with liquid level controller , pressure controller, temperature controller, and alarms to make sure the boiler work orderly and safe. So it is a kind of safe boiler with high efficiency and low power consumption.
Features of 12 t/hr 700kw 1400kw Heavy Oil City Gas Diesel lpg cng Fired Thermal Oil Boiler for Plywood
1. It is convenient to be adjusted, and can supply balanced heat to satisfy the hard work required to precise temperature.
2. Less heat loss, high Thermal Efficiency.
3. Excellent Struture, advanced techniques.
4. Simple operation, serious control.
Industrial Boiler 1000kw 2100kw Heavy Oil Gas Diesel Fired Coil Design Thermal Oil Boiler Price
Model | YYW-120YC | YYW-230YC | YYW-350YC | YYW-470YC | YYW-700YC | YYW-930YC | YYW-1200YC |
| |||||||
Item | |||||||
Rated power(KW) | 120 | 230 | 350 | 470 | 700 | 930 | 1200 |
Design | 0.9 | ||||||
pressure(Mpa) | |||||||
Rated working | 0.6 | ||||||
pressure(Mpa) | |||||||
Highest working | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
temperature(C) | |||||||
Furnace oil | 0.1 | 0.2 | 0.28 | 0.38 | 0.55 | 0.75 | 1 |
volume(m3/h) | |||||||
Circulation oil | 12.5 | 32 | 40 | 60 | 80 | 100 | 100 |
volume(m3/h) | |||||||
Pipe connection diameter(DN) | 50 | 65 | 80 | 80 | 100 | 125 | 125 |
Thermal Efficiency | 75 | 80 | 85 | 85 | 85 | 85 | 85 |
(%) | |||||||
Size (m) | 1.5x1.1x1.4 | 2.0x1.2x1.5 | 2.5x1.3x1.6 | 2.7x1.6x1.9 | 3.1x1.6x1.9 | 3.8x1.7x2.0 | 3.8x1.8x2.1 |
Weight (t) | 2 | 2.9 | 3.7 | 4.5 | 4.9 | 5.5 | 6.5 |
Packaging & Shipping

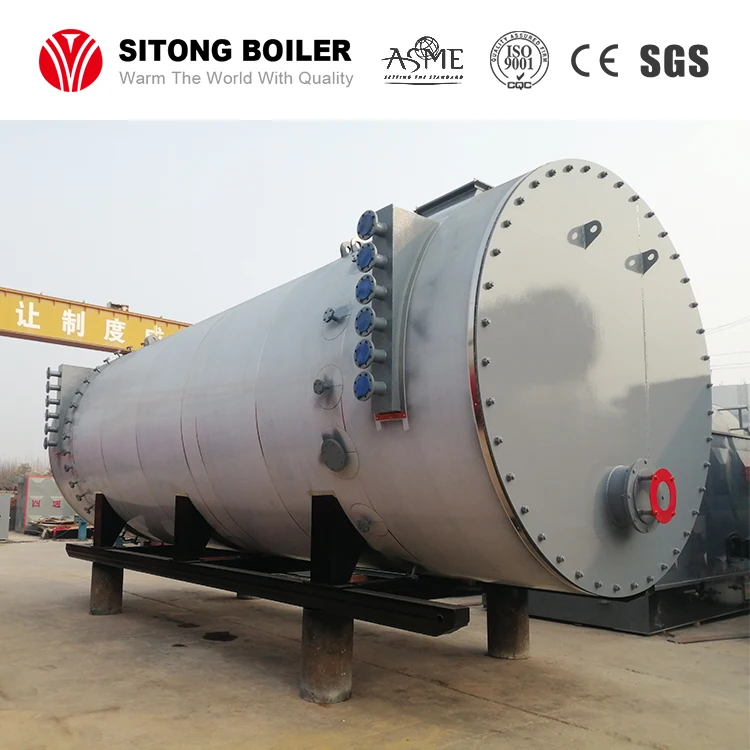

The YYW Series gas oil fired thermal oil boiler is transport to Pakistan, 7 big trucks are used for this shipping. Customer uses the boiler for his textile mill.
Company Information
Customer Visiting

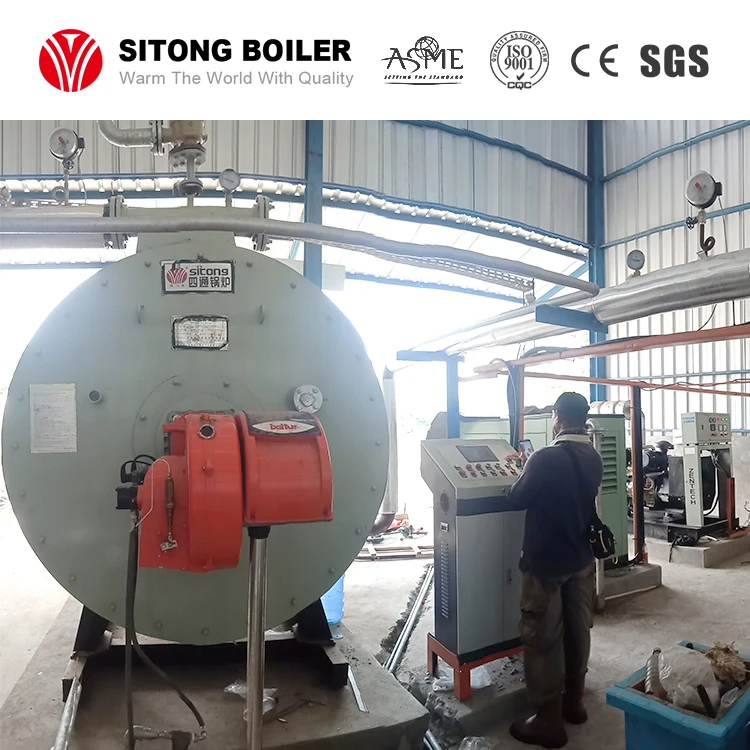

Bangladesh customer visited Sitong Boiler factory in August 2016 for a coal fired boiler. He would like to use the boiler for his plywood factory. He was very interested in the YYW series gas oil thermal oil boiler.
Business Exhibition of Chinese Industrial Natural Gas LPG HFO Light Oil Diesel Fired Thermal Oil Boiler Manufacturer
Certification
FAQ
