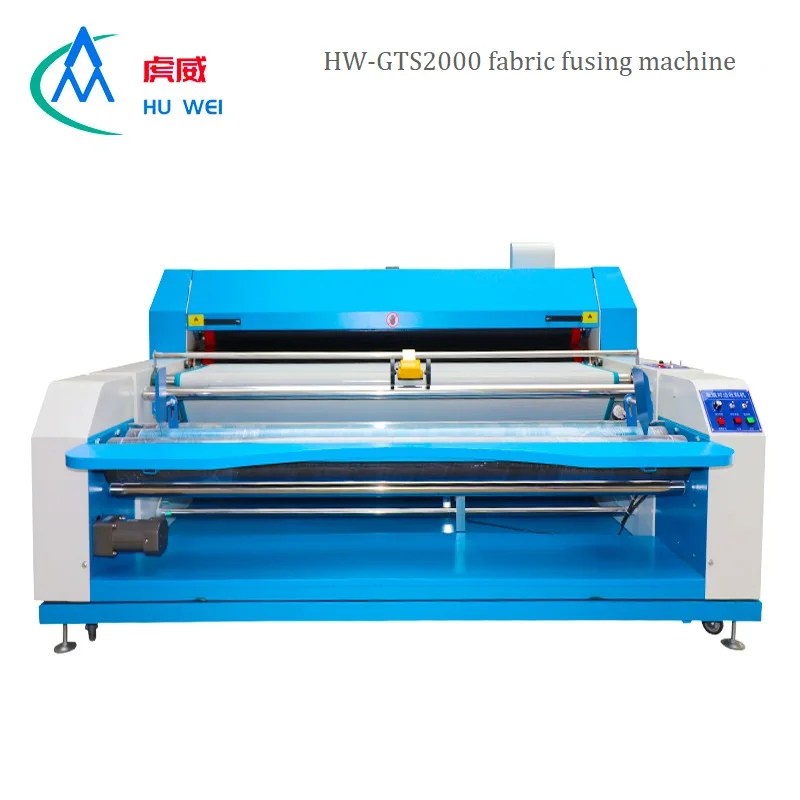

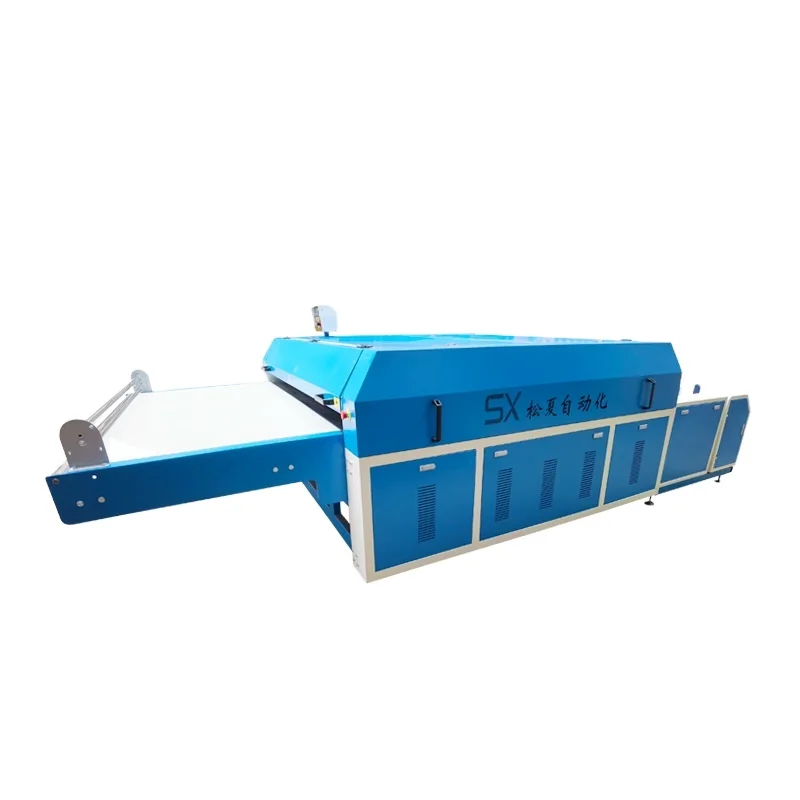

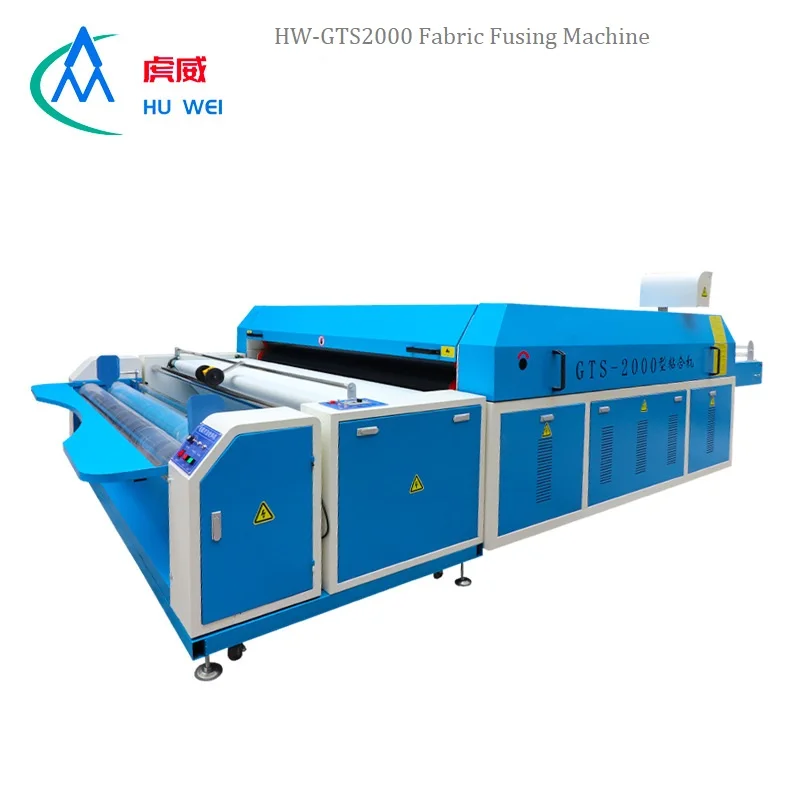

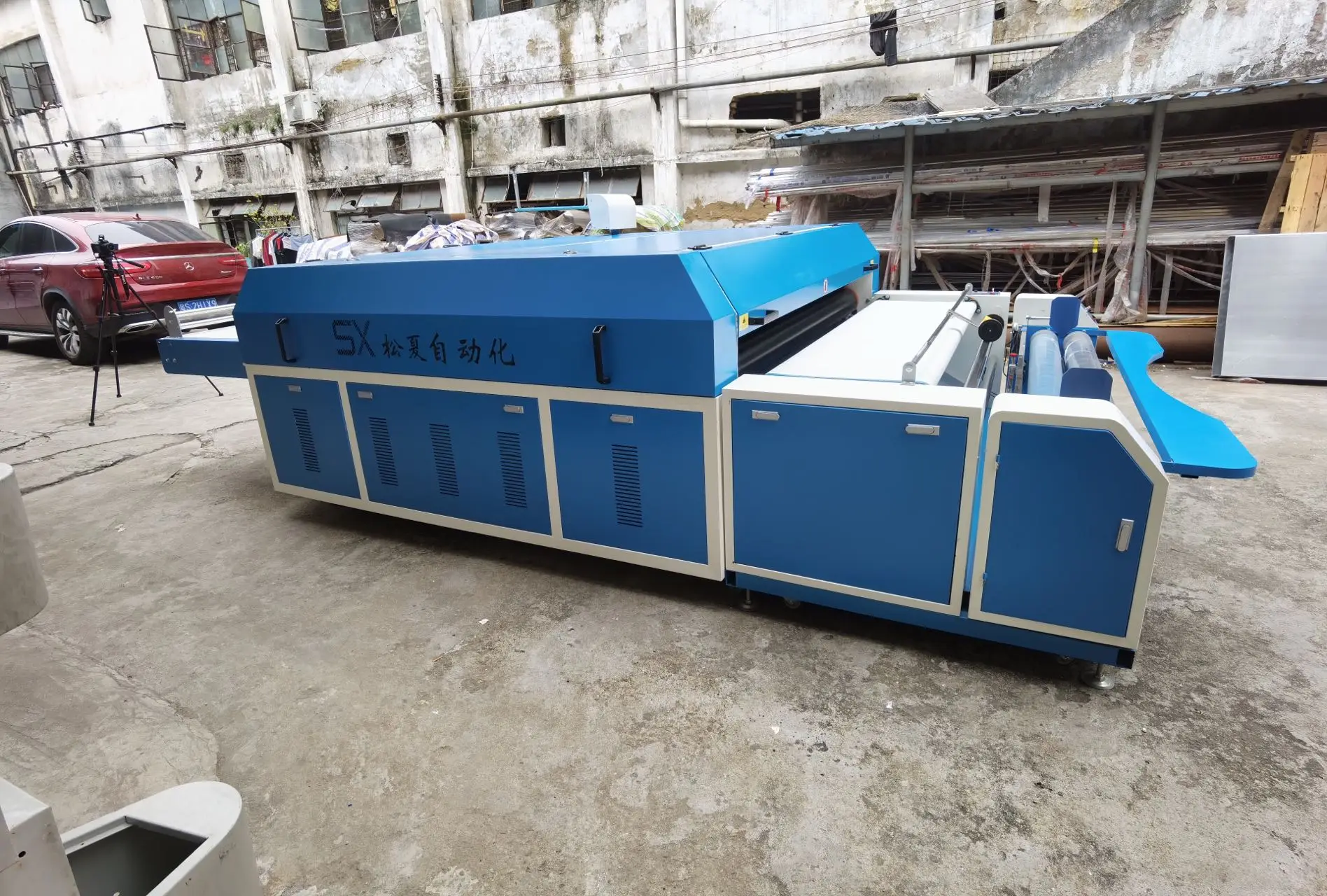

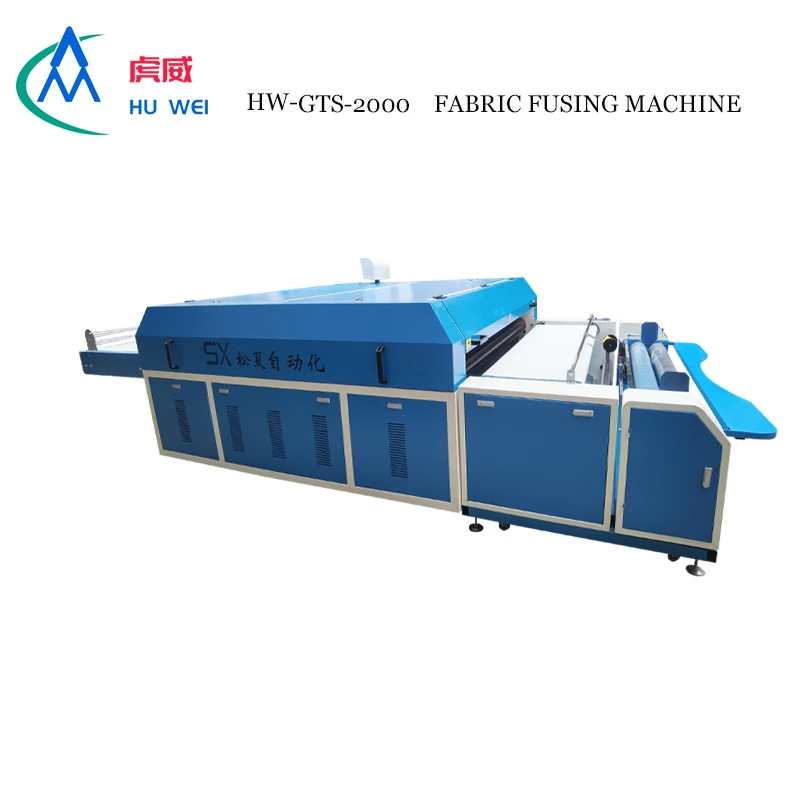

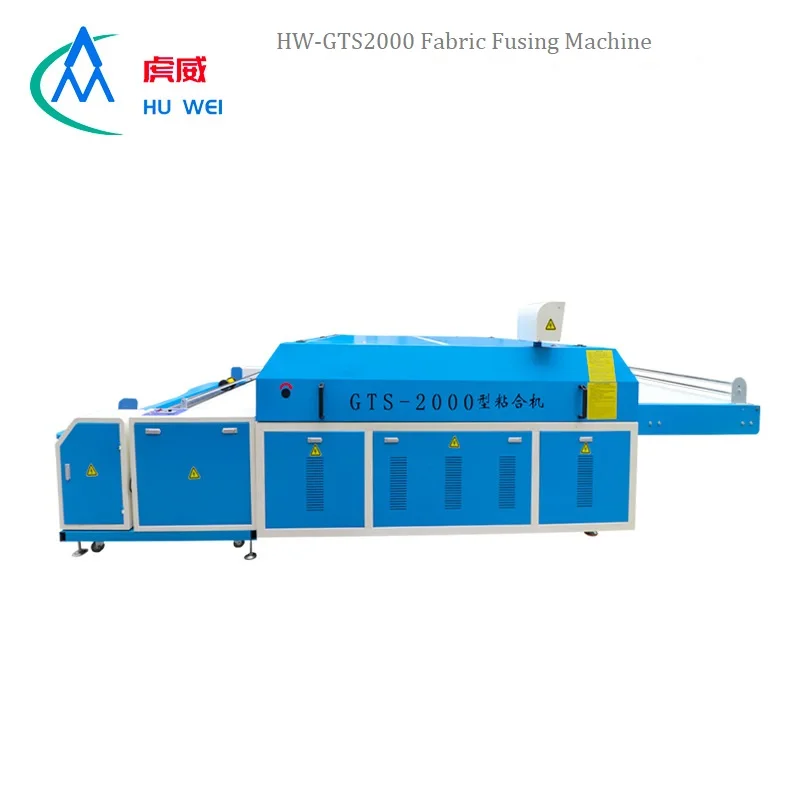

Машина для закрепления ткани промышленная


Поделиться:


Цена:14 800,00 $ - 16 800,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 17612.94 $* 18493.36 $*
Aug-15-2025 17464.64 $* 18337.40 $*
Jul-15-2025 14652.43 $* 15385.81 $*
Jun-15-2025 17168.65 $* 18026.2 $*
May-15-2025 14948.96 $* 15695.39 $*
Apr-15-2025 16872.14 $* 17716.15 $*
Mar-15-2025 16724.64 $* 17560.7 $*
Feb-15-2025 16576.55 $* 17405.11 $*
Jan-15-2025 16428.61 $* 17249.79 $*

Характеристики



Products Description


Application area:
It is suitable for bonding, For customers who need whole roll bonding, shrinkage setting, calendering, hot stamping and feeding.
Fabric Fusing machine Main feature:
1,Continuous fusing system increases the productivity.
2,Equipped with the wheels for convenient mobility.
3,PCB and micro switch control the upper and lower belts automatically and extends duration of the belt.
4,Pressure rollers are made by silicone,which ensure the power of pressure giving is stable and equal.
5,Electronic temperature constant temperature control system, temperature accurately.
6,There are 9 heaters to distribute the heat evenly and can be used to all fabrics.
7,Equip with stronger vacuum system for cooling which can let the fabric in shape immediately.
8,Equipped with automatic cooling timing shutdown system.
9,Pneumatic double roller pressing,the pressure of which can be adjusted separately.
10,Special-designed clean rod to clean the belt completely,and it is easy for replacement once the rod gets dirty.
11,With frequency conversion mechanic to control speed, running smoothly and more energy saving.
12,Optional:Basket of cloth/Automatic feeding machine;Winding machine/Infrared edge cloth rolling machine.



Fabric Fusing machine of specification
Model
HW-GTS-2000
Max Pressure
6 kg/ cm2
Power Supply
60 kw
Voltage/Frequency
380 V/50-60 HZ
Fusing Width
2000 mm
Fusing Time
10-30 sec
Weight
1000 KG
Dimensions(L×W×H)
4800*2700*1600 mm










*Machine model, technical parameters
Model
HW-600
HW-900
HW-1200
HW-1600
HW-1800
Voltage
380V/50HZ
Power
9KW
12KW
14KW
19KW
22KW
Pressure Mold
Air Pressure Roller
Rubber Shaft Diameter
100mm*2
Temperature
0-230(ASR+SSR)
Heater material
Elertric heat pipe And Aluminum alloy radiator
Hot Area Diameter
600*1200
900*1200
1200*1200
1600*1200
1800*1200
Max Fusing Width
0-600
0-800
0-1200
0-1600
0-1800
Dimension(m)
2.62*1.18*1.28
2.62*1.48*1.28
2.62*1.78*1.28
2.62*2.18*1.28
2.62*2.38*1.28
Wooden Box Size
1.81*1.35*1.5
1.81*1.81*1.5
1.95*1.81*1.5
2.35*1.81*1.5
2.55*1.81*1.5
Belt Automatic Adjustment
Automatic
Speed Range
2-15m/min
Belt
Seamless belt
Speed Control System
Conversionand Gear motor
Internal Structure
Linear Structure,Clear and Sample
About safety
Full Range Use Scram Button


Company Profile








FAQ


Q1 :Our workers can't operate the machine, how to train the staff?
A1: We will send you the teaching video of the machine and 24-hour online service,we also support free training service, engineers can train your workers for free in our factory for 1-3 days.

Q2 : I don’t know which one is suitable for me ?
A2: Please tell me your
1) Your materials
2) Max size of your material
3) Max cut thickness
4) Popular cut thickness

Q3 :It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do?
A3: We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work. You can contact him /her to go to the factory to check the production progress of the machine, or send you the sample pictures and videos you want. We support free sample service.
