NF-8601 мульти-функциональный сетевой кабель Длина

Цена:8 674,88 ₽ - 9 759,24 ₽*

Количество:

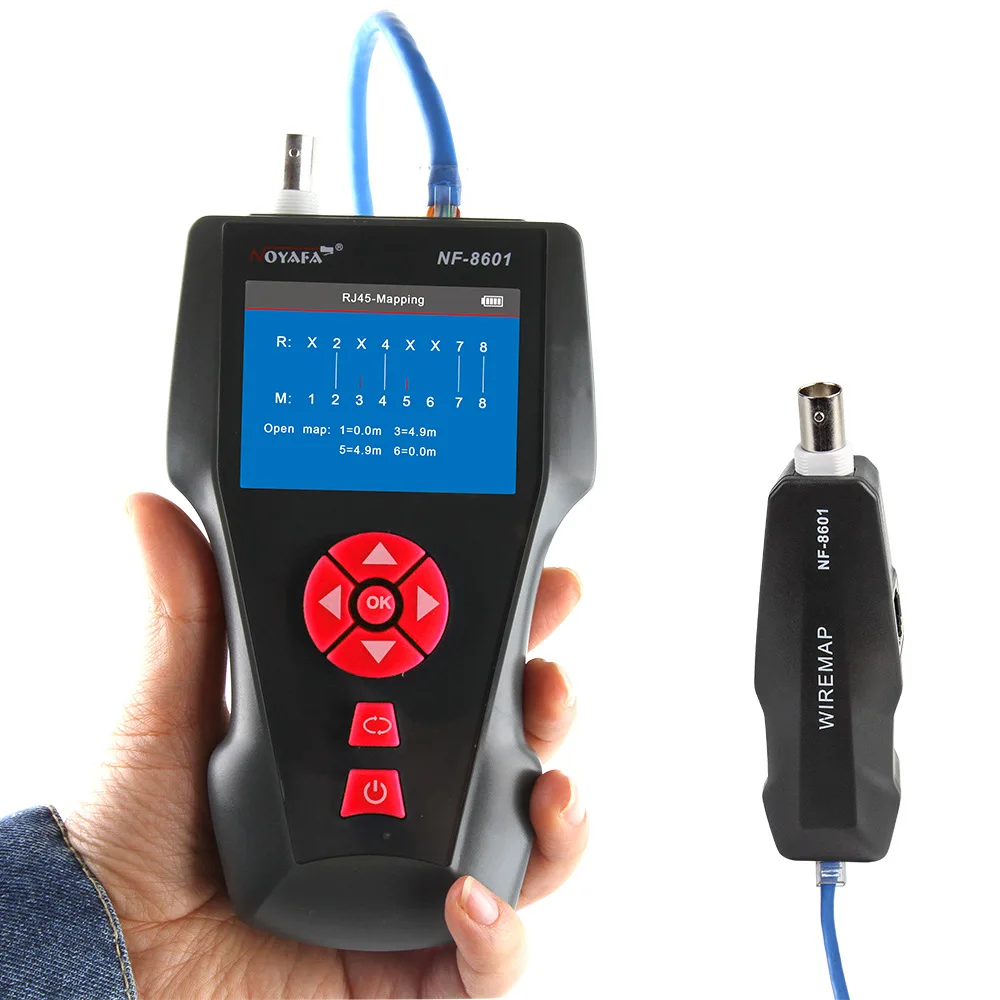

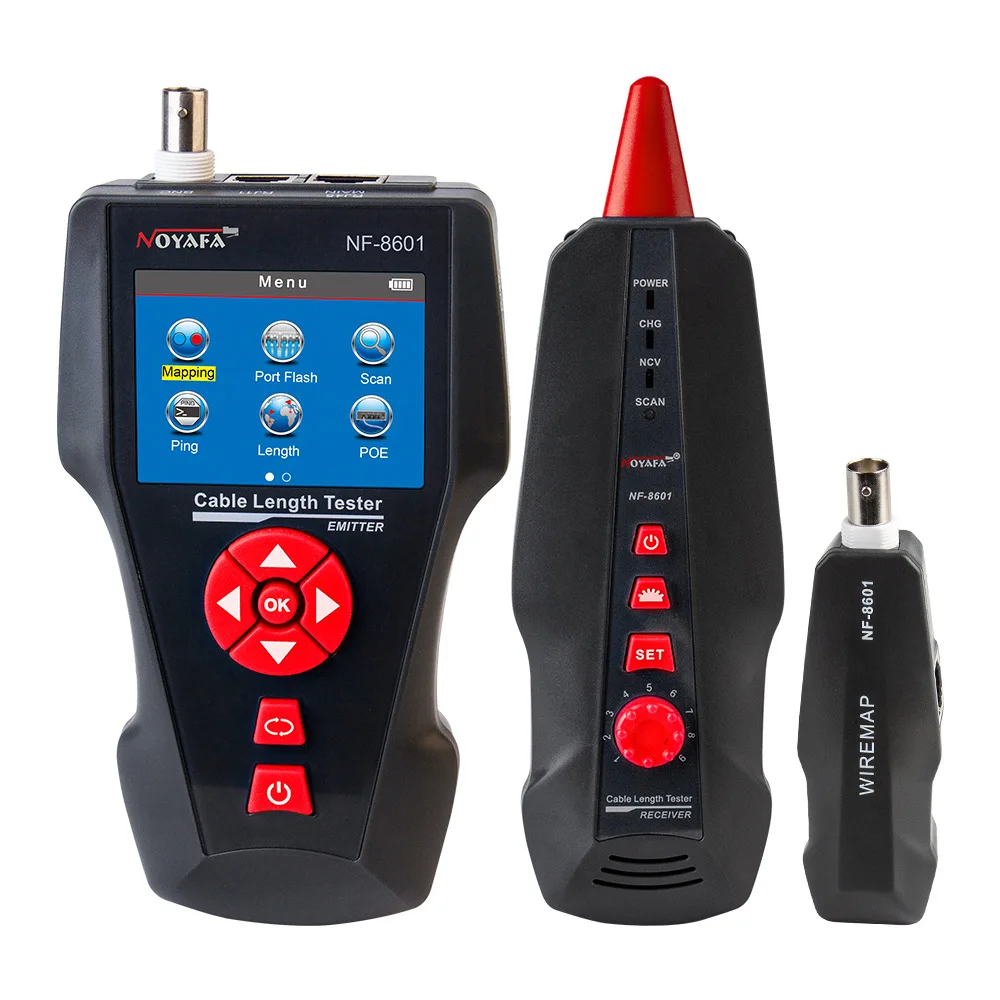

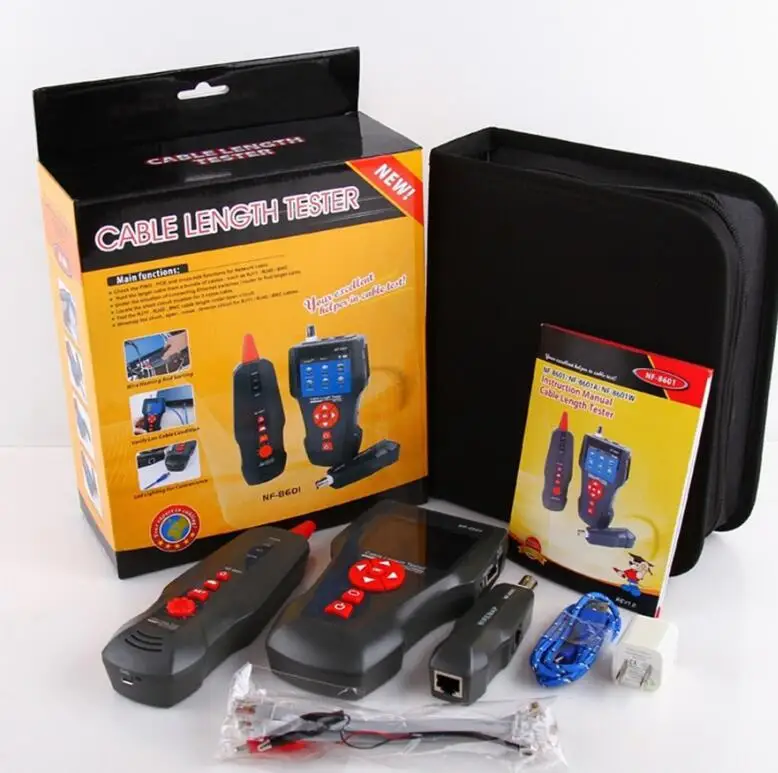

NOYAFA NF-8601 Multi-Functional Network Cable Length Tester

Product Description

Brand Name : Noyafa

Model Number : NF-8601

Place of Origin : China

Port : RJ45, RJ11, BNC

Test length : RJ11,RJ45 ,BNC

Tracking Type : RJ45, RJ11, BNC , and Metal Cable

Other Function : PING&PoE&Portflash function

Power :3.7V Lithium battery

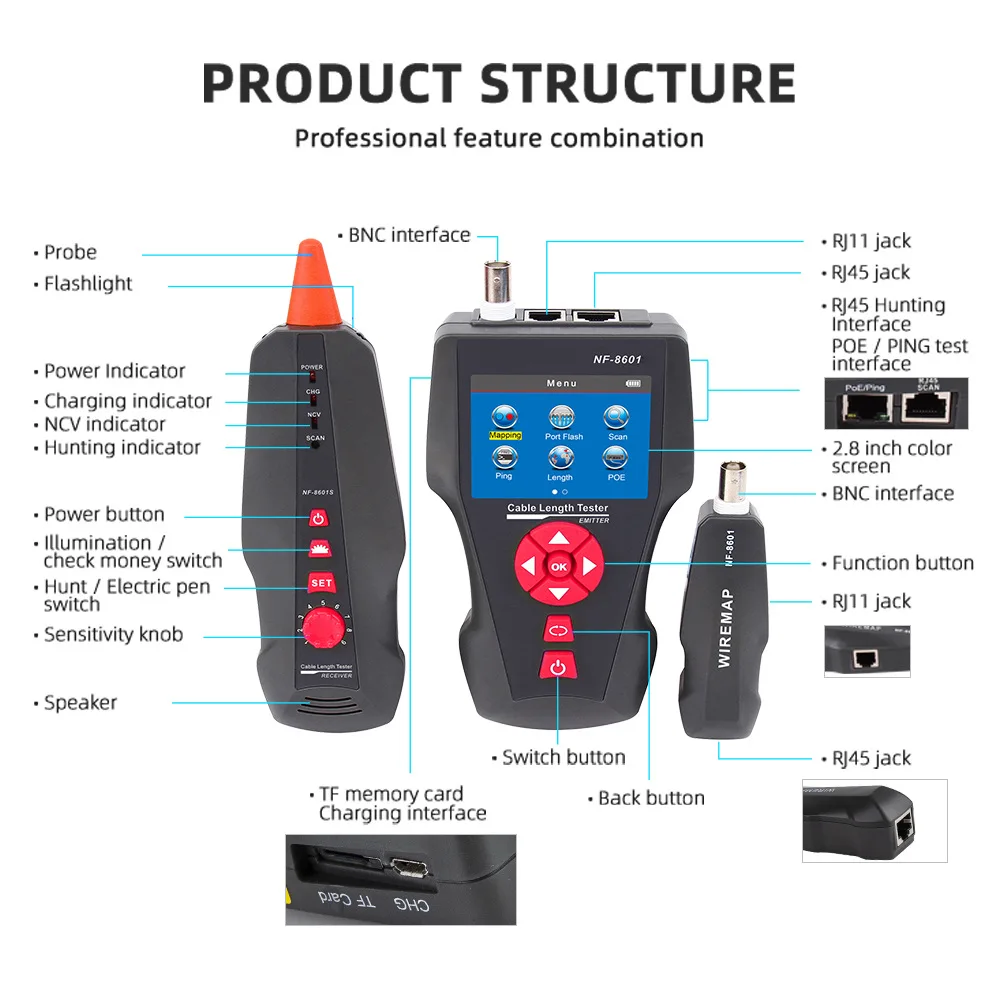

Functions

1. PoE / PING testing.

2. Trace targeted cable among lots of unknown cables ;

3. Locate faults for RJ11/RJ45/BNC Cable;

4. measure cable length accurately

5. Voltage detecting function.

6. Memory and storage function, export or upload the data from PC.

7. Lithium battery and color screen

Benefits

1. Big LCD color screen 320*240

2. Function of storage and memory

3. Currency detection and lighting lamp

4. Automatic delay power on-off

5.Low voltge alarm function

6. Lithium battery for more efficient work

Technical indexes:

NF-8601 Transmitter specifications
Indictor	LCD 320x240 mm, with backlight
Cable test types	STP/UTP 5E,6E network , telephone , coaxial cable.
Max. distance of wiremap	2000 m
Max. distance of tracing	2000m
Max. distance of cable length	1000 m
Min. distance of calibration	10 m
Accuracy	3% ( after calibration )
Compatible connectors	RJ11,RJ45,Coaxial, PING/POE,BNC
Cable map indication	LCD (#1-#8)
Battery Type	3.7V lithium battery 1800mAh
Work temperature / humidity	10℃ ~ -60℃ / 0℃~70℃
Dimension(LxWxD)	173x92x34mm
NF-8601 Receiver specifications
Cable hunting	RJ11,RJ45, BNC
Types of cable	≥ 2 cores
Battery Type	3.7V lithium battery 1800mAh
Dimension(LxWxD)	183x58x35 mm
NF-8601 Remote unit specifications
Compatible connectors	RJ11,RJ45, BNC
Dimension(LxWxD)	106x32x30mm
