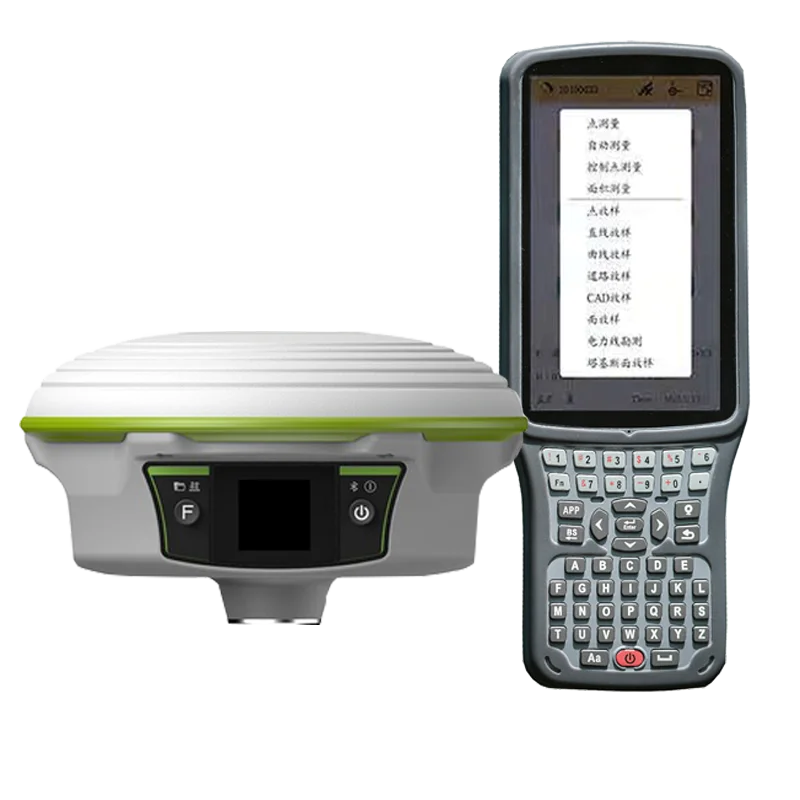

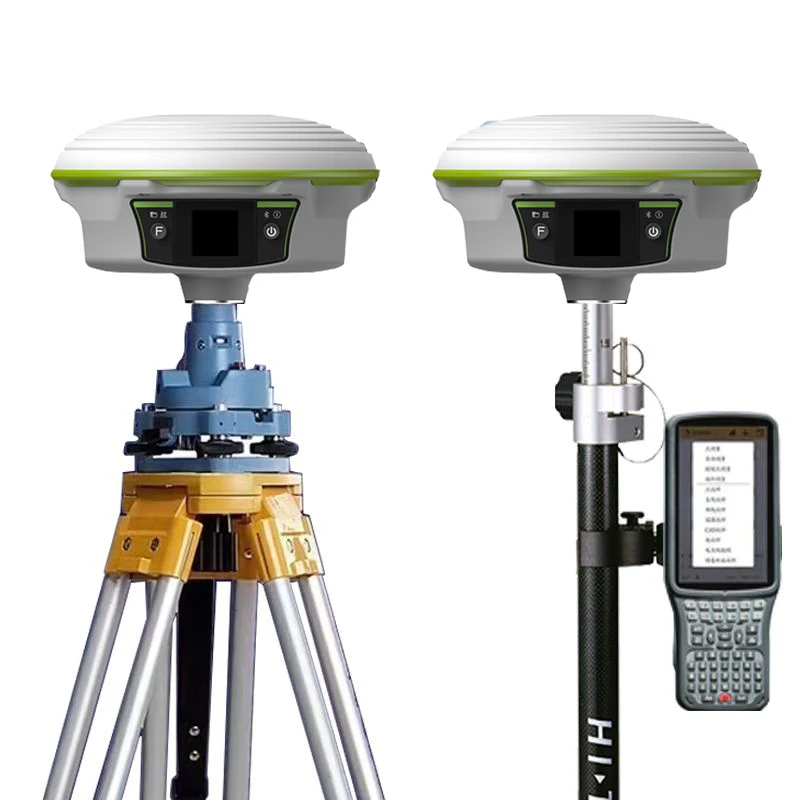

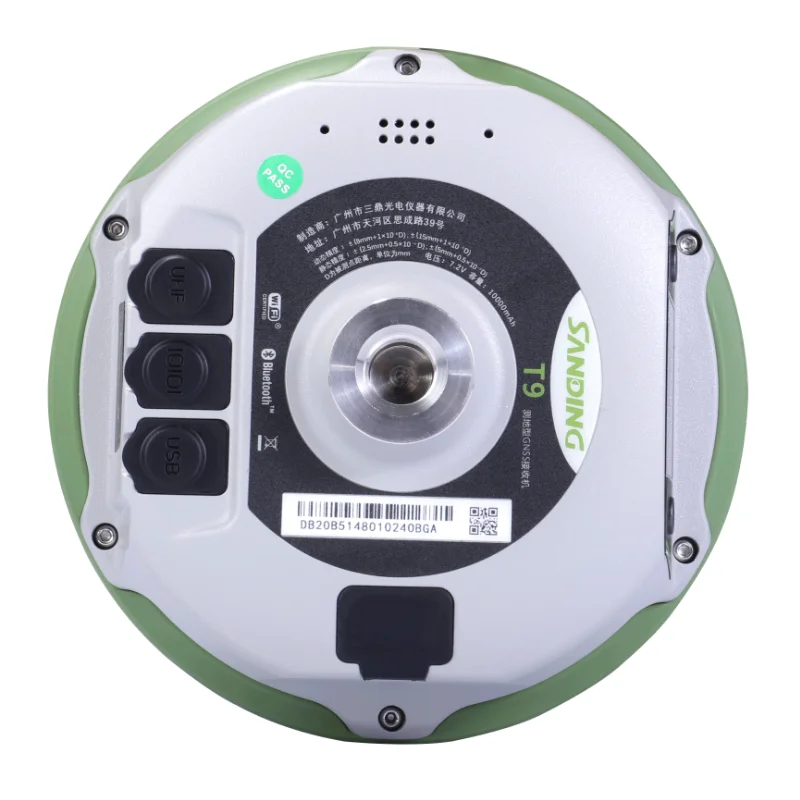

Trimble gnss2022 Новый дешевый Rtk Gps приемник для шлифовки Taurus T9 RTK
- Категория: Other Test Instrument >>>
- Поставщик: Chengdu,Mingjun,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.75 $* | 0.98 $* |
| Aug-20-2025 | 0.84 $* | 0.23 $* |
| Jul-20-2025 | 0.52 $* | 0.82 $* |
| Jun-20-2025 | 0.37 $* | 0.32 $* |
| May-20-2025 | 0.50 $* | 0.12 $* |
| Apr-20-2025 | 0.29 $* | 0.30 $* |
| Mar-20-2025 | 0.37 $* | 0.10 $* |
| Feb-20-2025 | 0.20 $* | 0.17 $* |
| Jan-20-2025 | 0.1 $* | 0.83 $* |
Характеристики
Specification
GNSSconfiguration | Number of channels | 965 channels |
BDS | BDS-2: B1I, B2I, B3I BDS-3: B1I, B3I, B1C, B2a, B2b | |
GPS | L1、L1C、L2C、L2P、L5 | |
GLONASS | L1C/A、L1P、L2C/A、L2P、L3 | |
GALILEO | GIOVE-A、GIOVE-B、E1、E5A、E5B | |
QZSS | L1C/A、L1 SAiF 、L2C、L5 | |
Positioning output rate | 1Hz~20Hz | |
Differential support | CMR、RTCM2.X、RTCM3.0、RTCM3.2 | |
Static format support | GNS, Rinex dual format static data | |
RTK positioning accuracy | Plane: ±(8+1×10-6D) mm (D is the distance between the measured points) Elevation: ±(15+1×10-6D) mm (D is the distance between the measured points) | |
Static positioning accuracy | Plane: ±(2.5+0.5×10¯6D) mm (D is the distance between the measured points) Elevation: ±(5+0.5×10¯6D) mm (D is the distance between the measured points) | |
DGPS positioning accuracy | Plane accuracy: ±0.25m+1ppm;Elevation accuracy: ±0.50m+1ppm | |
Initialization time | <10 seconds | |
Initialization reliability | ＞99.99% | |
IMU tilt compensation | Additional horizontal pole tip uncertainty typically less than 10mm + 0.7 mm/° tilt down to 30° IMU tilt angle：0°~60° | |
communication | NFC Communication | Realizing close range (shorter than 10cm) automatic pair between receiver and controller (controller equipped NFC wireless communication module needed) |
WiFi | 802.11b/g access point and client mode, can provide WiFi hotspot service | |
Bluetooth | BLEBluetooth 4.0 standard, support for android, ios cellphone connection | |
Wireless modem | Built-in radio, 1W/2W/3W switchable, typically work range can be 8KM Radio repeater | |
I/O port | 5PIN LEMO external power port + RS232, 7PIN external USB(OTG)+Ethernet 1 radio antenna interface | |
frequency band: | 410-470MHz | |
Protocol | Farlink, Trim talk450s, SOUTH, HU ACE, Hi-tar get, Sa tel | |
User Interface | Buttons | One button operation |
Indicators | Four indicate lights | |
Electrical physical properties | battery | 10000mAh, 7.4V |
Power Supply | 9-28V DC, over voltag e protecon | |
size | 166mm x 96.1mm | |
weight | 1.3KG | |
material | Magnesium aluminum alloy shell | |
Environmental characteristics | Dust and water release | IP67 standard, protected from long time immersion to depth of 1m |
Storag | -55°C~+85°C | |
Operating | -45℃~70℃ | |
Specification | ||
System | model | H6 |
operating system | Android 8.1 | |
CPU | Octa-core 2.0GHz | |
RAM | 4GB | |
ROM | 64GB | |
Communication | SIM frequencies | GSM: B2/B3/B5/B8 FDD-LTE :B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B28 TDD-LTE B38/B39/B40/B41 TDSCDMA B34/B39 WCDMA B1/B2/B5/B8 CDMA1x/CDMA2000 BC0 |
WiFi(WLAN) | IEEE 802.11a/b/g/n, 2.4G/5G | |
Bluetooth | V4.1 | |
NFC | Support NFC IGRS | |
USB | Type-C, support OTG | |
Electrical | Battery | 9200mAh |
Operating Time | 15 Hrs | |
Charging Time | 240 Hrs | |
Physical | size | 235mm*90mm*35mm |
Weight | 520g | |
Operating temperature | -20℃~+60℃ |
Product Description
FAQ
Q1.What kind payment method we accept?
A1.T/T, Western Union, Trade Assurance on Alibaba, Moneygram .
Q2.How can you guarantee payment safety ?
A2.Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE
service, you payment will be guaranteed. Because we are not able to receive payment until you confirm goods receipt.
Q3.What kinds of shipment for goods and how long time it takes ?
A3.Our company supports DHL, FEDEX, UPS, TNT, CHINA POST, by sea,by air and other methods. Shipping time is 3-5 days after the paments are received.
Q4.Does your company ship battery or not ?
A4.Our company can receive battery order and ship to customer normally, except for a few special countries
Q5.Do you have other items not displayed on your website ?
A5.Yes, our company supplies full range survey products. If you are looking for product not whowed on
our website. Please contact us freely. We will reply you in time.
Q6. Can you do a custom logo on the products?
A6. Yes. We can print your logo on our products and boxes.
A1.T/T, Western Union, Trade Assurance on Alibaba, Moneygram .
Q2.How can you guarantee payment safety ?
A2.Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE
service, you payment will be guaranteed. Because we are not able to receive payment until you confirm goods receipt.
Q3.What kinds of shipment for goods and how long time it takes ?
A3.Our company supports DHL, FEDEX, UPS, TNT, CHINA POST, by sea,by air and other methods. Shipping time is 3-5 days after the paments are received.
Q4.Does your company ship battery or not ?
A4.Our company can receive battery order and ship to customer normally, except for a few special countries
Q5.Do you have other items not displayed on your website ?
A5.Yes, our company supplies full range survey products. If you are looking for product not whowed on
our website. Please contact us freely. We will reply you in time.
Q6. Can you do a custom logo on the products?
A6. Yes. We can print your logo on our products and boxes.
