Электронный трансформатор вход 3 фазы 380VAC выход 200V переменного тока 6KW SVC 060A
- Категория: Transformers >>>
- Поставщик: Dalian,Prodigy,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 126.71 $* | 129.61 $* |
| Jul-18-2025 | 102.41 $* | 104.18 $* |
| Jun-18-2025 | 124.68 $* | 126.65 $* |
| May-18-2025 | 123.9 $* | 125.28 $* |
| Apr-18-2025 | 98.43 $* | 100.6 $* |
| Mar-18-2025 | 121.78 $* | 123.76 $* |
| Feb-18-2025 | 120.17 $* | 122.0 $* |
| Jan-18-2025 | 119.51 $* | 121.72 $* |
Характеристики

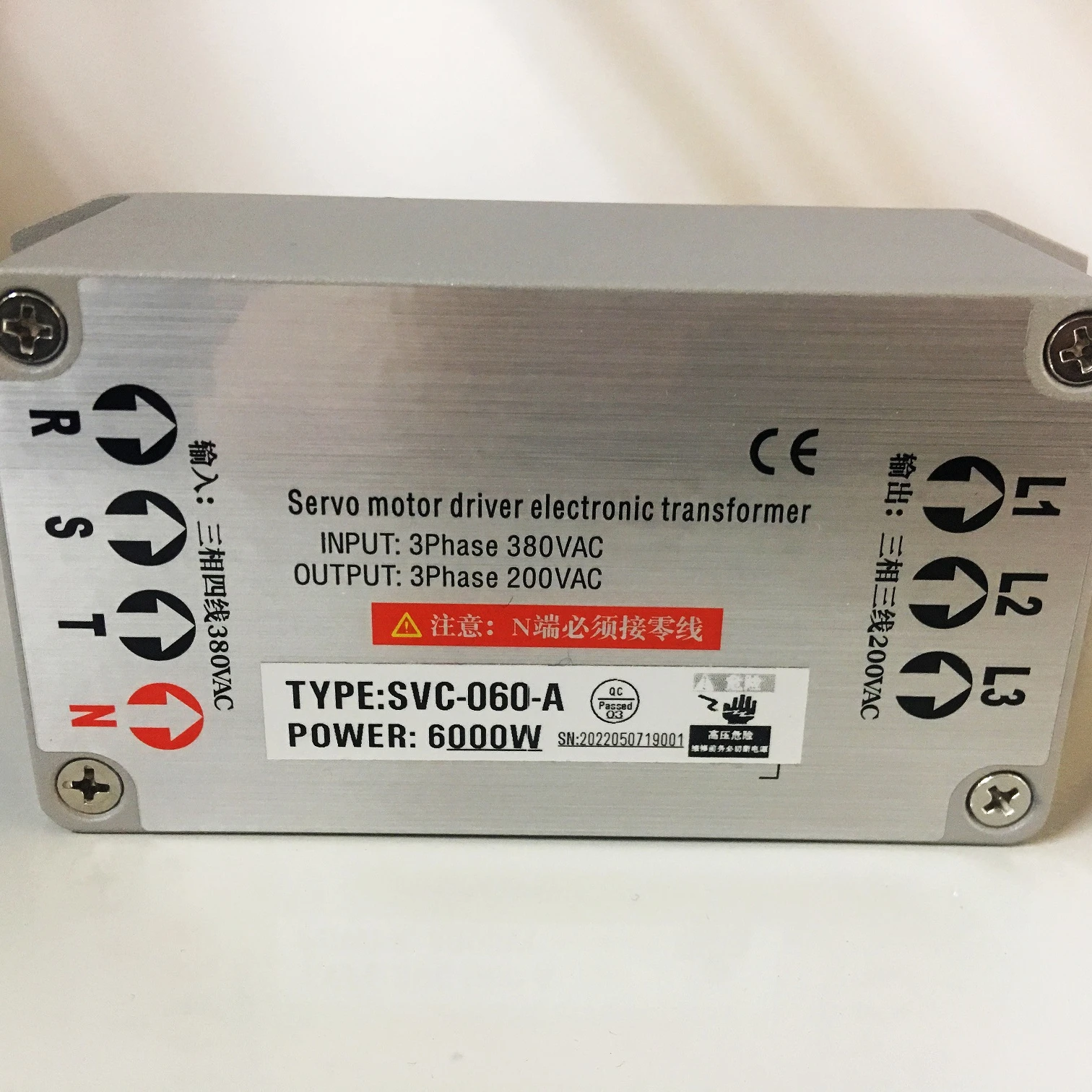

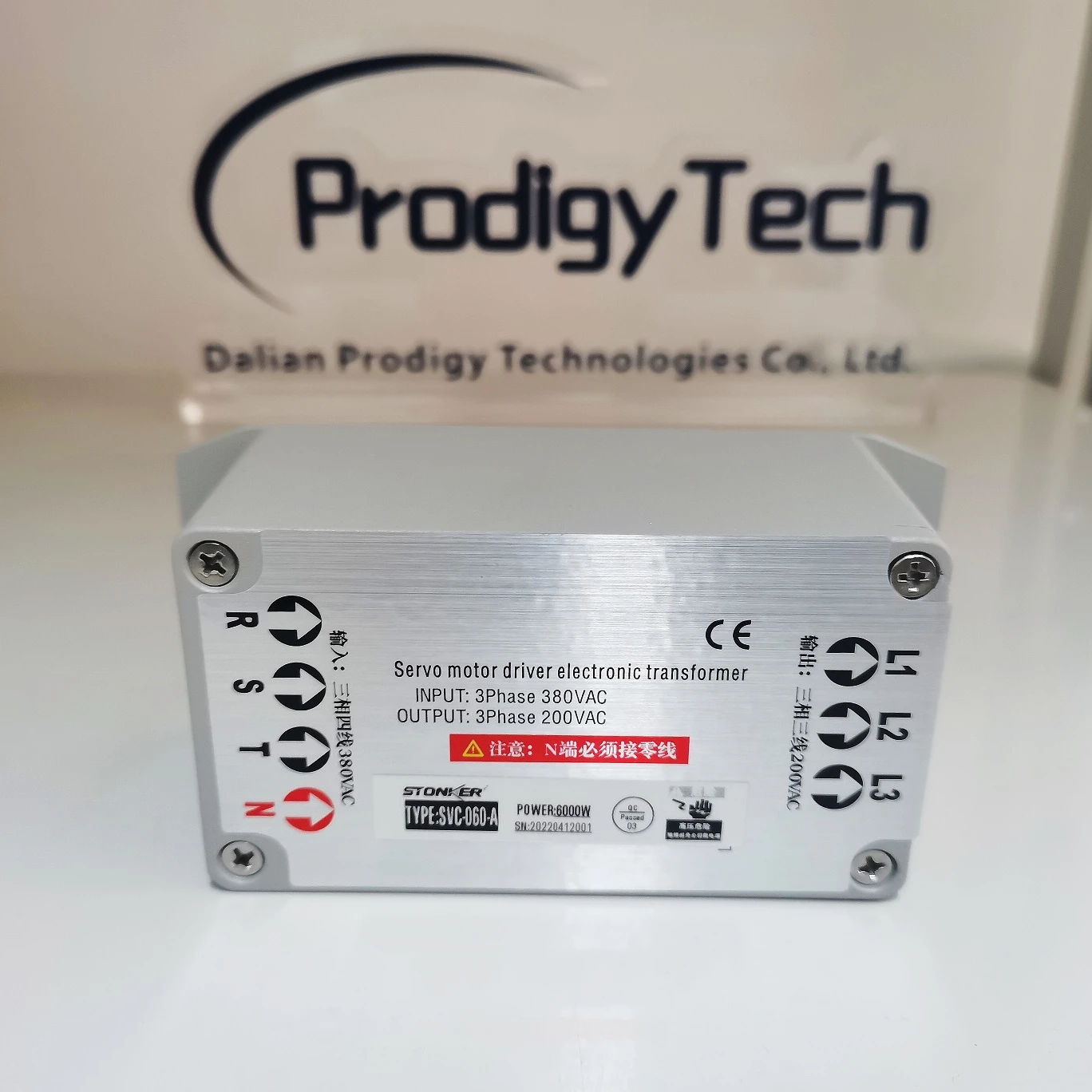

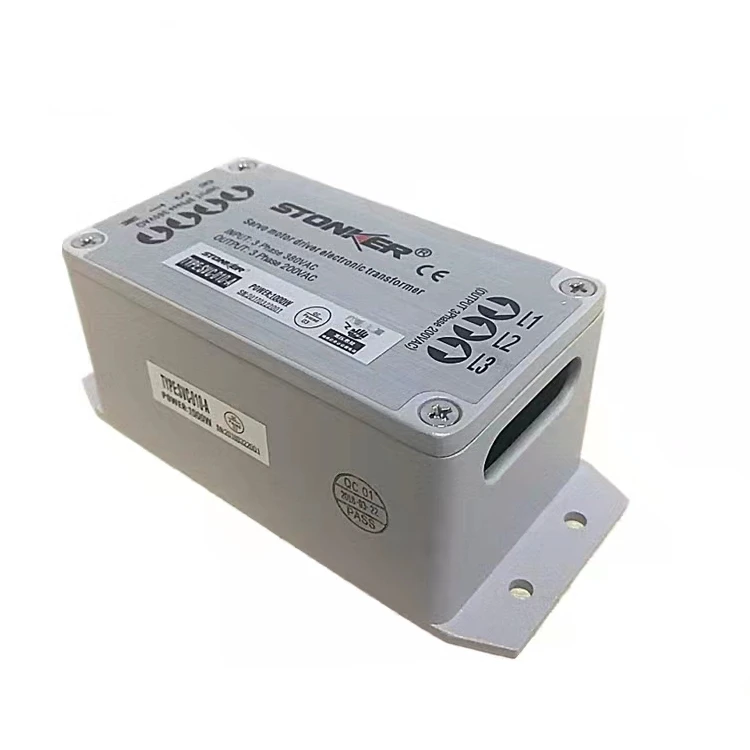

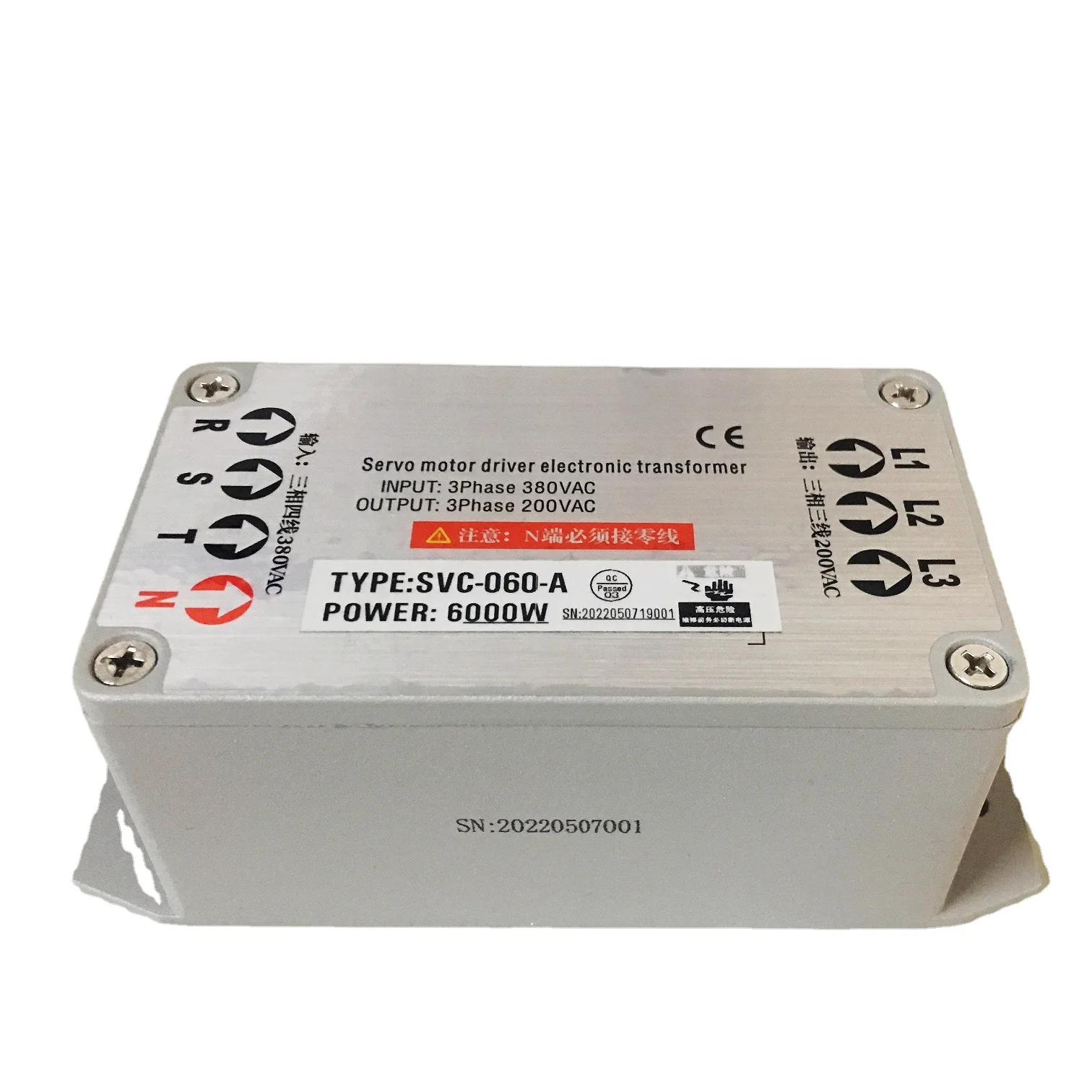

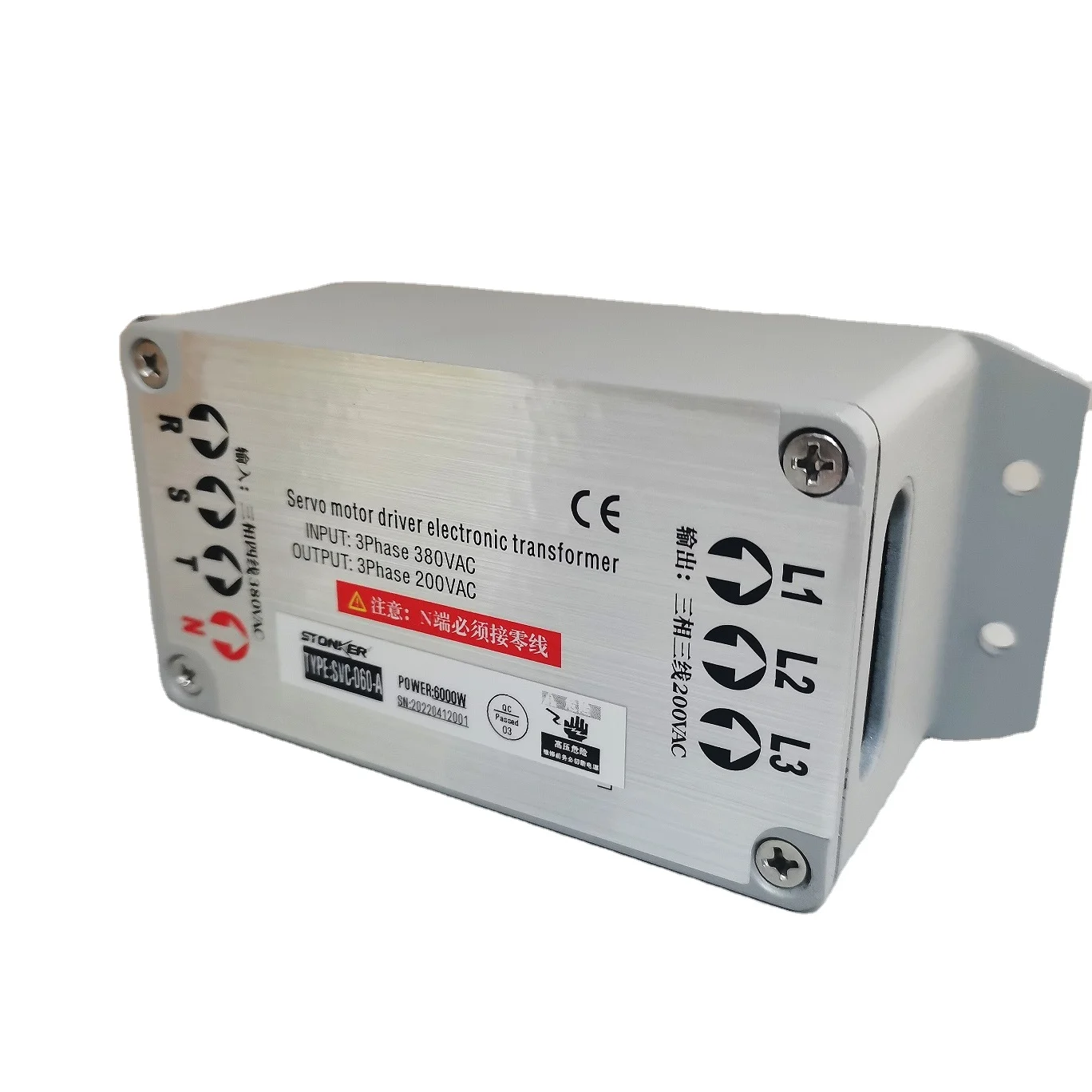

Hot Sale Servo Motor Driver Electronic Transformer Input 3 Phase 380VAC OUTPUT 200V AC POWER 6KW SVC 060A
Product Description
This product is an ultra-small-volume three-phase servo electronic transformer specially designed for the mismatch between the grid and the AC servo motor voltage. It has changed the problems of bulky, heat-generating, power-consuming and difficult installation of traditional coil-type transformers. It does not cause pollution to the power grid. It is an ideal product for solving power adapter problems in industrial control systems, and is fundamentally different from power-frequency transformers in terms of performance. There is a qualitative leap forward. This product uses the most cutting-edge microwave devices, three-phase full-bridge switch resonant technology, SPWM modulation technology, completely eliminate EMI interference, widely used in Mitsubishi, Yaskawa, Panasonic, Sanyo, Delta, Dongyuan, Fujitsu, Hitachi, Omron, AB, Frank, Schneider, Lost, Kobe, Lentz, Wide number…etc. All imported, domestic servo systems; The transformer capacity can be from 05KVA-80KVA, which satisfies the matching of all servo motor voltages.
Product Name | Hot Sale Servo Motor Driver Electronic Transformer Input 3 Phase 380VAC OUTPUT 200V AC POWER | ||||||
Model | SVC 060A | ||||||
Rated Power | 6kw | ||||||
Rated Voltage | 200V | ||||||
Place Of Origin | China | ||||||
Condition | 100% New Orginal | ||||||
Warranty | 1 Year | ||||||
Application | Industrial etc. | ||||||
Technical consulting support | Yes | ||||||
MOQ | 1 piece | ||||||
Technical specifications
Capacity: 0.5KVA-80KVA
Input voltage: 3φ380V (three-phase four-wire)
Output voltage: 3φ200V OR 220V (three-phase three-wire)
Frequency: 50/60HZ
Efficiency: ≥99.8%
Input voltage: 3φ380V (three-phase four-wire)
Output voltage: 3φ200V OR 220V (three-phase three-wire)
Frequency: 50/60HZ
Efficiency: ≥99.8%
Product Features
* Intelligent, automatic adjustment of the current required by the servo system, the output current is not affected by the
fluctuation of the power grid voltage, so that the servo motor to play a better performance;
* Crafted appearance, small size, light weight, easy to transport; It can be freely hung in accordance with the use of
convenient;
fluctuation of the power grid voltage, so that the servo motor to play a better performance;
* Crafted appearance, small size, light weight, easy to transport; It can be freely hung in accordance with the use of
convenient;
* Small heat, no noise, anti-interference, good electromagnetic compatibility;
* Strong instantaneous overload capacity, 3-5 times rated current;
* Safe and reliable, with a design life of more than 20 years; Superior performance, efficiency ≥ 99.8%;
* Strong instantaneous overload capacity, 3-5 times rated current;
* Safe and reliable, with a design life of more than 20 years; Superior performance, efficiency ≥ 99.8%;
Please kindly note:
1. This servo electronic transformer is specialized for servo drive, not suitable for any motors!
2. Please leave us the brand of your servo drive when you place an order.
3. Typical applications: CNC machine tools, testing machines, winding machines, teaching machines, packaging machinery,
semiconductor machinery, printing machinery, textile equipment, automation equipment industry.
2. Please leave us the brand of your servo drive when you place an order.
3. Typical applications: CNC machine tools, testing machines, winding machines, teaching machines, packaging machinery,
semiconductor machinery, printing machinery, textile equipment, automation equipment industry.
