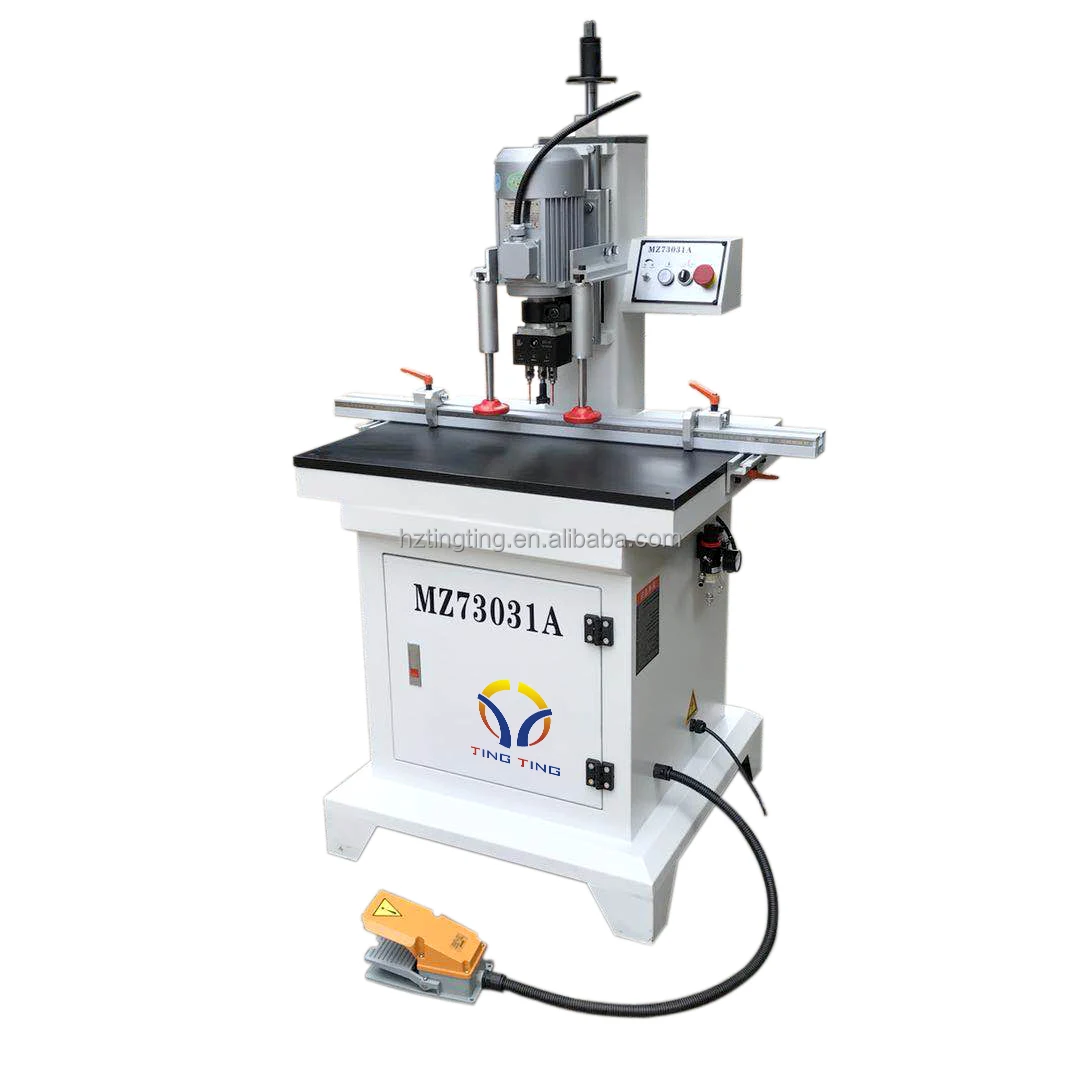

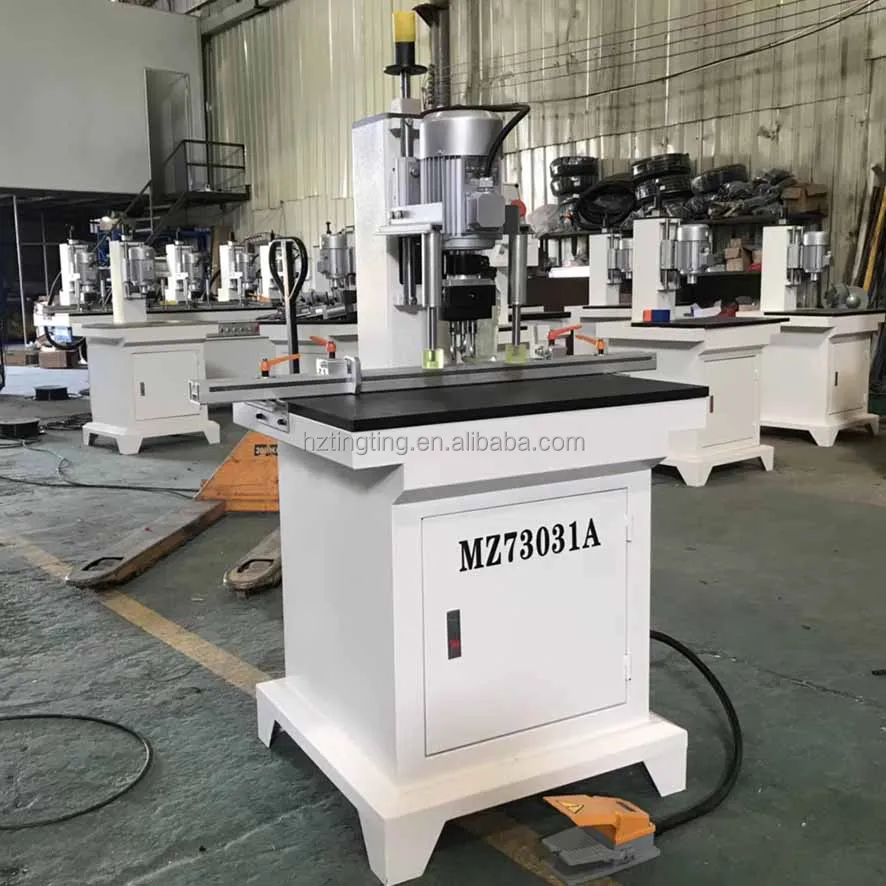

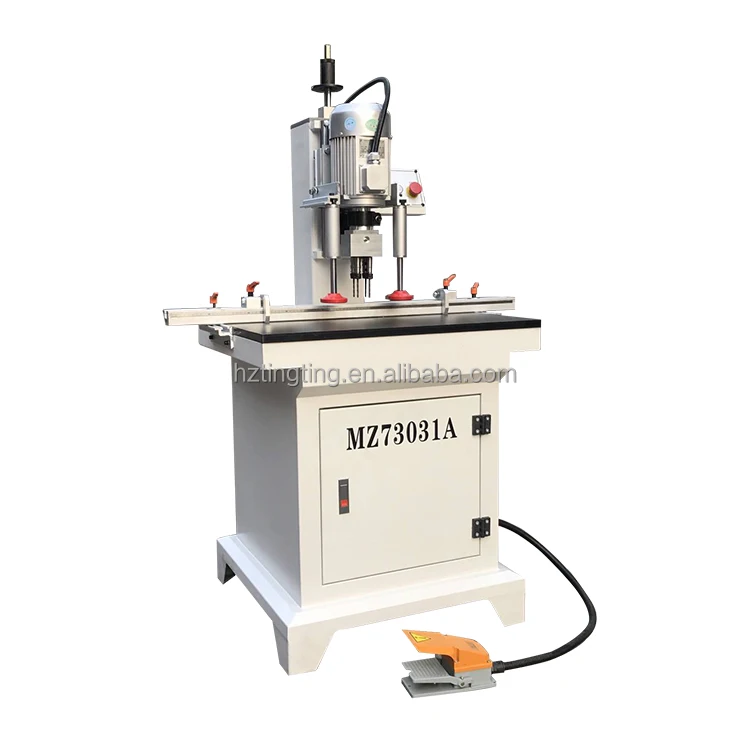

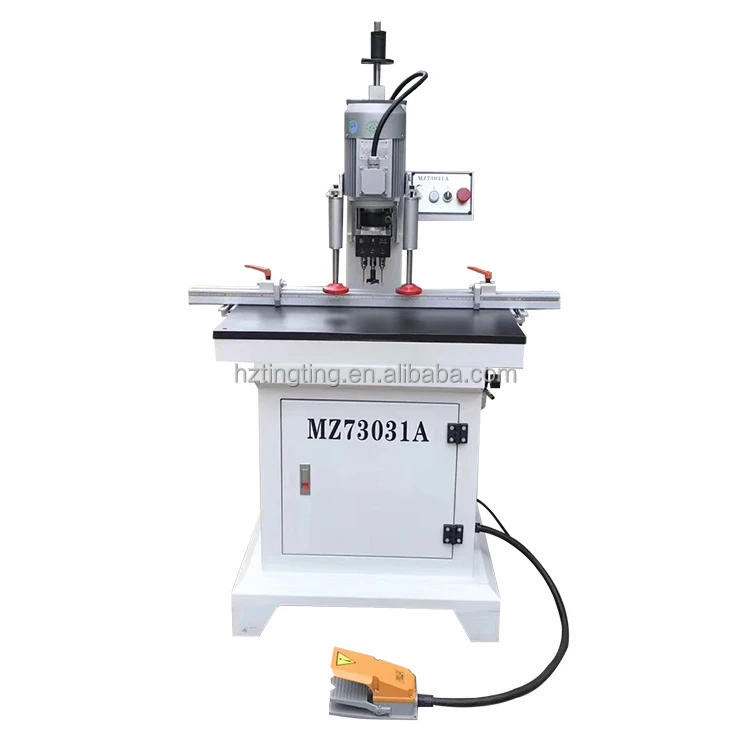

Высококачественный сверлильный станок с одной головкой для петель MZ73031A отверстий в
- Категория: Woodworking Machinery >>>
- Поставщик: Hangzhou,Ting,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 507.68 $* | 517.92 $* |
| Jul-20-2025 | 411.69 $* | 419.25 $* |
| Jun-20-2025 | 499.28 $* | 509.50 $* |
| May-20-2025 | 495.44 $* | 505.59 $* |
| Apr-20-2025 | 395.15 $* | 403.28 $* |
| Mar-20-2025 | 487.17 $* | 497.80 $* |
| Feb-20-2025 | 483.93 $* | 493.6 $* |
| Jan-20-2025 | 479.63 $* | 489.24 $* |
Характеристики
Products Description
Specification
Item | MZ73031A |
Spindle Rolling Speed | 2800r/min |
Depth of Stroke | 0-50mm |
Drilling tool bit | 3 |
Motor Power | 1.5kw |
Working table | 740 x 450 mm |
Max.drilling diameter | φ35mm |
Pneumatic power | 0.6-0.8 Mpa |
Machine size(LxWxH) | 1000x600x1500 |
Weight | 100Kg |
Voltage | 220V,50HZ,3Phase |
Details Images
Control Page

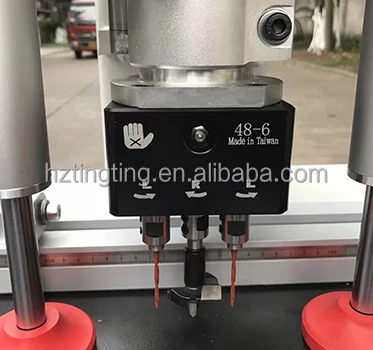

Drilling tool
Reference rule
Pure copper motor
Dust cover
Product packaging& Delivery
