1325 atc маршрутизатор ЧПУ 4x8 футов 4 оси Деревообработка для деревянных дверей резак гравировальный станок
- Категория: Woodworking Machinery >>>
- Поставщик: Jinan,Mingshi,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 2237.60 $* | 2349.66 $* |
| Aug-17-2025 | 2218.37 $* | 2329.33 $* |
| Jul-17-2025 | 1861.3 $* | 1954.81 $* |
| Jun-17-2025 | 2181.17 $* | 2290.94 $* |
| May-17-2025 | 1899.56 $* | 1994.57 $* |
| Apr-17-2025 | 2143.27 $* | 2250.99 $* |
| Mar-17-2025 | 2124.67 $* | 2230.41 $* |
| Feb-17-2025 | 2106.36 $* | 2211.95 $* |
| Jan-17-2025 | 2087.0 $* | 2191.10 $* |
Характеристики
Technical Parameters
1325 4 Axis 3D CNC Router With Rotary Axis | ||
Model | 1325 4 Axis 3D CNC Router With Rotary Axis | |
Working Area | 1300*2500*350mm | |
Rotary size | Diameter:30cm.length:200cm | |

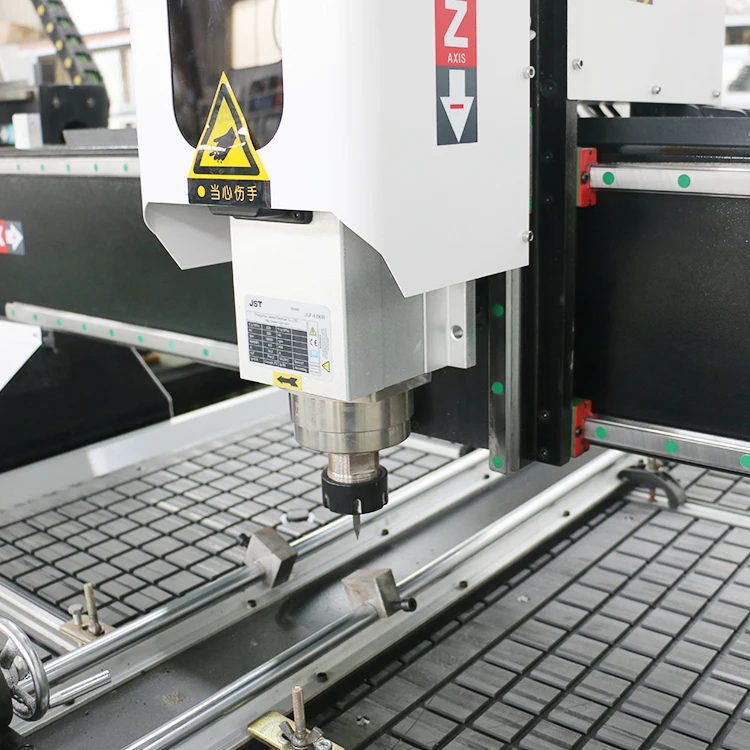

Spindle | 3.2kw, 24000 rpm, water cooling | |
Table | T slot Table or vacuum suction | |
Clamps | 6 pics | |
Transmission | Germany Rack and pinion for x.y, ball screw for z | |
Guideway | Taiwan PMI 20mm linear guideway | |
Resolution | 0.01 mm | |
Speed | 25 m/min | |
Inverter | Fuling brand from Shenzhen | |
Driver | China step &Leadshine motor | |
Code | G Code, HPGL Code | |
Working delicacy | 0.03mm | |
Repositioning accuracy | 0.005mm | |
Power Supply | 380V/3P .50Hz | |
Controlling System | 4axis DSP A18s | |
Lubrication | Manual lubrication | |
Software | UcanCAM or Type3 | |
Packing | Wooden Box | |
Packing size | 3.2*1.9*2.22m | |
Net Weight | 1000 kg | |
Gross Weight | 1200 kg | |
Accessories | 1.Contorl unit 2.Dust cover 3.3 KW double bags Dust collector&tube 4.Cutting tool 10 pic 5.Manual 6.One pice limit for spare | |
Detailed Images

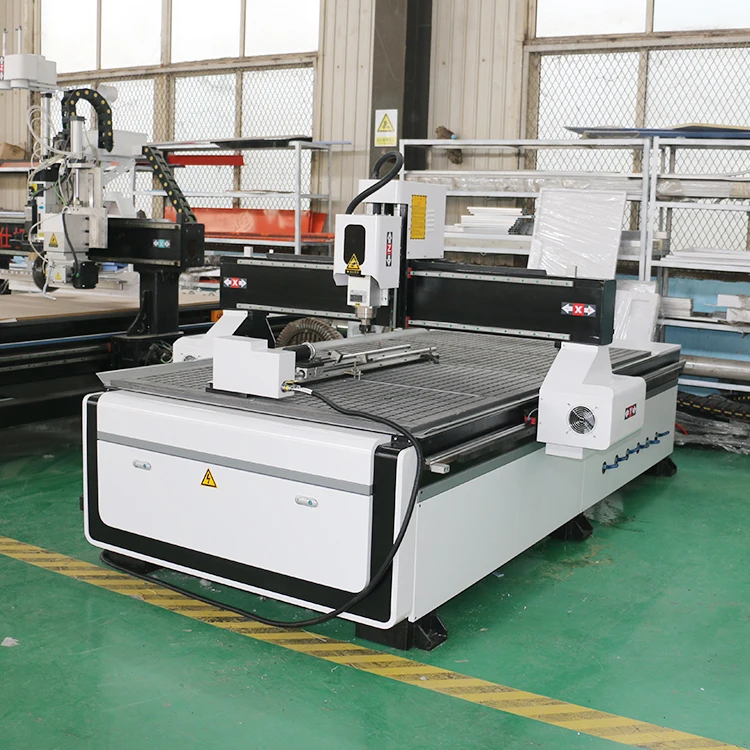

1325 3D Wood CNC Router With Rotary Axis
Advantage
Advantage
1. The machine uses a four-axis controller, not only able to cut and engrave flat wood, MDF, chipboard, plywood, etc, but also can engrave 3D on round columns， like furniture legs, statues, figures, and so on.
2. Breakpoint recovery function in case of power off or other accidents.

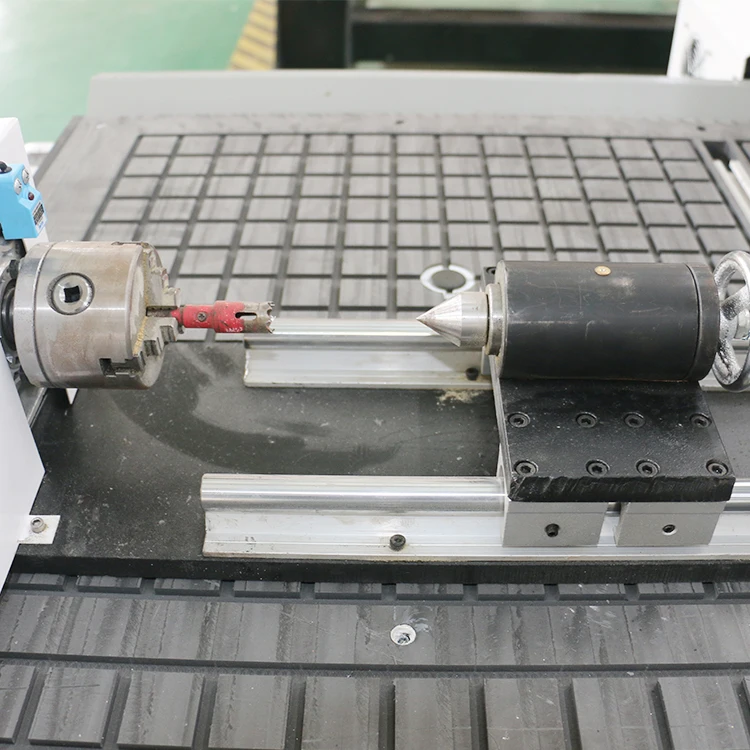

3. The 4th rotary axis is put at the side of the machine body.It does not cover the space of a flat table, easy to load and unload material.
4. Rigid and durable structure.
5. All the components have CE certification, safe and durable.
2. Breakpoint recovery function in case of power off or other accidents.
3. The 4th rotary axis is put at the side of the machine body.It does not cover the space of a flat table, easy to load and unload material.
4. Rigid and durable structure.
5. All the components have CE certification, safe and durable.
Application
Product Application
1. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors, and windows.
2. The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
3. Plate processing: insulation part, plastic chemical components, PCB, inner body of the car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, and other carbon mixed compounds.
4. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic, and soft metals such as copper, aluminum plate engraving, and milling process.
1. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors, and windows.
2. The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
3. Plate processing: insulation part, plastic chemical components, PCB, inner body of the car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, and other carbon mixed compounds.
4. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic, and soft metals such as copper, aluminum plate engraving, and milling process.
After sales service
We have professional pre-sales and after sales service Mingshi CNC team
1. 24/7 online service .
2. 3 years warranty for machine.
3. After sale office in differ country
4. Free spare parts with shipping.
5. Free online technical support and install train.
2. 3 years warranty for machine.
3. After sale office in differ country
4. Free spare parts with shipping.
5. Free online technical support and install train.
Shipping and Packing
Packaging Details
1. Outside package: Standard export plywood case for CNC Router for advertising.
2. Inner package: Stretch film and plastic film for humidity.
Port
Qingdao/Shanghai/Yiwu/Dalian/Guangzhou/Tianjin/Shenzhen
1. Outside package: Standard export plywood case for CNC Router for advertising.
2. Inner package: Stretch film and plastic film for humidity.
Port
Qingdao/Shanghai/Yiwu/Dalian/Guangzhou/Tianjin/Shenzhen
Company Introduction
FAQ
Q: How to install and maintain the machine?
A: Before you use it, we will send the operation tutorial and installation operation video with an English version to you. If you still can not operate, we will provide video guidance online.
Q: What are the machine working environment requirements?
A: The machine should be fixed on a stable table and the environment should be kept clean and tidy to avoid contact with dust, static electricity, humidity, and chips to cause parts failure.
Q: How many days do the goods ready to ship?
A: The specific delivery date needs to be communicated with the sales. If we have stock, it can be shipped within five days. If it is not in stock, it will take 15 to 20 days to prepare goods. By the way, Most of the machines are in stock.
Q: What is the mode of transportation of the products?
A: The specific transportation method can be selected according to the needs, like by sea, by air, or by train. Our trade terms are mostly centered on FOB, but we offer EXW, CIF, depending on which is more convenient for you.
A: Before you use it, we will send the operation tutorial and installation operation video with an English version to you. If you still can not operate, we will provide video guidance online.
Q: What are the machine working environment requirements?
A: The machine should be fixed on a stable table and the environment should be kept clean and tidy to avoid contact with dust, static electricity, humidity, and chips to cause parts failure.
Q: How many days do the goods ready to ship?
A: The specific delivery date needs to be communicated with the sales. If we have stock, it can be shipped within five days. If it is not in stock, it will take 15 to 20 days to prepare goods. By the way, Most of the machines are in stock.
Q: What is the mode of transportation of the products?
A: The specific transportation method can be selected according to the needs, like by sea, by air, or by train. Our trade terms are mostly centered on FOB, but we offer EXW, CIF, depending on which is more convenient for you.
