WS2811 2048 пикселей панель Пульт дистанционного управления цветовой температуры Проточная вода течет светодиодные
- Категория: Dimmers >>>
- Поставщик: Shenzhen,You&My,Electronic,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2.6 $* | 2.76 $* |
| Aug-18-2025 | 2.60 $* | 2.15 $* |
| Jul-18-2025 | 2.79 $* | 2.92 $* |
| Jun-18-2025 | 2.60 $* | 2.32 $* |
| May-18-2025 | 2.73 $* | 2.29 $* |
| Apr-18-2025 | 2.61 $* | 2.57 $* |
| Mar-18-2025 | 2.14 $* | 2.58 $* |
| Feb-18-2025 | 2.99 $* | 2.1 $* |
| Jan-18-2025 | 2.67 $* | 2.19 $* |
Характеристики
Product Description
Specification
Working Voltage | DC 12-24V |
Control Points | the maximum number of control points is 2048 pixels |
remote control distance | 15-20M |
Battery model | 27A 12V |
Effect modes | 11 |
Product Size | L60 * w13 * H3 mm |

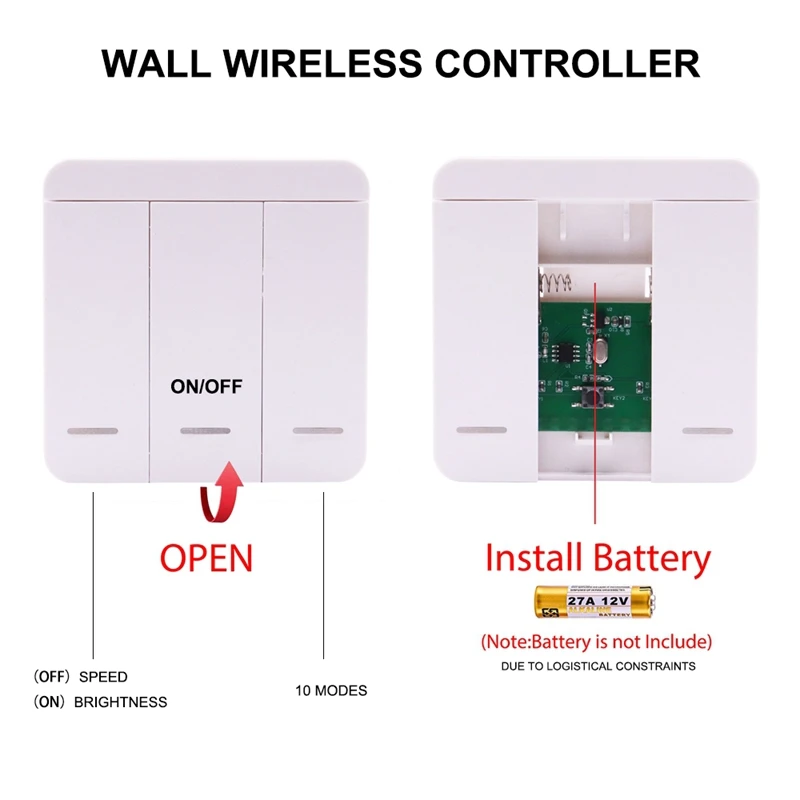

Remote control switch key Description:
When in use, place the remote control switch indicator downward:
The first key: speed / brightness (the speed is reduced by 10 levels in the startup state and the brightness is reduced by 10
levels in the shutdown state)
Second key: power on / off
The third key: mode (11 mode switching)
3, Controller adjustment method:
When the light is off, long press the third key to enter the point adjustment menu. At this time, press the first key to increase
the points, and press the third key to reduce the points. Long press can quickly adjust. After adjustment, press the on key to
save and exit. The default factory is 80 pixels, and the maximum can be adjusted to 2048 pixels.
4, Controller code checking and clearing:
Code matching: long press the mode key within 5 seconds after the controller is powered on, and the light bar flashes slowly for 3
times. (one controller can be paired with up to 6 remote controls)
Code clearing: long press the mode key within 5 seconds after the controller is powered on, and the light bar flashes 3 times.
Mode list:
1: Turn on the light and the running water is always on, turn off the light and return.
2: When the light is turned on, the running water is always on, and when the light is turned off, the flow is downstream.
3: The running water from both ends to the middle is always on, and the light is turned off, and the middle flows back to both
ends.
4: The running water from the middle to both ends is always on, and the two ends of the light turn off and return to the middle.
5: The running water is always on (with breathing gradient), and the reflux is turned off.
6: 60cm meteor tail.
7: 120cm tail water at both ends.
8: 5 IC chasing horses.
9: 2 IC chasing horses.
10: Chasing a running horse + meteor tailing.
11: 150cm meteor tail.
Method of adjusting lamp strip line sequence:
1. Single IC flow (15 or 21 lights in a group): 3200 ICs can be controlled at most (default factory effect)
2. Single channel water flow (a group of 5 or 7 lights): it can control 100 meters at most (the water flow effect is delicate and
soft)
Adjustment method: when the light is on, press and hold the "mode key" for 10 seconds until the light band flashes for 2 seconds
to enter the channel sequence adjustment menu. At this time, press the "speed key" to adjust the channel sequence. The 12 lights
in front of the light bar will demonstrate the LED single point water flow effect. Look at the water flow sequence. After the
adjustment is completed, press the "on key" to save. There are 7 kinds of line sequences in total: (1: single IC pipelining, 2:
RGB, 3: RBG, 4: GRB, 5: GBR, 6: BRG, 7: BGR.) the correct RGB channel sequence can work normally
When in use, place the remote control switch indicator downward:
The first key: speed / brightness (the speed is reduced by 10 levels in the startup state and the brightness is reduced by 10
levels in the shutdown state)
Second key: power on / off
The third key: mode (11 mode switching)
3, Controller adjustment method:
When the light is off, long press the third key to enter the point adjustment menu. At this time, press the first key to increase
the points, and press the third key to reduce the points. Long press can quickly adjust. After adjustment, press the on key to
save and exit. The default factory is 80 pixels, and the maximum can be adjusted to 2048 pixels.
4, Controller code checking and clearing:
Code matching: long press the mode key within 5 seconds after the controller is powered on, and the light bar flashes slowly for 3
times. (one controller can be paired with up to 6 remote controls)
Code clearing: long press the mode key within 5 seconds after the controller is powered on, and the light bar flashes 3 times.
Mode list:
1: Turn on the light and the running water is always on, turn off the light and return.
2: When the light is turned on, the running water is always on, and when the light is turned off, the flow is downstream.
3: The running water from both ends to the middle is always on, and the light is turned off, and the middle flows back to both
ends.
4: The running water from the middle to both ends is always on, and the two ends of the light turn off and return to the middle.
5: The running water is always on (with breathing gradient), and the reflux is turned off.
6: 60cm meteor tail.
7: 120cm tail water at both ends.
8: 5 IC chasing horses.
9: 2 IC chasing horses.
10: Chasing a running horse + meteor tailing.
11: 150cm meteor tail.
Method of adjusting lamp strip line sequence:
1. Single IC flow (15 or 21 lights in a group): 3200 ICs can be controlled at most (default factory effect)
2. Single channel water flow (a group of 5 or 7 lights): it can control 100 meters at most (the water flow effect is delicate and
soft)
Adjustment method: when the light is on, press and hold the "mode key" for 10 seconds until the light band flashes for 2 seconds
to enter the channel sequence adjustment menu. At this time, press the "speed key" to adjust the channel sequence. The 12 lights
in front of the light bar will demonstrate the LED single point water flow effect. Look at the water flow sequence. After the
adjustment is completed, press the "on key" to save. There are 7 kinds of line sequences in total: (1: single IC pipelining, 2:
RGB, 3: RBG, 4: GRB, 5: GBR, 6: BRG, 7: BGR.) the correct RGB channel sequence can work normally
