Установка для изготовления труб и машина квадратных из нержавеющей
- Категория: Building Material Machinery >>>
- Поставщик: Foshan,YXH,Tube,Mill,&,Mould,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 48790.41 $* | 51230.58 $* |
| Aug-20-2025 | 48380.71 $* | 50799.74 $* |
| Jul-20-2025 | 40590.89 $* | 42620.63 $* |
| Jun-20-2025 | 47560.99 $* | 49938.65 $* |
| May-20-2025 | 41410.15 $* | 43481.0 $* |
| Apr-20-2025 | 46740.26 $* | 49077.23 $* |
| Mar-20-2025 | 46330.97 $* | 48647.87 $* |
| Feb-20-2025 | 45920.50 $* | 48216.92 $* |
| Jan-20-2025 | 45510.30 $* | 47786.80 $* |
Характеристики
Company Profile
We are one of the largest stainless steel pipe making machine manufacturers in China. Having imported advanced technology, management system and equipment from abroad, we have established a perfect production system which includes R&D, production, management and service. Our products have obtained ISO9001:2000 International Quality System Certificate.
PRODUCT INTRODUCTION

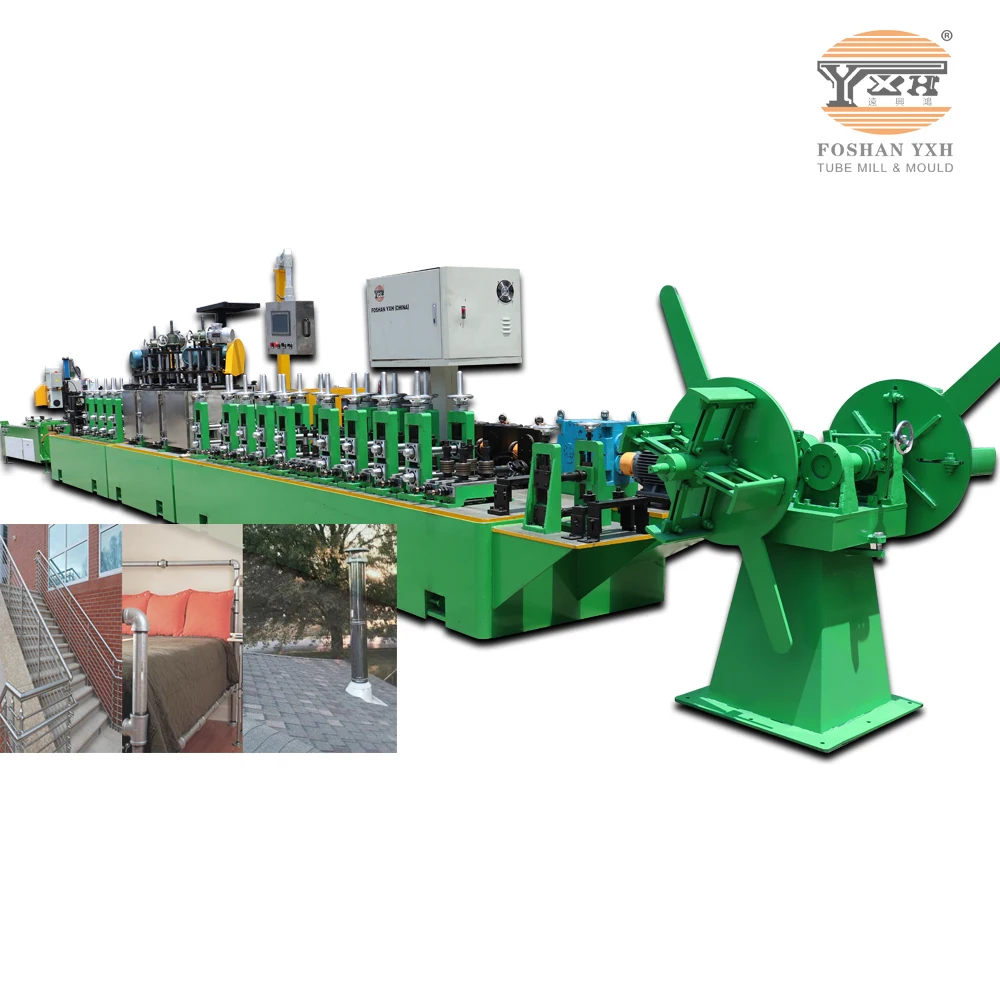

Foshan YXH Tube Mill & Mould Co.,Ltd offer different stainless steel tube mill pipe production line manufacturing machine, covering range from 6mm to 325mm. (0.24''to12.7''pipe diameter), and thickness is 0.2mm to 6.0mm round pipe, square pipe, rectangle pipe, oval pipe and other irregular pipe as well.
Machine parts

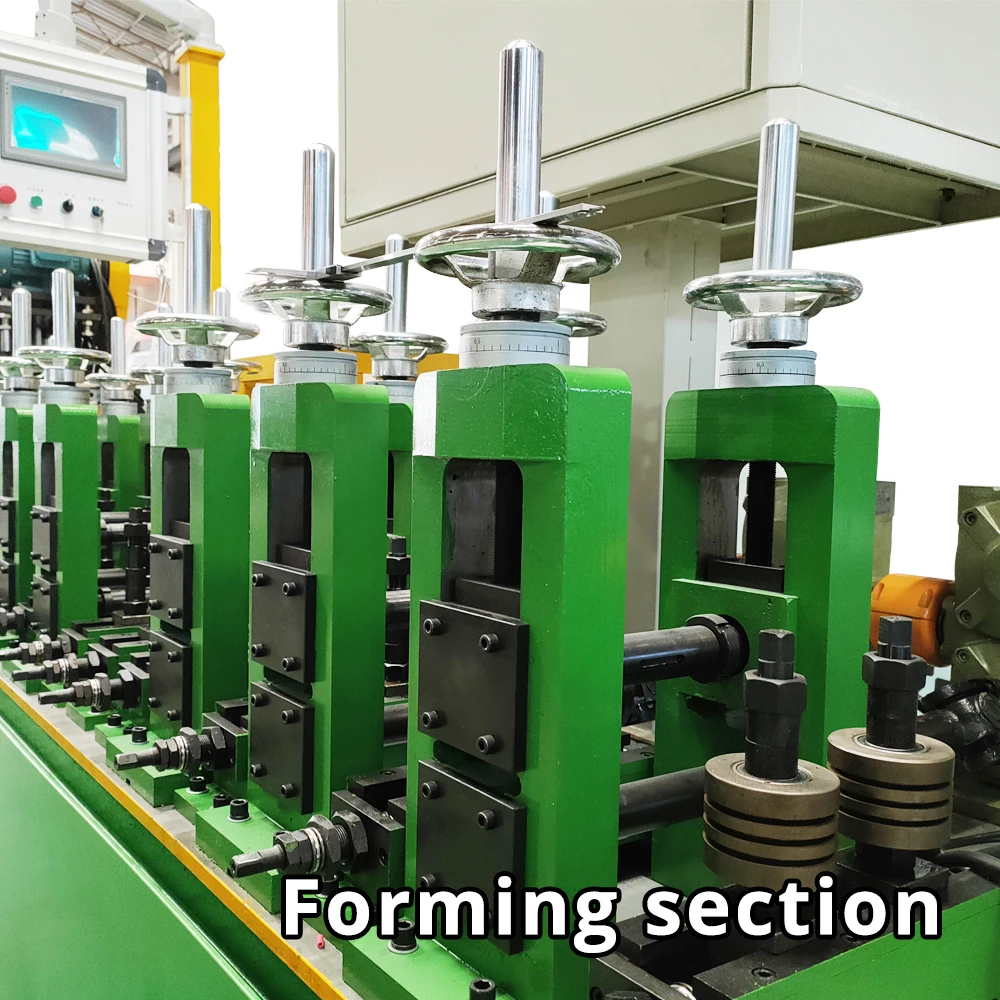

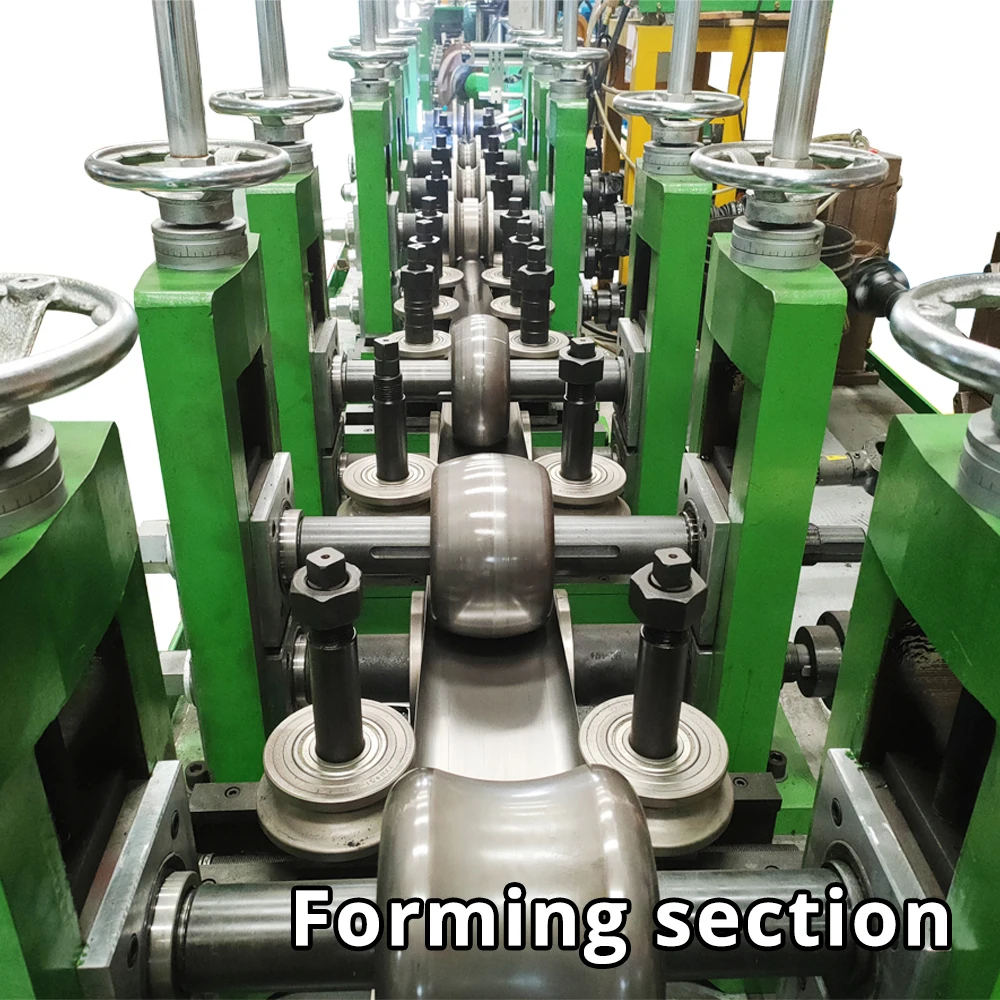

Decoiler&Forming section
The steel coil is installed on the decoiler, which content and transports the steel strip to the forming section, and the steel strip passing through the forming section is formed into a pipe.
Welding section
The formed pipe will have a gap, reach the welding section, and connect the weld through the welding gun. Become a sealed tube.
Grinding section
After welding, the weld will be slightly raised, after grinding section, the surplus part will be polished off. The tube will become smooth.
Sizing,Straightening&Cutting
The pipe is further fixed in the sizing,straightening section, passes through the tukey head, and finally enters the cutting section to cut off the pipe.
Pipe Parameter & Application
Pipe application
Stainless steel decorative tube mill is mainly used for produing SS pipes for furniture industry, construction industry, home appliances. The machine can produce round tube, square tube, rectangular tube, oval tube ect. It also can produce half pipe, plum pipe and different shaped tube.
Type | Pipe Diameter (mm) | Pipe Thickness (mm) | Capacity (m/min) | Weight (T) | Installation(L*W m) | Voltage |
SZG40 | 6-38.1 | 0.2-1.2 | 1-20 | 4.3t | 20*1.0m | 220V/380V/415V/440V |
ZG40 | 8-50.8 | 0.2-1.5 | 1-15 | 4.8t | 21.5*1.1m | |
BBZG40 | 8-50.8 | 0.2-2.0 | 1-15 | 5.3t | 21.5*1.1m | |
BZG40 | 12.7-63.5 | 0.3-2.0 | 1-10 | 5.5t | 21.5*1.1m | |
ZG50 | 25.4-76.2 | 0.4-2.5 | 1-7 | 7.5t | 24*1.2m | |
ZG60 | 38.1-114 | 0.5-3.0 | 1-5 | 9t | 26*1.4m |
Machine advantage
Why Choose Us：
Our 4414 arrangement design can highly reduce scratches and also our moulds use the best materials to produce.and special mould install arrangement design.
Why Choose Us
Our company is located in Foshan, and We have over 20 years of production experience.Our products have been exported to more than 46 countries ,such as India, Vietnam,Bangladesh,Thailand,Pakistan,South Africa and so on.
Experience Export team:
Our foreign trade team has more than 10 years of export experience. Don't worry about any export clearance issues.
More information
After Service--Provide service 24 hours*7 days per week
1.Test the tube mill machine before shipment
2.Provide technical guidance relate to use the tube making machine
3.Provide the spare parts at cost price after warranty period
4.Collect the feedback for tube mill machine working
5.Provide long-term technical assistance
6.Offer the professional engineer to help you improve the output ,reduce the waste and decrease the cost.
1.Test the tube mill machine before shipment
2.Provide technical guidance relate to use the tube making machine
3.Provide the spare parts at cost price after warranty period
4.Collect the feedback for tube mill machine working
5.Provide long-term technical assistance
6.Offer the professional engineer to help you improve the output ,reduce the waste and decrease the cost.
We use steel wire and wooden frame to fix the pipe making machine;
In addition, used shockproof film to protect the main motors.
We use the container to deliver goods to our customer. Generally speaking, we start at FOSHAN port, but we also can start at other port according to customer's need.
In addition, used shockproof film to protect the main motors.
We use the container to deliver goods to our customer. Generally speaking, we start at FOSHAN port, but we also can start at other port according to customer's need.
FAQ
Q1:Are you manufacturer?
A1:Yes, We are the manufacturer and trading company.
Q2:What can we provide for you ?
A2: YXH products include: coil slitting machine , ss tube mill , pipe polishing machine ,roller set, pipe embossing machine , full automatic cutting machine ,loading and unloading machine ,dust collect system etc. Finally we have 10 years Export experience.
Q3:How to tube mill order?
A3:Please send us your purchase order by email, whatsapp or we chat. We need to know the following information for your order:
(1)Tube Mill Information: Pipe material (stainless steel , carbon steel , galvanized steel); Pipe Diameter, Pipe Thickness ,monthly production;
(2)Price Item, Destination Port, Delivery time required;
(3)Shipping information: Company Name , Address, Phone Number , Destination Seaport/Airport
Q4:What are the payment terms?
A4:For orders, we can accept T/T, D/P, L/C at sight
Q5:Whole Process for doing business with us ?
A5:(1)Please provide details of the tube mill product you need we quote for you
(2)if you Require order, we will provide Performa invoice for you ,and we will arrange to produce at once when we get 30% deposit.
(3)We will send photos of all goods ,packing ,detail ,and B/L copy for you after goods are finished, we will arrange shipment and provide original B/L when you pay the balance.
A1:Yes, We are the manufacturer and trading company.
Q2:What can we provide for you ?
A2: YXH products include: coil slitting machine , ss tube mill , pipe polishing machine ,roller set, pipe embossing machine , full automatic cutting machine ,loading and unloading machine ,dust collect system etc. Finally we have 10 years Export experience.
Q3:How to tube mill order?
A3:Please send us your purchase order by email, whatsapp or we chat. We need to know the following information for your order:
(1)Tube Mill Information: Pipe material (stainless steel , carbon steel , galvanized steel); Pipe Diameter, Pipe Thickness ,monthly production;
(2)Price Item, Destination Port, Delivery time required;
(3)Shipping information: Company Name , Address, Phone Number , Destination Seaport/Airport
Q4:What are the payment terms?
A4:For orders, we can accept T/T, D/P, L/C at sight
Q5:Whole Process for doing business with us ?
A5:(1)Please provide details of the tube mill product you need we quote for you
(2)if you Require order, we will provide Performa invoice for you ,and we will arrange to produce at once when we get 30% deposit.
(3)We will send photos of all goods ,packing ,detail ,and B/L copy for you after goods are finished, we will arrange shipment and provide original B/L when you pay the balance.
