Product Description

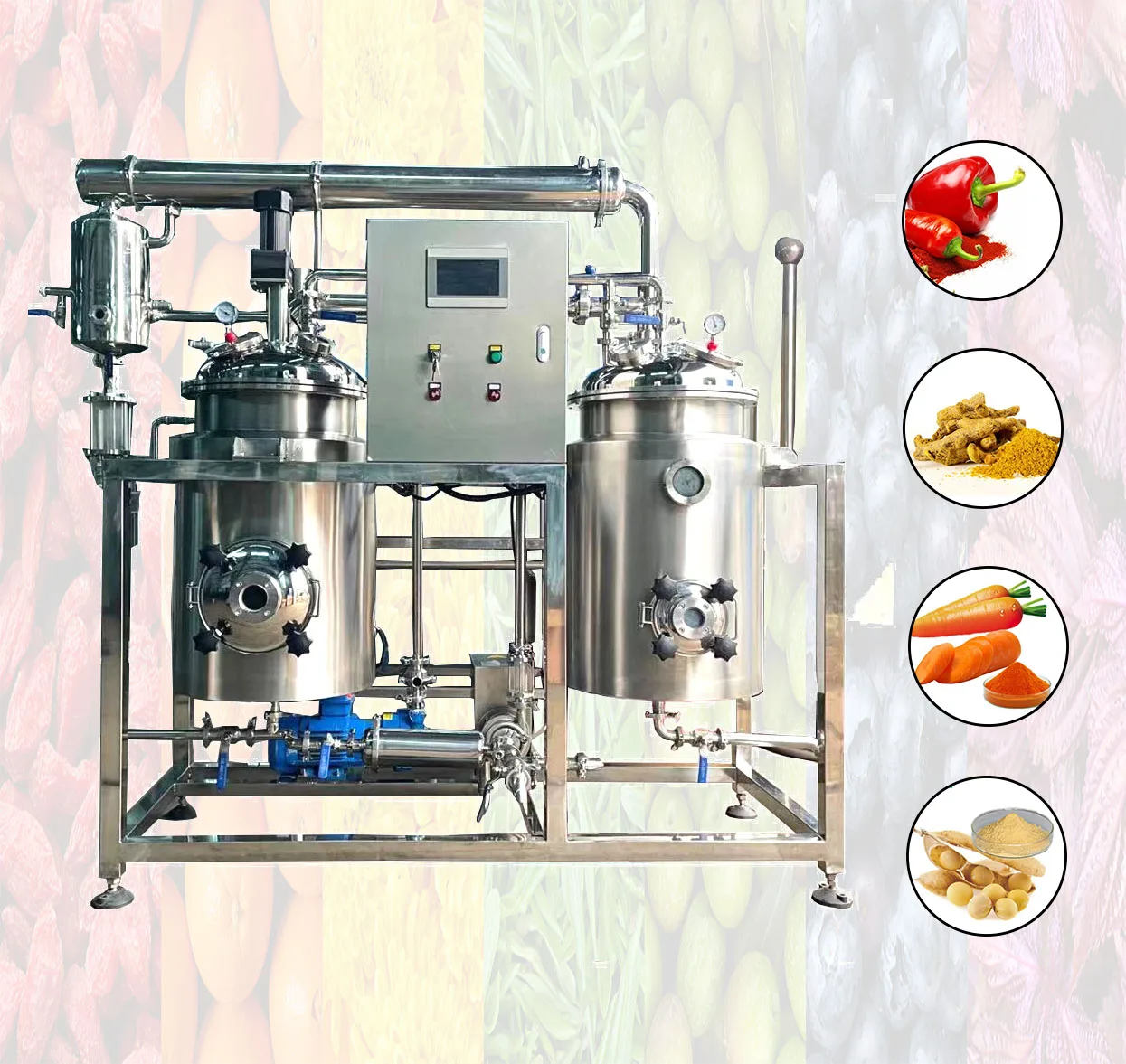

Equipment overview:
Pharmaceutical machine ,Chinese herbal medicine machine
This equipment is suitable for extracting and concentrating the effective component from Chinese herbas and other botanical including health product.
material,condenser,oil-water separator, filter, delivery pump,vacuum pump and so on. We have steam heating and electric
heating,the user can operate it only to engage the steam or electricty.
2.This equipment collect extraction,vacuum concentration,solvent recovery together and it can realize the operation of normal temperature extraction,low temperature extraction,hot circumfluence,low temperature circumfluence,low temperature concentration and essential oil collection etc.
3.The concentration proportion can get above to1.4 and the temperature can be controlled between 48-100°C freely,so it is espically suitable for some high heat-sensitivity material and some material is sensitive to high temperature.
4.This equipment can configure with PLC control system according to user’s demand and control the parameter during the processing to enhance the production efficiency and quality.
Pharmaceutical machine ,Chinese herbal medicine machine
This equipment is suitable for extracting and concentrating the effective component from Chinese herbas and other botanical including health product.
Equipment advantages:
1. This equipment Shanghai manufacturer extraction machinery herbal plant extract machine has excellent manufacture,completecollocation,simple operation.It is consist of extracting tank,concentrated pot,storage tank for liquidmaterial,condenser,oil-water separator, filter, delivery pump,vacuum pump and so on. We have steam heating and electric
heating,the user can operate it only to engage the steam or electricty.
2.This equipment collect extraction,vacuum concentration,solvent recovery together and it can realize the operation of normal temperature extraction,low temperature extraction,hot circumfluence,low temperature circumfluence,low temperature concentration and essential oil collection etc.
3.The concentration proportion can get above to1.4 and the temperature can be controlled between 48-100°C freely,so it is espically suitable for some high heat-sensitivity material and some material is sensitive to high temperature.
4.This equipment can configure with PLC control system according to user’s demand and control the parameter during the processing to enhance the production efficiency and quality.
Specification
Technology and parameter | ||||||||||
Model | RY-NSG-50 | RY-NSG -100 | RY-NSG -200 | RY-NSG -300 | RY-NSG -500 | |||||
Volume (L) | 50 | 100 | 200 | 300 | 500 | |||||
Evaporation capacity (kg/h) | 20 | 50 | 70 | 100 | 200 | |||||
Motor power(KW) | 2.7 | 2.7 | 2.7 | 3.5 | 3.5 | |||||
Steam consumption(kg/h) | 25 | 60 | 90 | 120 | 250 | |||||
System vacuum (MPa) | -0.085 | -0.085 | -0.085 | -0.085 | -0.085 | |||||
Pressure of jacket(MPa) | 0.09~0.3 | 0.09~0.3 | 0.09~0.3 | 0.09~0.3 | 0.09~0.3 | |||||
Compressed air (MPa) | 0.5~0.6 | 0.5~0.6 | 0.5~0.6 | 0.5~0.6 | 0.5~0.6 | |||||
Evaporation temperature(°C) | 50~90 | 50~90 | 50~90 | 50~90 | 50~90 | |||||
Drawing with volumn less than 100L
Drawing with volumn more than 200L
