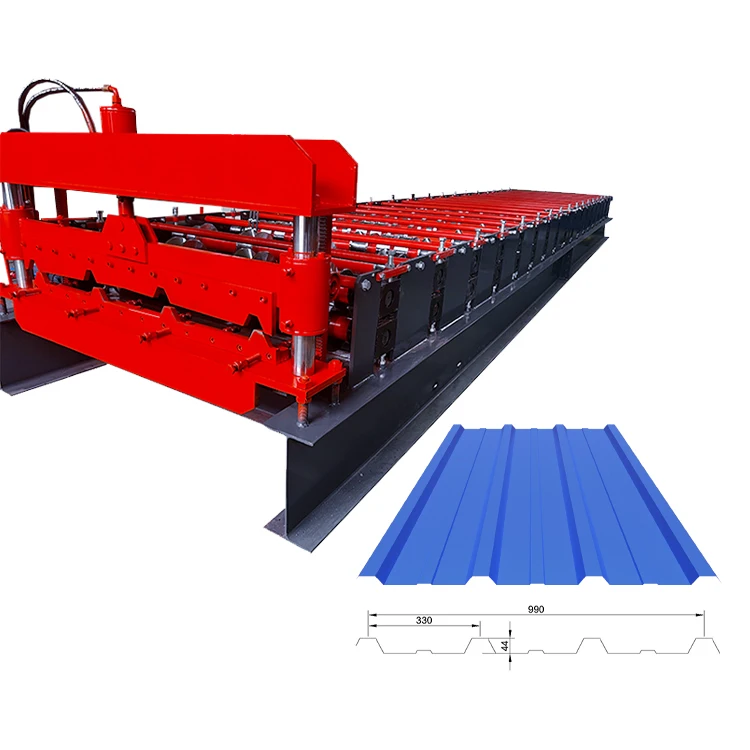

WJ портативная стальная кровельная черепица Tr4 Tr5 стационарные металлические кровельные панели роликовая формовочная
- Категория: Building Material Machinery >>>
- Поставщик: Henan,Wadjay,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 7140.51 $* | 7497.4 $* |
| Aug-18-2025 | 7080.31 $* | 7434.84 $* |
| Jul-18-2025 | 5940.26 $* | 6237.9 $* |
| Jun-18-2025 | 6960.30 $* | 7308.22 $* |
| May-18-2025 | 6060.12 $* | 6363.10 $* |
| Apr-18-2025 | 6840.83 $* | 7182.40 $* |
| Mar-18-2025 | 6780.38 $* | 7119.53 $* |
| Feb-18-2025 | 6720.92 $* | 7056.37 $* |
| Jan-18-2025 | 6660.57 $* | 6993.52 $* |
Характеристики
DESCRIPTION

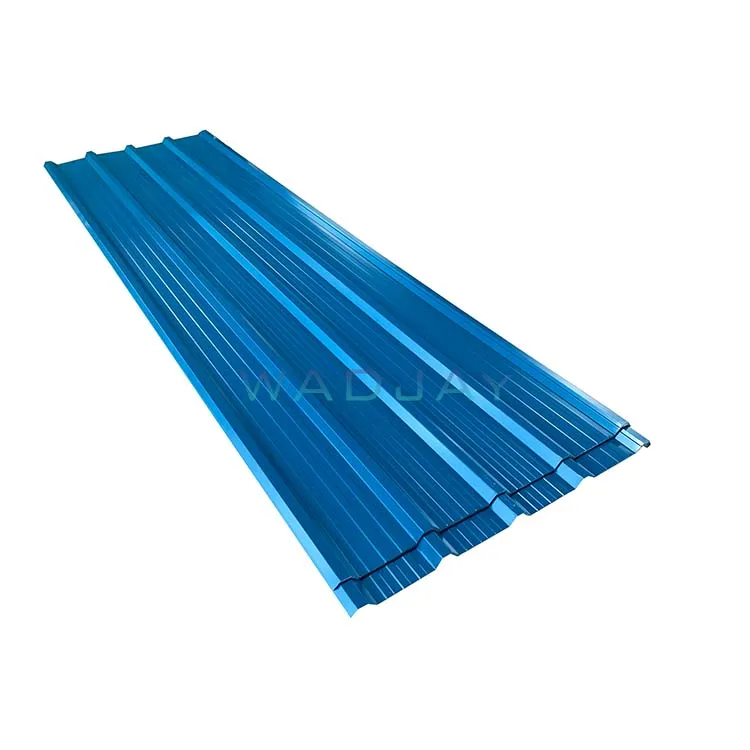

There are various rib-type profiles depending on the country, including 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, but the most common is the 5 rib-type profile. Type of metal roofings for double layers depend on customer’s products: Standard trapezoidal roof, Corrugated roof, or Metal roof tile.
Parameters:
Item | WJ-914 |
Power | Transmission: 7.5 – 15 kw Motor-Pump: 5.5 – 7.5 kw |
Weight of machine | 16 -20 tons |
Dimension | L=10-13m; W=1.8-2.3m; H=1.65m |
Roller stations | Top deck: 20 -32 Bottom deck: 20 -32 |
Transmission system | Electric motor and gear box |
Pre – Cutting | Hydraulic motor |
Profile – Cutting | Hydraulic motor |
Control system | PLC, HMI automatic programmable |
Material thickness | Top deck: 0.2 – 0.5 mm Bottom deck: 0.2 – 0.5 mm |
Material with | Top deck: 914/ 940/ 1200/ 1220/ 1250/ 1450 mm Bottom deck: 914/ 940/ 1200/ 1220/ 1250/ 1450 mm |
Material Yield Strength | Top deck: G300 – G550 Mpa (GI/PPGI, GL/PPGL) Bottom deck: G300 – G550 Mpa (GI/PPGI, GL/PPGL) |
DETAIL IMAGES
MANUAL DECOILER:
Motorized unwinding, with automatic operation, adjustment to adapt to the different internal radii of the coils, with capacity up
to 5 standard tons;
to 5 standard tons;
CONTROL SYSTEM:
Consisting of an automatic control panel, with a color touch-screen, in which the operator can make different programs of different sizes and quantities with simple handling, guaranteeing a modern, fast and accurate production.

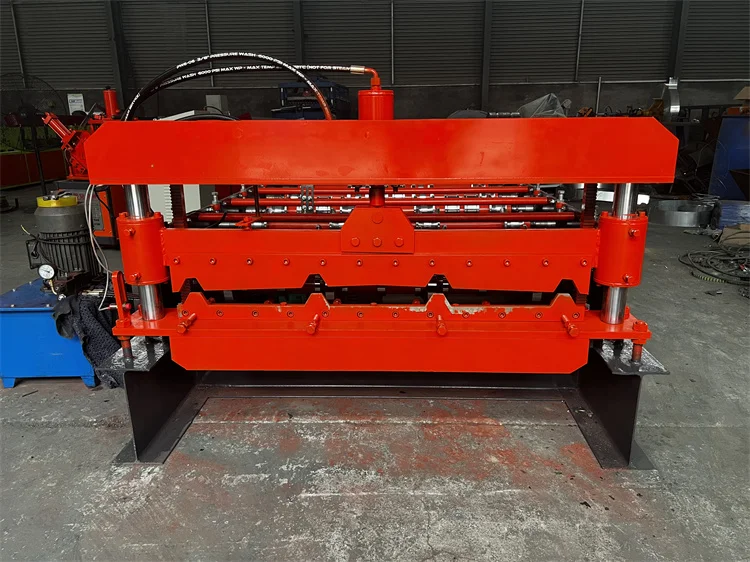

ROLL FORMING SYSTEM:
Machine set manufactured in an imposing structure.
Equipped with forming rollers made of Steel with 100% hard chrome coating, ensuring longer service life, less wear on the rollers
and excellent finishing of the formed parts.
Transmission via chains.
Equipped with forming rollers made of Steel with 100% hard chrome coating, ensuring longer service life, less wear on the rollers
and excellent finishing of the formed parts.
Transmission via chains.
CUTTING SYSTEM:
Automatic cutting system by hydraulic guillotine, activated automatically through the machine command.
Treated steel knife set is included.
Treated steel knife set is included.
COLLECTION TABLE:
The complete plate is placed on the machine output receiving platform, with fast and safe storage function
MORE DETAIL VIDEO
MORE FOR YOU CHOOSE
TECHNICAL FLOW PROCESS
The picture shows the whole process of cold roll forming machine :
MOTORIZED UNWINDING --- Feeding guide --- Roll forming --- Leveling --- Cutting --- Run out product stacker
Equipment List:
Item | Designations | Quantity | Unit |
1 | Manual Decoiler | 1 | Set |
2 | Roll Forming System | 1 | Set |
3 | Cutting System | 1 | Set |
4 | Control System | 1 | Set |
5 | Collection Table | 1 | Set |

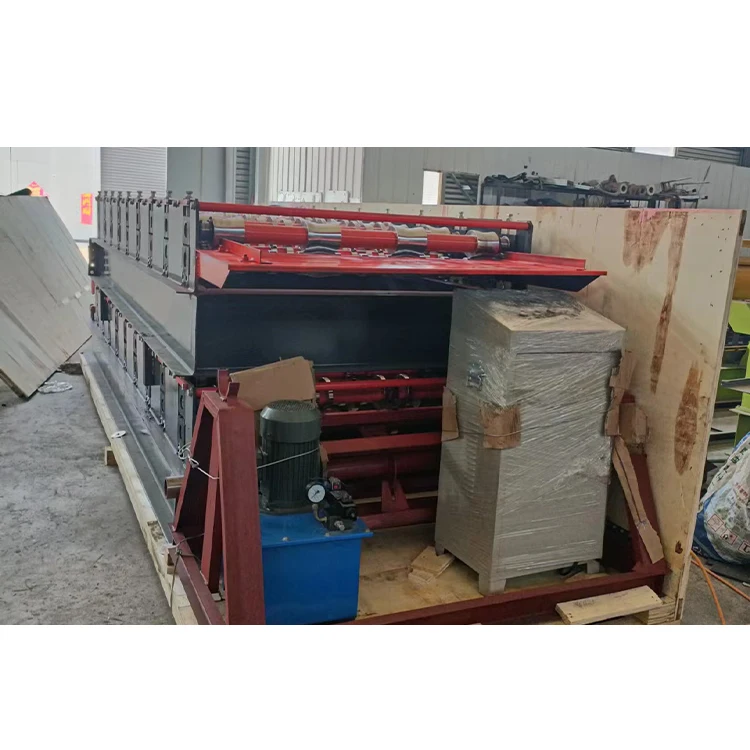

PACKING & SHIPPING
ABOUT US
Henan Wadjay Machinery Co., Ltd., is a supplier of machinery.We have exported more than 100 countries like USA, Mexico,
Canada, Spain, Russia, Singapore, Thailand, India etc . Our products provide customer more convenient in their business and expect to have more cooperate in future.What we offer:
Canada, Spain, Russia, Singapore, Thailand, India etc . Our products provide customer more convenient in their business and expect to have more cooperate in future.What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
5) Smooth communication
6) Effective OEM&ODM service
FAQ
Q1: How long is the warranty?
A1: We guarantee a 12-month after-sale service .Any problem when using ,call or mail us ,we will advise on technically sound methods .If needed ,we will provide free accessories
Q2: Can I have my own customized product? Yes, your
A2: customized requirements for color, logo, design, package, carton mark, etc. are welcome
A2: customized requirements for color, logo, design, package, carton mark, etc. are welcome
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.
Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.
Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram
Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance
Q7: How about your delivery time?
A7: Generally, It will take about 7~15 days to send goods out. The specific delivery time depends on the items and the quantity of your order
