Изготовленный на заказ продукции открытом воздухе установка ненесущей стены стеклянная присоска вакуумный подъемник притягивающий
- Категория: Hoists >>>
- Поставщик: Shanghai,Harmony,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 1488.77 $* | 1562.89 $* |
| Aug-18-2025 | 1475.19 $* | 1549.68 $* |
| Jul-18-2025 | 1238.95 $* | 1300.71 $* |
| Jun-18-2025 | 1450.57 $* | 1523.57 $* |
| May-18-2025 | 1263.54 $* | 1326.92 $* |
| Apr-18-2025 | 1425.53 $* | 1496.44 $* |
| Mar-18-2025 | 1413.38 $* | 1484.30 $* |
| Feb-18-2025 | 1400.40 $* | 1470.47 $* |
| Jan-18-2025 | 1388.83 $* | 1457.39 $* |
Характеристики
GX-4S

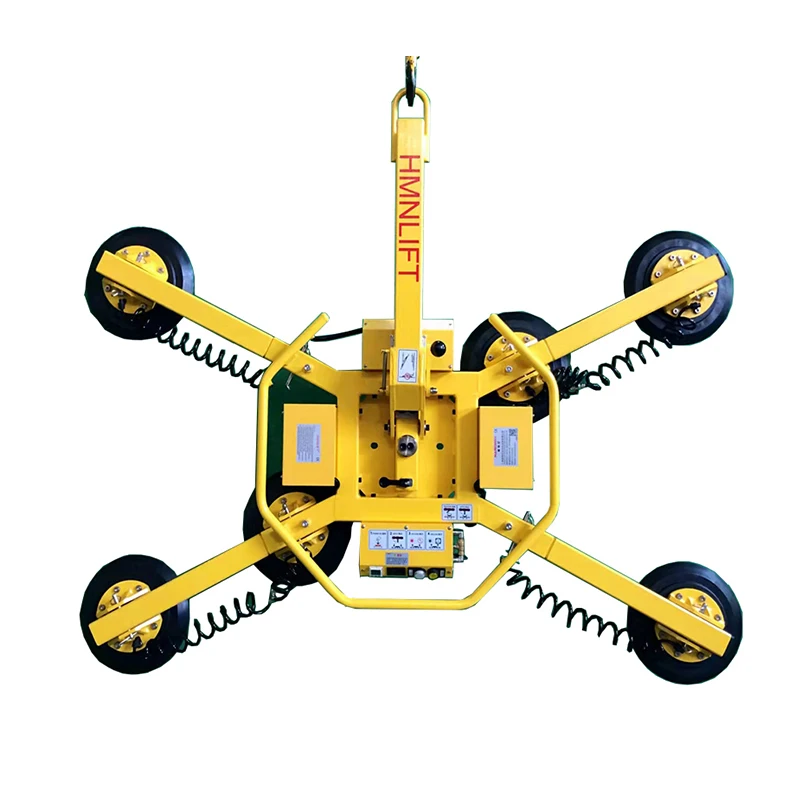

VACUUM LIFTER
This medium-sized vacuum lifting equipment has multiple functions in one machine,which can improve the production efficiency and reliability of construction sites and manufacturing workshops Function: rotate 360°(manual) and tilt 90°(manual) .
Our equipment has a variety of assembly forms, you can ft the vacuum lifter unit in any shape you want.
This device uses rechargeable battery, When the battery is fully charged,it can last seven working days.
The equipment components are all internationally renowned brands to ensure the quality and safety of the equipment.
Our equipment has a variety of assembly forms, you can ft the vacuum lifter unit in any shape you want.
This device uses rechargeable battery, When the battery is fully charged,it can last seven working days.
The equipment components are all internationally renowned brands to ensure the quality and safety of the equipment.
The normal power supply voltage of the equipment is 110 V to 220 v, DC 12 V battery.
The device can automatically motor the vacuum and power systems to maximize safety and efficiency while simplifying maintenance and repairs.
The device can automatically motor the vacuum and power systems to maximize safety and efficiency while simplifying maintenance and repairs.

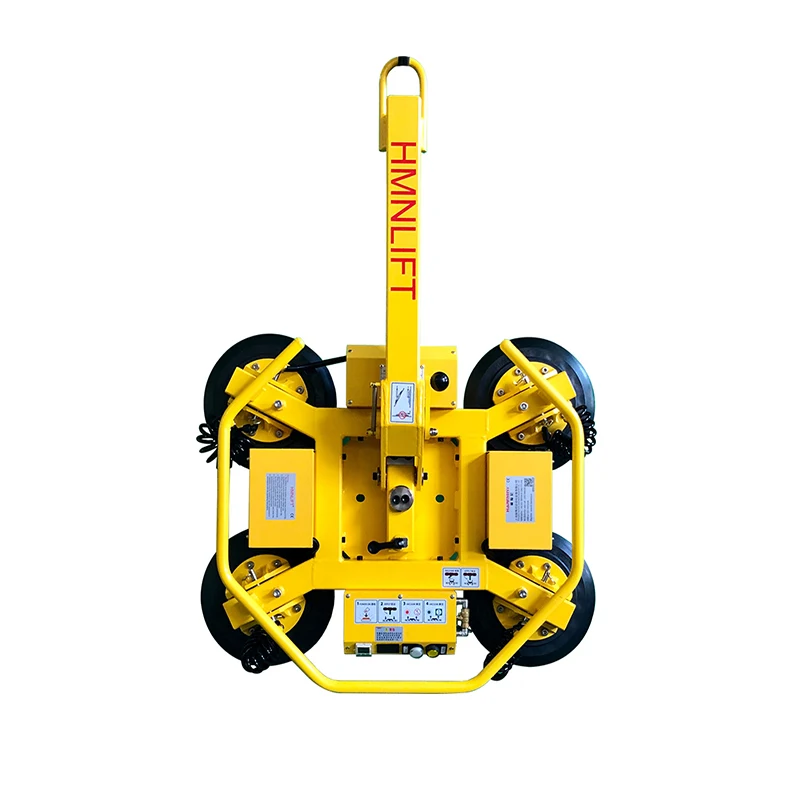

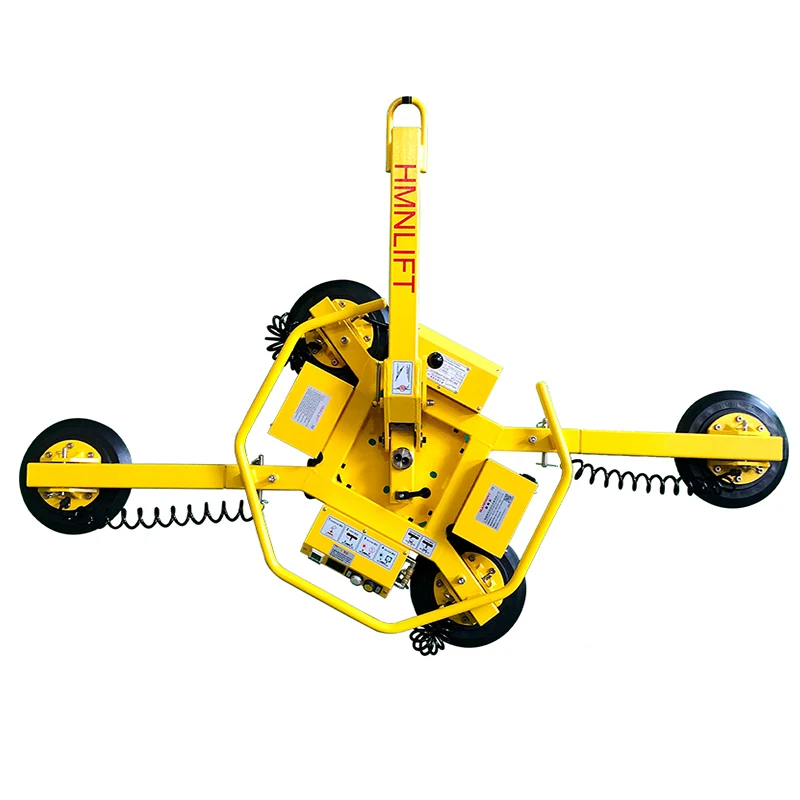

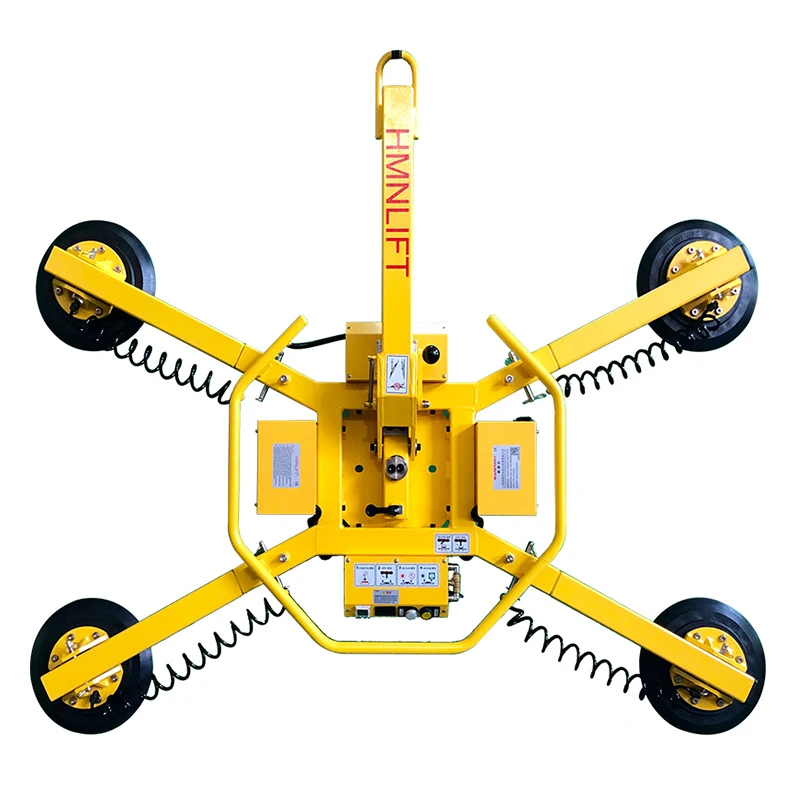

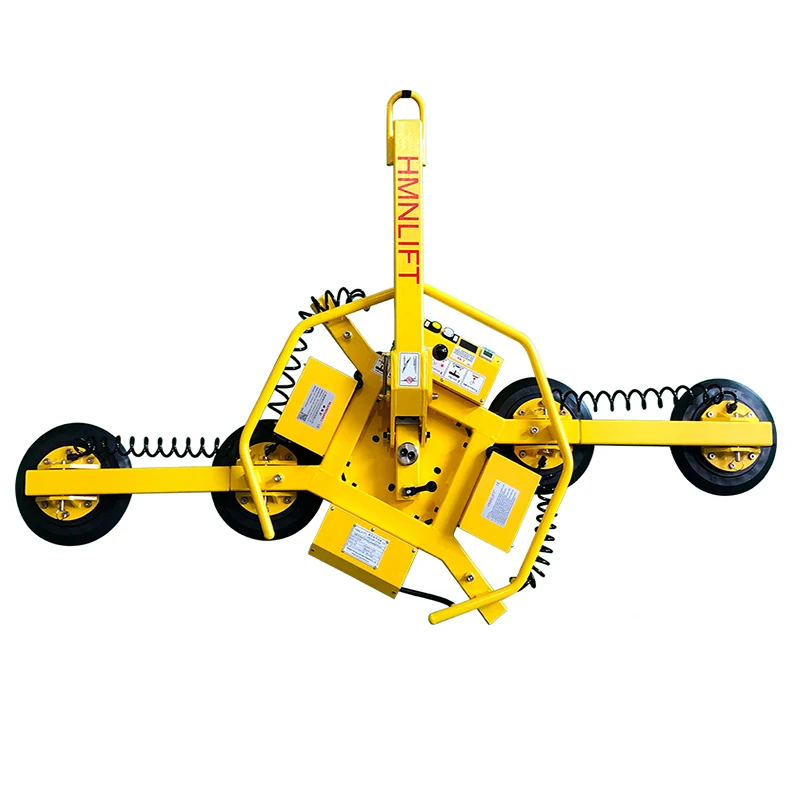

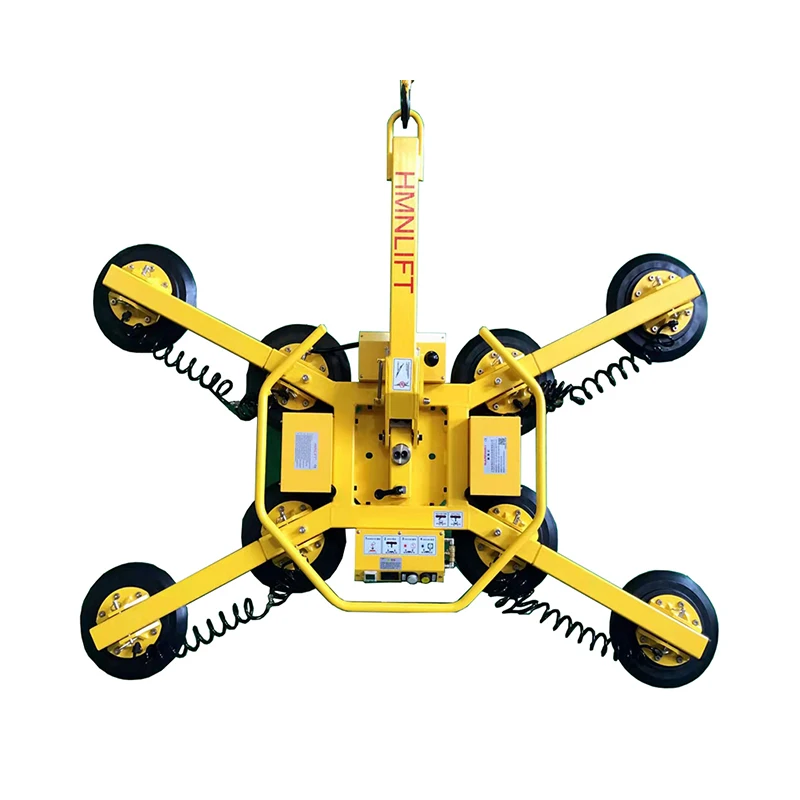

Four Assembly Methods
Parameters
Model | HP-GX 400-4S (Battery powered) | |
Length-In(mm) | 70(1800) | |
Width-In(mm) | 46(1190) | |
Thickness-In(mm) | 9(240) | |
Work Load Limit Lbs(kg) | 881(400) | |
Net Weight-Lbs(kg) | 165(75) | |
Diameter of suction cups In(mm) | 12(300) | |
Number of suction cups | 4pcs | |
Minimum glass dimensions In(mm) | 37 *30(950*750) | |
Rotate angle | 360° | |
Tilt angle | 90° | |
Voltage | 12V-DC | |
Battery capacity | 12V,30Ah |
Main Components Of
Spare Parts
If you order for vacuum or seal and other key spare parts? Although they will continue, but this may be the first need service project.
Product Packaging
Our Service
We are a professional manufacturer of vacuum lifting equipment, we can provide you with a CE certificate(the equipment meets EU standards). We can provide you with a certificate of origin, allowing you to reduce taxes at
the port of destination
the port of destination
We have a large number of equipment standard parts, which can be shipped quickly, and can
also produce the equipment you want according to your requirements
also produce the equipment you want according to your requirements
All our equipment is delivered as a complete machine,you can use it immediately after you
receive it, without complicated assembly. Provide free technical support! One year warranty and lifetime maintenance
receive it, without complicated assembly. Provide free technical support! One year warranty and lifetime maintenance
Applications
Our Factory
Our Certificate
