GAVR-12A бесщеточный генератор AVR
- Категория: Generators >>>
- Поставщик: Yueqing,Hengpai,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 24.4 $* | 24.94 $* |
| Jul-20-2025 | 20.73 $* | 20.55 $* |
| Jun-20-2025 | 24.18 $* | 24.93 $* |
| May-20-2025 | 24.15 $* | 24.52 $* |
| Apr-20-2025 | 19.80 $* | 19.72 $* |
| Mar-20-2025 | 23.99 $* | 23.24 $* |
| Feb-20-2025 | 23.96 $* | 23.2 $* |
| Jan-20-2025 | 23.27 $* | 23.27 $* |
Характеристики
Product Description

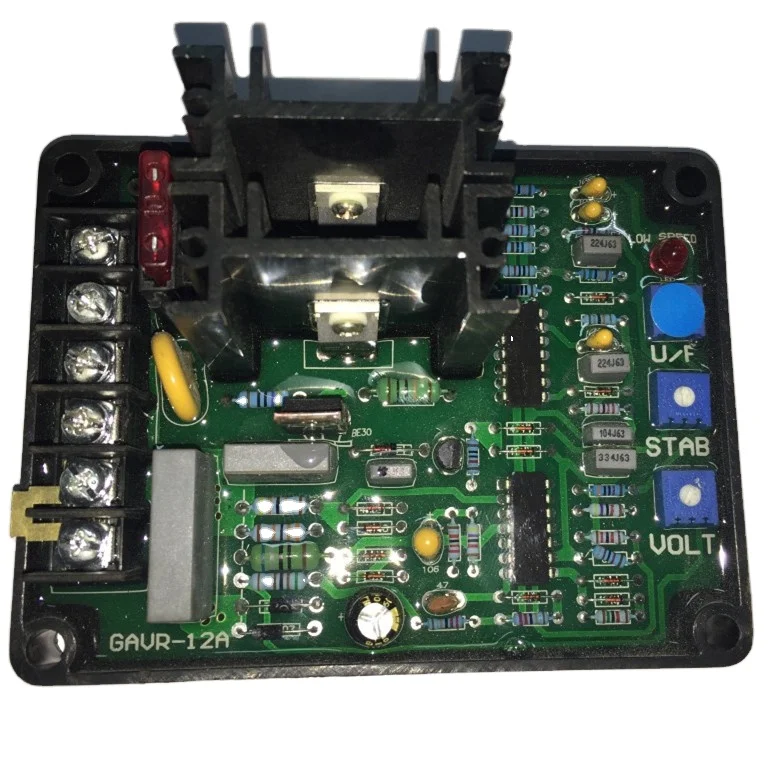

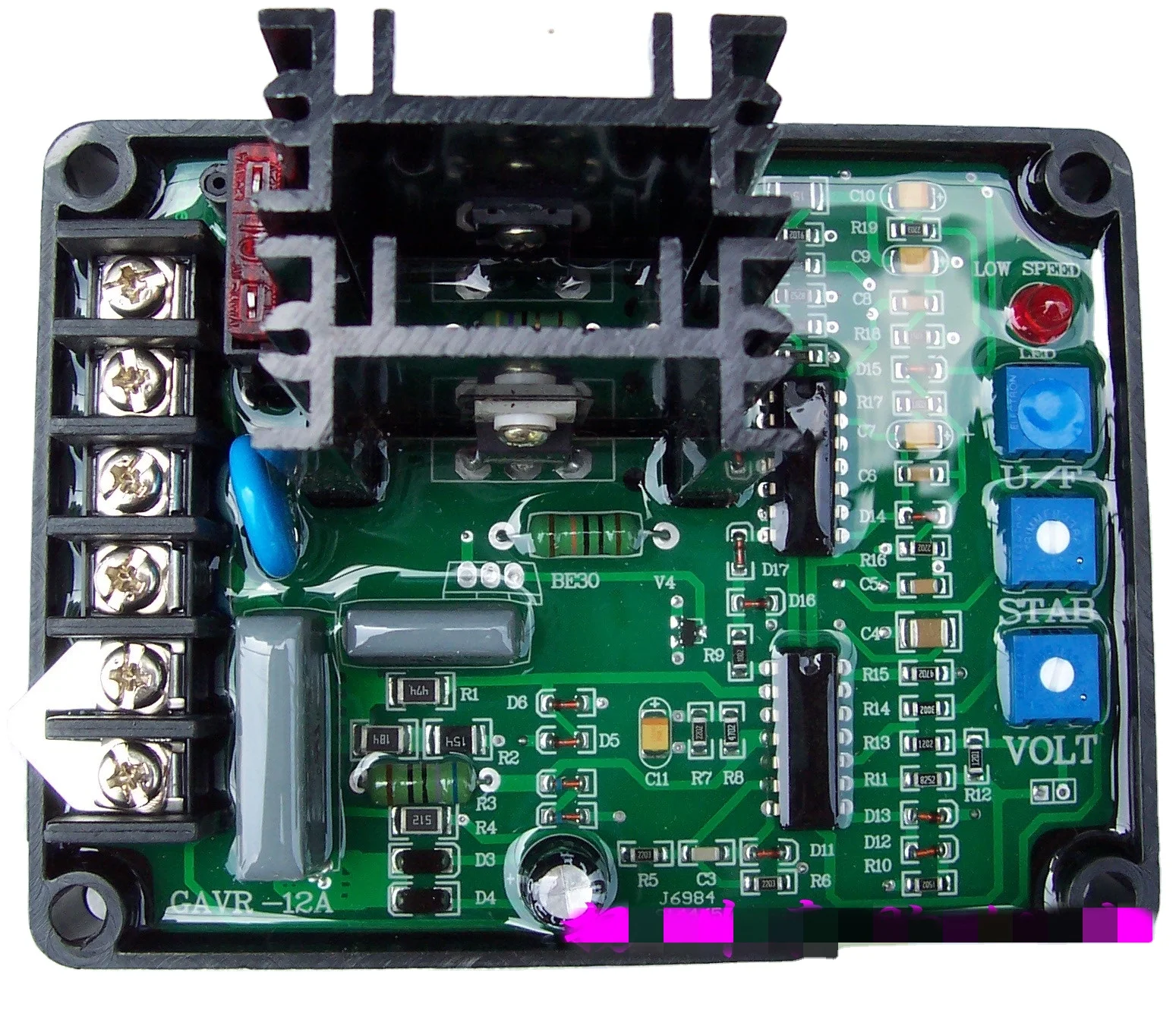

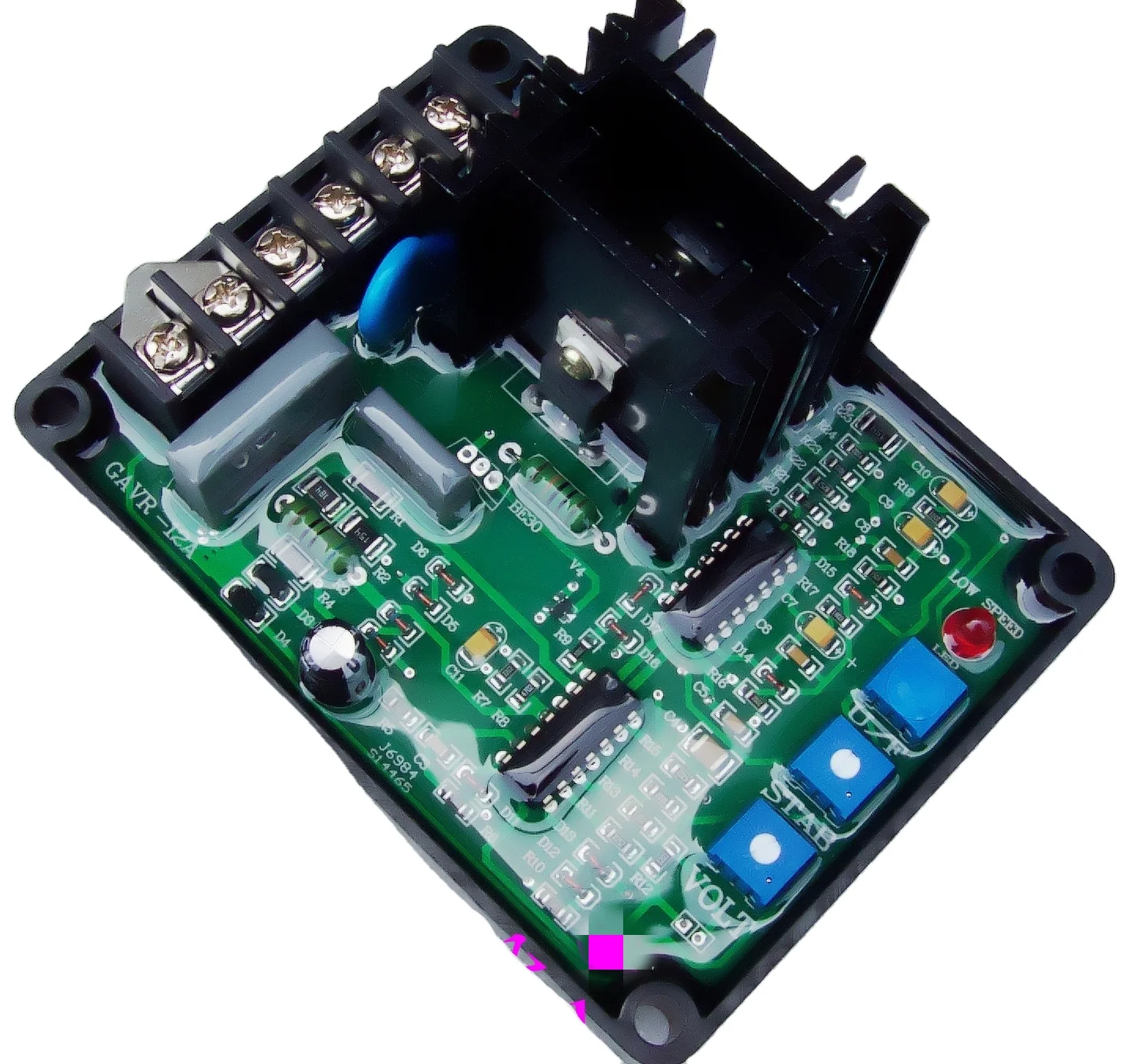

This product can stabilize the output voltage of the brushless generator by adjusting the excitation current of the generator, and can slowly build up the voltage. It is suitable for generators with an excitation current less than 6A.
Input power R, N=170V～265VAC 50/60Hz
Detection power supply R, L＝170V～265VAC R, H＝380V～440VAC 50/60Hz
Maximum output 12A 90VDC (when input power is 220VAC)
Stable output 6A
Voltage adjustment rate ≤1%
Generator field resistance 10 ohm minimum
External potentiometer 1 thousand ohm 1/2W potentiometer ± 8%
Voltage establishment (initial) When the residual magnetism is greater than 5V/25Hz, the voltage will be automatically established.
Low frequency protection If the 60Hz generator is lower than 56Hz, the regulator will shut down immediately, and if the 50Hz generator is lower than 46Hz, it will shut down immediately.
Operating temperature －40℃～60℃
Size 121mm(L)*92mm(W)*56mm(D)
Input power R, N=170V～265VAC 50/60Hz
Detection power supply R, L＝170V～265VAC R, H＝380V～440VAC 50/60Hz
Maximum output 12A 90VDC (when input power is 220VAC)
Stable output 6A
Voltage adjustment rate ≤1%
Generator field resistance 10 ohm minimum
External potentiometer 1 thousand ohm 1/2W potentiometer ± 8%
Voltage establishment (initial) When the residual magnetism is greater than 5V/25Hz, the voltage will be automatically established.
Low frequency protection If the 60Hz generator is lower than 56Hz, the regulator will shut down immediately, and if the 50Hz generator is lower than 46Hz, it will shut down immediately.
Operating temperature －40℃～60℃
Size 121mm(L)*92mm(W)*56mm(D)
