Популярный барьер для автостоянки автоматические барьерные ворота с Прямой

Описание и отзывы

Трекер стоимости

Характеристики

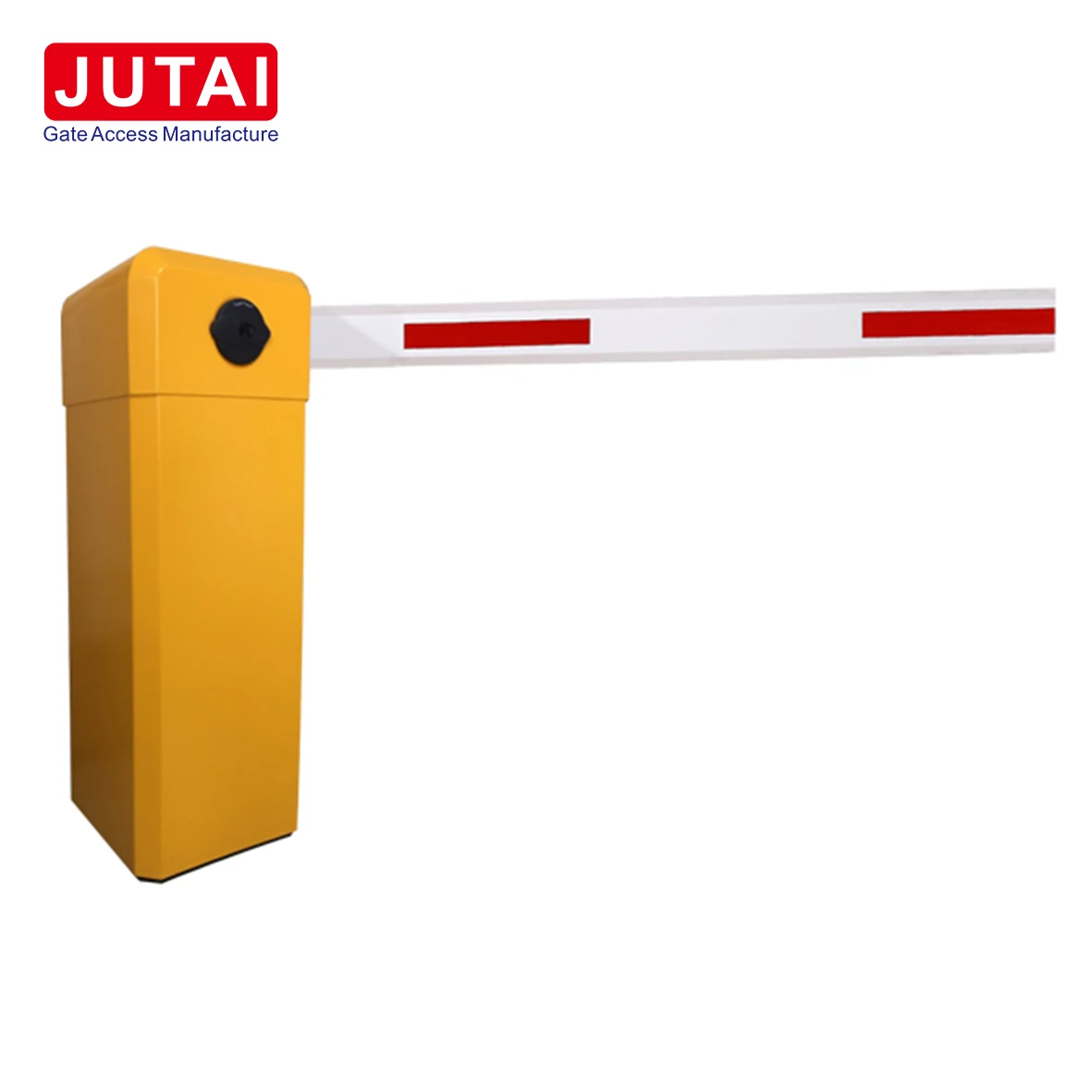

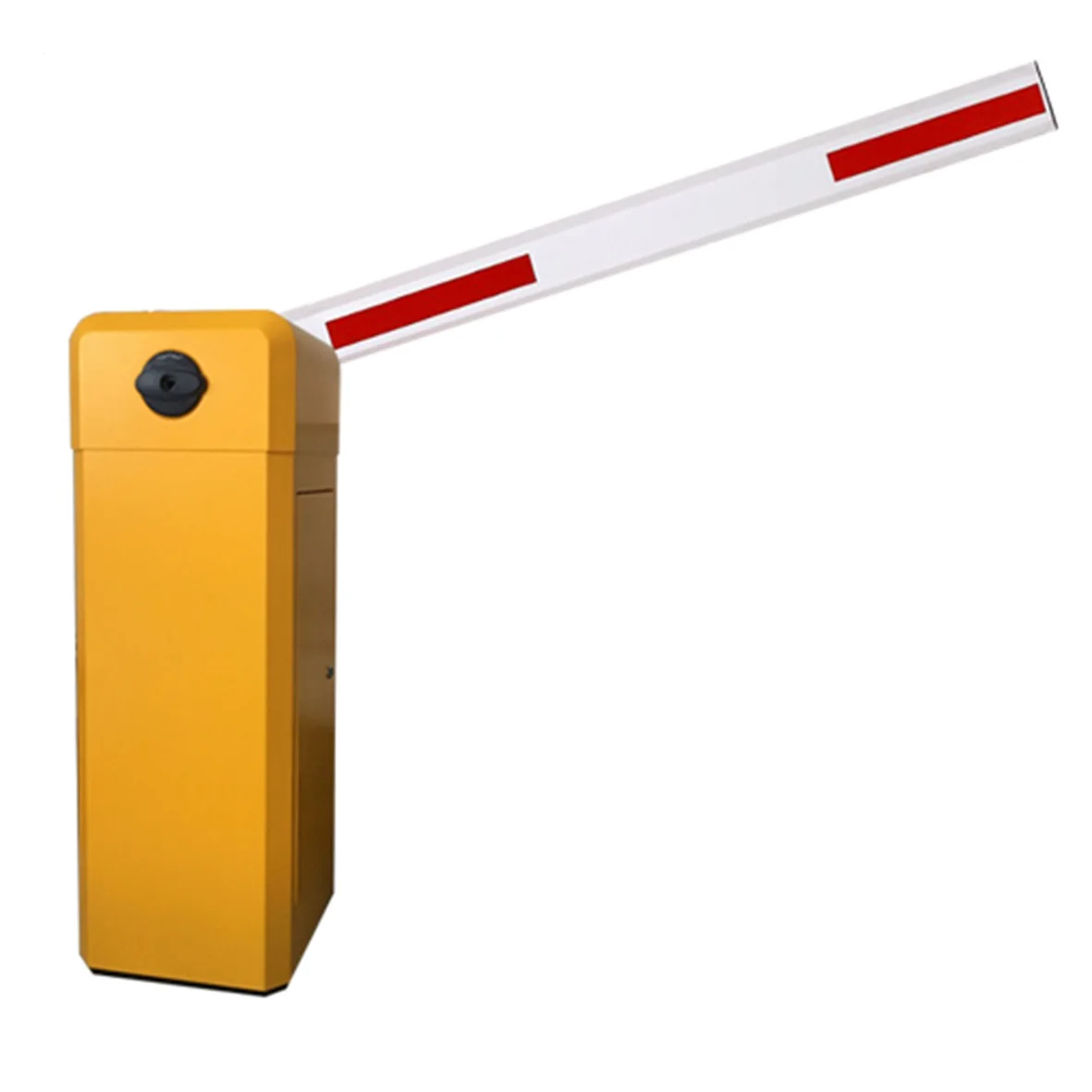

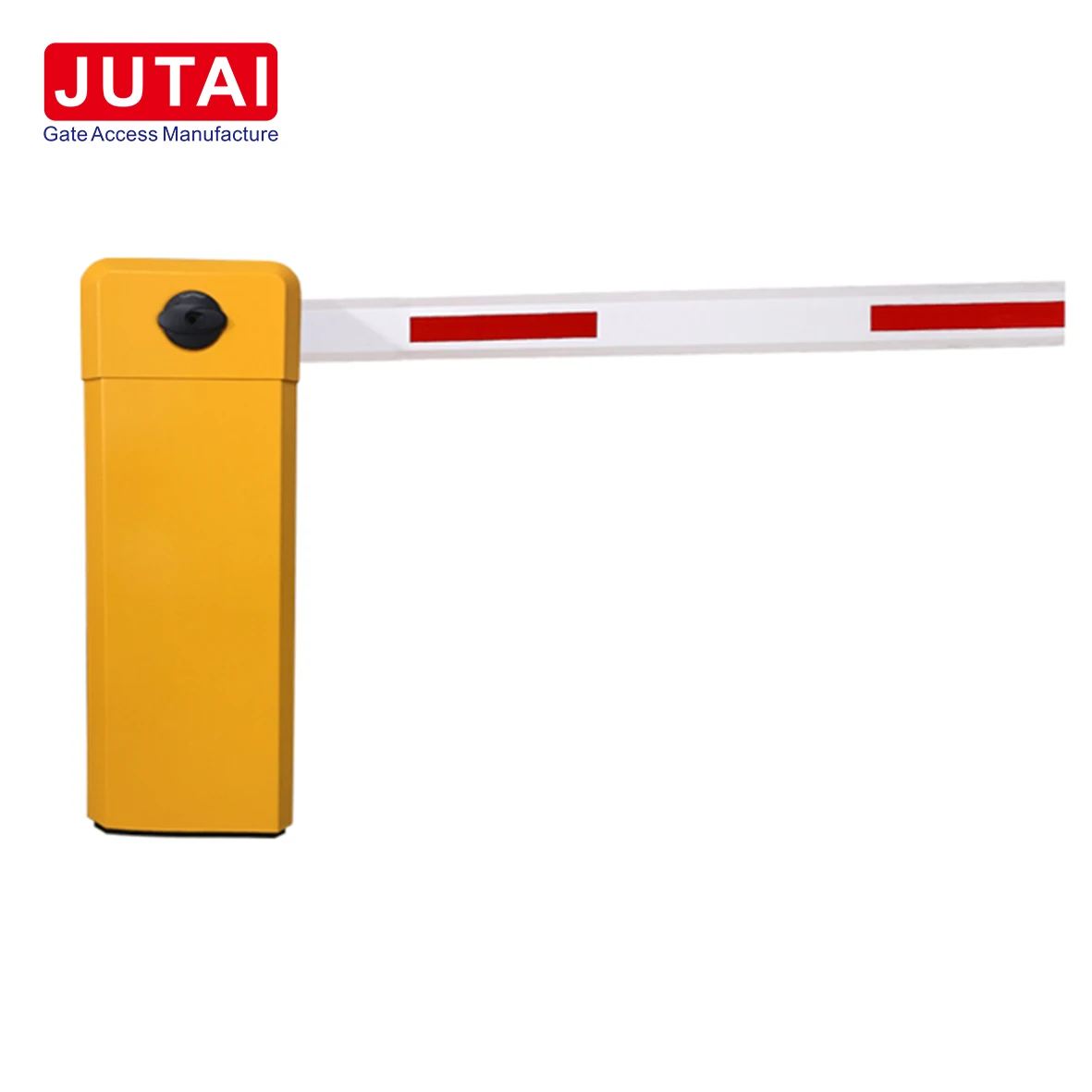

The boom barrier is the most common type of vehicle blocking device. It is an entrance and exit management device specially used to manage the driving passage of motor vehicles. It is widely used in highway toll stations and parking lot management systems to achieve the purpose of managing vehicle access.

A loop detector is used for JUTAI Intelligent Barrier Gate Access operator to protect cars hit by the arm and automatic close the barrier arm when the vehicle leaves the loop. JUTAI offers customers the most Intelligent Barrier Gate Gate that is able to work perfectly with a loop detector. JUTAI best barrier gate operator supplier that focuses on barrier gate manufacturing for more than 10 years.
Gate Access Quick Details
1) Beam length: <=8m
2) Opening (Closing) time:0.6s 1s, 1.8s.3s, 6s.8s
3) Center height: 0.83 m
4) Machine core working temperature: -40 degrees to +75 degrees
5) Electric working temperature: -20 degrees to +75 degrees
6) Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz
7) Rated power: 120W
8) Relative humidity: <=90%
9) Remote control distance: >=30m
10) Net weight: 70KGS
 Automatic gate Specifications


JUTAI Intelligent Barrier Gate Features
1. Mould production with accurate grinding and heat treatment of worm and main rod, which is a high accuracy, low consumption, and less noise.
2. Arm Reverse Function: The arm will automatically be reversed when it hits obstacles when closing.
3. Arm Swing Out Function: The arm will swing out when the vehicle hits the arm which can avoid further damage to the vehicle.
4. Cooling Fan Device: It will be automatically opened when the motor works in heavy duty and high temperatures.
5. Manual Release Clutch: When loss of power, it can manually open and close the barrier.
6. Sturdy Housing: 2mm thickness cold roll plate or galvanized plate with epoxy paint, which can be heavy duty.
7. Anti-freeze oil can make our barrier gate work at -45 degrees.
8. Spring sleeve can protect the accessories inside the machine case from damage by spring break.
9. Module production with all accessories, can be replaced easily, and save cost.
10. Pressure spring can avoid damage caused by tention spring, which is more safety.


Optional Accessories For Barrier Gate Operator
1. Loop detector: single loop detector or dual channel loop detector
2. Infrared Photocell  sensor
3.JUTAI Intelligent Barrier Gate controller board
4.Traffic LED light
5. RFID reader

Each barrier gate will include
1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book

Optional Boom
A: Booms for avoiding striking(medium-sized octagonal boom, round foam boom,elliptic boom)

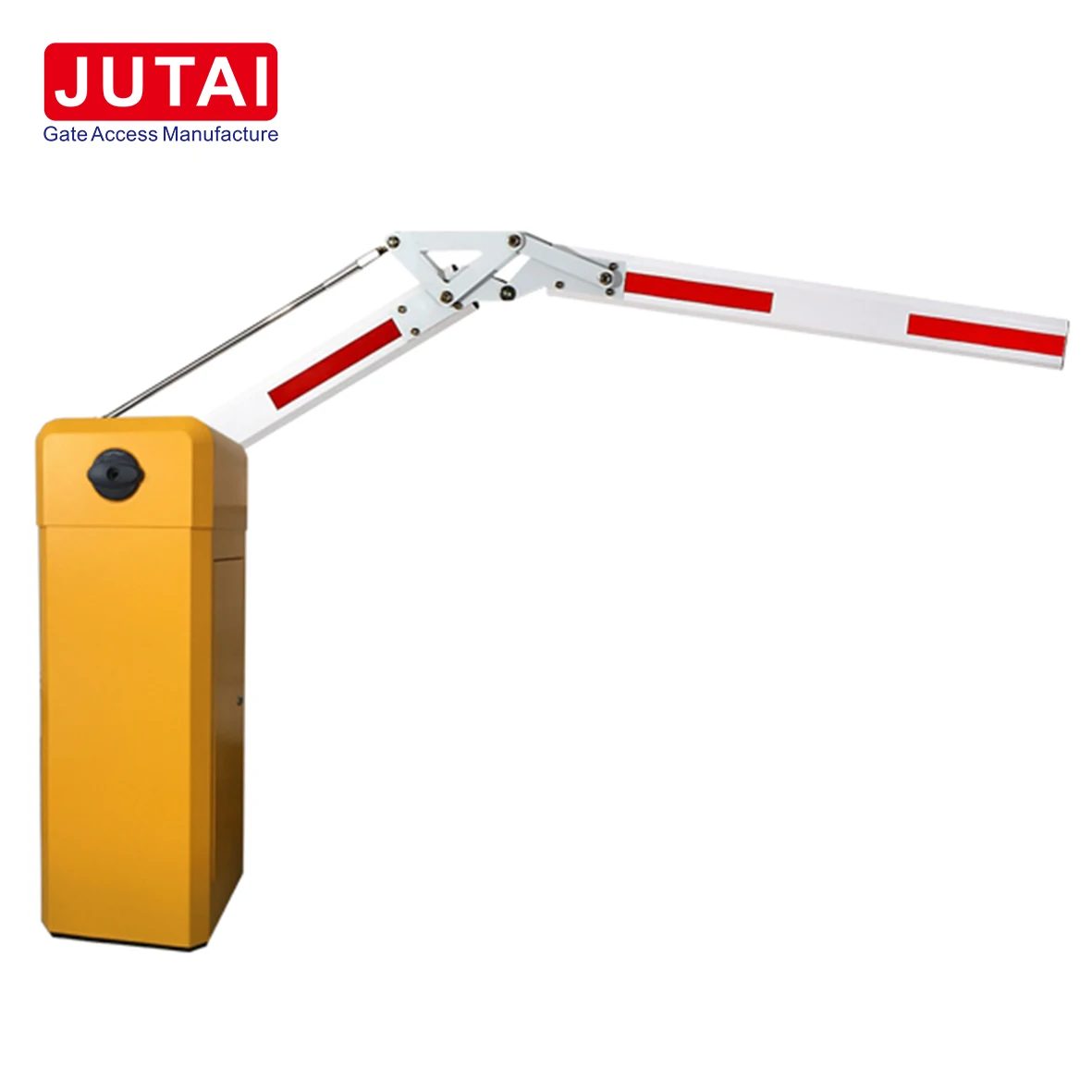

B:180°articulated boom(Max 4M)

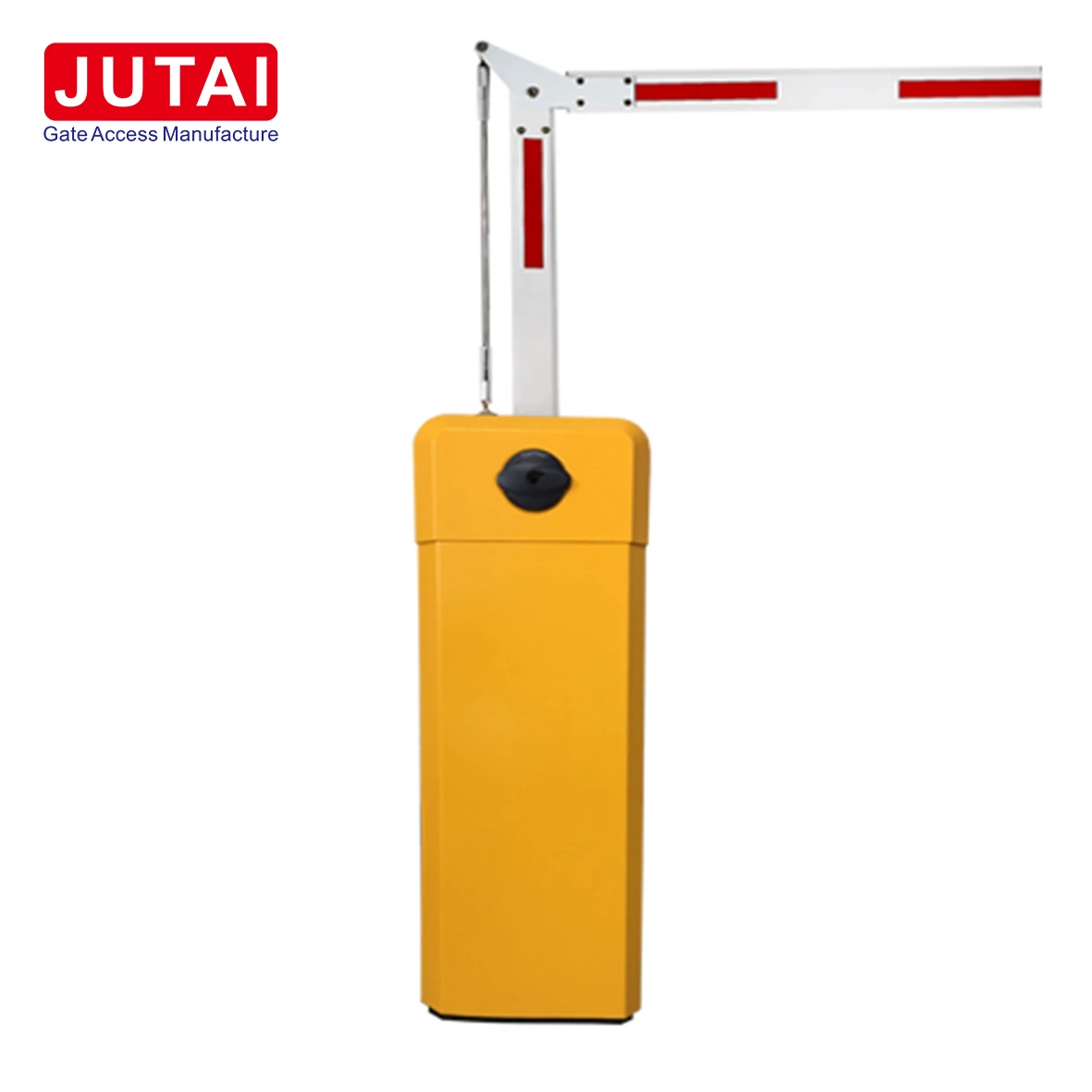

C:90° articulated boom(Max 4M)

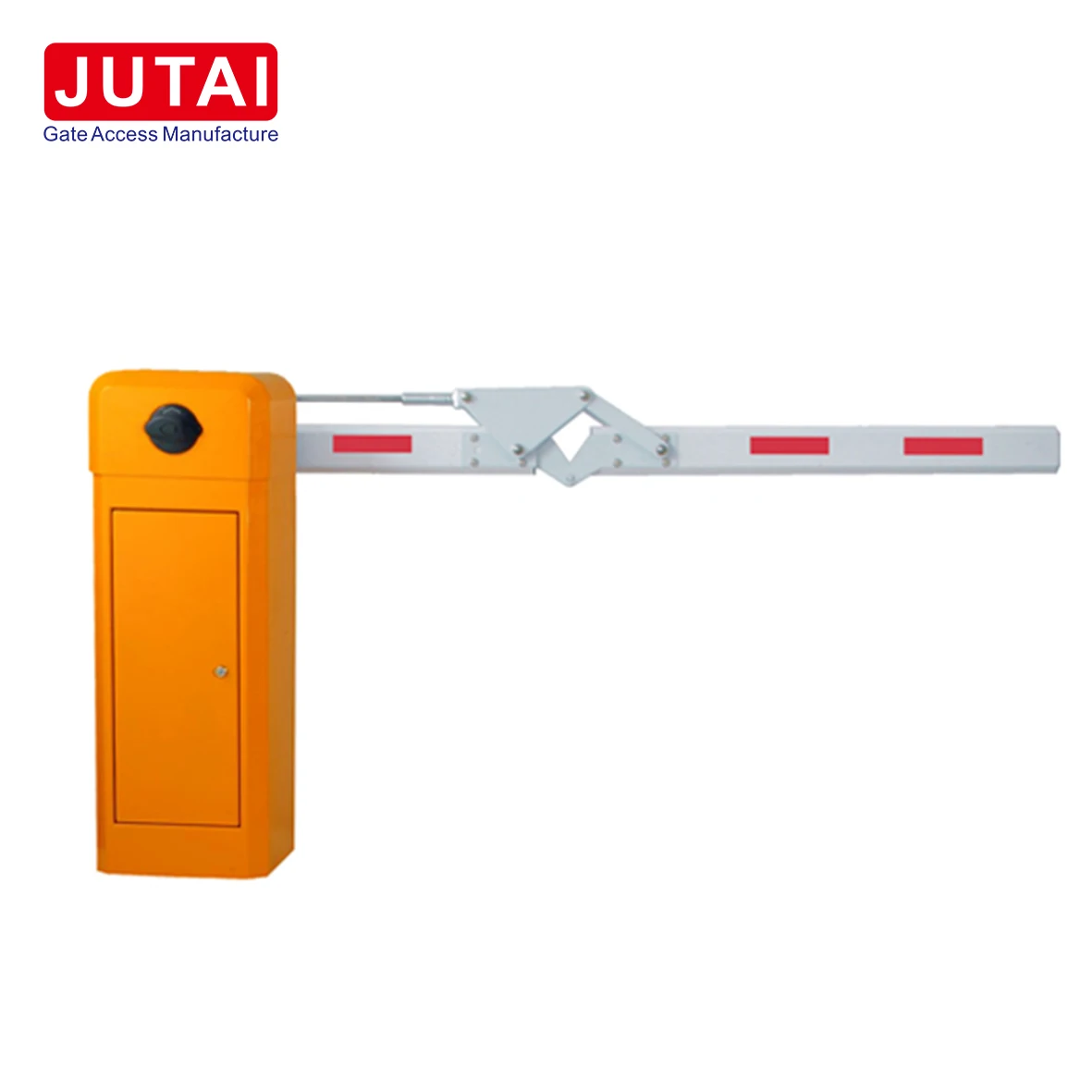

D:2 fences boom(Max 5M)
E:3 fences boom(Max 4M)
Boom with LED lights and light colors changeable.
Light flashing pattern, speed and colors controlled by a remote control

JUTAI boom barrier advantages
Gate Motor
JUTAI motors are uniquely designed and patented. The motor is made of copper, Hall limiter, thermal protection.

 Control board
JUTAI control board adopts imported components. The circuit adopts advanced MCU and Japanese original Omron high-power relay as the core design. Using mature computer control technology, it develops a new generation intelligent control system, which realizes the intelligent control of gates and other controls.

 High quality spring
In addition to controlling the main board and the motor, the most important part is the spring. The tension and the relaxation of the spring are used to achieve the stable rise and fall of the control boom gate. The JUTAI boom gate spring is a double spring, which has the advantages of long service life and corrosion resistance.

Process materials
The thickness of the sheet metal is 2.0mm. The cabinet is designed with waterproof structure and the surface is treated with phosphating process. Huacai spraying, high temperature baking and car top coating make the chassis in outdoor harsh environment. It has the characteristics of anti-corrosion, anti-rust, anti-ultraviolet radiation and sun exposure, which is not easy to have problem of color fading. Compared with other company's 1.5mm cabinets, it is more durable and not easy to fade color.

 Bottom anti-dip strip
In areas with heavy rain, the gates are often easily immersed in water containing acidic and viscous materials, causing the cabinet to be damaged by corrosion and rust. JUTAI barrier gates are intimately provided with anti-dip strips, which greatly increases the product servicing life.

 Multi-gate control can be built-in 485 protocol module
JUTAI is equipped with RS485 interface and English software, which can realize simultaneous control of 16 units boom gates by the software

Anti-collision boom
The existing road barrier gate are prone to bending when facing the accidental ram of the vehicle, and even the boom arm is broken, causing great damage to the vehicle and the gate. JUTAI automatic boom gates are equipped with anti-collision arm. When receiving the impulse generated by the impact of the vehicle, the brakes will quickly bounce back to prevent the car from breaking and will not damage the motor.

Double protection against damage
JUTAI also provides infrared photocell beam sensors and vehicle loop detectors for

Environmental adaptability
Special antifreeze oil, the motor can still work normally at -40 degrees. When the temperature reaches +75 degrees or more, JUTAI gate Motor has thermal protection function and can still work normally.
