Автоматическая установка для монтажа солнечных панелей стальная рама Z Purline машина
- Категория: Building Material Machinery >>>
- Поставщик: Wuxi,Sunway,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5246058.27 $* | 5508361.58 $* |
| Aug-18-2025 | 5201973.4 $* | 5462072.72 $* |
| Jul-18-2025 | 4364367.46 $* | 4582585.57 $* |
| Jun-18-2025 | 5113804.63 $* | 5369494.90 $* |
| May-18-2025 | 4452537.16 $* | 4675164.83 $* |
| Apr-18-2025 | 5025635.10 $* | 5276917.46 $* |
| Mar-18-2025 | 4981551.2 $* | 5230629.90 $* |
| Feb-18-2025 | 4937466.42 $* | 5184339.44 $* |
| Jan-18-2025 | 4893382.49 $* | 5138051.67 $* |
Характеристики
Product Description

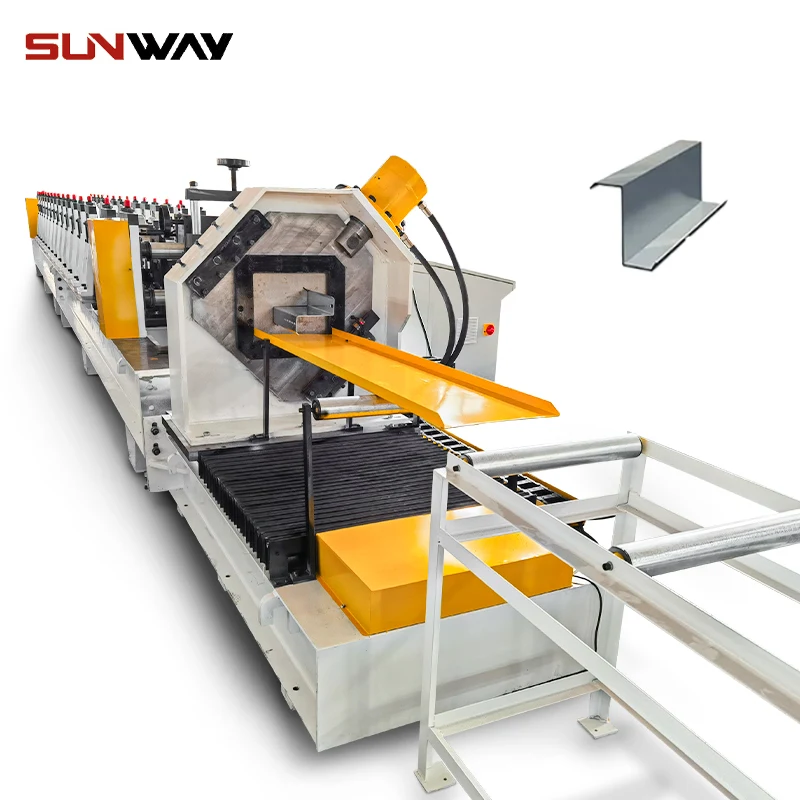

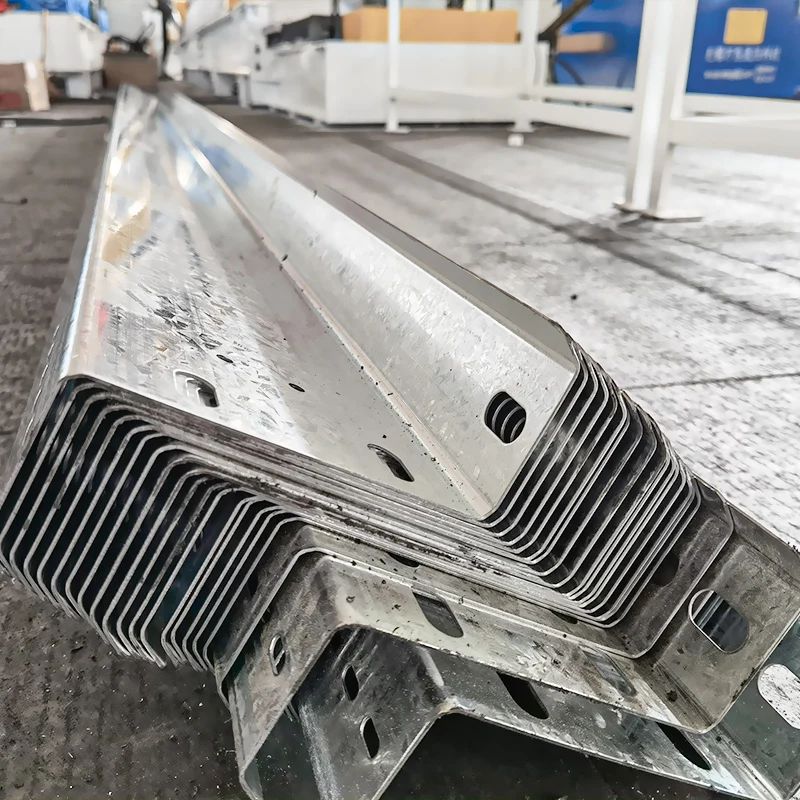

Solar mounting roll forming machine (Z shape profile) also called as photovoltaic (PV) rack roll forming machine which is used to mount, brace, support, and connect lightweight structural loads in Solar or Energy fields. It is suitable to produce Z shape profile (Z channel) with thickness from 1.5-2.5mm, even up to 3mm. This line consists of hydraulic uncoiler, servo feeder, press machine/ individual punch unit for punching hole, roll former, servo tracking cutter, and electrical & hydraulic system. Compared with Z purline used on steel structure, this solar mounting Z shape profile need machine with higher precision, higher speed and more accurate punching. So this line is heavier and strong, speed is much higher to meet the demand of huge mass production. Raw material could be Hot-rolled and cold rolled steel, Hot-dip galvanized sheet, Pre Galvanized Steel, Mill (Plain/Black) Steel, etc. Meantime, this machine could produce solid channel, slotted channel, half slotted channel, long slotted channel, punched channel, punched and slotted channel etc. We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.
Profile Drawings
Production Line
Product Details
Hydraulic Decoiler
2 In 1 Hydraulic Decoiler(Uncoiler + Leveler)
Press Machine For Punching Holes
Individual Hydraulic Punching Unit (Optional)
Main Machine Structure With Forged Cast Iron Station + Gearbox Drive
Main Machine Structure With Forged Cast Iron Station + Chain Drive (Sizes Auto Changeable)

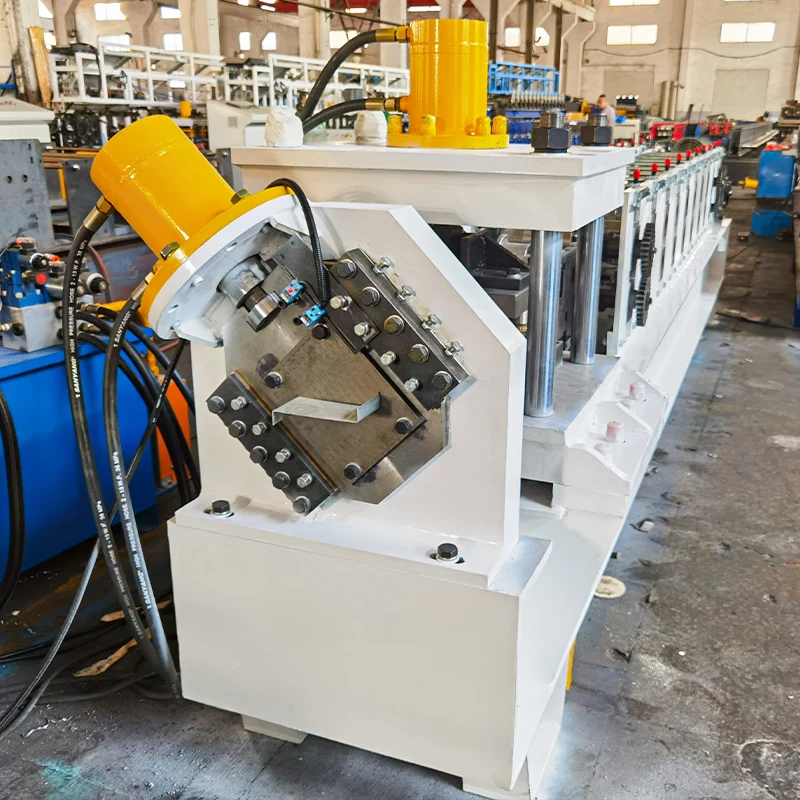

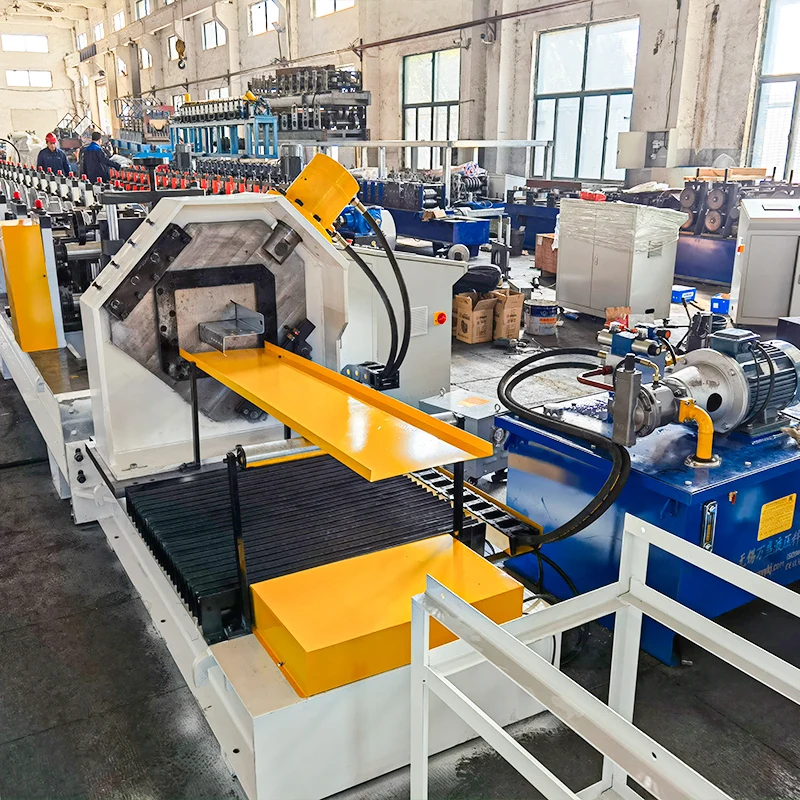

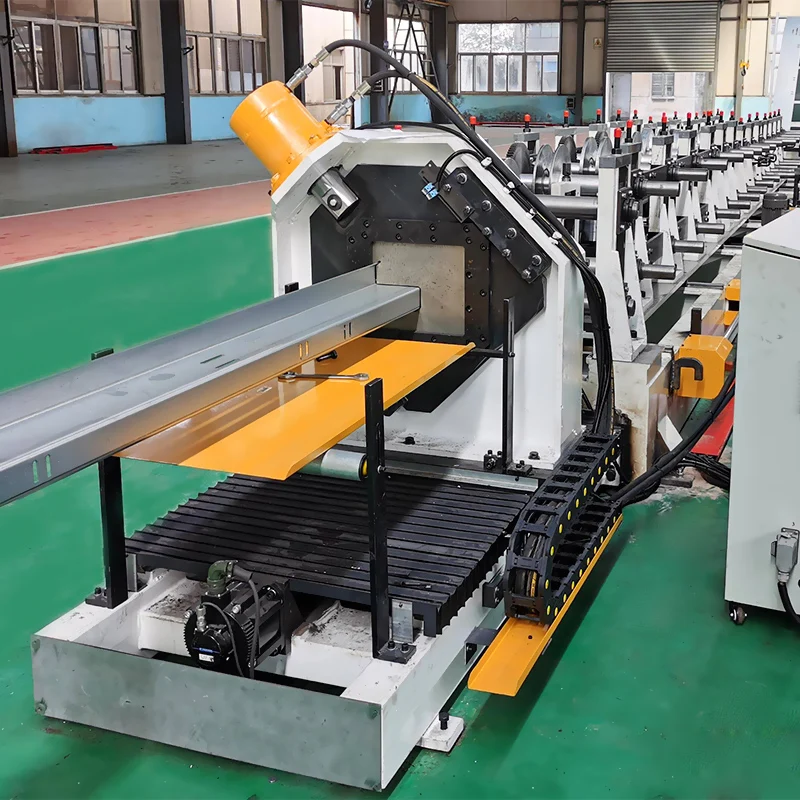

Servo Tracking Hydraulic Cutter (Machine Non-stop)
Hydraulic Cutter (Machine Stop) (Optional)
Product Paramenters
PV Mounting Bracket (Z Shape Profile) Roll Forming Machine | ||||
A) Hot-rolled And Cold Rolled Steel | ||||
B) Hot-dip Galvanized Sheet | ||||
C) Pre-Galvanized Steel | ||||
D) Mill(Plain/Black) Steel | ||||
Yield strength | 235 - 345 Mpa | |||
Tensil stress | G250 Mpa-G350 Mpa | |||
Decoiler | Manual Decoiler | * Hydraulic Decoiler (Optional) | ||
Punching System : | Hydraulic Punching Station (Individual) | * Punching Press (Optional) | ||
Forming Station | 15 - 17 | * According To Your Profile Drawings | ||
Main Machine Motor Brand | Reducer + Motor | * Servo Motor (Optional) | ||
Driving System | Chain Drive | * Gearbox Drive (Optional) | ||
Machine Structure | Wall Panel | * Forged Iron station (Optional) | ||
Line Forming Speed | 0-15 (M/MIN) | * According To Final Configuation | ||
Rollers’ Material | 45# | * GCr 15 (Optional) | ||
Cutting System | Post-cutting, Machine Stop To Cut | * Tracking Servo Cutter (Optional) | ||
Frequency Changer Brand | Yaskawa | |||
PLC Brand | Panasonic | |||
Power Supply | 380V 50Hz 3ph | * Or According To Your Requirment | ||
Machine Color | Industrial Blue | * Or According To Your Requirment | ||
Application
With the features of green, solid, economical, durable, fast easy to install and good looking, double in roll C-shaped steelphotovoltaic bracket and other steel building materials are used more and more widely. It is suitable for various light steelstructure construction, shelves, ceiling frames, and so on.
Company Profile
WUXI SUNWAY MACHINERY CO.,LTD is a professional manufacturer and exporter that are concerned with the design, development and production of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on. It has gained a global sales network.
Our machines feature beautiful appearance, long service life, good performance, simple operation, reasonable price, good quality and so on. Strong technical resources are the most stable guarantee for our products' quality. Our company is specialized in manufacturing different kinds of cold roll forming machines, such as color steel sheet forming machines for roof & wall, C and Z purling machines for steel structure, steel profiles forming machines for professional applications, slitting machines for processing raw material, especially in manufacturing Solar Mounting Bracket Machines which are widely used in Photovoltaic field.
SUNWAY always adhere to Dedication, Unity, Innovation, Win-win situation, as spirit of enterprise. In accordance with High Quality Assurance and Valued Credibility, we provide customers high qualified and reliable products with complete after-sales service. Our company is looking forward to establishing successful and long-term business relationships with all clients around the world in the near future.
FAQ
Q: Are you a manufacturer or trading company?
A:We are factory with professional production team and service consciousness just for exporting various types of roll forming machine.
Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
Q: What's your payment terms?
A: 30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBABA’s Gold supplier with BV assessment and CE certificate.
Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers’ specifications, using famous brand components.
Q: How to visit our company?
A: Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
