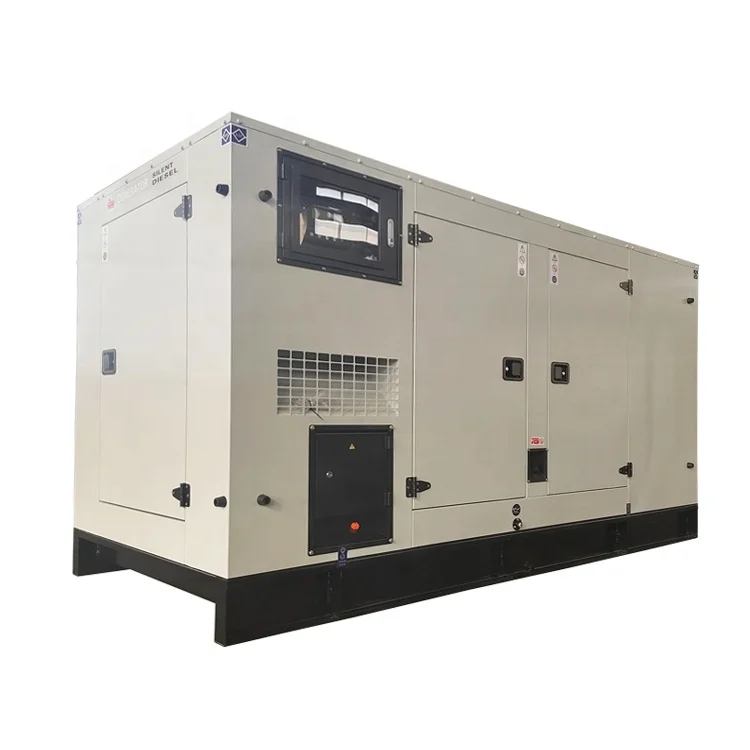

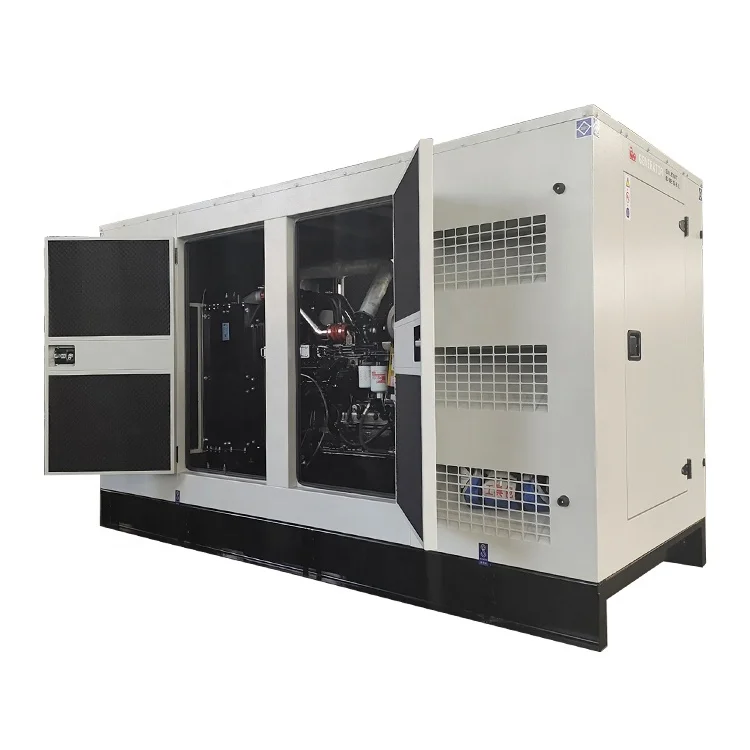

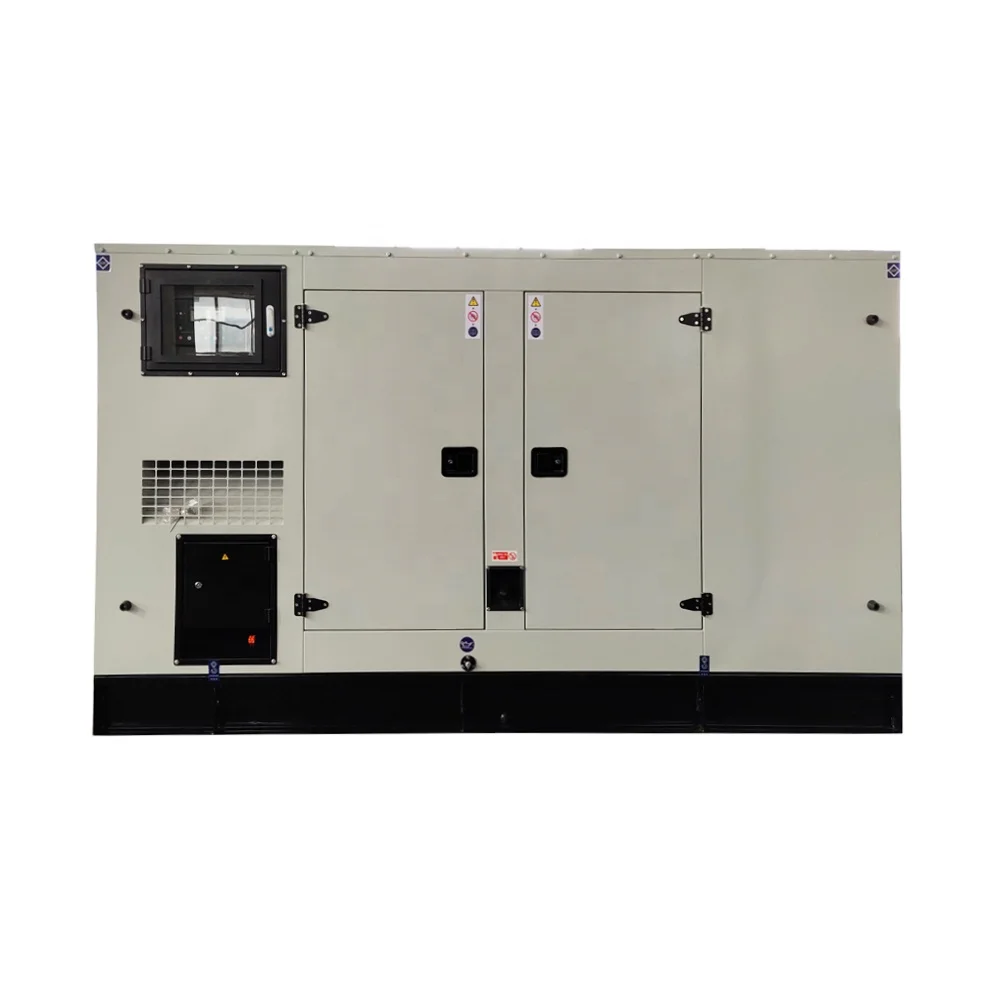

250 кВА Электрический 250kVA дизель-генератор

Цена:9 260,00 $ - 9 290,00 $*

Количество:

Technical Parameters

Diesel Generator Technical Data
Genset	HT-200	Prime Power (KW)	200
Rated frequency(Hz)	50/60	Prime Power (KVA)	250
Rated speed(Rpm)	1500/1800	Phase	3 Phase
Voltage	220/380V,230/400V, 240/415V,120/240V	N.W (KG)	2600
Rated Current	360A	Size (LWH) mm	300012001800
Diesel Engine Technical Data
Brand/Original	SDEC	Type	Water Cool, Electric start
Engine Item No.	SC9D340D2	Cylinder No.	6
Displacement (L)	6	Bore and Stoke (MM)	114*144
Prime Power (KW)	231	Fuel Consumption	195(g/kw.h)
Standby power (KW)	255	Combustion	Direct Injection
Governor	Electronic	Aspiration Type	Air-to-air cooling
Alternator Technical Data
Brand/ Original	Stamford copy/ Stamford original/Marathon/Leroy-Somer
Alternator Model	HT-200D	Protection	IP23
Alternator Type	Brushless sel-excited	Insulation	Class H
Phase / wire	3-phase& 4 line	Factor	0.8
Control Module Specifications
Digital Control Module suitable for a wide variety of single, diesel or gas, gen-set applications. Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LEDs.


The control module gives digital readouts of:
Generator voltage	Output frequency	Engine hours run
Engine speed	Battery voltage
The control module has indicators for failure information:
High water temperature	Failure to start	Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure		High engine water temperature
Over speed/Low speed		Failure to start after three attempts
