Винтовой домкрат Выравнивающий для рам лесов с фиксированной базовой пластиной Регулируемый оцинкованный
- Категория: Scaffoldings >>>
- Поставщик: Xingtai,Mingge,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.28 $* | 0.99 $* |
| Aug-18-2025 | 0.1 $* | 0.32 $* |
| Jul-18-2025 | 0.79 $* | 0.58 $* |
| Jun-18-2025 | 0.14 $* | 0.13 $* |
| May-18-2025 | 0.7 $* | 0.92 $* |
| Apr-18-2025 | 0.97 $* | 0.76 $* |
| Mar-18-2025 | 0.12 $* | 0.65 $* |
| Feb-18-2025 | 0.5 $* | 0.6 $* |
| Jan-18-2025 | 0.10 $* | 0.91 $* |
Характеристики
Product Description
Title goes here.
Product Description
BS1139 Adjustable Screw Jack For Leveling Scaffolding SystemsMade from high strength steel pipes, screw jacks are equipped with
150 x 150 mm head plate to support and stabilize horizontal timber beam or steel beams in slab construction. Due to the big
supporing area, slope of up to 6 % can be achieved by the head plate.

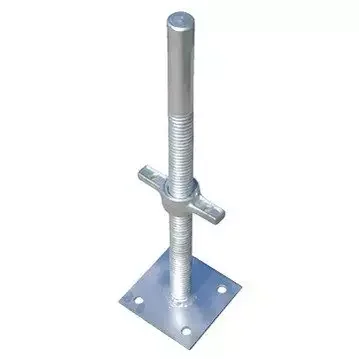

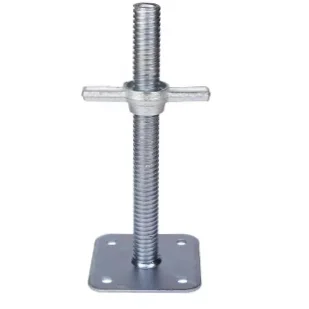

Base plate is welded to the tubular screw stem, with a hole in each corner for securing to mudsill.
The screw jack with base plate allows your scaffold set to be leveled on uneven surfaces. Casting iron nut is used on the screw
stem, high-strength and galvanized for durability.
ACME threads are used on the screw stem.
It can fit all types of scaffolding systems, such as frames, ringlock, or cuplock systems.
Jack heads are always working in conjunction with Jack base to adjust scaffolding sets in a easy way.
150 x 150 mm head plate to support and stabilize horizontal timber beam or steel beams in slab construction. Due to the big
supporing area, slope of up to 6 % can be achieved by the head plate.
Base plate is welded to the tubular screw stem, with a hole in each corner for securing to mudsill.
The screw jack with base plate allows your scaffold set to be leveled on uneven surfaces. Casting iron nut is used on the screw
stem, high-strength and galvanized for durability.
ACME threads are used on the screw stem.
It can fit all types of scaffolding systems, such as frames, ringlock, or cuplock systems.
Jack heads are always working in conjunction with Jack base to adjust scaffolding sets in a easy way.
Specification
Scaffold Base Jack:
Screw /Tube size (mm) | Base plate (mm) | Nut (kg) | Weight (kg) |
Ø30(solid) x 400 (600) | 120 x 120 x 5 | 0.25 | 2.75 (3.72) |
Ø32(solid) x 400 (600) | 120 x 120 x 5 | 0.30 | 3.10 (4.20) |
Ø34(solid) x 400 (600) | 120 x 120 x 5 | 0.40 | 3.50 (4.76) |
Ø34(hollow) x 4 x 400 (600) | 150 x 150 x 6 | 0.55 | 2.80 (3.39) |
Ø38(hollow) x 4 x 400 (600) | 150 x 150 x 6 | 0.50 | 2.90 (3.60) |
Ø48(hollow) x 4 (5) x 600 | 150 x 150 x 8 | 1.00 | 5.00 (5.60) |
Ø48(hollow) x 4 (5) x 820 | 150 x 150 x 8 | 1.00 | 6.00 (6.80) |
U-head Jack:
crew / Tube size (mm) | Base plate (mm) | Nut (kg) | Weight (kg) |
Ø30(solid) x 400 (600) | 150 x 120 x 50 x 5 | 0.25 | 3.36 (4.33) |
Ø32(solid) x 400 (600) | 150 x 120 x 50 x 5 | 0.30 | 3.70 (4.81) |
Ø34(solid) x 400 (600) | 150 x 120 x 50 x 5 | 0.40 | 4.10 (5.37) |
Ø34(hollow) x 4 x 400 (600) | 150 x 120 x 50 x 6 | 0.55 | 2.91 (3.74) |
Ø38(hollow) x 4 x 400 (600) | 150 x 150 x 50 x 6 | 0.50 | 3.61 (4.28) |
Ø48(hollow) x 4 (5) x 600 | 180 x 150 x 50 x 8 | 1.00 | 6.24 (6.82) |
Ø48(hollow) x 4 (5) x 820 | 180 x 150 x 50 x 8 | 1.00 | 7.20 (8.00) |

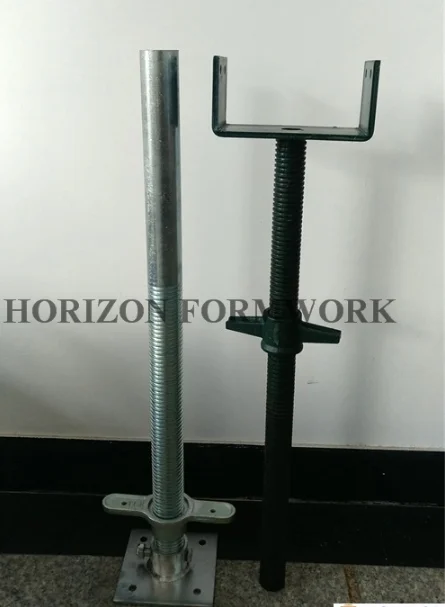

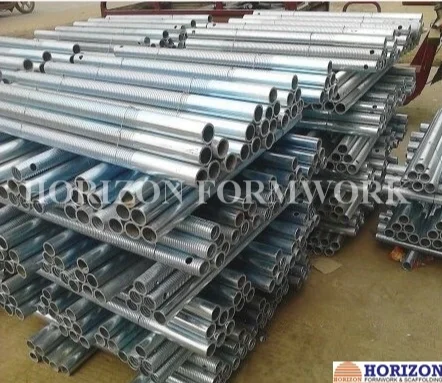

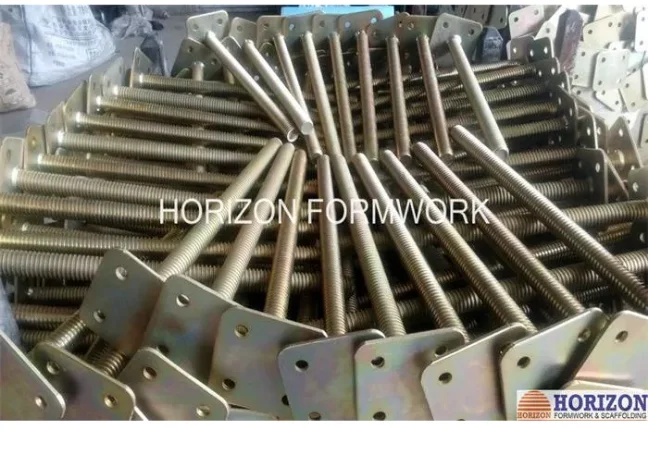

Product Show
Please contact us
FAQ
1. who are we?
We are based in Hebei, China, start from 2019,sell to South America(15.00%),Africa(15.00%),Eastern Europe(14.00%),North America(10.00%),Southeast Asia(10.00%),Mid East(8.00%),Oceania(6.00%),Eastern Asia(6.00%),Western Europe(6.00%),Central America(4.00%),South Asia(4.00%),Northern Europe(00.00%),Southern Europe(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Scaffolding/Concrete Pump/Mortar Spraying Machine/Concrete Mixer/Wall Polishing Machine,Excavator
4. why should you buy from us not from other suppliers?
Our company is an independent research and development machinery and equipment manufacturer, based on nearly 10 years of market practical experience, focusing on the field of concrete pumps.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Hebei, China, start from 2019,sell to South America(15.00%),Africa(15.00%),Eastern Europe(14.00%),North America(10.00%),Southeast Asia(10.00%),Mid East(8.00%),Oceania(6.00%),Eastern Asia(6.00%),Western Europe(6.00%),Central America(4.00%),South Asia(4.00%),Northern Europe(00.00%),Southern Europe(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Scaffolding/Concrete Pump/Mortar Spraying Machine/Concrete Mixer/Wall Polishing Machine,Excavator
4. why should you buy from us not from other suppliers?
Our company is an independent research and development machinery and equipment manufacturer, based on nearly 10 years of market practical experience, focusing on the field of concrete pumps.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
