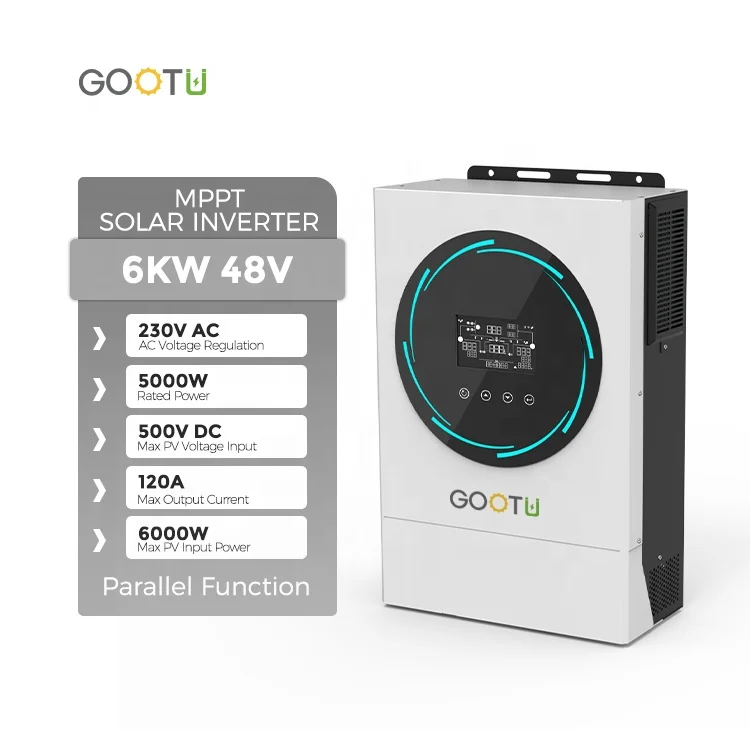

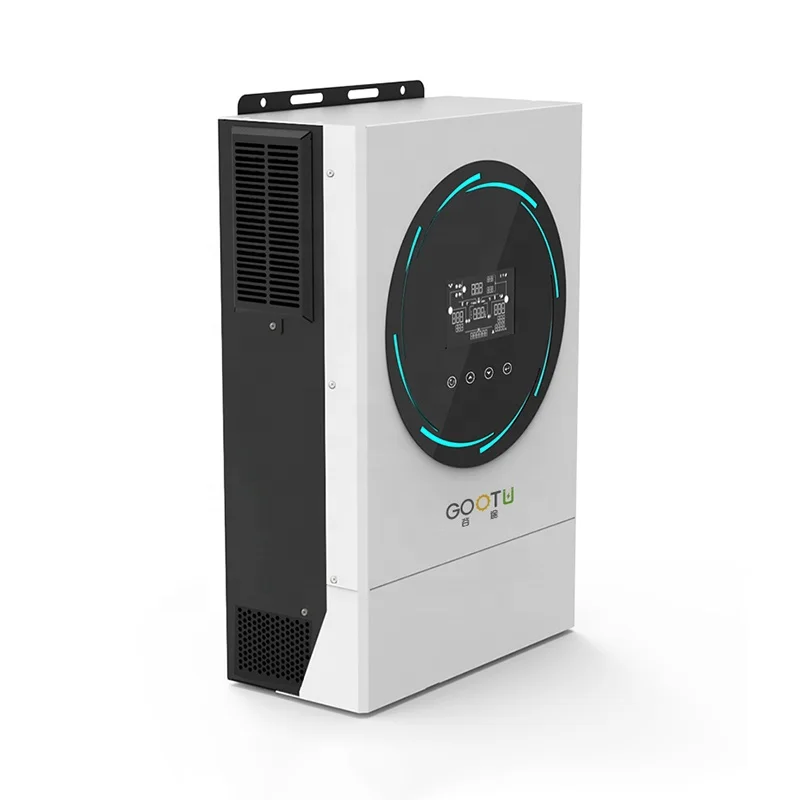

6 кВт параллельный инвертор PWM 120 А MPPT Контроллер заряда солнечной батареи 220 В переменного тока однофазный Гибридный солнечный
- Категория: Solar Energy Products >>>
- Поставщик: Shenzhen,Jiesaiyuan,Electricity,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.10 $* | 0.22 $* |
| Aug-17-2025 | 0.59 $* | 0.74 $* |
| Jul-17-2025 | 0.54 $* | 0.98 $* |
| Jun-17-2025 | 0.25 $* | 0.45 $* |
| May-17-2025 | 0.30 $* | 0.74 $* |
| Apr-17-2025 | 0.98 $* | 0.89 $* |
| Mar-17-2025 | 0.26 $* | 0.10 $* |
| Feb-17-2025 | 0.21 $* | 0.92 $* |
| Jan-17-2025 | 0.76 $* | 0.26 $* |
Характеристики
Product Description
6KW PWM Single Phase 120A MPPT 48V Hybrid Solar Inverter Support Parallel No Battery
Main Features
1. 120A MPPT solar charger inside, max pv input 6kw+ (27A ) 2. With local wifi built inside (Requires App. Remote Wifi optional) 3. USB on-the-go function 4. Optional for parallel operation up to 9 units

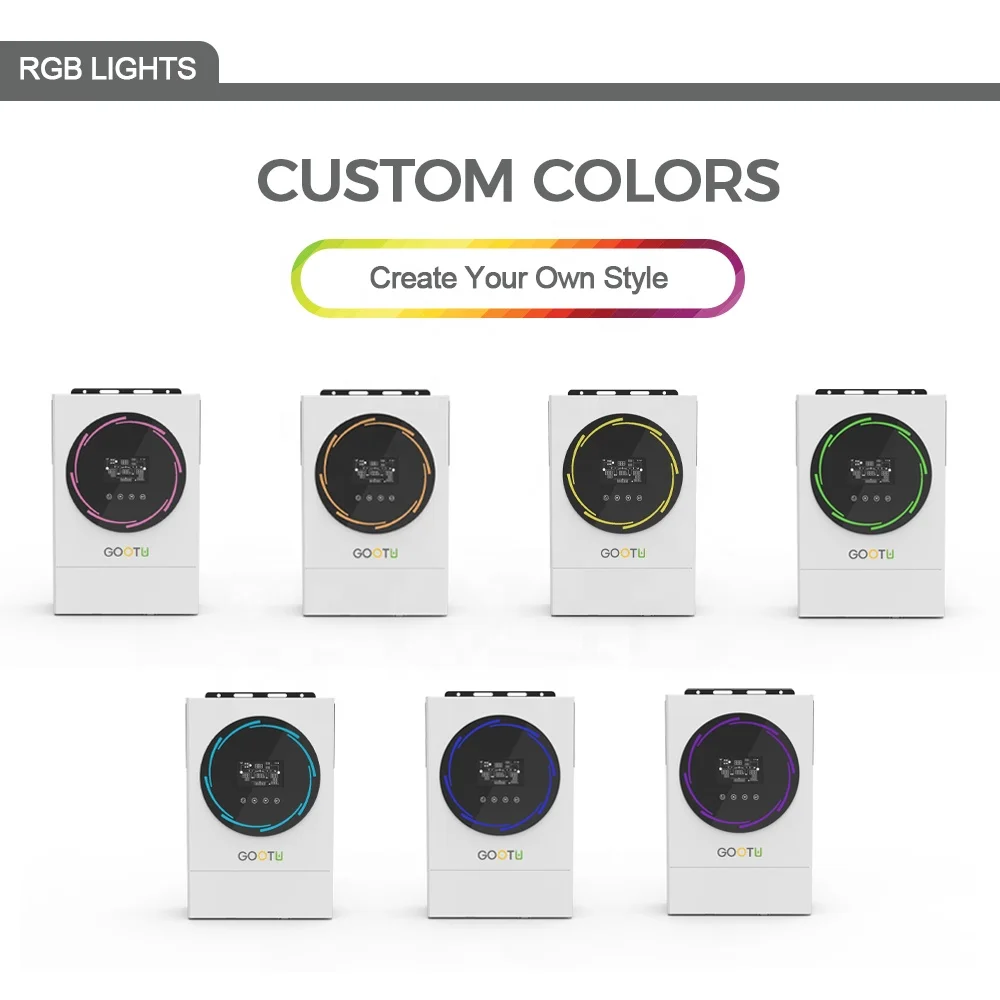

5. User programmable RGB lighting for different operation mode.

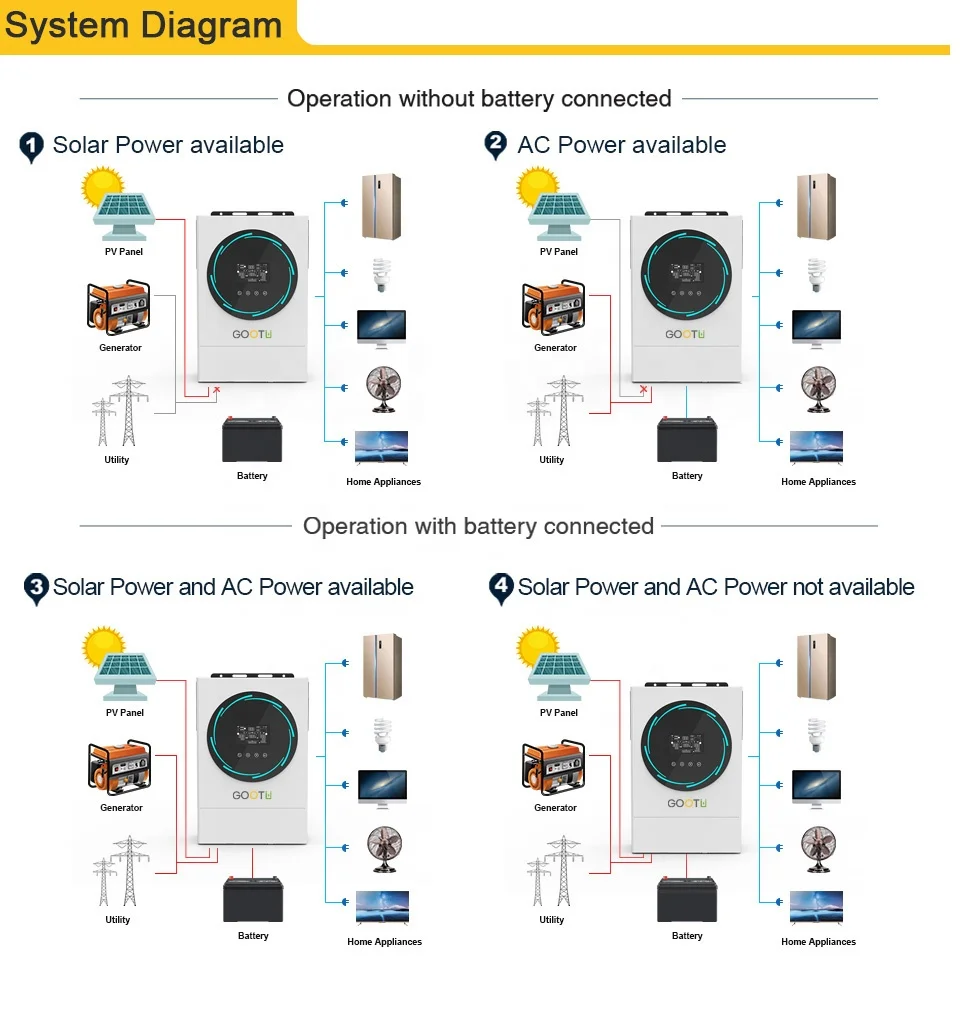

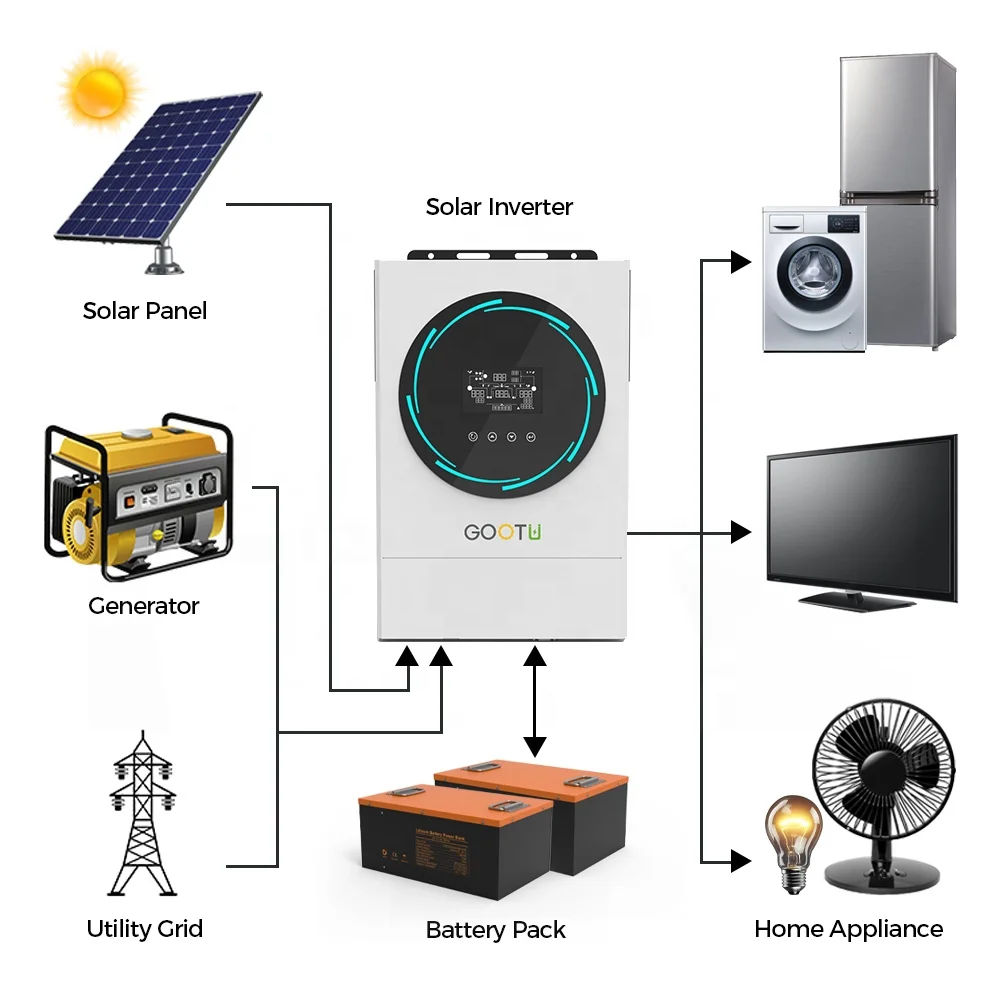

6. Smart battery management.Compitable with different types of batteries:Lead acid, AGM, Gel, flooded, tubular,LiFePo4 7. On grid and off grid solar inverter, support self-consumption and feed into the grid. 8. Various communication such as USB/RS232/RS485/dry contact/WIFI/ optional.
9. Touch buttons on LCD display 10. Wide PV input range (Up to 500Vdc), support no battery working during the day time.
1. 120A MPPT solar charger inside, max pv input 6kw+ (27A ) 2. With local wifi built inside (Requires App. Remote Wifi optional) 3. USB on-the-go function 4. Optional for parallel operation up to 9 units
5. User programmable RGB lighting for different operation mode.
6. Smart battery management.Compitable with different types of batteries:Lead acid, AGM, Gel, flooded, tubular,LiFePo4 7. On grid and off grid solar inverter, support self-consumption and feed into the grid. 8. Various communication such as USB/RS232/RS485/dry contact/WIFI/ optional.
9. Touch buttons on LCD display 10. Wide PV input range (Up to 500Vdc), support no battery working during the day time.
Data Sheet
Model No. | JSK-H4860E120P | |
Basical information | ||
Max. PV Input Power | 6000W | |
Rated AC Output Power | 6000W | |
Grid-Tie Operation | ||
PV Input (DC) | ||
Nominal DC Volt/Max DC Voltage | 360VDC/500VDC | |
Start-up Voltage/Initial Feeding Voltage | 120VDC | |
MPPT Voltage Range | 120-450VDC | |
No. of MPPT Tracker/Max. Input Current | 1/27A | |
Grid Output (AC) | ||
Nominal Output Volt | 230Vac, Single Phase (dual AC output) | |
Output Voltage Range | 184V-265Vac or 195-253V (Selectable) | |
Nominal Output Current | 26.0A | |
Power Factor | >0.9 | |
Efficiency | ||
Max. Conversion Efficiency (DC/AC) | 96% | |
Off-Grid Operation | ||
AC Input (AC) | ||
AC Start-up Voltage/Auto Restart Volt. | 120Vac-140Vac/180Vac | |
Acceptable Input Voltage Range | 90-280Vac or 170-280Vac | |
Max. AC Input Current | 40A | |
PV Input (DC) | ||
Max. DC Voltage | 500VDC | |
MPPT Voltage Range | 120-450VDC | |
No. of MPPT Tracker/Max. Input Current | 1/27A | |
Grid Tie Mode | ||
Nominal Output Volt | 220Vac/230Vac/240Vac, Single Phase | |
Feed-in Voltage Range | 184V-265Vac | |
Max Efficiency DC/AC | >95% | |
Battery Mode Output | ||
Nominal Output Volt | 220Vac/230Vac/240Vac (dual AC output) | |
DC output | 1pc*12Vdc/10A Max | |
Waveform | Pure sine wave | |
Efficiency(DC to AC) | 93% | |
Hybrid Operation | ||
PV Input (DC) | ||
Nominal DC Volt/Max DC Voltage | 360VDC/500VDC | |
Start-up Voltage/Initial Feeding Voltage | 120VDC | |
MPPT Voltage Range | 120-450VDC | |
No. of MPPT Tracker/Max. Input Current | 1/27A | |
Grid Output (AC) | ||
Nominal Output Volt | 220Vac/230Vac/240Vac, Single Phase (dual AC output) | |
Output Voltage Range | 184V-265Vac or 195-253V (Selectable) | |
Nominal Output Current | 26.0A | |
AC Input (AC) | ||
AC Start-up Voltage/Auto Restart Volt. | 120Vac-140Vac/180Vac | |
Acceptable Input Voltage Range | 90-280Vac or 170-280Vac | |
Max. AC Input Current | 40A | |
Battery Mode Output | ||
Nominal Output Volt | 220Vac/230Vac/240Vac (dual AC output) | |
DC output | 1pc*12Vdc/10A Max | |
Waveform | Pure sine wave | |
Efficiency(DC to AC) | 93% | |
Battery & Charger | ||
Battery Type Supported | Lead Acid/VRLA/AGM/GEL/Flooded/Tubular/LiFePO4 | |
Nominal Battery Voltage | 48Vdc | |
Max Solar Charge Current | 120A | |
Max AC Charge Current | 120A | |
Max Total Charge Current | 120A | |
General | ||
Physical | ||
Products Dimension,D X W X H (mm) | 456*303*148 | |
Product Net Weight(kgs) | 12 | |
Packing Dimension,D X W X H (mm) | 535mm*382*mm*224mm,1PC/CTN | |
Gross Weight(kgs) | 13.5 | |
Parallel functions Optional | Yes, optional, max 9pcs | |
Communication Interface | RS232,USB,RS485,WIFI | |
Environment | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature | -10℃ to 50℃ | |
Storage Temperature | -15℃ to 60℃ | |
* Product specifications are subject to change without further notice | ||
