PRODUCTS DESCRIPTION

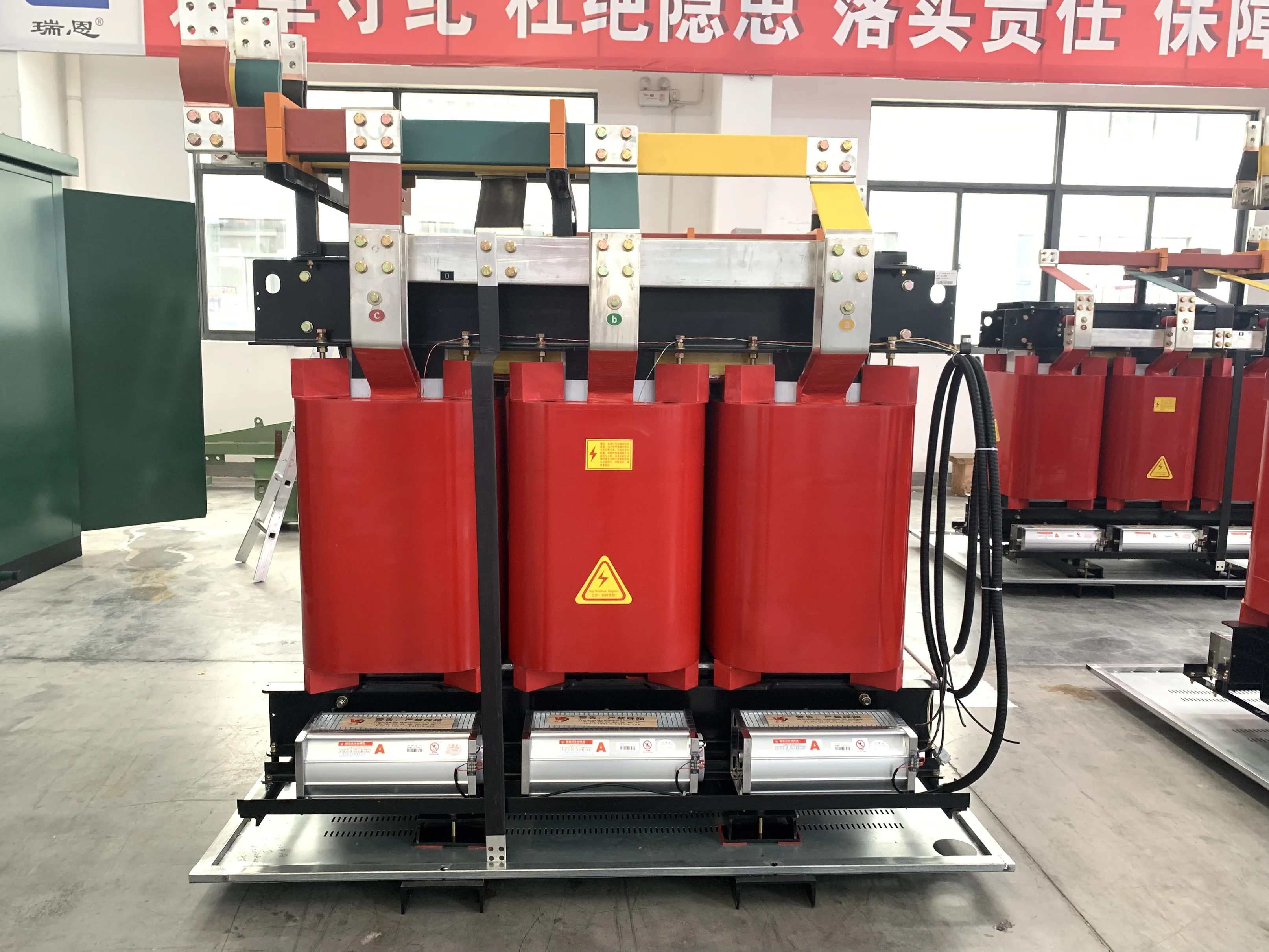

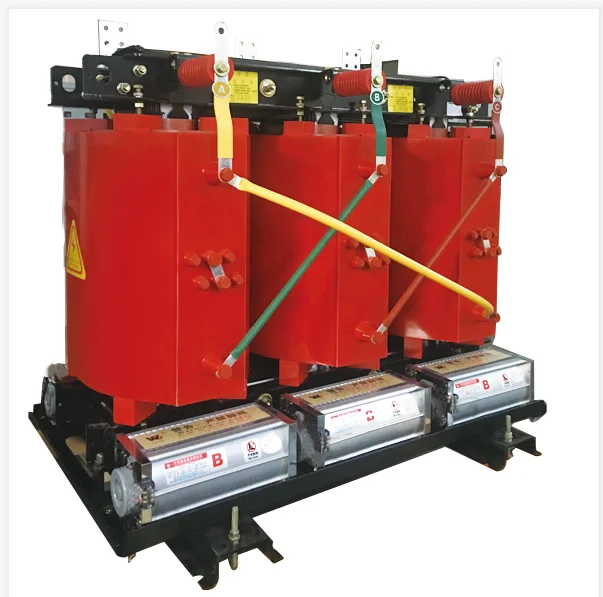

Cast resin transformers are characterized by the conductors of the windings being embedded completely in an enclosed cast resin body with a smooth surface. Ryan Electric invests every day to improve products quality, environmental impact reduction and customer services. Thanks to experience, expertise and commitment of professional working in the company, we have been firmly recognized as one of global leader on manufacturing Cast Resin Dry Type Transformers |
Cast Resin Dry Transformer - MV Series
Maximum Capacity 25MVA, upto 36kv
Application for Commercial, Industrial and residential site
Auto-extinguishing and maintenance free
Customized Service
E2 Environmental Class
C2 Climate Class
F1 Fire Resistance Class
Structure Features
1. The magnetic core has a miter step joint to ensure optimum performance and minimum sound levels by using step lap technology.
2. Windings are casted under vacuum with epoxy resin. Transient analysis tests have been performed to verify the electrical stress distribution
3. Air-cooling system adopts top-blowing cross flow fan, which has the characteristics of low noise, high wind pressure, beautiful look, etc.
4. Intelligent temperature controller improves the safety and reliability of the transformer.
5. Supply various Enclosure options in IP20, IP23, etc.,
Product Advantages
a, Vacuum-Casting
Our product is manufactured with vacuum casting process using a metal pattern, producing a thick resin layer with a smooth surface
b, Partial Discharge Free
Lower partial discharge characteristics.
All units are subjected to partial discharge test
Voltage that is twice that of the operating system is applied to ensure safety
Partial discharge is less than 10 pC
c, Shop Test Items
Routine test
Routine test is a must test for all transformers in our workshop.
Type test (as requested)
Lightning impulse test
Temperature-rise test
Measurement of sound level
Application for Commercial, Industrial and residential site
Auto-extinguishing and maintenance free
Customized Service
E2 Environmental Class
C2 Climate Class
F1 Fire Resistance Class
Structure Features
1. The magnetic core has a miter step joint to ensure optimum performance and minimum sound levels by using step lap technology.
2. Windings are casted under vacuum with epoxy resin. Transient analysis tests have been performed to verify the electrical stress distribution
3. Air-cooling system adopts top-blowing cross flow fan, which has the characteristics of low noise, high wind pressure, beautiful look, etc.
4. Intelligent temperature controller improves the safety and reliability of the transformer.
5. Supply various Enclosure options in IP20, IP23, etc.,
Product Advantages
a, Vacuum-Casting
Our product is manufactured with vacuum casting process using a metal pattern, producing a thick resin layer with a smooth surface
b, Partial Discharge Free
Lower partial discharge characteristics.
All units are subjected to partial discharge test
Voltage that is twice that of the operating system is applied to ensure safety
Partial discharge is less than 10 pC
c, Shop Test Items
Routine test
Routine test is a must test for all transformers in our workshop.
Type test (as requested)
Lightning impulse test
Temperature-rise test
Measurement of sound level
PRODUCTS CATEGORIES
COMPANY INFORMATION
CERTIFICATIONS

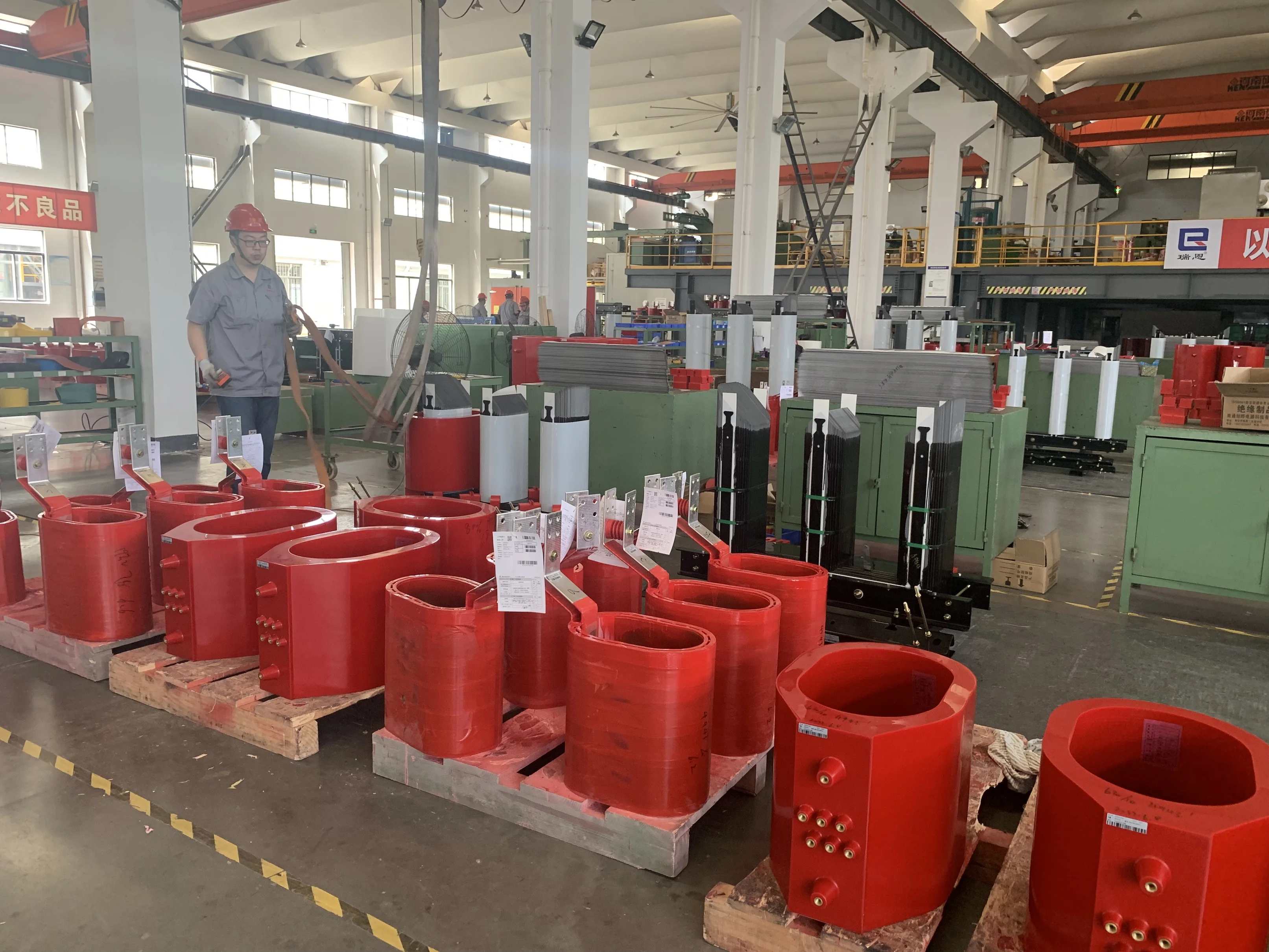

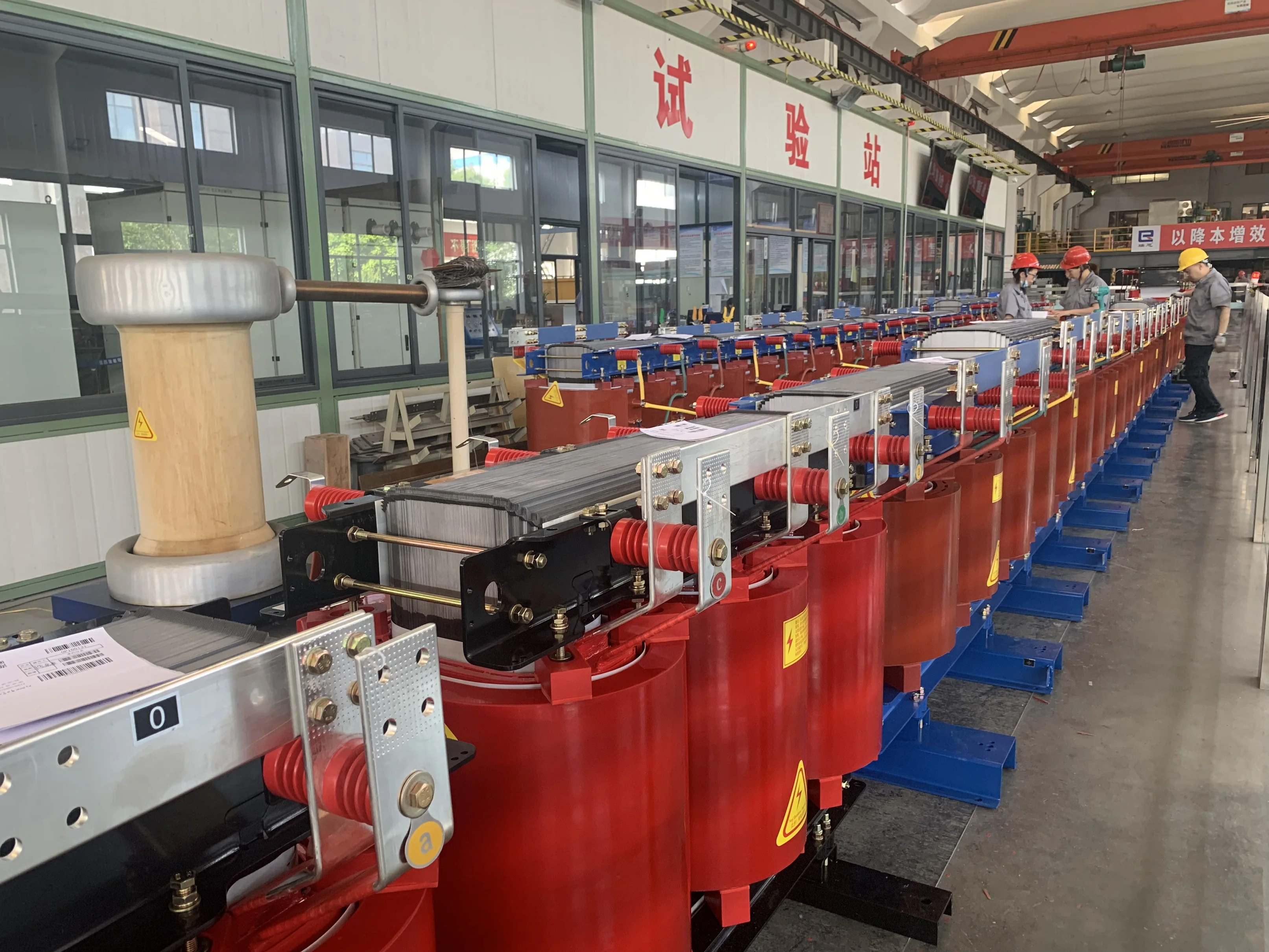

PRODUCTION PROCESS
PACKAGING SHIPPING
FAQ
Q: Are you a manufacturer or trading company?
A: Ryan Electric is a leading and professional manufacturer of Cast Resin transformer, Oil Immersed Transformer and Package Compact Substation since 2007.
Q: What's your advantage compared with other suppliers?
A: As an esteemed power transformer manufacturer in China, our transformer have been awarded and certified by ASTA certification. With high reputation in market, our transformers have been exported to more than 20 different countries.
Q: What are preferred Terms of Payment?
A: T/T, L/C
Q: OEM and ODM available?
A: Yes, we supply customized solution to clients.
Q: What’s your delivery lead-time?
A: Usually, it will take about 15 workdays after deposit of payment.
Q: How long is the warranty of your product?
A: Our warranty period is usually one year. But, the warranty period can be extended on base your project requirement.
A: Ryan Electric is a leading and professional manufacturer of Cast Resin transformer, Oil Immersed Transformer and Package Compact Substation since 2007.
Q: What's your advantage compared with other suppliers?
A: As an esteemed power transformer manufacturer in China, our transformer have been awarded and certified by ASTA certification. With high reputation in market, our transformers have been exported to more than 20 different countries.
Q: What are preferred Terms of Payment?
A: T/T, L/C
Q: OEM and ODM available?
A: Yes, we supply customized solution to clients.
Q: What’s your delivery lead-time?
A: Usually, it will take about 15 workdays after deposit of payment.
Q: How long is the warranty of your product?
A: Our warranty period is usually one year. But, the warranty period can be extended on base your project requirement.
