Резервуар из нержавеющей стали для экстрактора травы с
- Категория: Pharmaceutical Machinery >>>
- Поставщик: Wenzhou,Jinbang,Light,Ind,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 5950.10 $* | 6248.25 $* |
| Aug-20-2025 | 5900.23 $* | 6195.44 $* |
| Jul-20-2025 | 4950.81 $* | 5198.22 $* |
| Jun-20-2025 | 5800.75 $* | 6090.88 $* |
| May-20-2025 | 5050.41 $* | 5303.3 $* |
| Apr-20-2025 | 5700.20 $* | 5985.87 $* |
| Mar-20-2025 | 5650.2 $* | 5933.39 $* |
| Feb-20-2025 | 5600.82 $* | 5880.65 $* |
| Jan-20-2025 | 5550.21 $* | 5828.80 $* |
Характеристики
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.
Application
Products Description

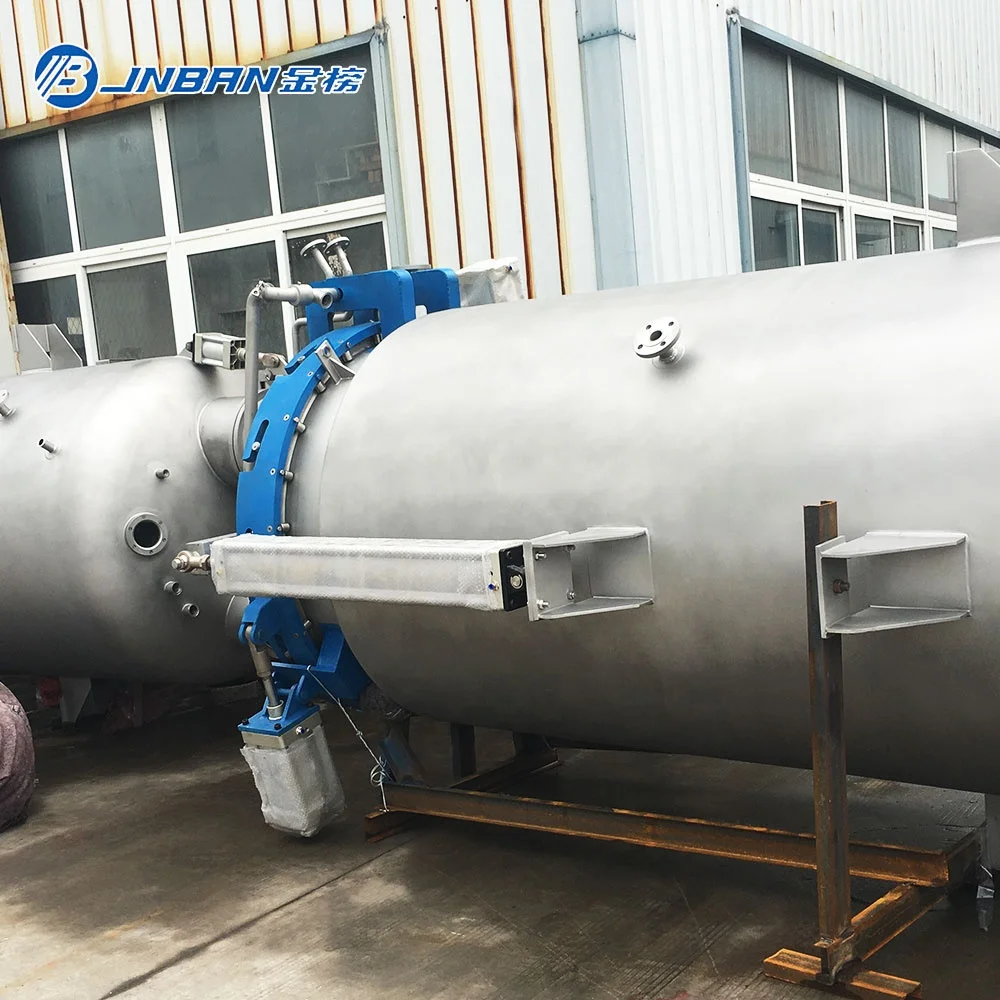

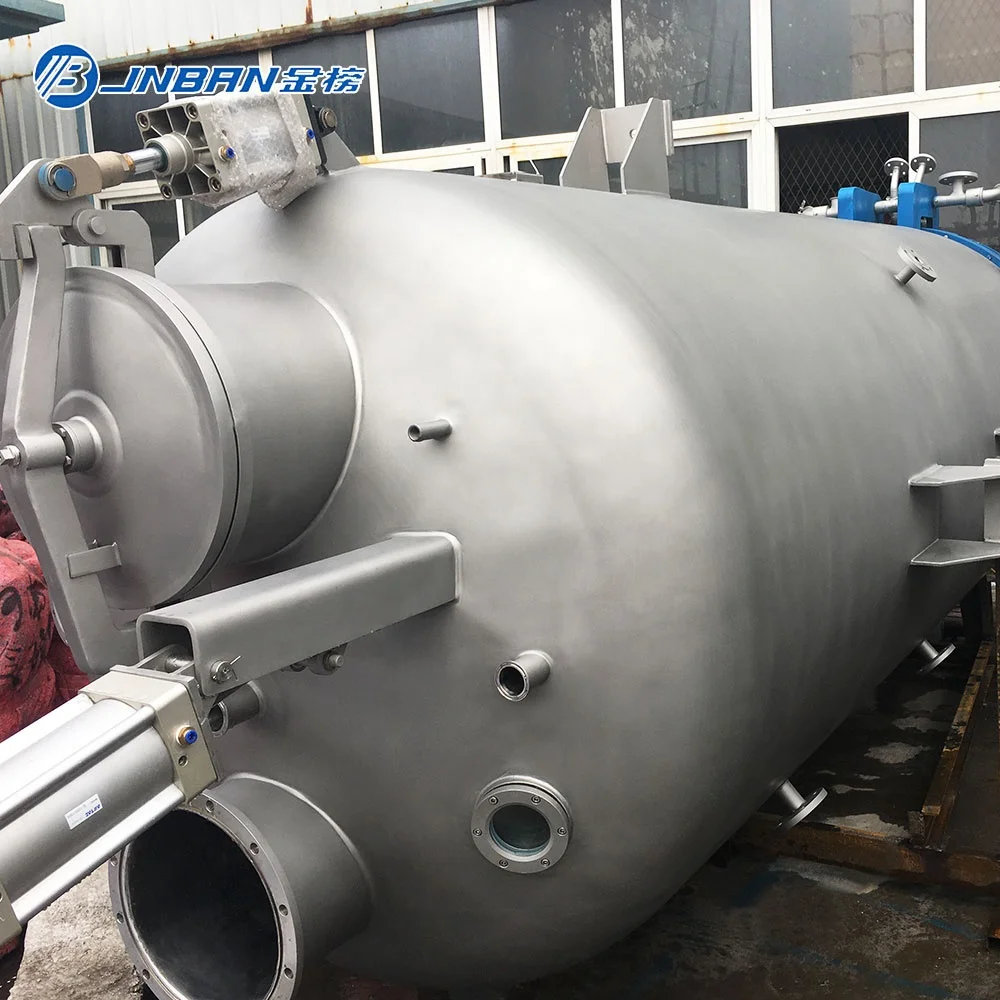

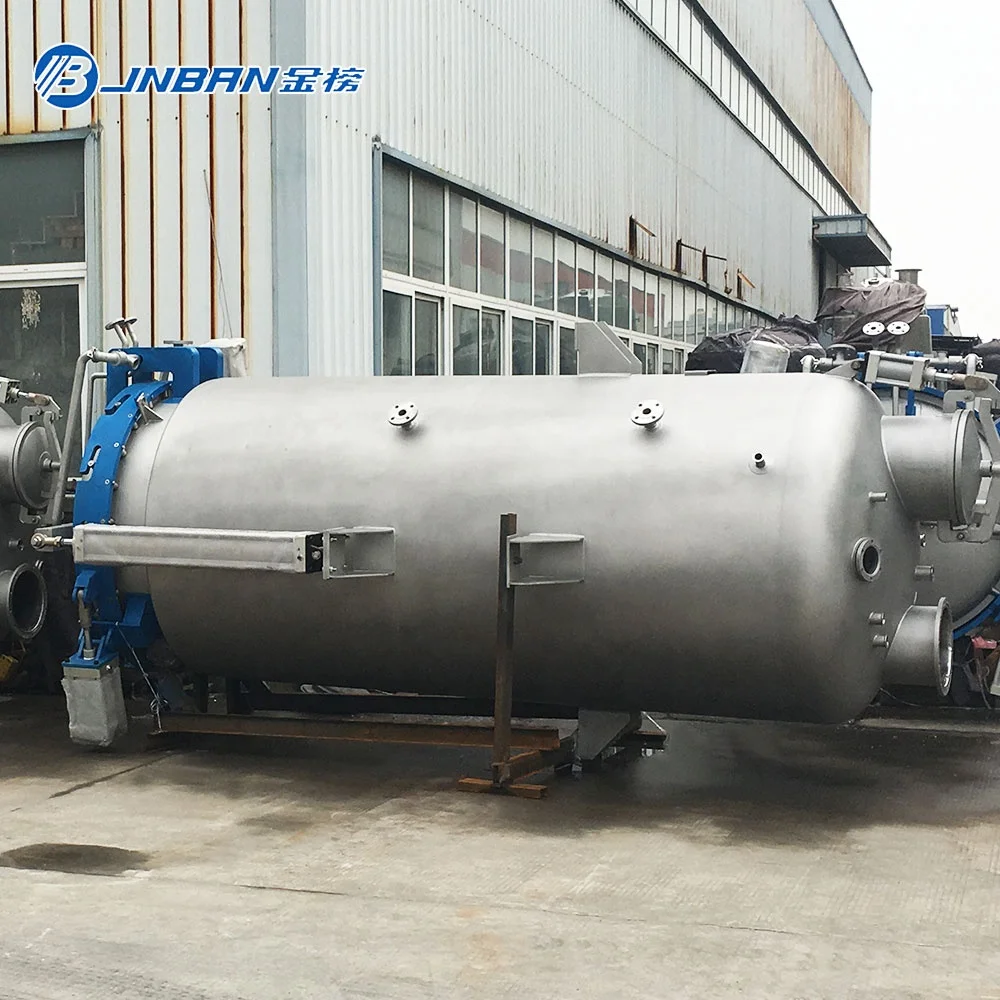

Stainless steel tank for closed loop extractor herb extraction machine
Put the medicinal materials to be extracted into the extraction tank, and add a certain proportion of solvents such as water,ethanol, methanol, acetone, etc. according to the production process (add it according to the process). For the extraction of the original medicine, the extraction temperature can be set according to actual needs. The extraction is carried out according to the production process. After the extraction is completed, the pipeline valves are opened in sequence, and the liquid is pumped into the concentration tank for concentration. The temperature of the concentrated liquid is set at the required value, and the vacuum degree is maintained at -0.05 to -0.09MPA. The secondary steam generated during the concentration passes through the condenser and cooler to become the condensate and return to the extraction tank as a new solvent. Add the new solvent to the medicine. From top
to bottom, through the medicinal material layer to the bottom of the extraction tank, the soluble components in the medicinal material are dissolved in the solvent in the extraction tank, and sent to the extraction tank as a new solvent, forming a new solvent and refluxing extraction until it is completely dissolved (the extract is colorless) and the concentration continues. ,Until it is concentrated into the required specific gravity ointment, the colorless liquid in the extraction tank can be reused next time.
to bottom, through the medicinal material layer to the bottom of the extraction tank, the soluble components in the medicinal material are dissolved in the solvent in the extraction tank, and sent to the extraction tank as a new solvent, forming a new solvent and refluxing extraction until it is completely dissolved (the extract is colorless) and the concentration continues. ,Until it is concentrated into the required specific gravity ointment, the colorless liquid in the extraction tank can be reused next time.
Equipment advantages:
●Intelligent: PLC control extraction and separation pressure and temperature and other parameters, operating interface is
intuitive and convenient;
● High pressure: The design pressure of the extractor is 55 MPa, and the working pressure is 50 MPa;
● Safety: With hardware security protection measures, and software system has the function when overpressure the pump will be stopped ;
● Convenience: Extractor clamp quick-opening structure, and use an electric hoist to lift seal plug and loading barrel;
● Energy conservation: CO2 can be recycled, and the CO2 in the extractor and cylinder can be recover lower than 0.8 MPa;
● High efficiency: Optimize extraction process, the capacity can be increased more than 50 %.
intuitive and convenient;
● High pressure: The design pressure of the extractor is 55 MPa, and the working pressure is 50 MPa;
● Safety: With hardware security protection measures, and software system has the function when overpressure the pump will be stopped ;
● Convenience: Extractor clamp quick-opening structure, and use an electric hoist to lift seal plug and loading barrel;
● Energy conservation: CO2 can be recycled, and the CO2 in the extractor and cylinder can be recover lower than 0.8 MPa;
● High efficiency: Optimize extraction process, the capacity can be increased more than 50 %.
Accessories:

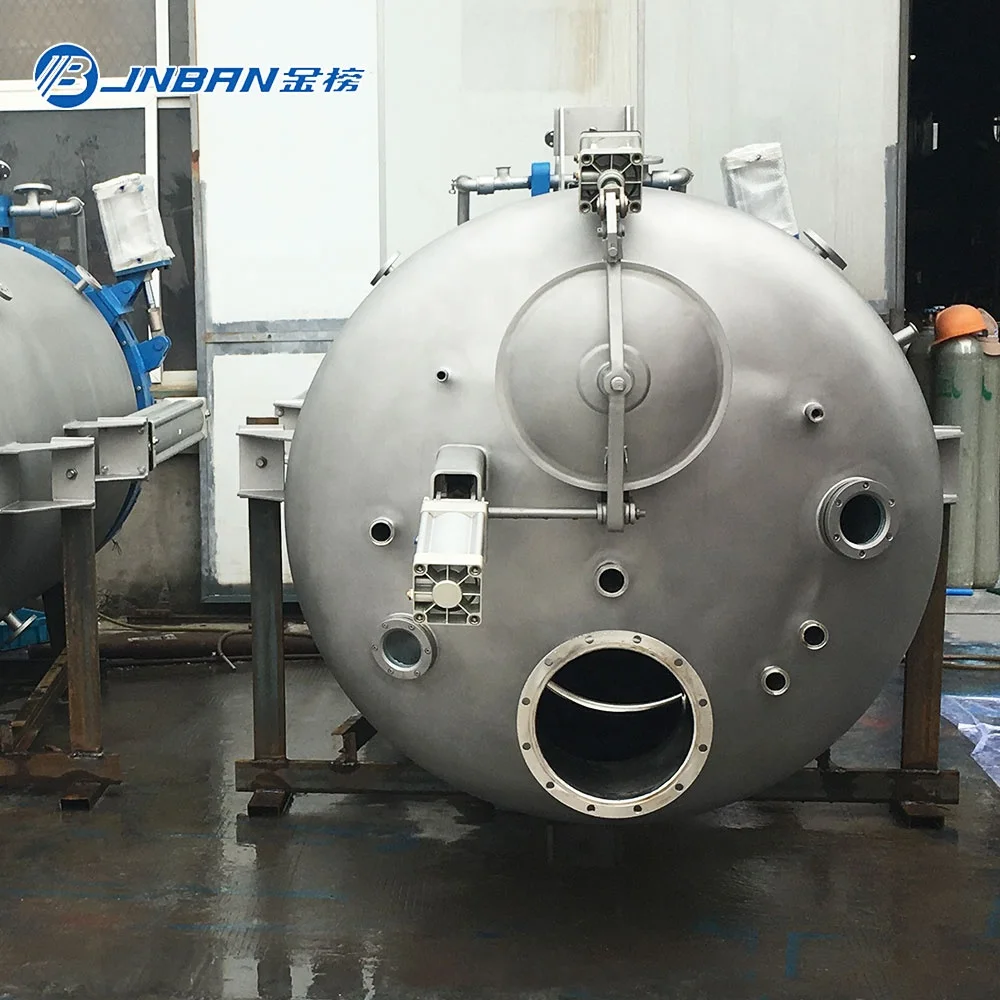

The tank is equipped with CIP cleaning automatic rotating spray ball, temperature gauge, pressure gauge, explosion-proof sightglass lamp, sight glass, quickopening feeding port, etc., to ensure easy operation and meet GMP standards. The inner cylinder ofthe equipment is made of 304 and 316L.
Application
Extraction Machine Range of Application:

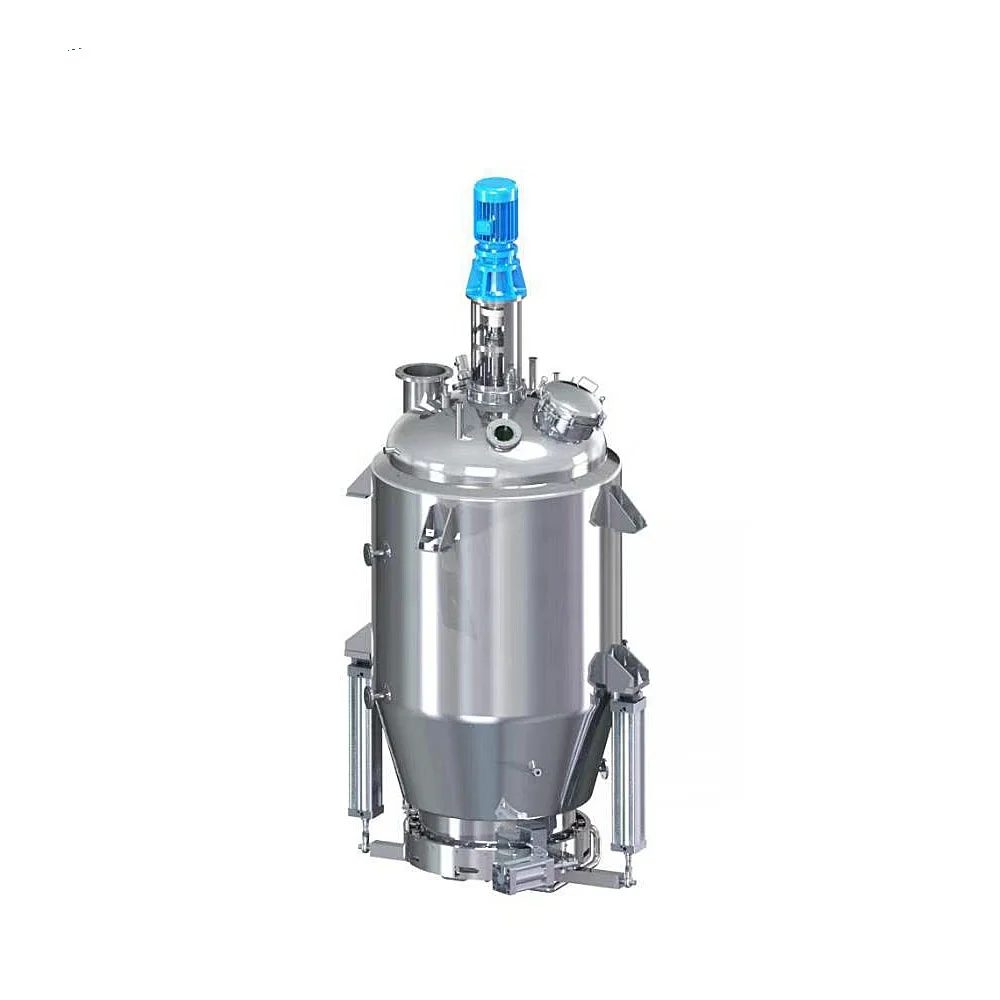

JNBAN Multifunctional Extracting Tank suitable for engineering operations of plants,animals, such as atmospheric
pressure,pressurized water decoction, warm immersion, heat reflux, forced circulation, seepage, aromatic oil extraction andorganic solvent recovery in pharmaceutical,biological, chemical, food, beverage and other industries. It is better to use dynamicextraction or countercurrent extraction, short time and high liquid content.
pressure,pressurized water decoction, warm immersion, heat reflux, forced circulation, seepage, aromatic oil extraction andorganic solvent recovery in pharmaceutical,biological, chemical, food, beverage and other industries. It is better to use dynamicextraction or countercurrent extraction, short time and high liquid content.
Tea
pressurized water decoction, warm immersion, heat reflux, forced circulation, seepage, aromatic oil extraction
Herbal
Extraction – During this process, biomass is placed inside extraction vessel with a solvent(Ethanol, C02, and so on.) to remove
soluble components, followed by filtration and separation process. The solvent then needs to be recovered from dry biomass
soluble components, followed by filtration and separation process. The solvent then needs to be recovered from dry biomass
Essential Oil
Essential oils are generally extracted by distillation, often by using steam. Other processes include expression, solvent
extraction, sfumatura, absolute oil extraction, resin tapping, wax embedding, and cold pressing.
extraction, sfumatura, absolute oil extraction, resin tapping, wax embedding, and cold pressing.
Product Paramenters
Series technical parametes | TQ-1 | TQ-2 | TQ-3 | TQ-4 | TQ-5 | TQ-6 |
Volume(L) | 1200 | 2300 | 3200 | 6300 | 8500 | 11000 |
Tank design pressure (MPA) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
Compressed air pressure (MPA) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
Feed port diameter (mm) | 400 | 400 | 400 | 500 | 500 | 500 |
Heating area (m²) | 3.0 | 4.7 | 6.0 | 7.5 | 9.5 | 12 |
Condensation area (m²) | 4 | 4 | 5 | 5 | 8 | 10 |
Coling area (m²) | 1 | 1 | 1 | 2 | 2 | 3 |
Filtration area (m²) | 3 | 3 | 3 | 5 | 5 | 6 |
Slag gate area (m²) | 800 | 800 | 800 | 1000 | 1000 | 1000 |
Energy consumption (kg/h) | 245 | 325 | 345 | 645 | 720 | 850 |
Successful Project
Herbal Project
Herbal Project
Essential Oil Project
Essential Oil Project
Herbal Project
CBD Oil Project
FAQ
Q1: who are we?
A1: We are a factory based in CN , Zhejiang , Wenzhou, No. 420 Binhai 23rd Road, Binhai Park, Economic Technological
Development Zone, We are always welcome your visit.
Q2: How can we guarantee quality?
A2: We can provide the whole production process to you by video or live stream, we also have International Certification like CE,
ISO9001, etc
Q3: What kind of products can extractor process?
A3: All kinds of liquid material.
Q4: How to ship extractor?
A4: Flat Rack+container
Q5: What is the delivery time?
A5: 45 days
Q6: What is the after-sales service type?
A6: Engineers onsite to guide installation, commissioning and training
Q7: What can you buy from us?
A7: Extractor, concentrator, evaporator, vacuum belt dryer and other stainless steel products.
A1: We are a factory based in CN , Zhejiang , Wenzhou, No. 420 Binhai 23rd Road, Binhai Park, Economic Technological
Development Zone, We are always welcome your visit.
Q2: How can we guarantee quality?
A2: We can provide the whole production process to you by video or live stream, we also have International Certification like CE,
ISO9001, etc
Q3: What kind of products can extractor process?
A3: All kinds of liquid material.
Q4: How to ship extractor?
A4: Flat Rack+container
Q5: What is the delivery time?
A5: 45 days
Q6: What is the after-sales service type?
A6: Engineers onsite to guide installation, commissioning and training
Q7: What can you buy from us?
A7: Extractor, concentrator, evaporator, vacuum belt dryer and other stainless steel products.
