Светодиодный вакуумный блок для подсветки букв из акрила АБС-пластика
- Категория: Plastic Vacuum Forming Machines >>>
- Поставщик: Guangzhou,Disen,Electromechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 3570.48 $* | 3749.57 $* |
| Aug-19-2025 | 3540.7 $* | 3717.6 $* |
| Jul-19-2025 | 2970.83 $* | 3119.50 $* |
| Jun-19-2025 | 3480.65 $* | 3654.19 $* |
| May-19-2025 | 3030.19 $* | 3182.0 $* |
| Apr-19-2025 | 3420.39 $* | 3591.84 $* |
| Mar-19-2025 | 3390.33 $* | 3560.66 $* |
| Feb-19-2025 | 3360.26 $* | 3528.82 $* |
| Jan-19-2025 | 3330.65 $* | 3497.98 $* |
Характеристики
Note: This quotation is a custom deposit, which can be customized according to customer requirements, please contact the salesperson for details.
Product Description
Specification

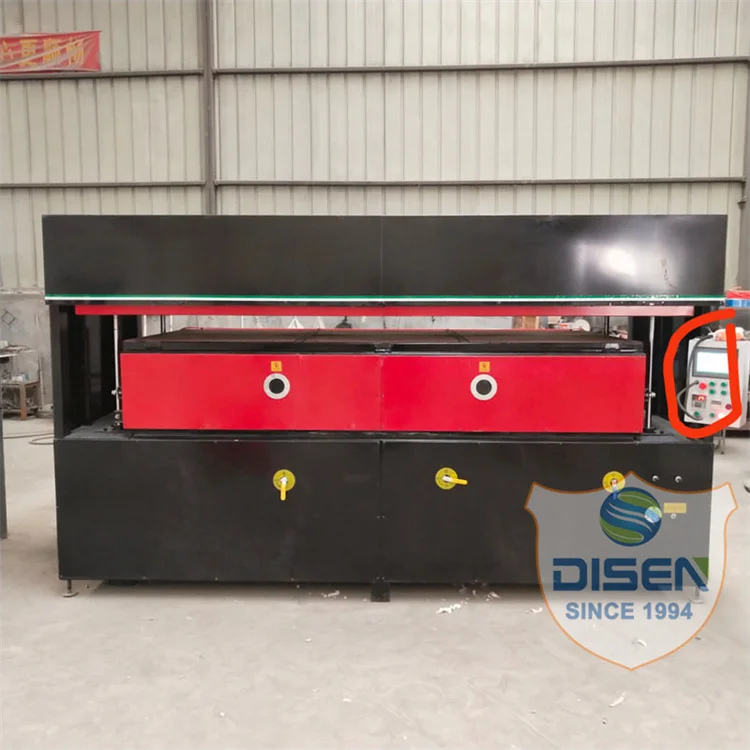

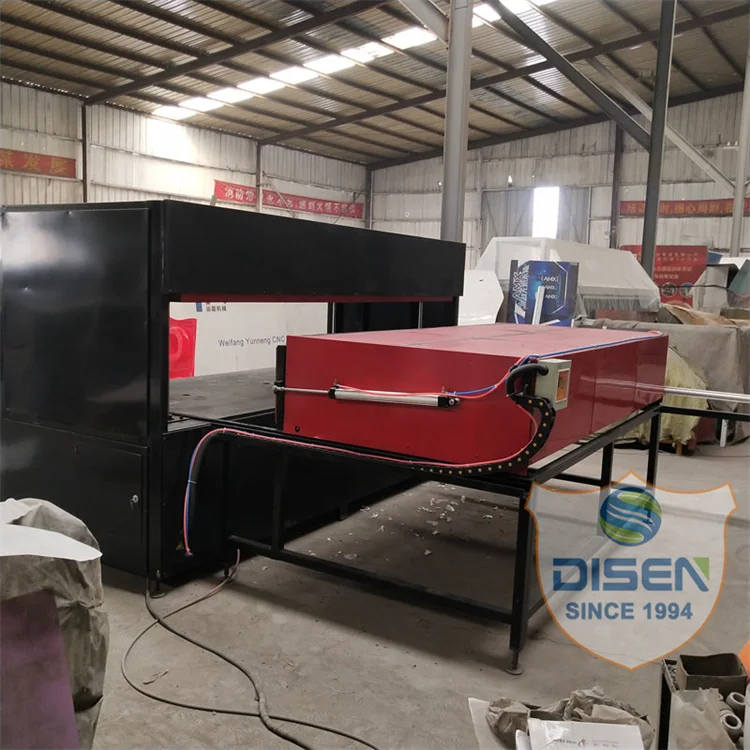

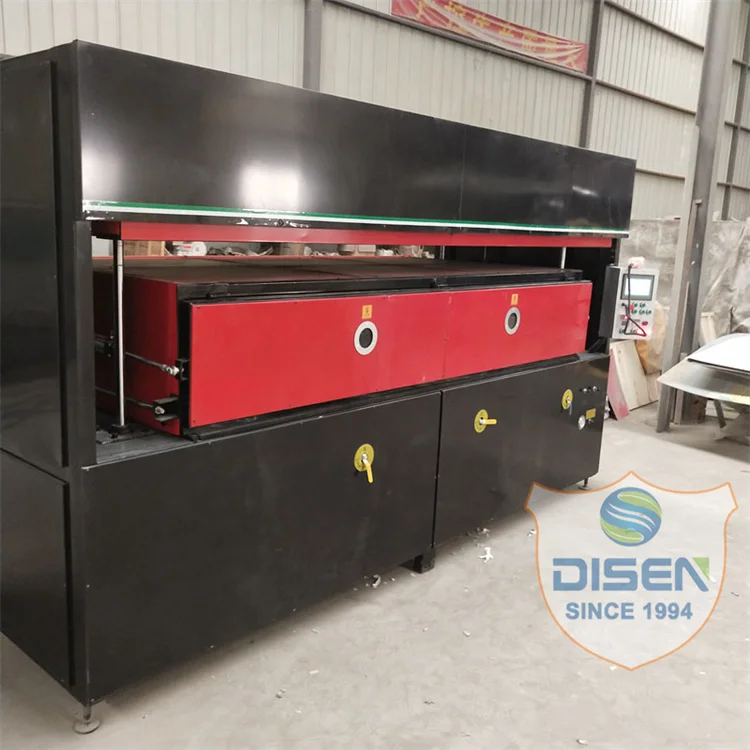

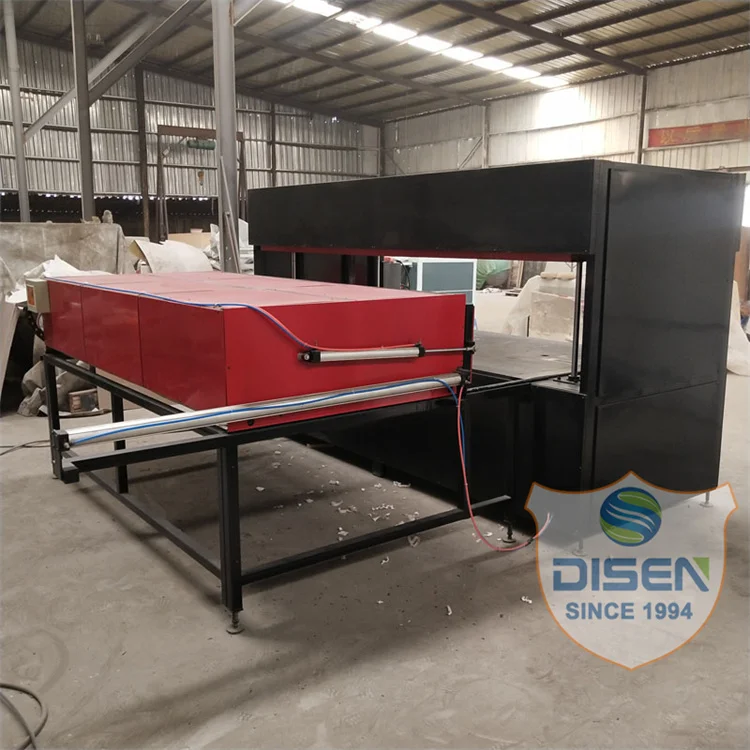

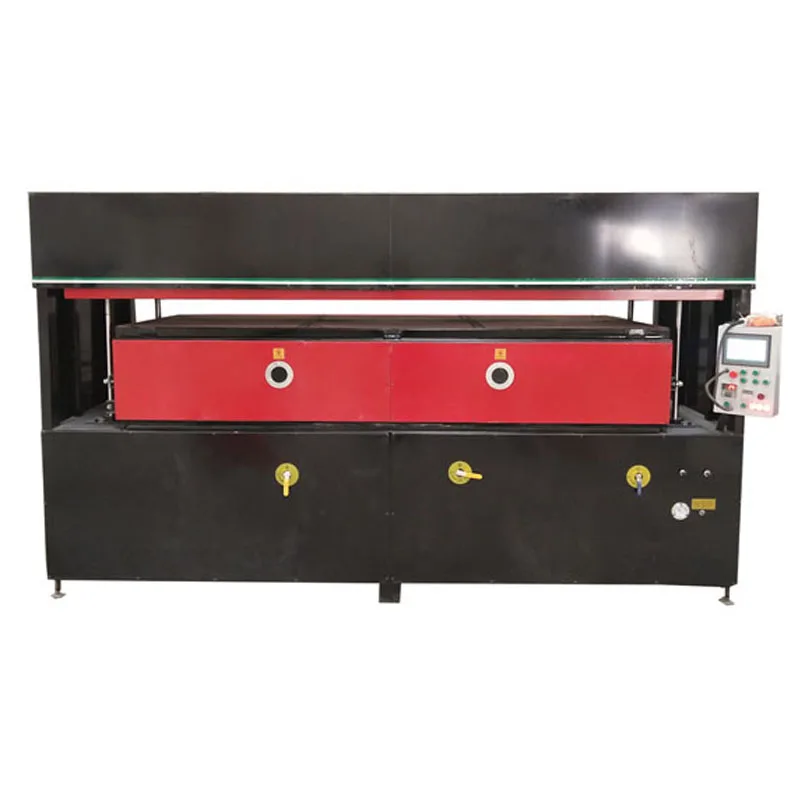

Name | Acrylic letter vacuum press |
maximum forming height | 150mm |
Size of material | 1200*2400 mm |
Maximum product size | 1000*2200 mm |
Voltage | 3/380 |
Power | 22kw |
Weight | 1200kg |
Suitable material | acrylic /pvc/ abs |
Application Industry and material :
1)Plastic moulding&mask making
2)Advertising signage making
3)University or research institutions teaching experiments
4)Chocolate and cake package box making
5)Industrial & automobile decoration
6)Other thermoplastic material forming industrial
7) Application material: PMMA(Acrylic ), PVC,ABS,PE,PET ,Poly styrene ,poly propylene ect.
1)Plastic moulding&mask making
2)Advertising signage making
3)University or research institutions teaching experiments
4)Chocolate and cake package box making
5)Industrial & automobile decoration
6)Other thermoplastic material forming industrial
7) Application material: PMMA(Acrylic ), PVC,ABS,PE,PET ,Poly styrene ,poly propylene ect.
Feature:
1.Intelligent temperature control, heating box use the shaped reflector and thickened insulation layer, heating fast and with good insulation and safety performance.
2. Customized heaters from factory which can run 24hours continuously, service life up to 8000-10000 hours, the working temperature difference is±5 degrees, which can ensure even softening temperature of plate.
3.Working platform is made of steel which is high temperature resistant and long life service.Adopt single mould forming, easy operation, lower raw material and labor cost.
4. The aluminum alloy press frame controlled by two cylinders is more convenient to use and improves the sealing and forming effect.
5.Add movable platform controlled by two cylinder to ensure smooth lifting & increase the molding height.
6.More powerful vacuum pump , finish vacuum forming sample more beautiful
7.Air storage tank is installed to extend the service life of vacuum pump, at the moment of moulding, the suction force is stronger and the forming effect is better.
8.Add blowing function, not only easy to demoulding, and can complete the ball blow molding.
1.Intelligent temperature control, heating box use the shaped reflector and thickened insulation layer, heating fast and with good insulation and safety performance.
2. Customized heaters from factory which can run 24hours continuously, service life up to 8000-10000 hours, the working temperature difference is±5 degrees, which can ensure even softening temperature of plate.
3.Working platform is made of steel which is high temperature resistant and long life service.Adopt single mould forming, easy operation, lower raw material and labor cost.
4. The aluminum alloy press frame controlled by two cylinders is more convenient to use and improves the sealing and forming effect.
5.Add movable platform controlled by two cylinder to ensure smooth lifting & increase the molding height.
6.More powerful vacuum pump , finish vacuum forming sample more beautiful
7.Air storage tank is installed to extend the service life of vacuum pump, at the moment of moulding, the suction force is stronger and the forming effect is better.
8.Add blowing function, not only easy to demoulding, and can complete the ball blow molding.
Other Model Parameter:
Model | DSA-FB6060 | DSA-FB1212 | DSA-FB1218 | DSA-FB1224 | DSA-FB2030 | ||||
Working area(mm) | 600* 600 | 1200*1200 | 1200*1800 | 1200* 2400 | 2000*3000 | ||||
Forming area(mm) | 540* 540 | 1040* 1040 | 1040*1640 | 1040*2240 | 1840*2840 | ||||
Power | 3.6KW | 9KW | 18 KW | 22 KW | 30 KW | ||||
Max forming height(mm) | 200 | 300 | 300 | 300 | 300 | ||||
voltage | 380V or 220V | 380V | 380V | 380V | 380V | ||||
Vacuum pump output | 20m3/h | 60m3/h | 60m3/h | 60m3/h | 100m3/h | ||||
Frequency | 50-60HZ | ||||||||
Machine size(mm) | 930*950*1300 | 1670* 1550* 1650 | 2273* 1550*1650 | 2873* 1550*1657 | 3534*2350*1650 | ||||
