Лидер продаж 3 оси 4 ЧПУ 2030 2040 деревянная мебель фрезерный станок 3d деревообрабатывающий для резьбы по дереву с 5 *
- Категория: Woodworking Machinery >>>
- Поставщик: Shandong,Pratt,CNC,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 3808.61 $* | 3998.87 $* |
| Aug-19-2025 | 3776.42 $* | 3965.86 $* |
| Jul-19-2025 | 3168.23 $* | 3326.49 $* |
| Jun-19-2025 | 3712.29 $* | 3898.27 $* |
| May-19-2025 | 3232.15 $* | 3394.83 $* |
| Apr-19-2025 | 3648.12 $* | 3830.65 $* |
| Mar-19-2025 | 3616.5 $* | 3797.48 $* |
| Feb-19-2025 | 3584.41 $* | 3763.99 $* |
| Jan-19-2025 | 3552.19 $* | 3730.23 $* |
Характеристики
Products Description

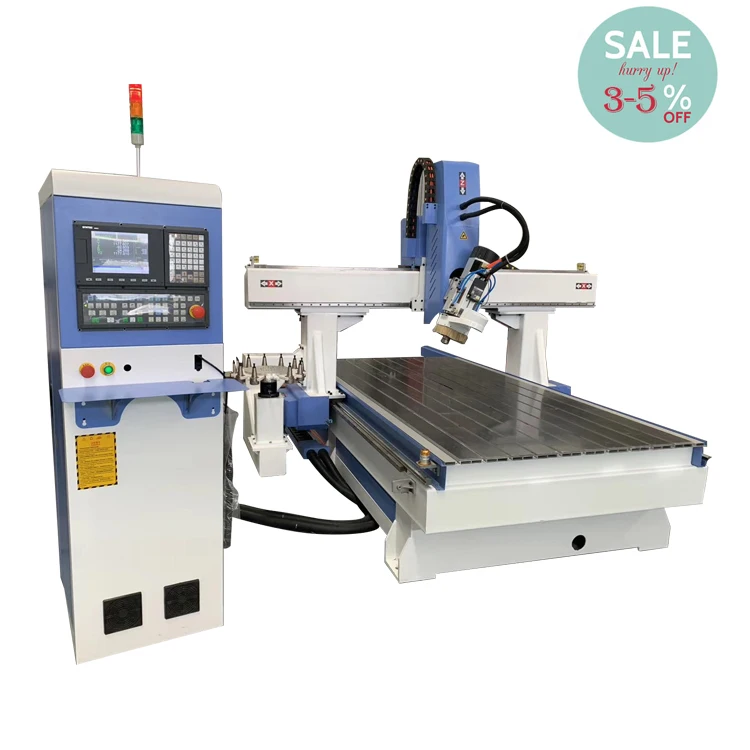

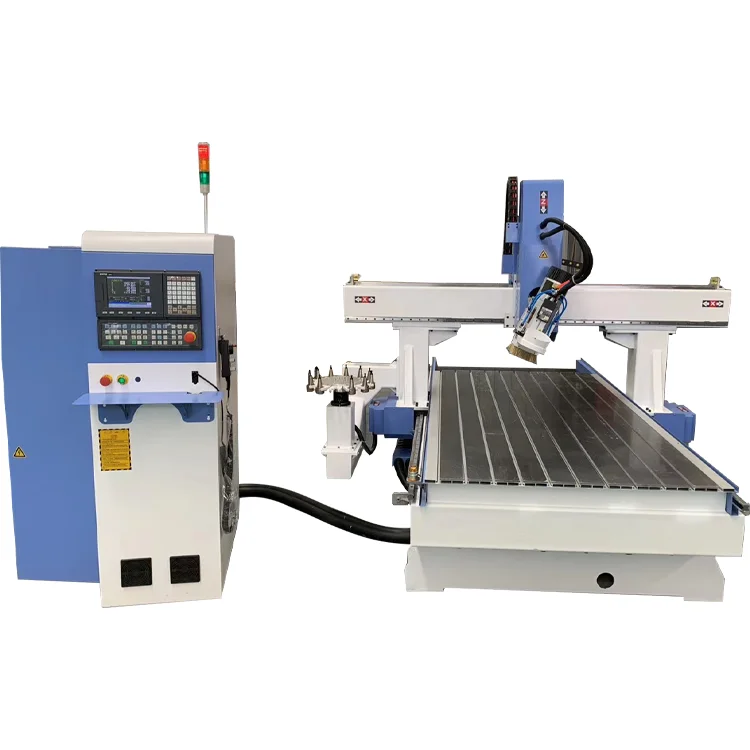

1325 1300*2500mm 3d Wood Engraving CNC Router Machine
Applications:
Advertisement: engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials includingmarble, brass, steel, and other metallic material.
Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artisticcrafts, and stiletto.
Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
Architectural models: engraving fine window, fencing and wall patterns, etc.
Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
Label: engraving character, number, and other pattern on label for products and on product directly.
Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.
Features and specialties of PRW-1325:
1.Lathe bed is cast wholly by iron,strong and never out of shape.
2 3.2kw air\\Watercooled spindle with 24,000rpm,VFD, high speed. .
3. ·Imported 2.5cm PMI square guide rail with flange sliding block, rack and pinion, stability.
4.DSP off-line control,transmiting files by USB flash stick.
5.Optimization of mechanical and dis-assemble machine stand which can save the space of shiment.
6.Applicable on furniture processing,sign plate,acylic plate,and even metal engraving like iron,aluminum,ect.
7.compatible with Type3,Artcam,Proe,UG and other software of CAD/CAM.
Advertisement: engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials includingmarble, brass, steel, and other metallic material.
Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artisticcrafts, and stiletto.
Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
Architectural models: engraving fine window, fencing and wall patterns, etc.
Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
Label: engraving character, number, and other pattern on label for products and on product directly.
Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.
Features and specialties of PRW-1325:
1.Lathe bed is cast wholly by iron,strong and never out of shape.
2 3.2kw air\\Watercooled spindle with 24,000rpm,VFD, high speed. .
3. ·Imported 2.5cm PMI square guide rail with flange sliding block, rack and pinion, stability.
4.DSP off-line control,transmiting files by USB flash stick.
5.Optimization of mechanical and dis-assemble machine stand which can save the space of shiment.
6.Applicable on furniture processing,sign plate,acylic plate,and even metal engraving like iron,aluminum,ect.
7.compatible with Type3,Artcam,Proe,UG and other software of CAD/CAM.
Main Features
1. Z axis feeding height 200mm
2. Square tube welded steel frame structure-8mm thickness
3. Aluminum T-slot table 4. X axis rack and pinion drive, Y axis 2 way rack and pinion drive and Z axis Ball screw
5. X, Y, Z axis Taiwan square rails PMI
6. 450B stepper motor and MA860H Leadshine driver or servo motor and driver
7. water cooling spindle and 3.7kw Fuling inverter, other spindles are optional
8. Nc-Studio-5.4.49 control system, DSP or Mach 3 is optional
Optional parts
1,Rotary axis
2,Dust collector
3,MACH3 USB control system
4,Vacuum table with 5.5kw vacuum pump
5,4.5kw/5.5KW water cooling spindle,
1. Z axis feeding height 200mm
2. Square tube welded steel frame structure-8mm thickness
3. Aluminum T-slot table 4. X axis rack and pinion drive, Y axis 2 way rack and pinion drive and Z axis Ball screw
5. X, Y, Z axis Taiwan square rails PMI
6. 450B stepper motor and MA860H Leadshine driver or servo motor and driver
7. water cooling spindle and 3.7kw Fuling inverter, other spindles are optional
8. Nc-Studio-5.4.49 control system, DSP or Mach 3 is optional
Optional parts
1,Rotary axis
2,Dust collector
3,MACH3 USB control system
4,Vacuum table with 5.5kw vacuum pump
5,4.5kw/5.5KW water cooling spindle,
PRODUCT SPECIFICATIONS
Model | PRW1325 wood CNC Router |
Working Area | 1300(X)*2500(Y)*200(Z)mm |
Machine structure | welded steel tube, cast iron vertical shafts and steel gantry |
Table surface | Aluminum T-slot table with PVC Or vacuum pump |
Spindle | 3.2KW water or air cooling spindle |
Spindle rotating speed | 0-24000 rpm |
Collet size | ER20 |
Guide rail | Taiwan Hiwin linear square guide rail |
Driving method | X,Y axis by helical gear rack, Z axis by TBI ball screw |
Motors and drivers | Stepper motor 450B and leadshine drivers MA860 |
Control system | NCStudio control system |
Invert | Fuling invert |
Standard software | Artcam2010 |
Working voltage | 220V/380V Single phase /3 phase 50-60HZ |
Control Cabinet | Independent |
PRODUCT CONFIGURATION
Machine Photo

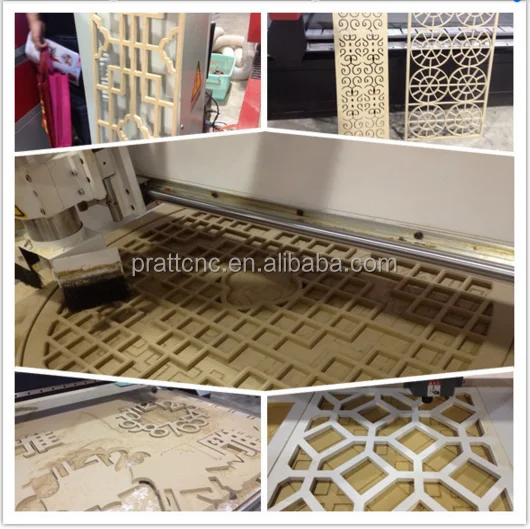

Sample
FAQ
1. Warranty?
3. I don't know how to operate this machine, what should I do?
First, machine is easy to operate, you only need to transfer your file to control panel, then you can start. Second, we provide corresponding videos and manual, too.
Two years.
2. How do you deliver machine to me?
we deliver machines by sea, you just need to tell us which port is convenient to you.
2. How do you deliver machine to me?
we deliver machines by sea, you just need to tell us which port is convenient to you.
3. I don't know how to operate this machine, what should I do?
First, machine is easy to operate, you only need to transfer your file to control panel, then you can start. Second, we provide corresponding videos and manual, too.
