  Swivel  up and down Captain marine chairs

Rotary lift mechanical suspension shock absorption captain pilot seat



A: Product introduction:

   1: Mechanical Suspension seat  base as below picture shown

   2: Can choose Fabric or PVC (artificial leather )

   3: Seat Accessories can be choosen according to customer requirements . Armrests ,  two  points safety belt , founr points safety belt

  4: Accepted  Special order /mix order

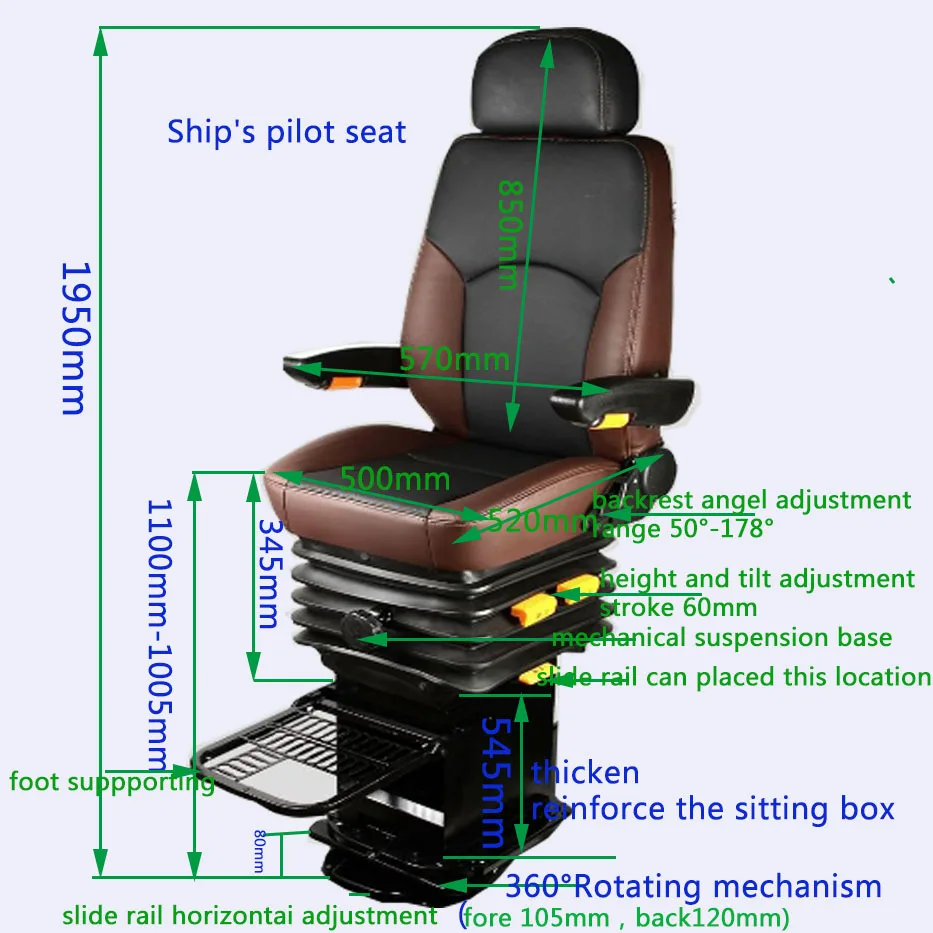

 B: Swivel  up and down Captain marine chairs functions and size:

   1: The dimension of each part of the seat assembly allow an error of ±10 mm.

   2:  Mechanical suspension base

   3: seat frame marterail : Q235 carbon steel , foam

    Seat cover : PVC leather  color :black  yellow and black  blue

  4: Adjustable headrest :  3 level  25mm/ level;  Adjustable armrests;  adjustable backrest range: 50°-178°;

   Up and down adjustment stroke: 60mm; slide rail horizontal adjustment: fore: 105mm, back: 120mm;

    360° rotation mechanisem with lock every 45°.

      Please communicate with about the status of the seat of including functions , sizes and others before online purchase . We will provide the seat drawing for your finally confirmation.

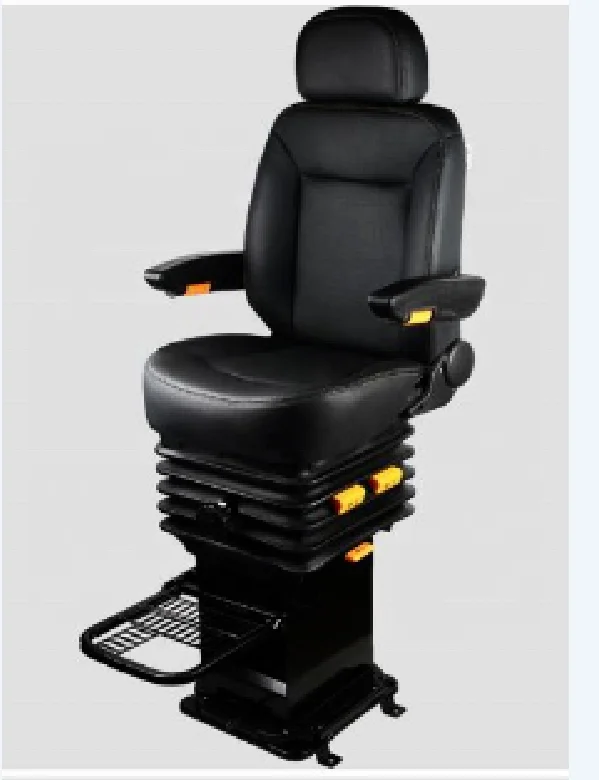

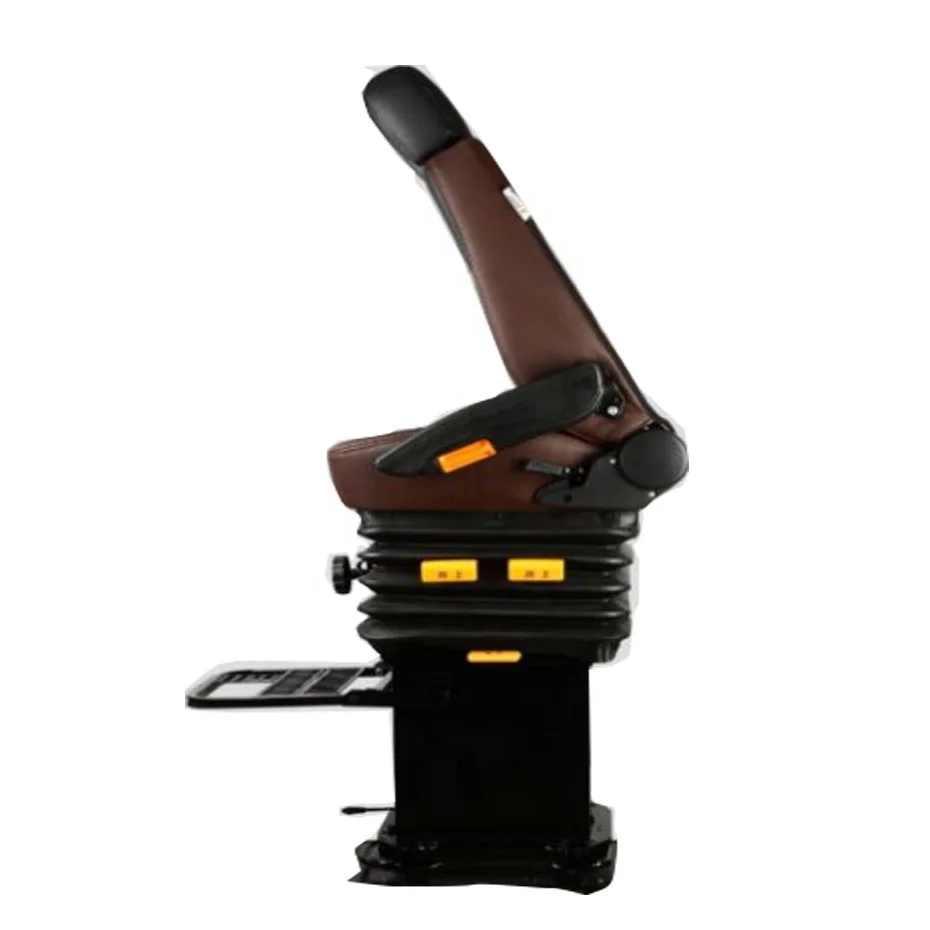

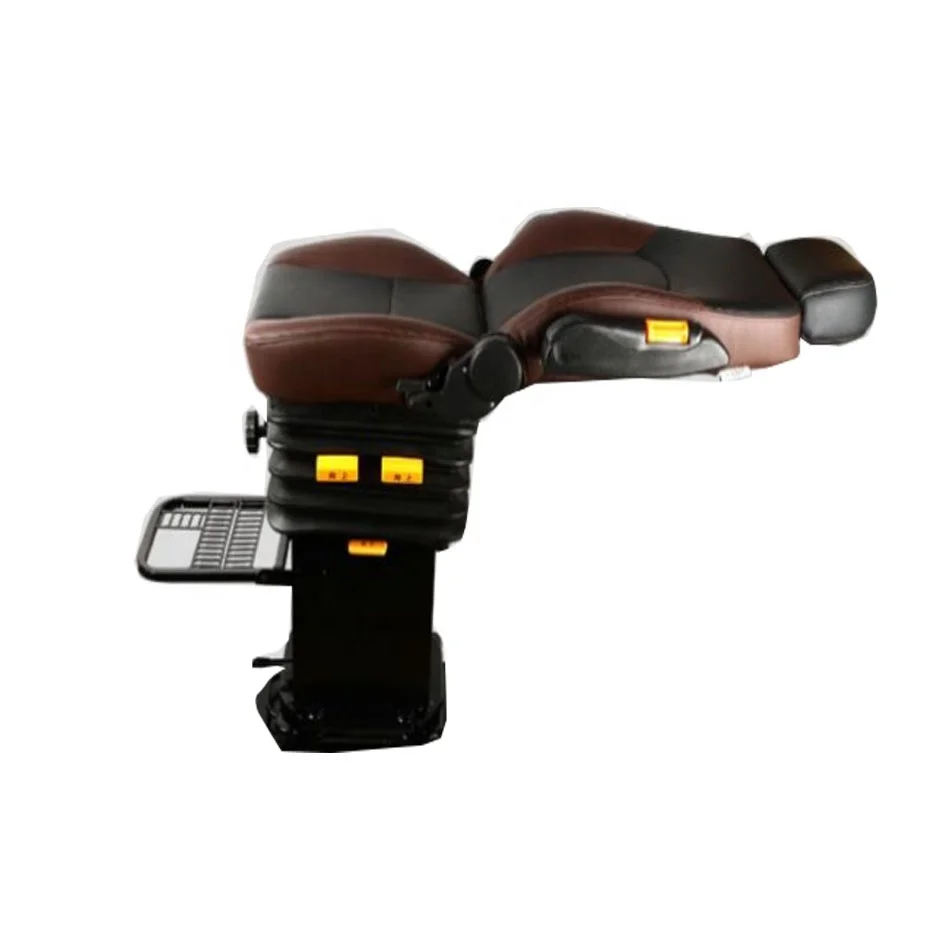

C: The other angles of  captain marine chairs picture showing:

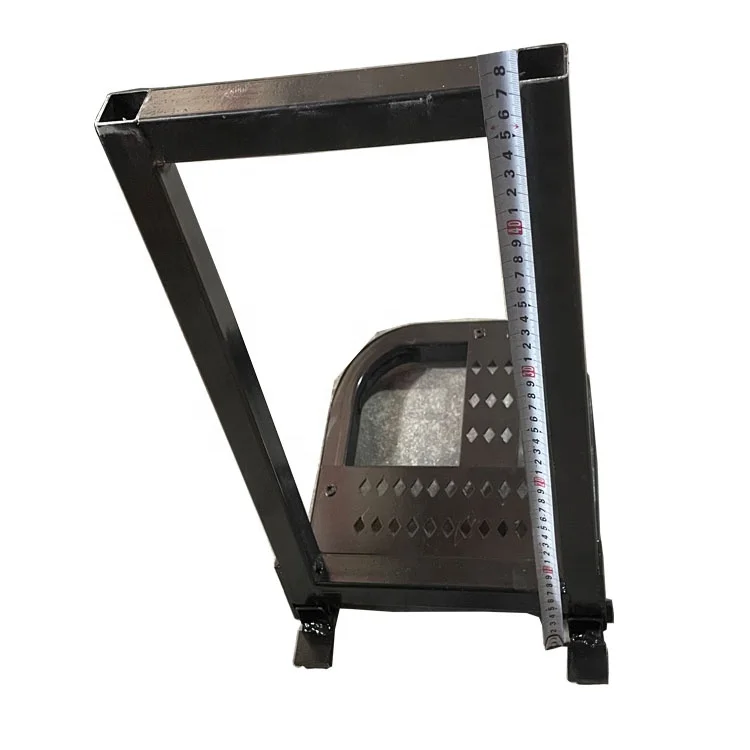

the foot support and seat boxes pictures:



 Interior structure for mechanical suspension seat base and rotation mechanism pictures:



Packing&Shipping:

    Regaridng this type seat packing:  4 units chair pedestals are individually packaged and no assembly with the driver seat.  Each seat use one carton. They are all put with one pallet.
