Легкая сталь киль гипсокартон c u-профиль форма роликовая формовочная машина металлическая шпилька и гусеничная для
- Категория: Building Material Machinery >>>
- Поставщик: Cangzhou,Abena,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 6426.57 $* | 6747.69 $* |
| Aug-19-2025 | 6372.65 $* | 6691.26 $* |
| Jul-19-2025 | 5346.17 $* | 5613.74 $* |
| Jun-19-2025 | 6264.47 $* | 6577.29 $* |
| May-19-2025 | 5454.28 $* | 5727.78 $* |
| Apr-19-2025 | 6156.14 $* | 6464.86 $* |
| Mar-19-2025 | 6102.26 $* | 6407.42 $* |
| Feb-19-2025 | 6048.45 $* | 6350.90 $* |
| Jan-19-2025 | 5994.31 $* | 6294.58 $* |
Характеристики
Product Overview
Cold C U light keel roof panel steel keel roll forming machine
Our company are professional product the 2022 Popular Sale C U channel two profile roll Forming Machine manufacture , We manufacture and supply variants of light steel keel roll forming machines in China, such as c channel roll forming machine ,u channel roll forming machine , omega roll forming machine .angle bead roll forming machine and so on , our machine export all over the world like india、 south africa 、pakistan 、Brazil 、omen and so no , the shutter door roll forming machine raw material thickness 0.5mm-1.2mm, we also can make other shutter door roll forming machine as your requirement ,meet your need ,our company aim :reputation first, customer first
PRODUCT SPECIFICATIONS
No | TYPE | Data | SPECIFICATION | |||
1 | Raw material | material | PPGI GI | |||
2 | Bucket capacity | Feeding width | as drawing | |||
3 | Operating weight | thickness | 0.3-1.2mm | |||
2 | Decoiler | operate | manual | |||
5 | Max. breakout force | weight capacity | 3ton | |||
c profile | u profile | |||||
3 | Roll forming machine | roller station | 12 row station | 12 row station | ||
Diameter of shaft | 55mm | |||||
Roller material | 45# with 0.05mm chrome | |||||
Frame | steel sheet welding | |||||
Frame thickness | 16mm | |||||
Cutting Material | Cr 12 | |||||
Operation | automatic cutting | |||||
Working speed | 15-20m/minute | |||||
Power | Driving way | chain | ||||
Main motor | 4kw | |||||
Voltage | 380v 50hz | |||||
Electric box | PLC control system, inventer | |||||
PLC brand | delta | |||||
Inverter brand | delta | |||||
Language | chinese and english | |||||
Feature of the C U two profile making machine
The components of the2022 Popular Sale C U roll Forming Machine include: decoiler, roll forming machine body, hydraulic cutting, plc control system, main motor, pump station, receving table.
Equipment features: Suspended C U two profile making machine adopts advanced automatic control software, shutter door machine realizes production information management, and the whole machine automatic control system adopts a highly integrated network, which makes the automation system more superior.
Equipment features: Suspended C U two profile making machine adopts advanced automatic control software, shutter door machine realizes production information management, and the whole machine automatic control system adopts a highly integrated network, which makes the automation system more superior.
Detail image
Decoiler
Loading capacity: 3tons

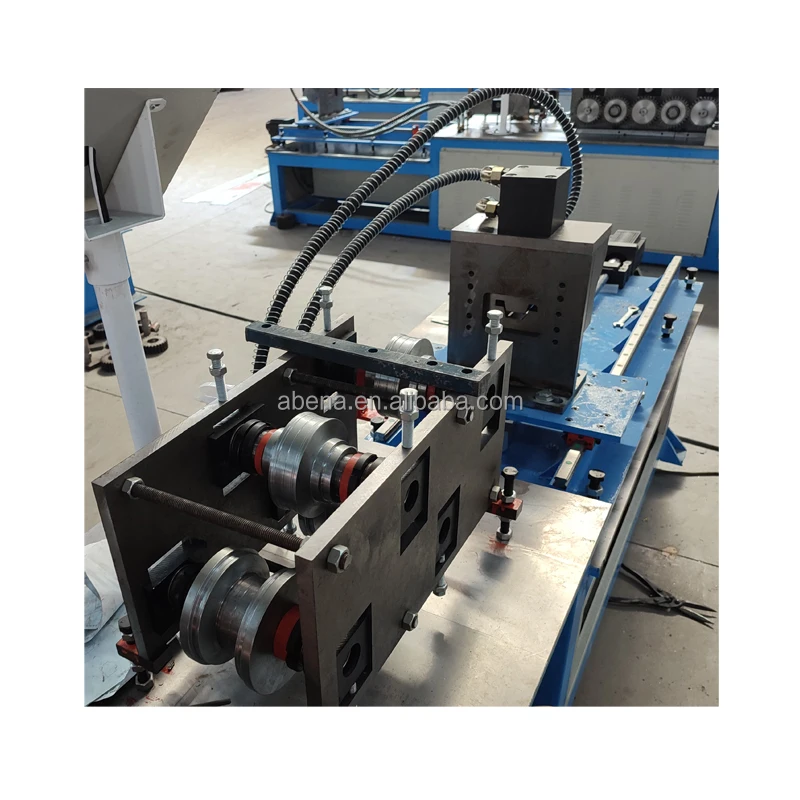

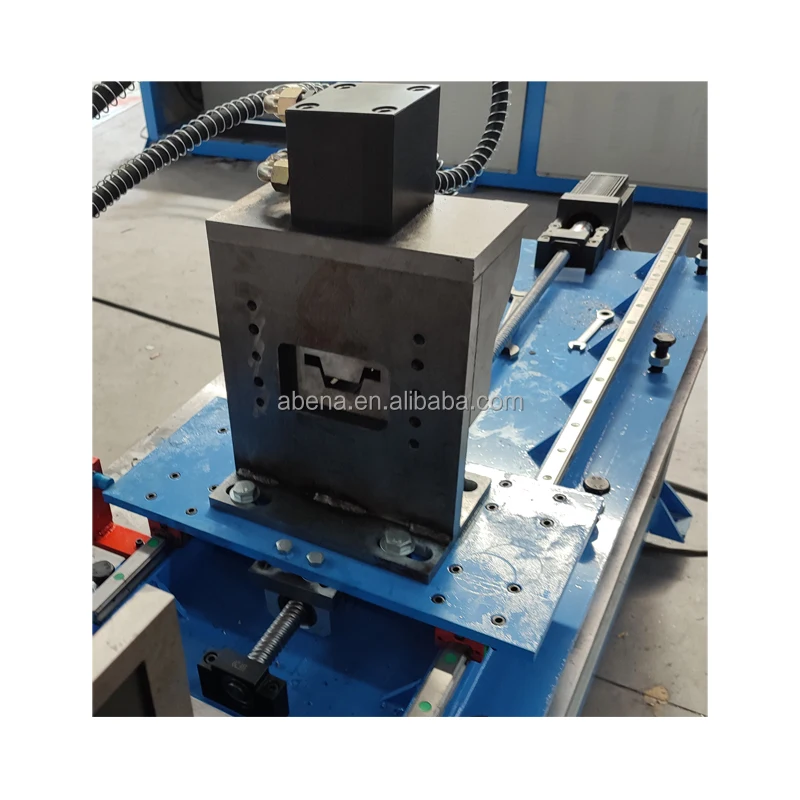

Hydraulic cutting
Controlled by oil pump
Automatic cutting as target products length Blade material: Cr12, quenching treatment
Automatic cutting as target products length Blade material: Cr12, quenching treatment

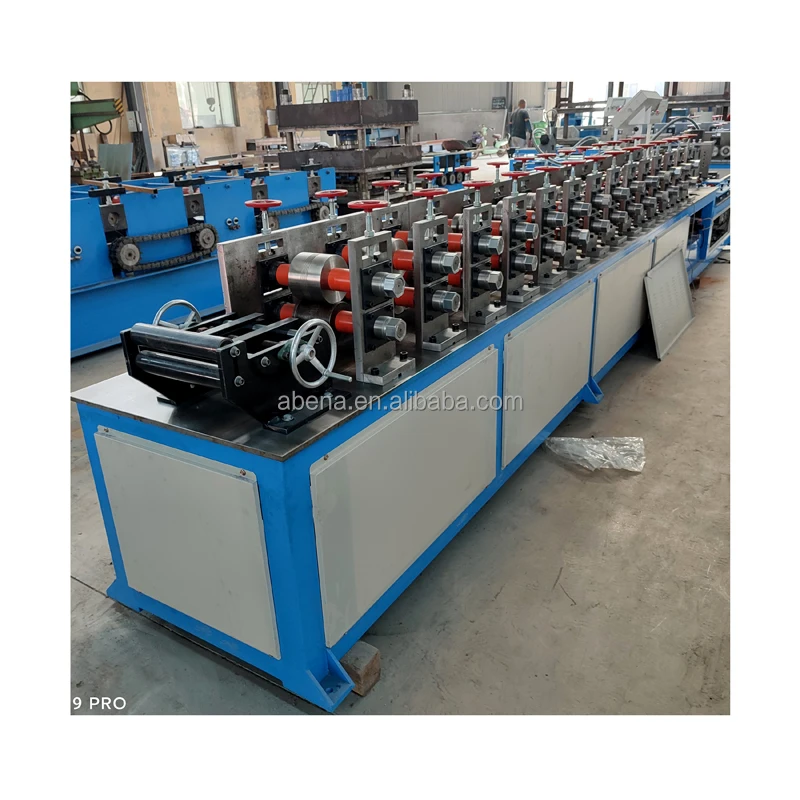

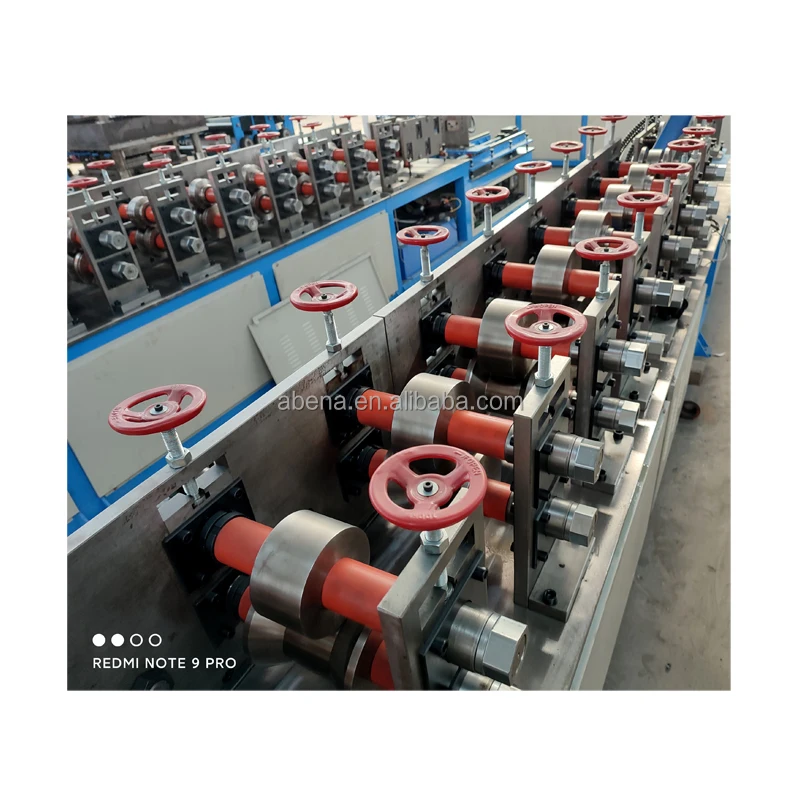

Roll forming body
Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
computer control system
Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily
Pump station
Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work
Hydraulic oil: 46#
Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa
Hydraulic oil: 46#
Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa
More choose for you
U channel roll forming machine/u purlin roll forming machine/u track roll forming machine
Our company are professional product the U channel roll forming machine manufacture , We manufacture and supply variants of light steel keel roll forming machines in China, such as c channel roll forming machine ,u channel roll forming machine ,omega channel roll forming machine ,c u double layer roll forming machine ,omega c channel double layer roll forming machine ,c u omega angle bead four line roll forming machine and so on , our machine export all over the world like india、 south africa 、pakistan 、Brazil 、omen and so no , the shutter door roll forming machine raw material thickness 0.5mm-1.2mm, we also can make other shutter door roll forming machine as your requirement ,meet your need ,our company aim :reputation first, customer first
C channel roll forming machine/c purlin roll forming machine/c stud roll forming machine
Our company are professional product the C channel roll forming machine manufacture , We manufacture and supply variants of light steel keel roll forming machines in China, such as c channel roll forming machine ,u channel roll forming machine ,omega channel
roll forming machine ,c u double layer roll forming machine ,omega c channel double layer roll forming machine ,c u omega angle bead four line roll forming machine and so on , our machine export all over the world like india、 south africa 、pakistan 、Brazil、omen and so no , the shutter door roll forming machine raw material thickness 0.5mm-1.2mm, we also can make other shutter door roll forming machine as your requirement ,meet your need ,our company aim :reputation first, customer first
roll forming machine ,c u double layer roll forming machine ,omega c channel double layer roll forming machine ,c u omega angle bead four line roll forming machine and so on , our machine export all over the world like india、 south africa 、pakistan 、Brazil、omen and so no , the shutter door roll forming machine raw material thickness 0.5mm-1.2mm, we also can make other shutter door roll forming machine as your requirement ,meet your need ,our company aim :reputation first, customer first
Omega channel roll forming machine /furring channel making machine/ top hat roll forming machine
Our company are professional product the OMEGA channel roll forming machine manufacture , We manufacture and supply variants of light steel keel roll forming machines in China, such as c channel roll forming machine ,u channel roll forming machine ,omega channel roll forming machine ,c u double layer roll forming machine ,omega c channel double layer roll forming machine ,c u omega angle bead four line roll forming machine and so on , our machine export all over the world like india、 south africa 、pakistan 、Brazil、omen and so no , the shutter door roll forming machine raw material thickness 0.5mm-1.2mm, we also can make other shutter door roll forming machine as your requirement ,meet your need ,our company aim :reputation first, customer first
T grid roll forming machine/T bar roll forming machine/T grid making machine
Our company are professional product theT grid roll forming machine manufacture , We manufacture and supply variants of light steel keel roll forming machines in China, such as c channel roll forming machine ,u channel roll forming machine ,omega channel
roll forming machine ,c u double layer roll forming machine ,omega c channel double layer roll forming machine ,c u omega angle bead four line roll forming machine and so on , our machine export all over the world like india、 south africa 、pakistan 、Brazil、omen and so no , the shutter door roll forming machine raw material thickness 0.5mm-1.2mm, we also can make other shutter door roll forming machine as your requirement ,meet your need ,our company aim :reputation first, customer first
roll forming machine ,c u double layer roll forming machine ,omega c channel double layer roll forming machine ,c u omega angle bead four line roll forming machine and so on , our machine export all over the world like india、 south africa 、pakistan 、Brazil、omen and so no , the shutter door roll forming machine raw material thickness 0.5mm-1.2mm, we also can make other shutter door roll forming machine as your requirement ,meet your need ,our company aim :reputation first, customer first
C U channel roll forming machine /C U stud and track roll forming machine /C U purlin roll forming machine
Our company are professional product the C U channel roll forming machine manufacture , We manufacture and supply variants of light steel keel roll forming machines in China, such as c channel roll forming machine ,u channel roll forming machine ,omega channel roll forming machine ,c u double layer roll forming machine ,omega c channel double layer roll forming machine ,c u omega angle bead four line roll forming machine and so on , our machine export all over the world like india、 south africa 、pakistan 、Brazil、omen and so no , the shutter door roll forming machine raw material thickness 0.5mm-1.2mm, we also can make other shutter door roll forming machine as your requirement ,meet your need ,our company aim :reputation first, customer first
C U OMEGA ANGLE channel roll forming machine /C U OMEGA ANGLE making machine
Our company are professional product the C U omega angle bead four line roll forming machine manufacture , We manufacture and supply variants of light steel keel roll forming machines in China, such as c channel roll forming machine ,u channel roll forming machine ,omega channel roll forming machine ,c u double layer roll forming machine ,omega c channel double layer roll forming machine ,c u omega angle bead four line roll forming machine and so on , our machine export all over the world like india、 south africa 、pakistan 、Brazil、omen and so no , the shutter door roll forming machine raw material thickness 0.5mm-1.2mm, we also can make other shutter door roll forming machine as your requirement ,meet your need ,our company aim :reputation first, customer first
Company Profile
Cangzhou Abena Industry Co., Ltd. is a professional cold roll forming machine manufacturer, We have been focusing on this field for 19 years. Our equipment includes Construction machine, garden machinery, hardware products, cold forming machine, environmental protection machine and other related construction equipment.Abena has employed a team of engineers for more than 19 years. At the same time, our machines use branded electrical components, raw materials from branded steel factories, strict process control, two-year warranty, installation and training services.Our customers are all over the world, such as 65 countries in Germany, the United States, Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi Arabia, South Korea, Japan, South Africa,Kenya and other different regions. We have extensive experience in the needs of different countries, such as profile, thickness range, use, installation, etc.Company tenet: technological innovation, customer center, win-win situation. Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.
Product process
Packing and shipping
FAQ
A. Foreign commissioning
We will arrange our professional engineers to help you install and debug the machine well. Buyer should pay$100 for each engineer every day and responsible for transportation (including round-trip ticket), insurance, and suitable accommodation.
B.Warranty period
1.The warranty will be maintenance, maintain in the guarantee period of 18months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts to charge freely, which is in the conditions of correct operation.
C. Training
During installation and adjustment of the equipment, our engineers are able to provide the training that buyer’s personnel request to operate and maintain the equipment.Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.
D. Services
Lifetime services to every customer.
Welcome to contact and visit us.Waiting for your cooperation sincerely.
We will arrange our professional engineers to help you install and debug the machine well. Buyer should pay$100 for each engineer every day and responsible for transportation (including round-trip ticket), insurance, and suitable accommodation.
B.Warranty period
1.The warranty will be maintenance, maintain in the guarantee period of 18months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts to charge freely, which is in the conditions of correct operation.
C. Training
During installation and adjustment of the equipment, our engineers are able to provide the training that buyer’s personnel request to operate and maintain the equipment.Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.
D. Services
Lifetime services to every customer.
Welcome to contact and visit us.Waiting for your cooperation sincerely.
