Geo-Membrane Overlap Hot Wedge Welder

Product description:

Geo-membrane welder is a new welding machine which is developed by our company. They can weld geo-membrane

of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP

and PVC,HDPE,EVA,PP The control of this series adopt PID automatic thermostatic control with high control and

ow temperature fluctuation. Speed control of this series adopt PWM automatic voltage and regulation speed circuit.

Direct current servo the motor drive with great output torque and staple performance in walking. It can maintain a constant

speed on the condition of creeping, vertical creeping and road load. Also this series of welding machine are stable in

performance despite of external temperature and voltage variation. This series of welding machine is excellent in

performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering

projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.

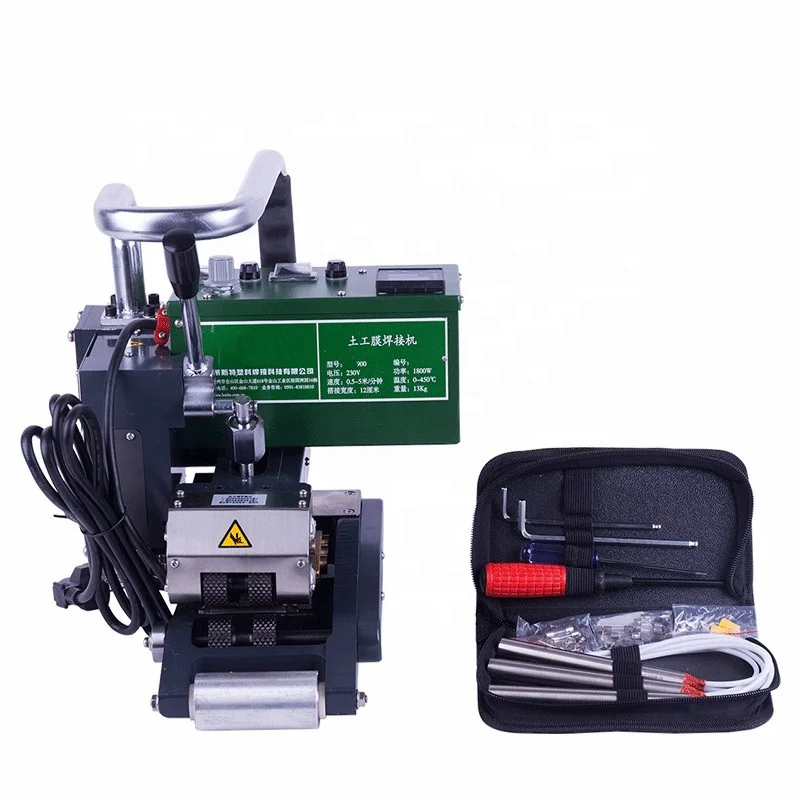

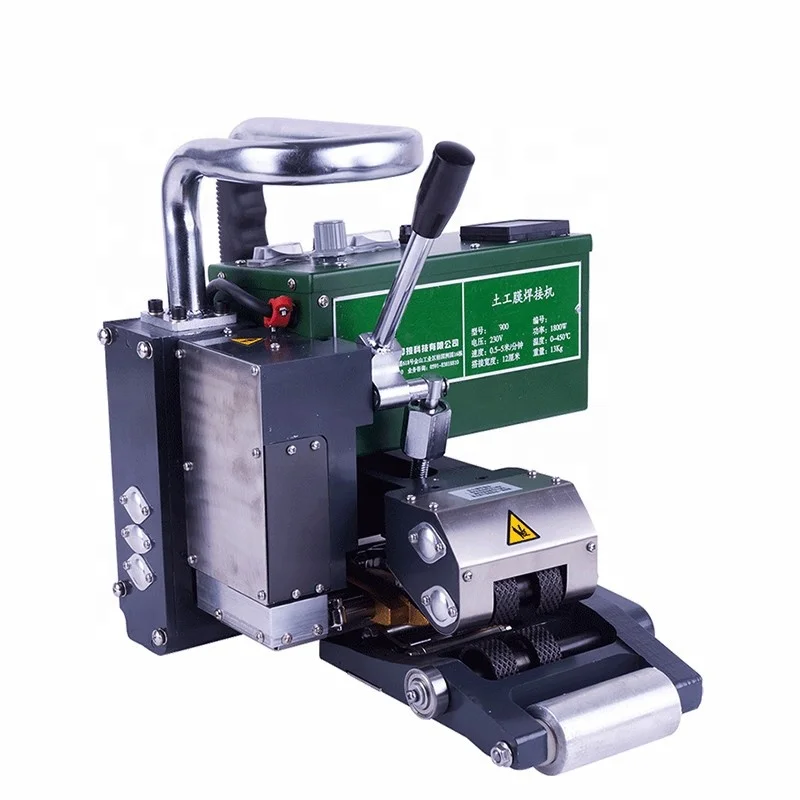

Product pictures:

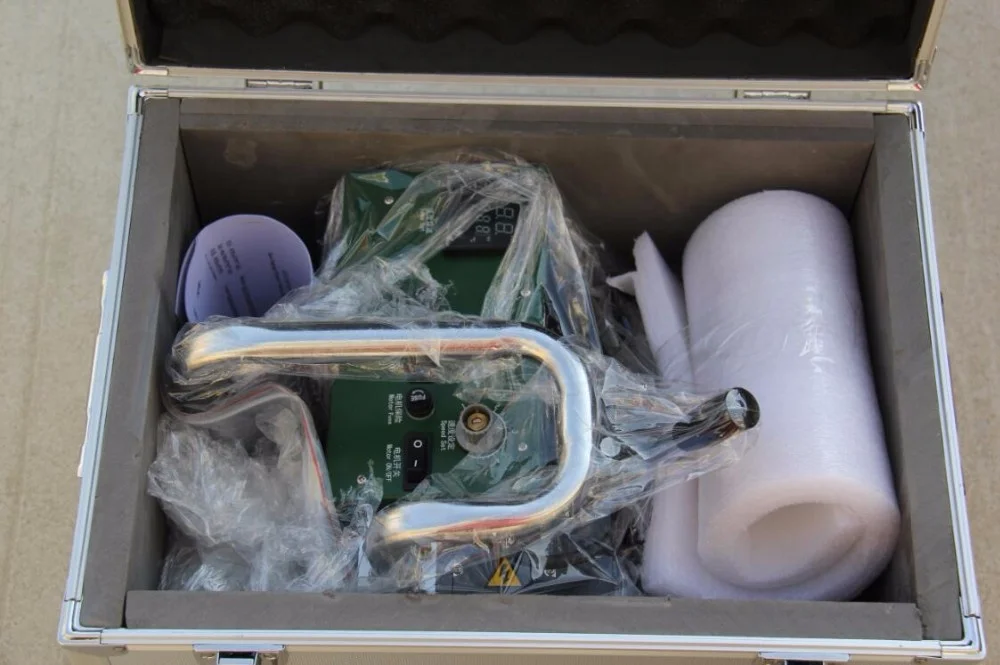

Packing picturer :

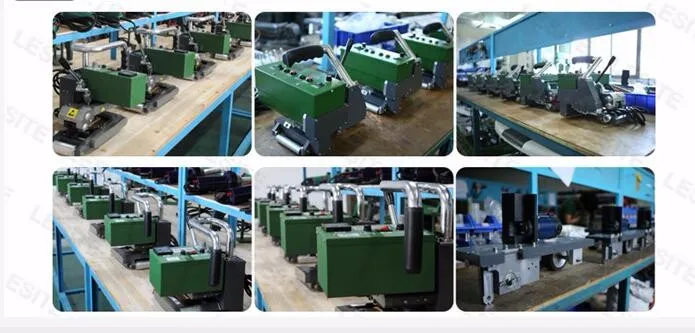

Our warehouse :



yx-800 for 0.2mm-1.5mm thick liner

yx-900 for 1.0mm-3.0mm thick liner





Technical parameter:

1. Output Voltage:220V   Frequency:50Hz/60HZ

2. Power:1800W

3. Welding speed:0.5~5m/min

4. The temperature of Heating up:0~450°C

5. The thickness of welding material:1.0mm~3.0mm(Single membrane thickness)

6. Welding width:14mm×2   Interior Cavity :16mm

7. Welding intention≥85%Maternity material(Resistance to the direction of cutting)

8. Joint width:120mm

9. Machine body weight:13kg

Main Components and Name:

1.Pressure handle	2.Manipulate hand	3,Speeding knob	4.Speeding switch
5.Electric machine insurance	6.Temperature switch	7.power supply insurance	8.Temperature control instrument
9.Control case	10.Thermal wedge	11,Pressure wheel	12,Creeping wheel
13,Sway head	14,Adjusting nut



Working principle:

Electric machine carried with above and below pressure wheel and turn it  through speed-slow box and chain steel,

and heating the bracket up and turn thermal wedge to plug in between the two main materials, meantime let the pressure

bracket press the pressure wheel  to made the thermal-fused mother material together. The picture is as follow:

The adjustment of the Pressure wheel:

 According to the various thickness of material, it can be adjusted the magnitude of pressure by switching the modulated

screw. It will increase by clockwise, and it decrease by anticlockwise.

The Familiar Malfunction  and elimination:

Phenomena	Reason	The was of eliminate
NO turning of the electric machine	Non direction of power supply	Check the power supply whether it  is connected or not
	The damage of Insurance wire by burning	Change the insurance wire
	The damage of speeding circuitry board lines By burning	Change the speeding circuitry board
	The damage of electric machine by  burning	Change the electric machine
Non speeding of the electric machine	Speeding knob is untightly	Tight  the  speeding knob
	Power pipe was shocked out	Replacing the speeding wire board
Non heating up Thermal wedge	The damage of electric pipe by burning	Replacing  the electric pipe
	The damage of temperature control instrument	Replacing the temperature control instrument
	Thermocouple with malfunction	Change the thermocouple
The burning of thermal wedge	The damage of temperature control instrument	Change the temperature control instrument



Maintenance:

Please clean the dunghill in the thermal wedge and the mud in the chain guard and oiled the whole machine to the dry place

when not using it.
