Китайское производство машина для производства алюминиевых медных проводов/шлифовальная электрических кабелей

The machine is widely used for stranding copper or aluminum wire,round or sector compact conductors,it also can be used for pre-spiralled compacting and stranding of sector conductors.

Main Compositions

1.Stranding cage
2.Pay off stand
3.wire guiding stand
4.wire assembling and compacting device
5.auto loading/unloading device
6.pre-spiralled compacting device
7.Non-metal taping device
8.Meters length counter
9.dual wheel capstan
10.take up and pay off spool
11.Mechanical transmissonal system
12.Electrical control system
13.Safety protection system
14.Bobbin hoist device

Products

Base on different bobbin size in stranding cage:PND400/500/630/710
Base on different cores of stranding cable:1+6+12+18+24+30(90B),12+18+24+30(84B),1+6+12+18+24(61B),                    12+18+24(54B),1+6+12+18(37B),12+18(30B),1+6+12(19B)
Base on different loading/unloading device:side-bottom auto loading,side auto loading,bottom auto loading,manual loading
Base on different transmission:separate motor transmission, groud shift transmission
Base on different bobbin clamping device:cylinder clamping, warm gear clamping,hand wheel clamping
Base on different tension control:pneumatic automatic feedback type tension control,fixed tension mechanical friction type tension control
Base on different wire broken detector:wire broken detector of every bobbin,wire broken detector of stranding cage
Base on different central pay off stand:shaft ,shaft-less and manual type instructure:Φ400,Φ500,Φ630,Φ1600,Φ2000,Φ2500,Φ3150,Φ3500 in bobbin size
Base on different take up stand:portal type,shaft-less type and shaft type in structure:Φ1600,Φ2000,Φ2500,Φ3150,Φ3500 in bobbin size
Base on different capstan diameter:Φ1600,Φ2000,Φ2500
Base on different control of main motor:DC speed regulation,AC frequency conversation speed regulation

Technical Specifications

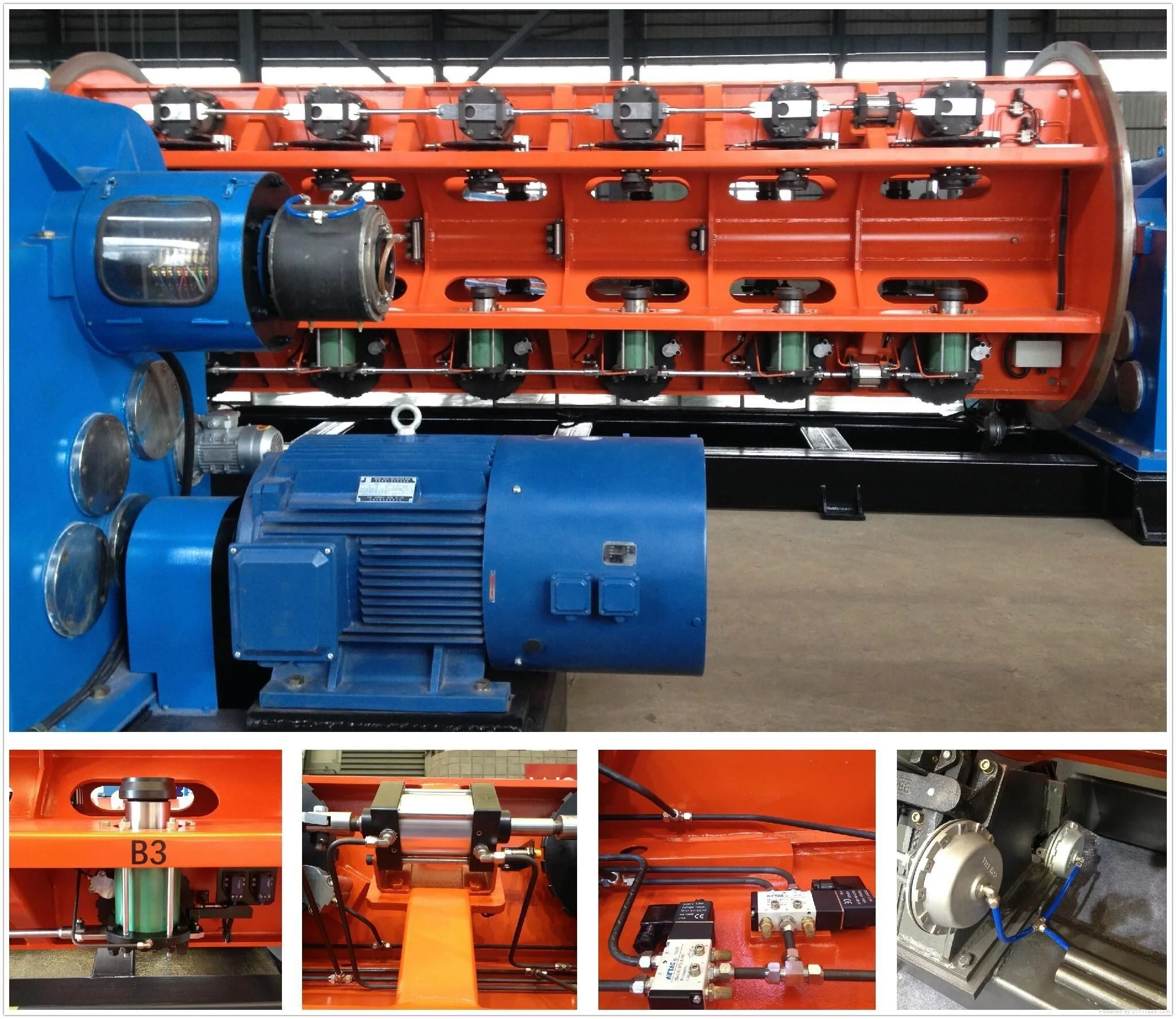

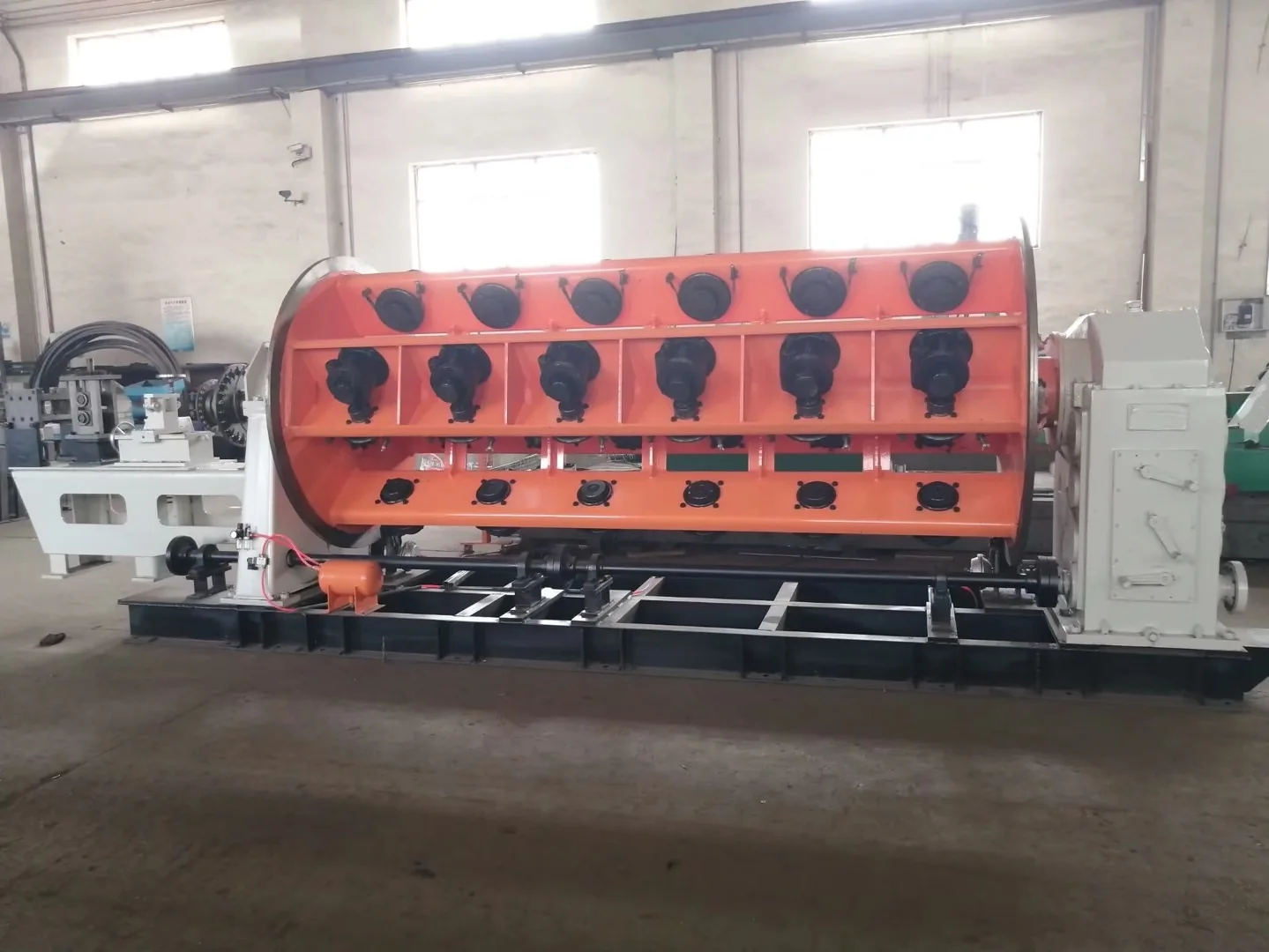

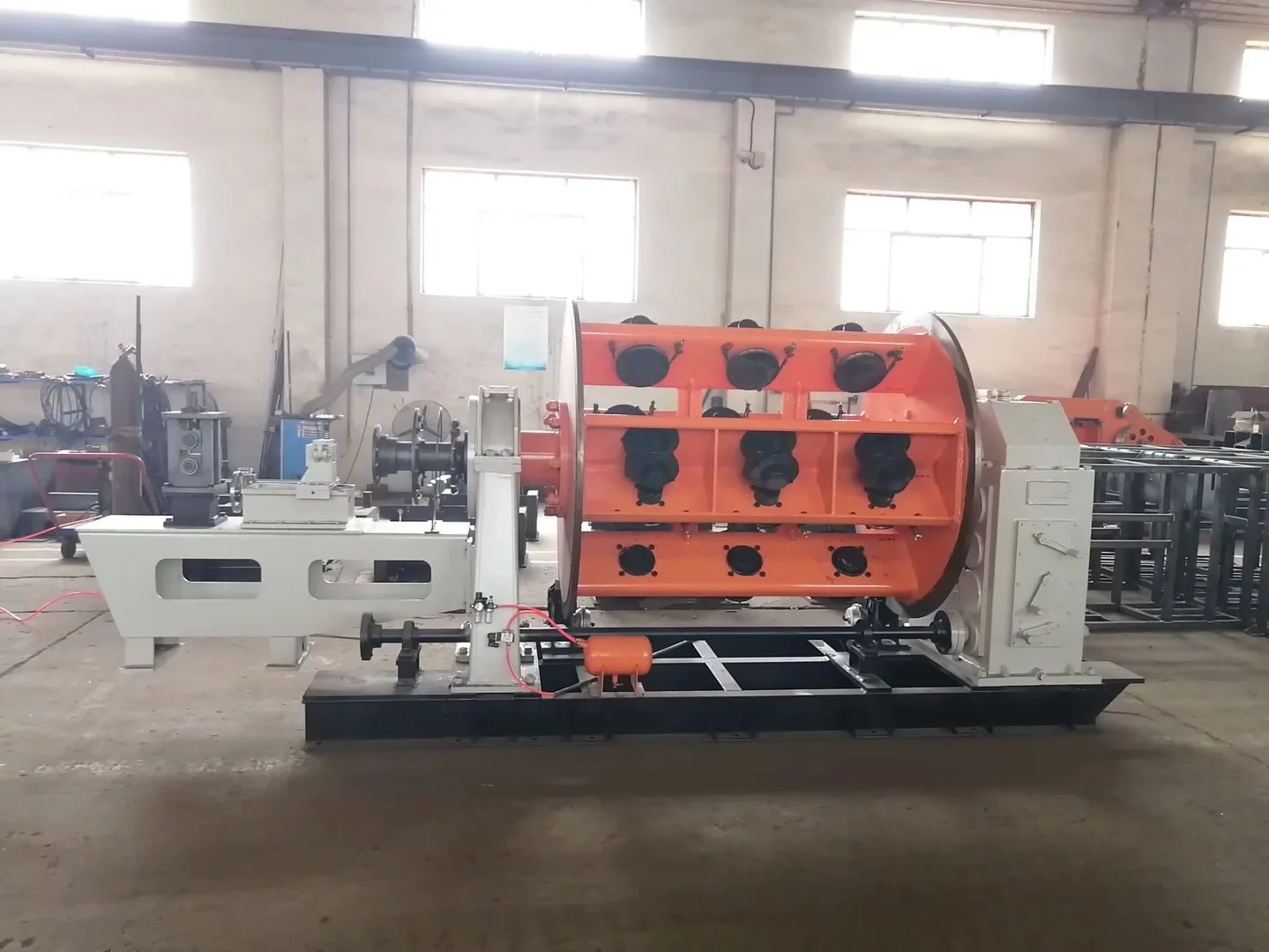

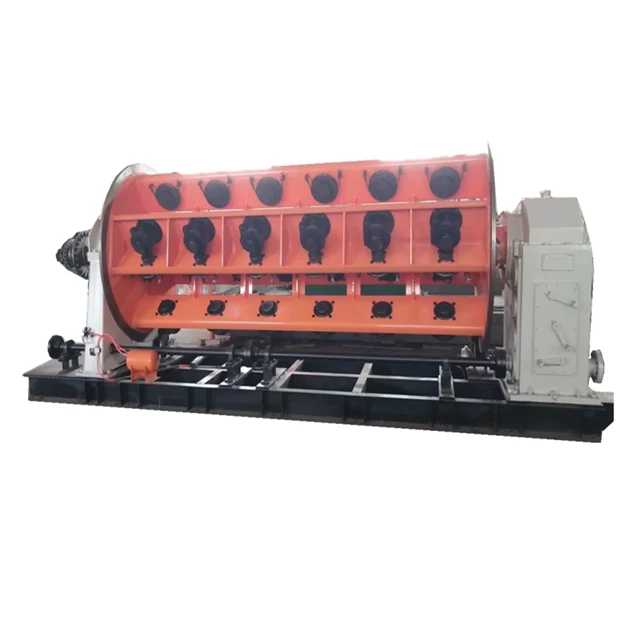

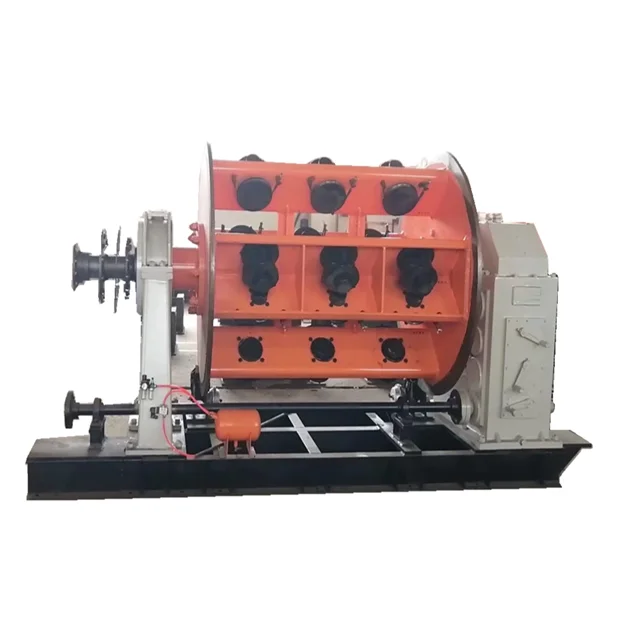

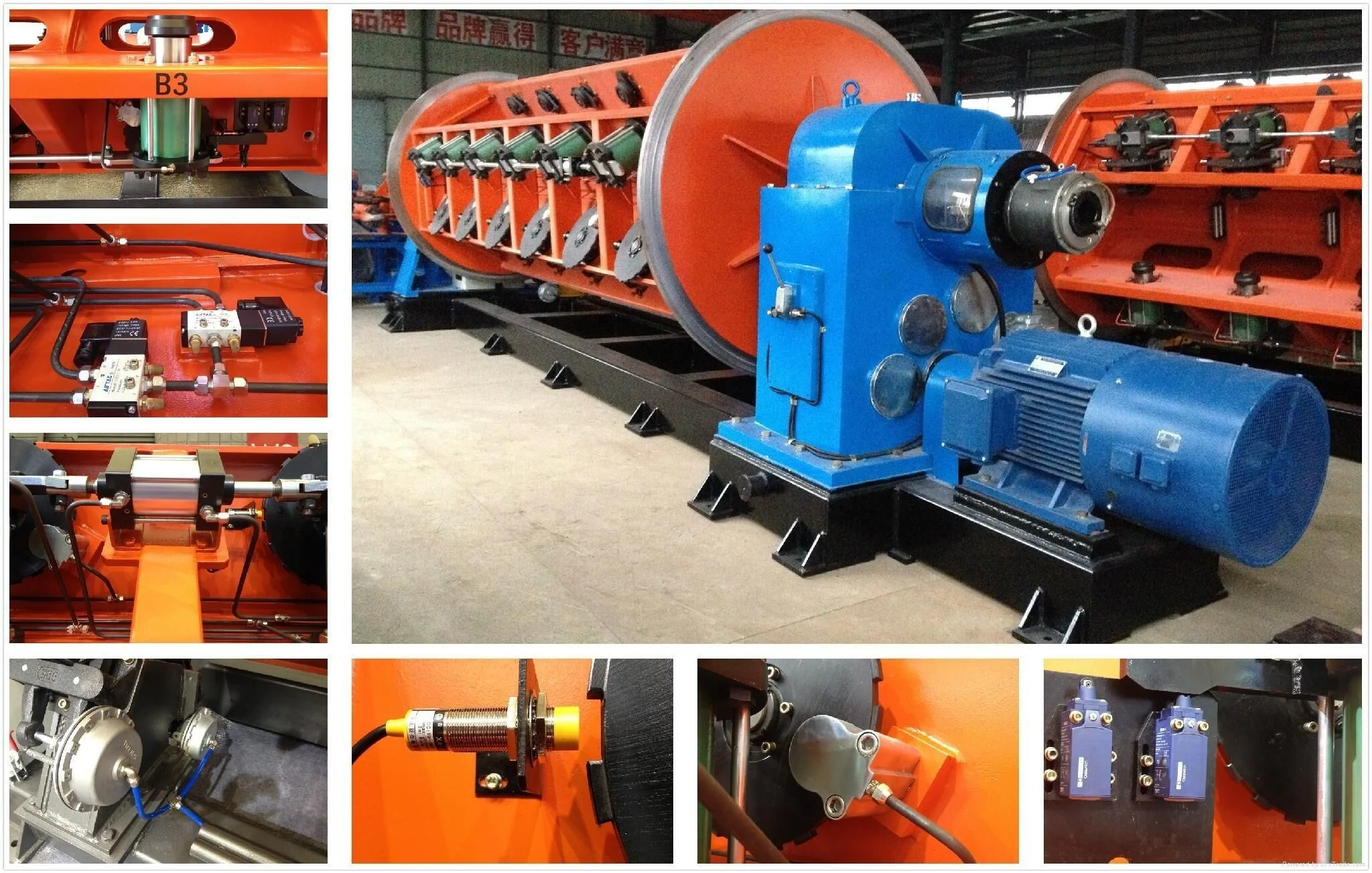

Pictures for Rigid Frame Type Stranding Machines For Making Electric Cable
