Оцинкованная стальная опора для строительных лесов регулируемая опалубка
- Категория: Scaffoldings >>>
- Поставщик: SHANDONG,ZEEMO,CONSTRUCTION,TECHNOLOGY,CO,LTDSHANDONG,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 10.1 $* | 11.11 $* |
| Aug-18-2025 | 9.54 $* | 9.12 $* |
| Jul-18-2025 | 8.97 $* | 8.7 $* |
| Jun-18-2025 | 9.60 $* | 9.85 $* |
| May-18-2025 | 8.34 $* | 8.60 $* |
| Apr-18-2025 | 9.64 $* | 9.16 $* |
| Mar-18-2025 | 9.98 $* | 9.51 $* |
| Feb-18-2025 | 9.36 $* | 9.51 $* |
| Jan-18-2025 | 9.7 $* | 9.97 $* |
Характеристики
Specification
Product Name | Galvanized Steel Prop Telescopic Adjustable Steel Props |
Tube diameter | 40-48 mm / 48-56 mm / 48/60 mm |
Tube thickness | 1.6mm-4mm |
Plate | 120*120*4/5/6mm |
Length (Light Duty Prop) | 0.6-1.1m/0.8-1.4m/1.6-2.9m/1.8-3.2m/2.0-3.6m/2.2-4.0m |
Length(Heavy Duty Prop) | 1.6-2.9m/1.8-3.2m/2.0-3.5m/2.0-3.6m/2.2-4m/3.0-5.0m/3.5-6m |
Plate type | suqare plate or flower plate |
Surface finished | painted, powder coated, galvanized |
Packing | 1500 pcs or 2000 pcs / 20' FT container |
Product Description

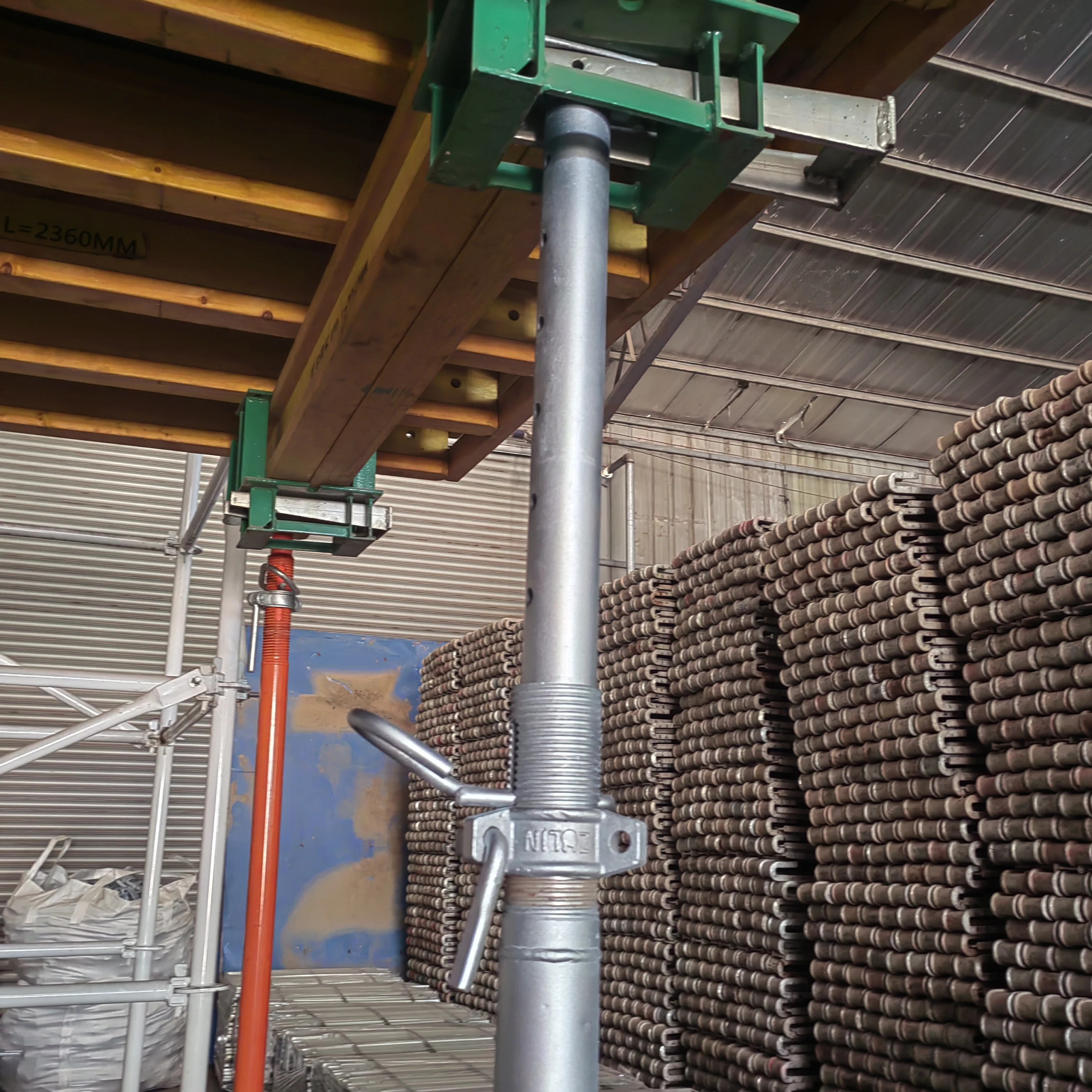

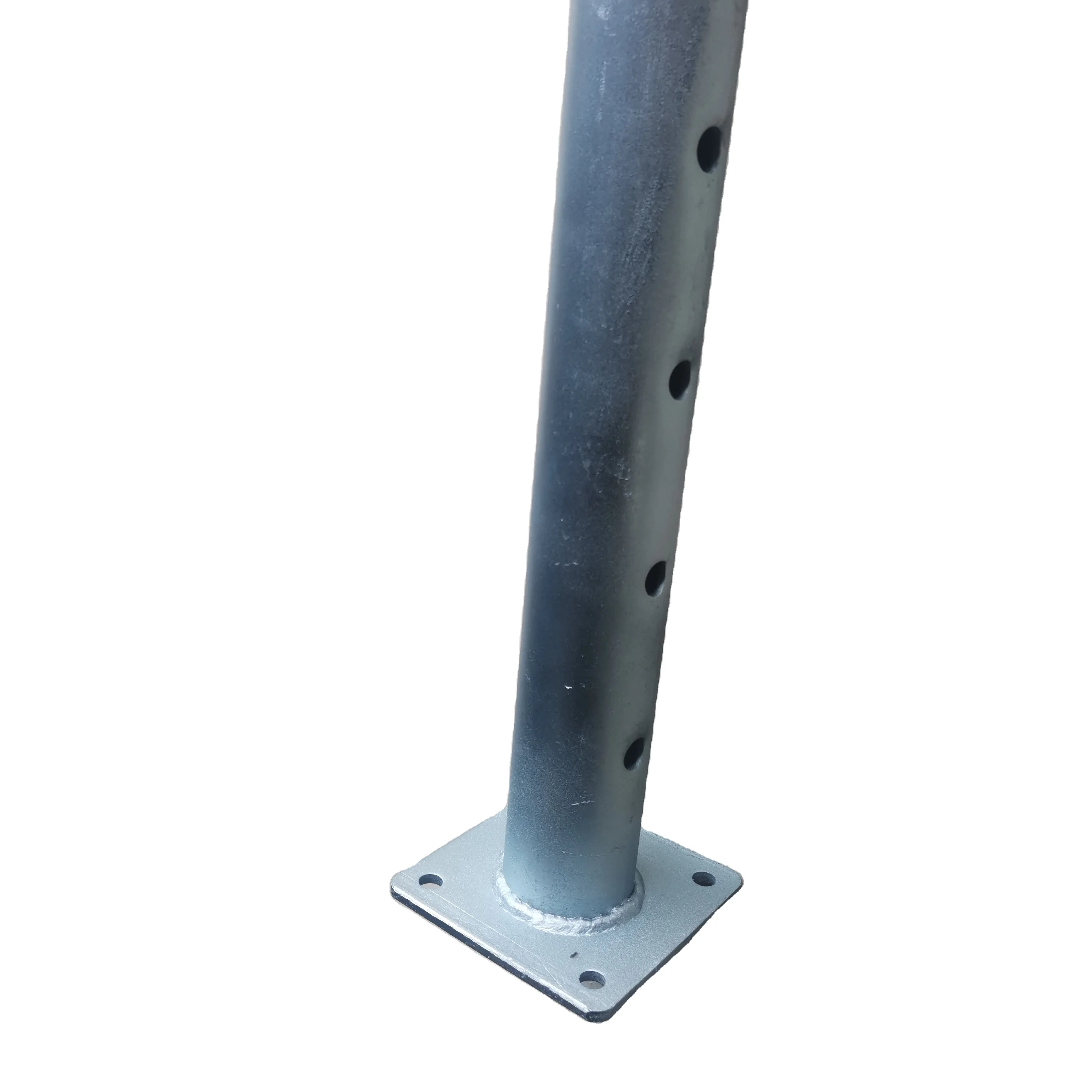

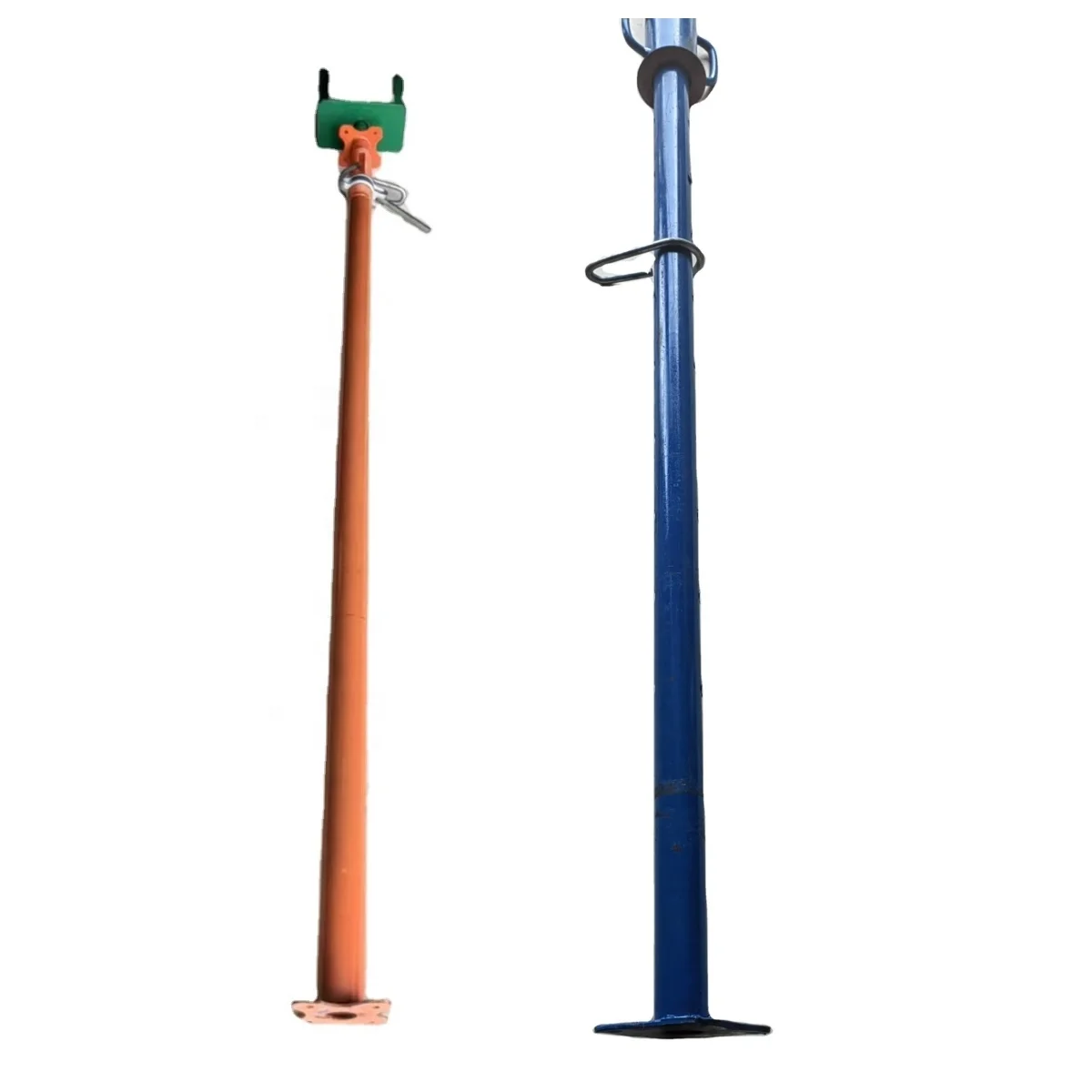

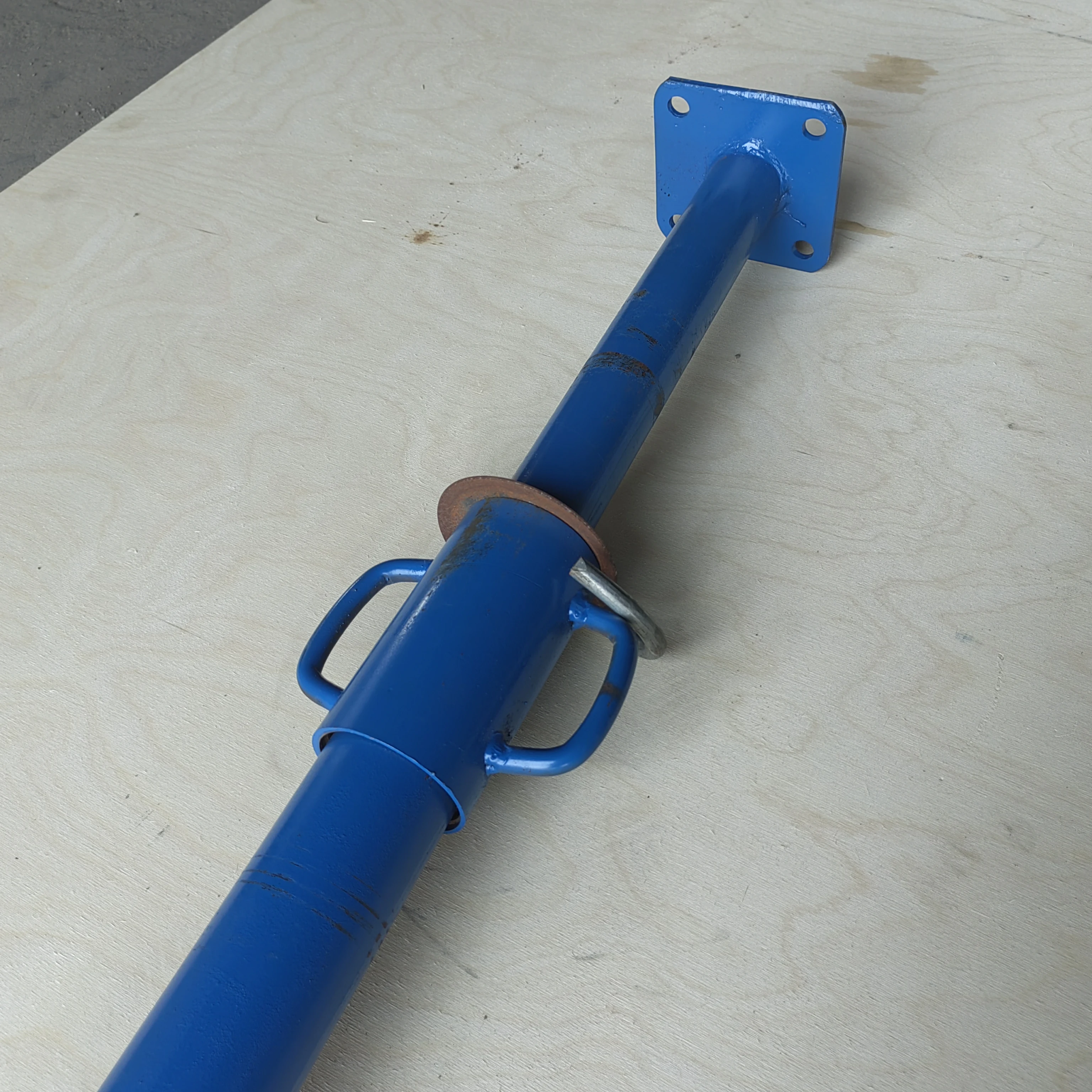

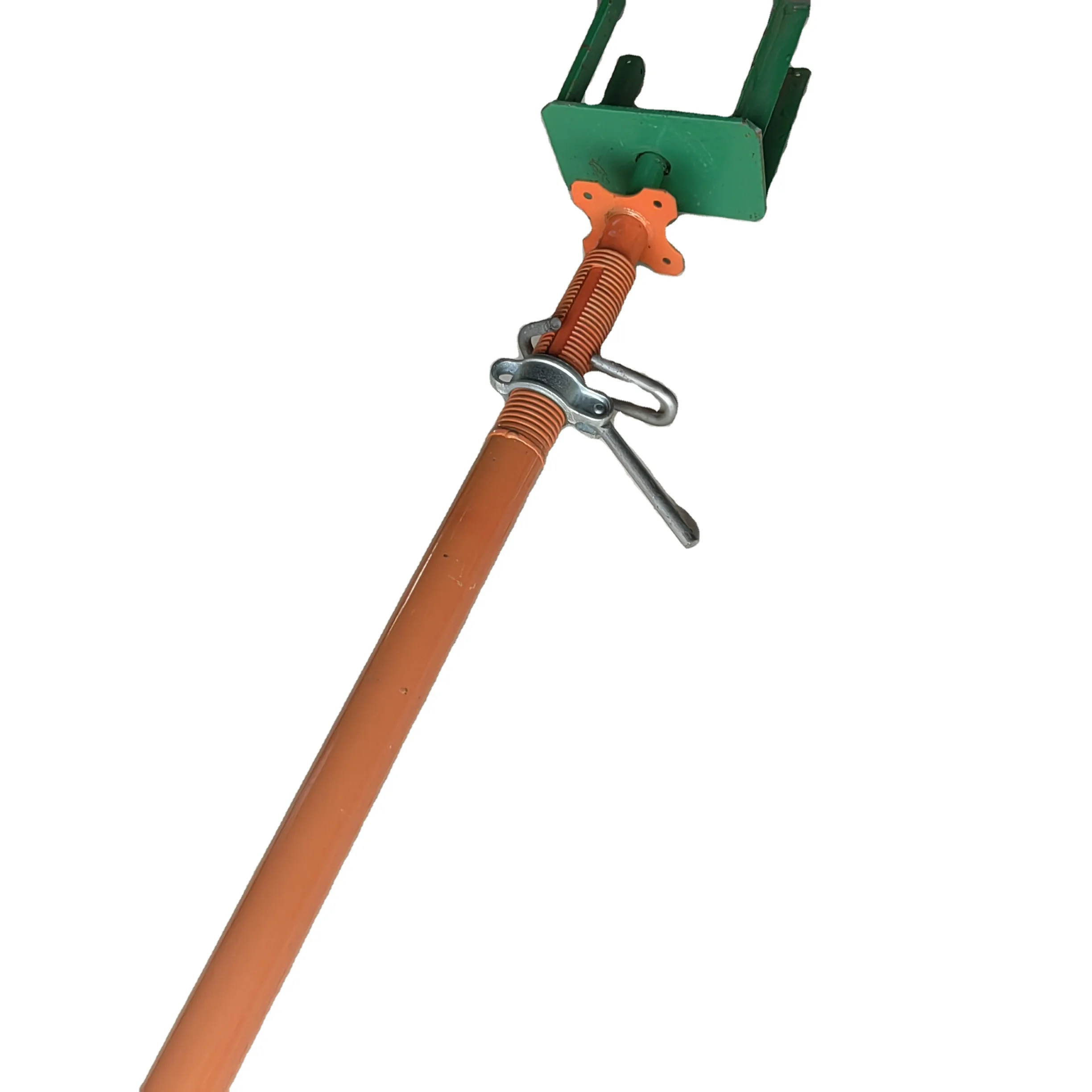

ADJUSTABLE STEEL SHORING PROP is mainly made of base plate, outer tube, inner tube, adjustable tube, swivel nut,cotter pin, upper plate and the accessories of folding tripod, head jack.
1. Brief Introduction
(1) Connection Pin
(2) Adjust Screw Tube

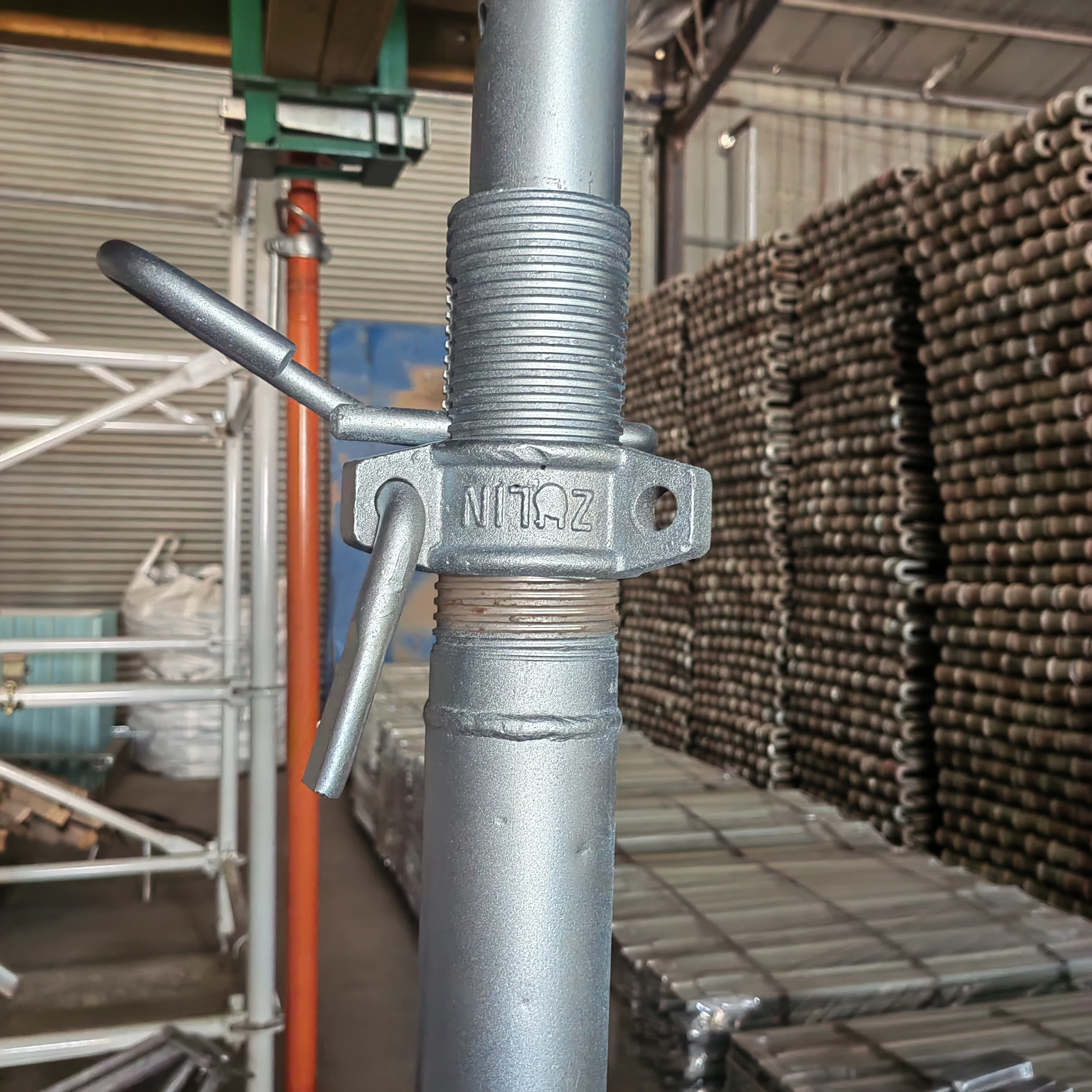

(3) Adjust Nut
(4) Handle
The adjustable floor prop mainly from inside and outer of the relative positions of the different fixed point to achieve. The fine-tuning of the branch located at the scene, according to the actual height adjustment.
2. Components
Article No. | Name | Weight (KG) |
1 | 250A floor prop (75/60) | 13.63 |
2 | 300A floor prop (75/60) | 15.40 |
3 | 350A floor prop (75/60) | 18.63 |
4 | 400A floor prop (75/60) | 25.32 |
5 | 250B floor prop (60/48) | 10.06 |
6 | 300B floor prop (60/48) | 13.18 |
7 | 350B floor prop (60/48) | 17.79 |
8 | 550B floor prop (88.5/75.5) | 29.30 |
3. Floor Prop Bearing Capacity Table
Product Application
Project :TWO TOWERS
Date : 2006
Builder: NANTONG LIUJIAN CONSTRUCTION GROUP CO.
Date : 2006
Builder: NANTONG LIUJIAN CONSTRUCTION GROUP CO.
Packing & Delivery
packed in bundle or according to clients requirement
Company Profile
Shandong Zeemo Construction Technology Co Ltd is a member of Dong star Group , a multiple industry group in film faced plywood , construction formwork system , Scaffolding & accessories. President Mr. Wei, is nominated as the president of China Shuttering Board Committee .
Our core is integrating these formwork products to compose an optimum solution.
Our intelligent logistic net can deliver products timely & cost effectively.
Service team will follow all the way.
CULTURE
we are one family, members care each other, cooperate intimately, we sharing dream, idea and love in family. We holding same duty-- to serve clients .
ENTERPRISE RESPONSIBILITY:
we cherish clients' trust , oriented to solve the solution for project.
Vision is making the project Zero Emission, Efficient, Money Saving ,Outstanding.
Our core is integrating these formwork products to compose an optimum solution.
Our intelligent logistic net can deliver products timely & cost effectively.
Service team will follow all the way.
CULTURE
we are one family, members care each other, cooperate intimately, we sharing dream, idea and love in family. We holding same duty-- to serve clients .
ENTERPRISE RESPONSIBILITY:
we cherish clients' trust , oriented to solve the solution for project.
Vision is making the project Zero Emission, Efficient, Money Saving ,Outstanding.
FAQ
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.What can you buy from us?
Scaffolding Ringlock System/Scaffolding Metal Plank/ Scaffolding Coupler/ Scaffolding Screw Jack/ Scaffolding Prop
3. what services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery, DAF；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,Arabic,French,Korean
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.What can you buy from us?
Scaffolding Ringlock System/Scaffolding Metal Plank/ Scaffolding Coupler/ Scaffolding Screw Jack/ Scaffolding Prop
3. what services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery, DAF；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,Arabic,French,Korean
