Лидер продаж поставка оптовая продажа Гидравлический Шланг из нержавеющей стали в оплетке металлический шланг ПТФЭ с
- Категория: Stainless Steel Pipes >>>
- Поставщик: Red,Cube,Hydraulic,Equipment,Technology,(tianjin),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.90 $* | 0.38 $* |
| Aug-16-2025 | 0.63 $* | 0.66 $* |
| Jul-16-2025 | 0.37 $* | 0.93 $* |
| Jun-16-2025 | 0.26 $* | 0.8 $* |
| May-16-2025 | 0.17 $* | 0.0 $* |
| Apr-16-2025 | 0.80 $* | 0.41 $* |
| Mar-16-2025 | 0.19 $* | 0.89 $* |
| Feb-16-2025 | 0.54 $* | 0.46 $* |
| Jan-16-2025 | 0.55 $* | 0.15 $* |
Характеристики
Product Description
Product Description:

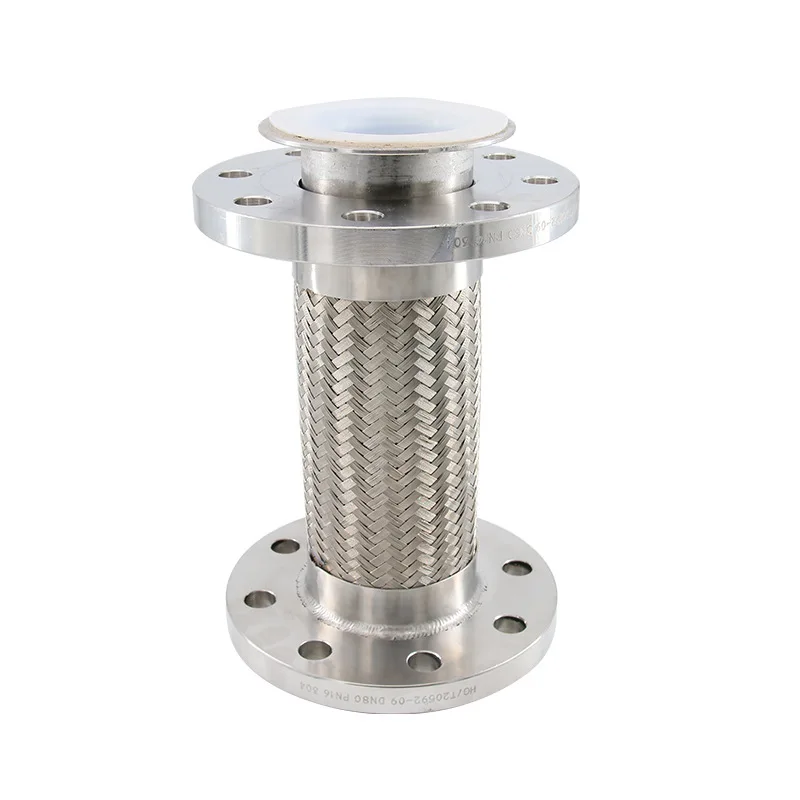

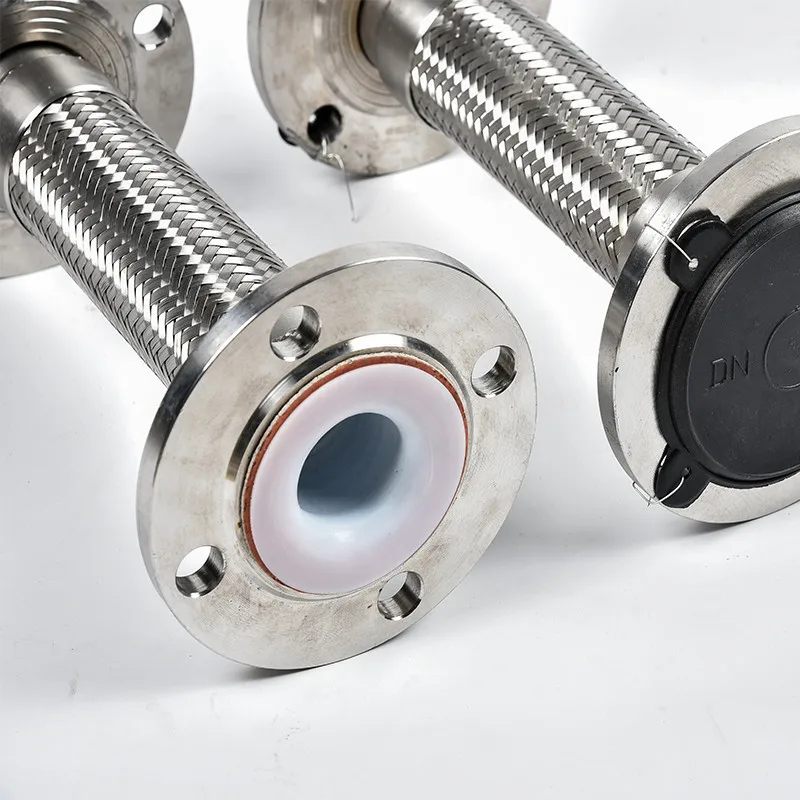

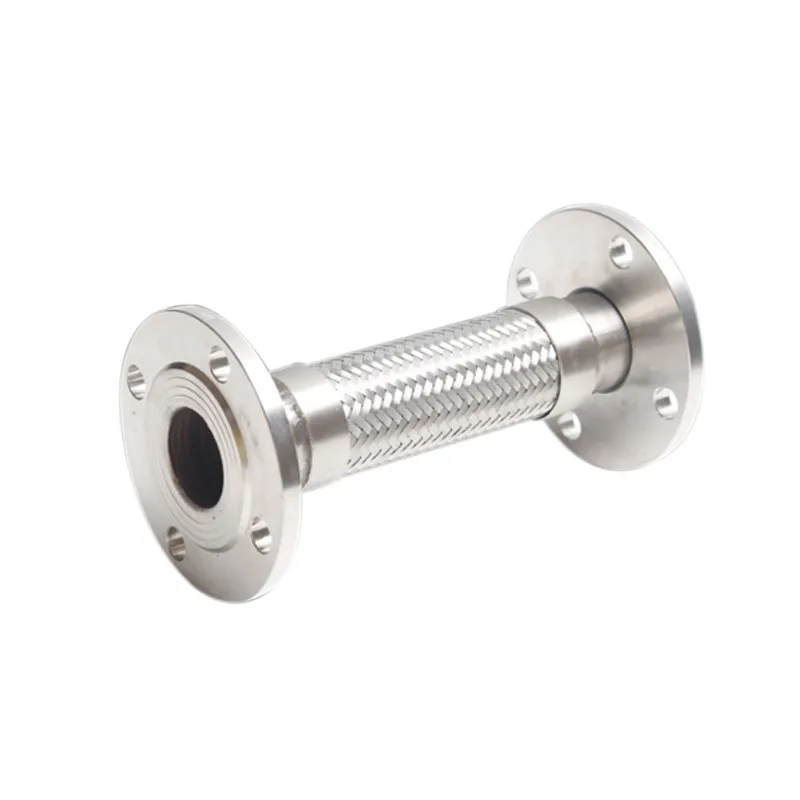

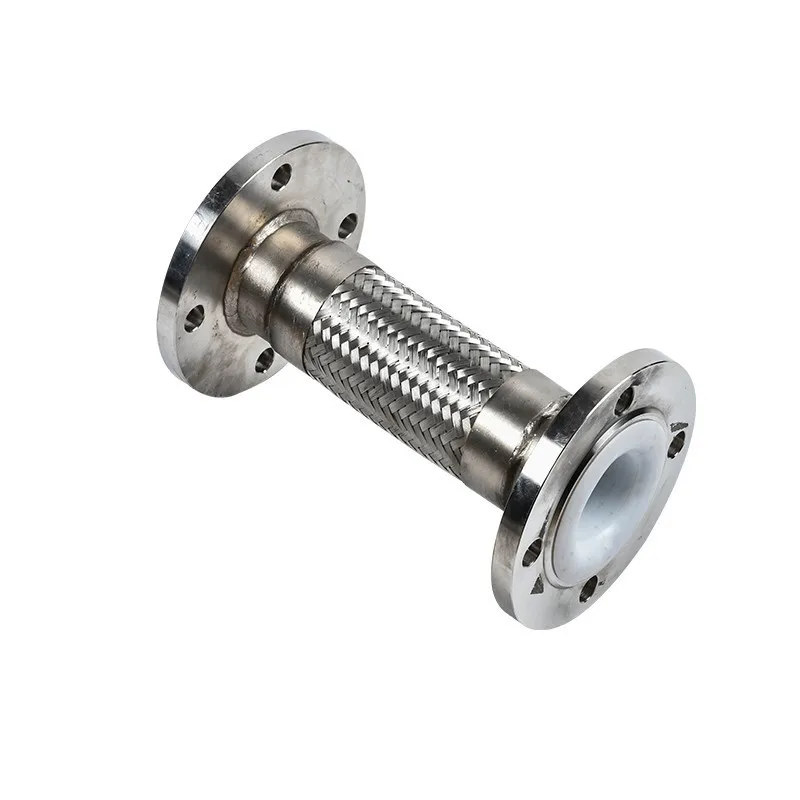

SF Teflon hose (Smooth-FLON) is lined with advanced Telflon (PTFE) material, which has strong corrosion resistance and mechanical properties, and can transport various gaseous substances, petroleum products, chemical solvents, food and pharmaceuticals and other materials.
SF Teflon hose (Smooth-FLON) is lined with advanced Telflon (PTFE) material, which has strong corrosion resistance and mechanical properties, and can transport various gaseous substances, petroleum products, chemical solvents, food and pharmaceuticals and other materials.
Operating Temperature: -60°C to +260°C.
Product Structure:
Inner tube: smooth, translucent PTFE, anti-corrosion and anti-penetration, flame-retardant and fire-resistant;
Reinforcement:stainless steel wire braided mesh reinforcement;
Outer tube: stainless steel wire woven mesh, anti-burr.
Outer tube: stainless steel wire woven mesh, anti-burr.
Product Features:
Mechanical properties that exceed other similar products;
The inner layer of the hose is extremely chemically inert;
Good dielectric properties;
Can transport almost all chemicals;
The outer steel wire is not easy to burr, and the operation is safe;
Can transport sanitary materials;
Can transport sanitary materials;
Great operating temperature range (-70℃ to 260℃);
Can withstand SIP and CIP; Flame retardant and fire resistant.
Technical Parameter :
Hose inner diameter (mm) | Hose outer diameter (mm) | Working pressure (bar) | Burst pressure (bar) | Vacuum pressure (bar) | Bending radius (mm) | Maximum length (m) |
5 | 8 | 200 | 200 | FULL | 63 | 100 |
6 | 9 | 170 | 170 | FULL | 76 | 100 |
8 | 11 | 150 | 150 | FULL | 102 | 100 |
10 | 13 | 130 | 130 | HALF | 127 | 100 |
11 | 13 | 130 | 130 | HALF | 133 | 100 |
13 | 16 | 120 | 120 | HALF | 152 | 100 |
16 | 19 | 80 | 80 | 0 | 178 | 50 |
19 | 22 | 80 | 80 | 0 | 203 | 50 |
22 | 25 | 70 | 70 | 0 | 250 | 50 |
25 | 29 | 60 | 60 | 0 | 305 | 50 |
28 | 32 | 55 | 55 | 0 | 300 | 50 |

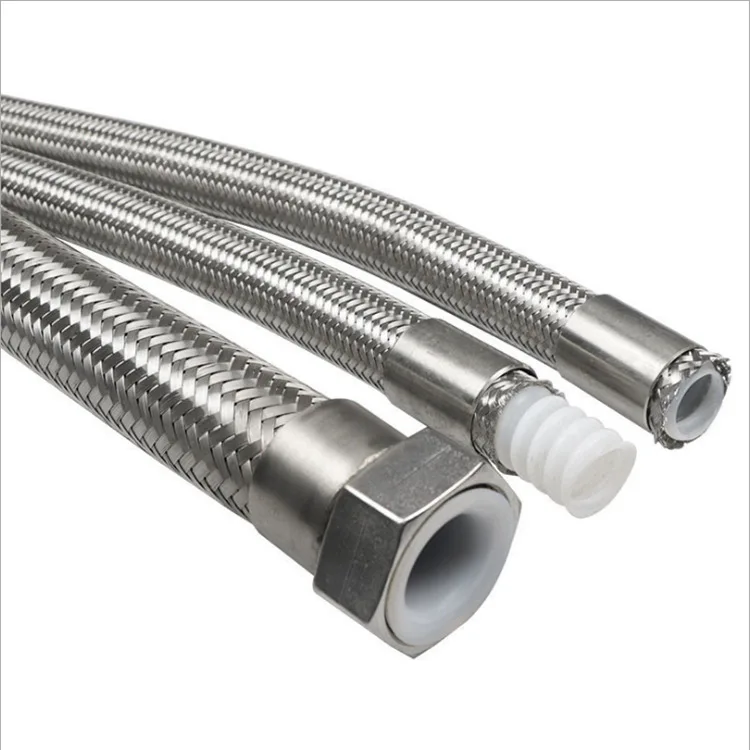

Product Description:The inner layer of CF Teflon corrugated pipe (Convoluted-FLON) is a spiral PTFE pipe, which has strong permeability resistance, and the outer layer is a stainless steel wire protection mesh, which is widely used.
Operating Temperature: -60°C to +260°C.
Product Structure:
Inner tube: spiral corrugated, translucent PTFE;
Reinforcing layer: stainless steel wire woven mesh;
Outer layer: stainless steel wire woven mesh, anti-burr.
Product Features:
Excellent general chemical resistance;
Wide operating temperature range (-70°C to 260°C);
Very high weather resistance and UV stability;
Anti-stick properties;
Good dielectric properties;
Good flame retardancy;
Excellent self-lubricating properties.
Technical Parameter :
Hose inner diameter (mm) | Hose outer diameter (mm) | Working pressure (bar) | Burst pressure (bar) | Vacuum pressure (bar) | Bending radius (mm) | Maximum length (m) |
10 | 16 | 100 | 300 | FULL | 25 | 20 |
13 | 19 | 75 | 225 | FULL | 32 | 20 |
16 | 22 | 60 | 180 | FULL | 51 | 20 |
19 | 27 | 50 | 150 | FULL | 63 | 20 |
25 | 33 | 35 | 105 | FULL | 102 | 20 |
32 | 39 | 25 | 75 | FULL | 127 | 20 |
38 | 46 | 20 | 60 | FULL | 152 | 20 |
51 | 60 | 20 | 60 | FULL | 203 | 20 |
76 | 95 | 20 | 60 | FULL | 310 | 20 |
102 | 126 | 15 | 45 | FULL | 380 | 20 |
Connector Display
Applications
Production And Processing Display
Company Profile
Certificate Display
Packing And Shipping
FAQ
1. who are we?
We are based in Tianjin, China, start from 2015,sell to Central America(20.00%),South America(20.00%),North America(20.00%),Southern Europe(10.00%),Eastern Europe(10.00%),Western Europe(10.00%),Oceania(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Metal Hose,Composite hose,Sealing ring,Stainless steel compensator
4. why should you buy from us not from other suppliers?
Honglifang Hydraulic Equipment Technology Co., Ltd., we have been focusing on machinery and industrial products. Our design and development team has more than ten years of production experience, if you are interested in our products, please contact us!
5. what services can we provide?
Accepted Delivery Terms: EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Tianjin, China, start from 2015,sell to Central America(20.00%),South America(20.00%),North America(20.00%),Southern Europe(10.00%),Eastern Europe(10.00%),Western Europe(10.00%),Oceania(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Metal Hose,Composite hose,Sealing ring,Stainless steel compensator
4. why should you buy from us not from other suppliers?
Honglifang Hydraulic Equipment Technology Co., Ltd., we have been focusing on machinery and industrial products. Our design and development team has more than ten years of production experience, if you are interested in our products, please contact us!
5. what services can we provide?
Accepted Delivery Terms: EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
